TOSHIBA
معرفی

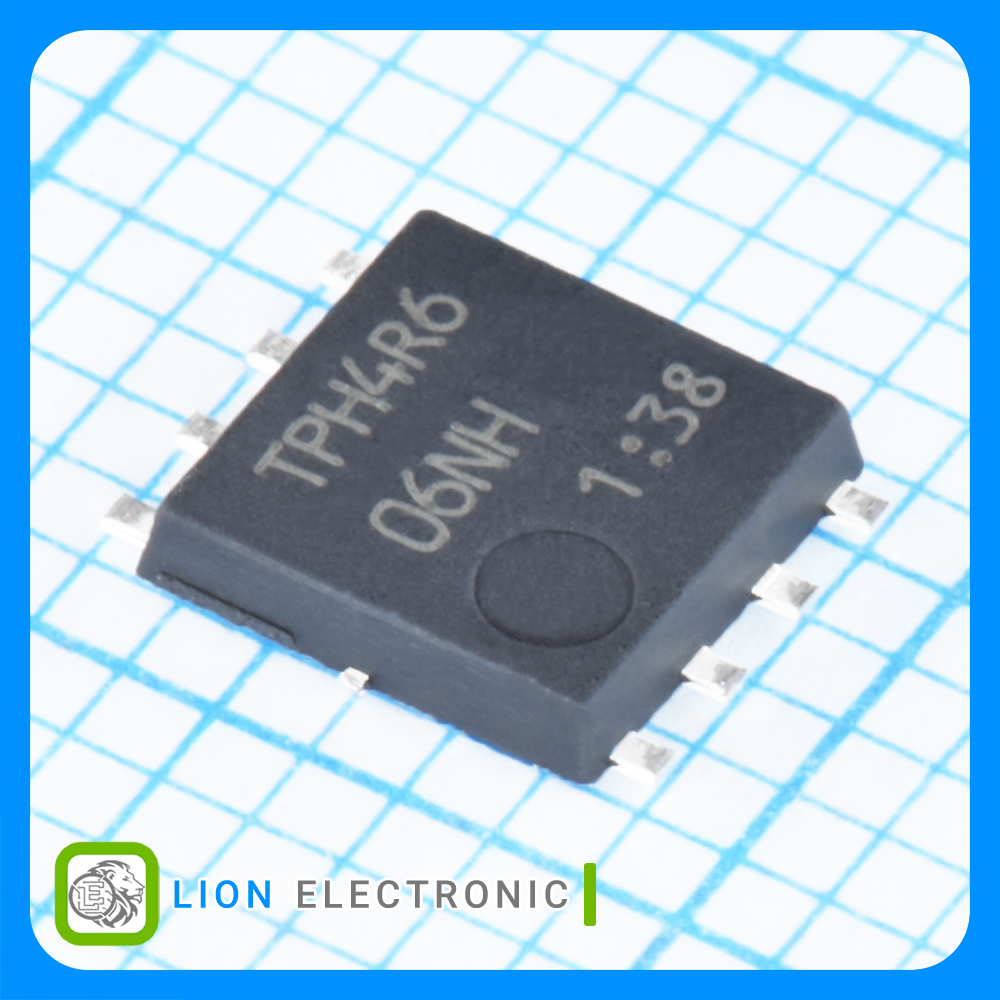

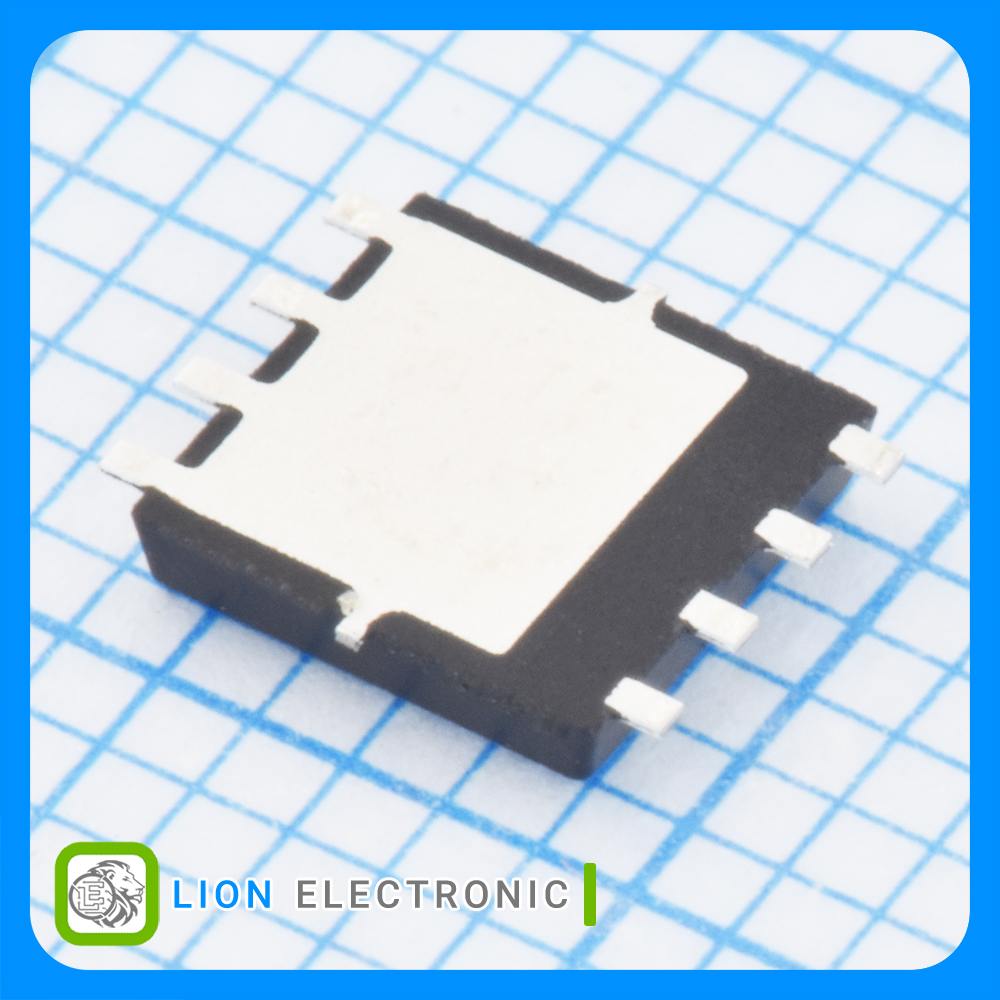

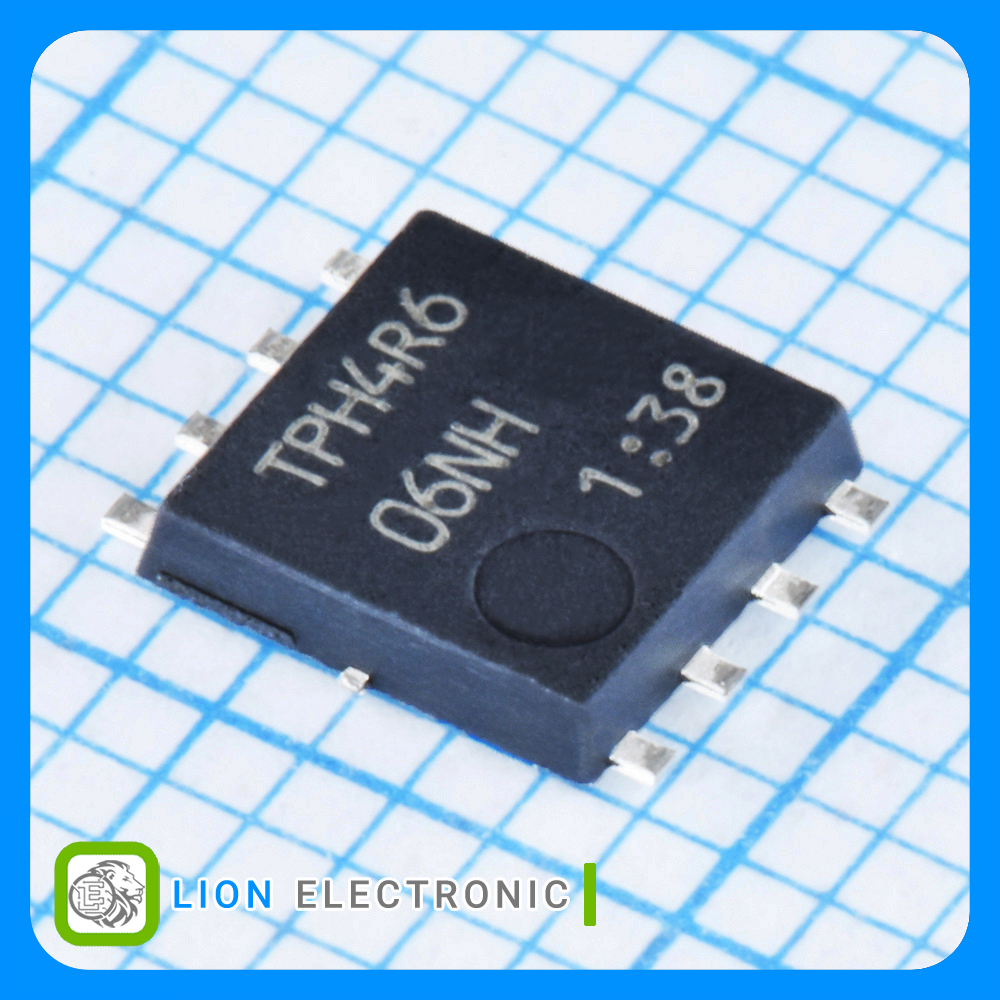

ماسفت 60 ولت 85 آمپر نوع N با پکیج SOP-8
N-CH MOSFET 60V, 85A with SOP-8 Package
Specifications
- Package/Case: SOP-8
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 85A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 3.8mΩ
- Pd - Power Dissipation: 63W
- Qg - Gate Charge: 49nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت TPH4R606NH

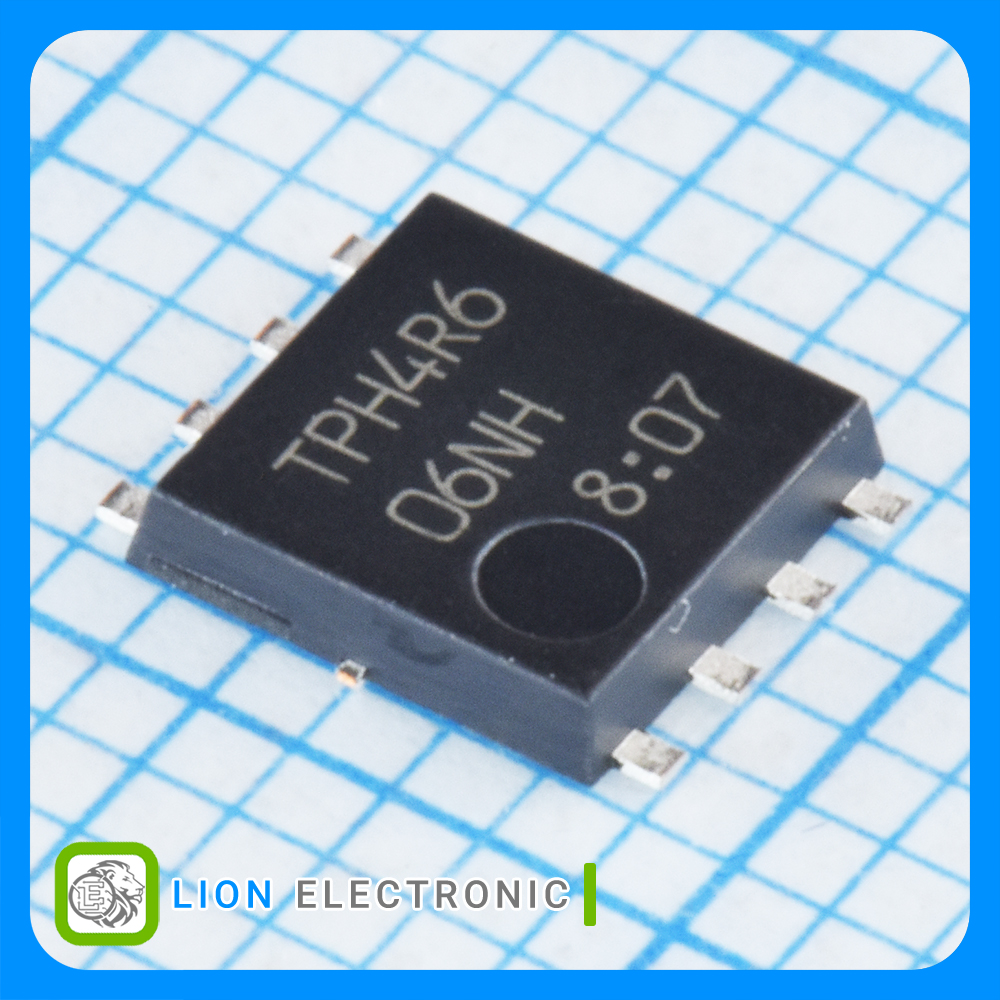

ماسفت TPH4R606NH
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
60V
Vds - Drain - Source Breakdown Voltage
3.8mΩ
Rds On - Drain - Source Resistance
2V
Vgs th - Gate - Source Threshold Voltage
49nC
Qg - Gate Charge
63W
Pd - Power Dissipation
85A
Id - Continuous Drain Current
SOP-8
Package-Case
