TOSHIBA
معرفی

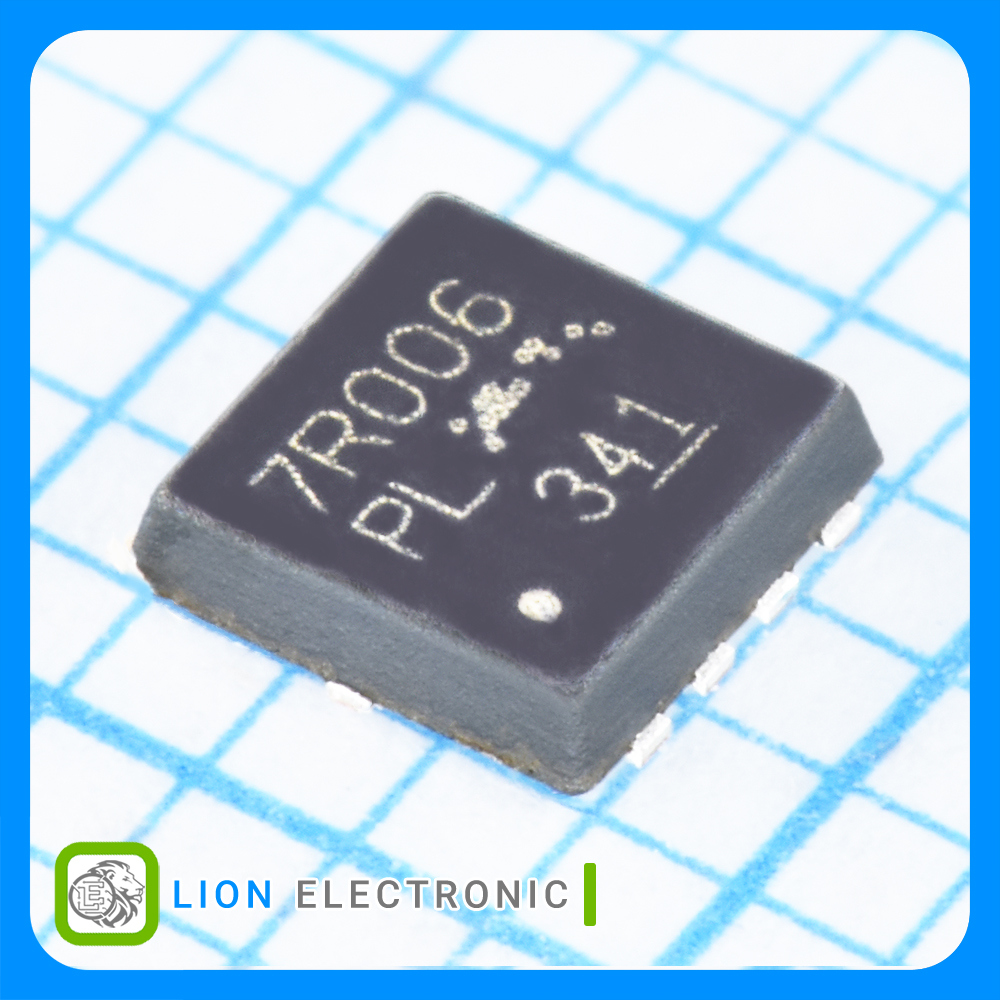

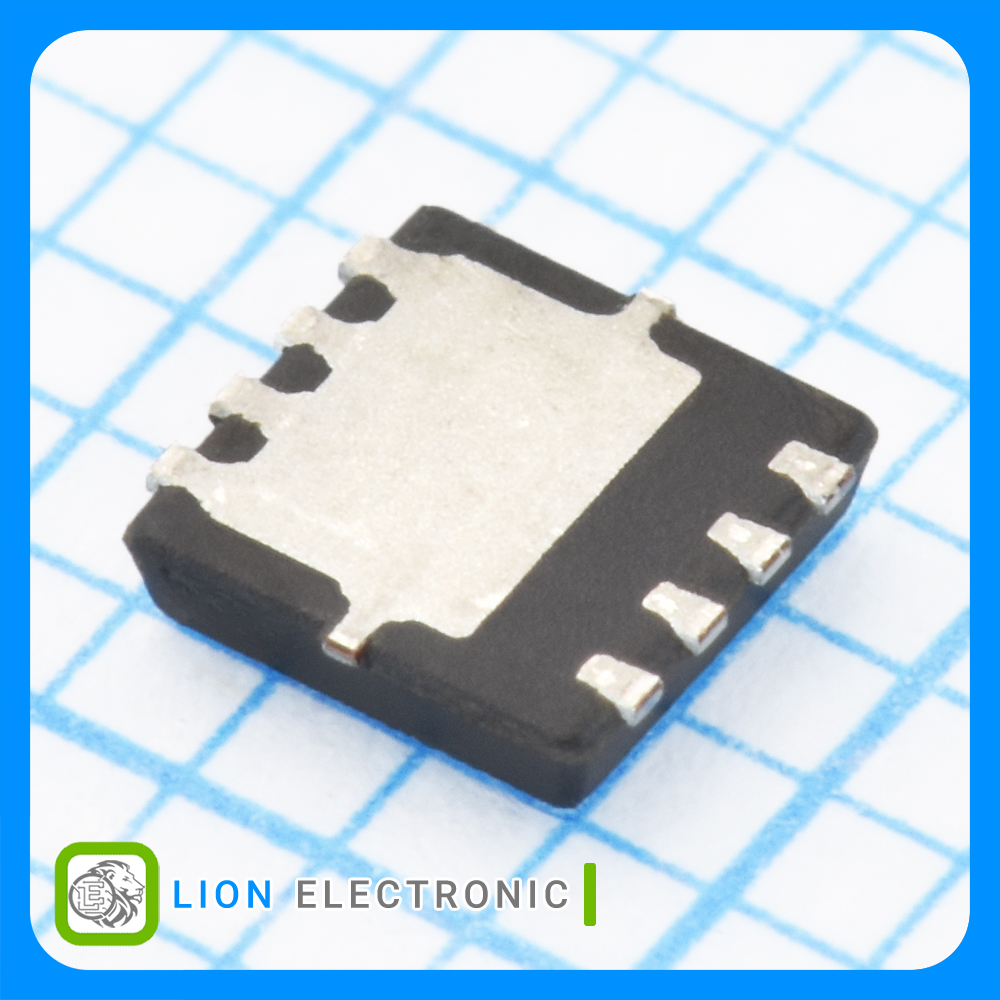

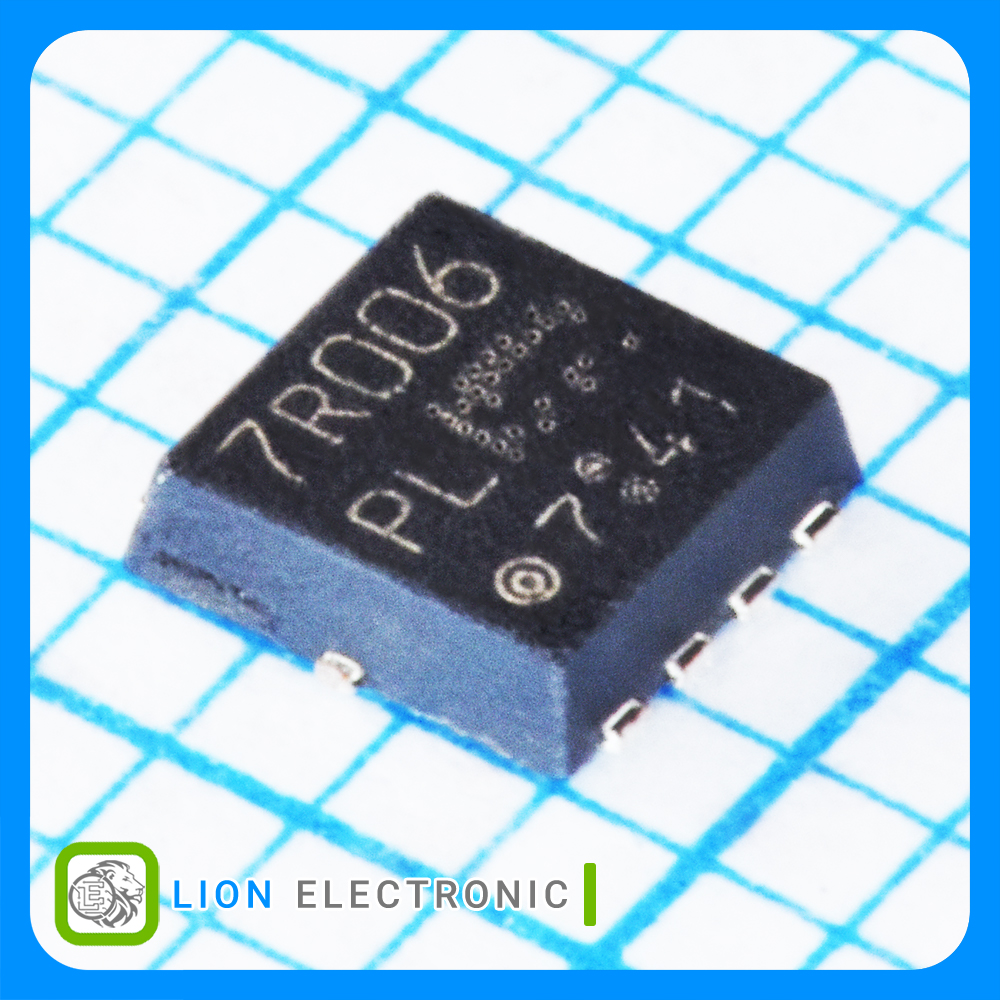

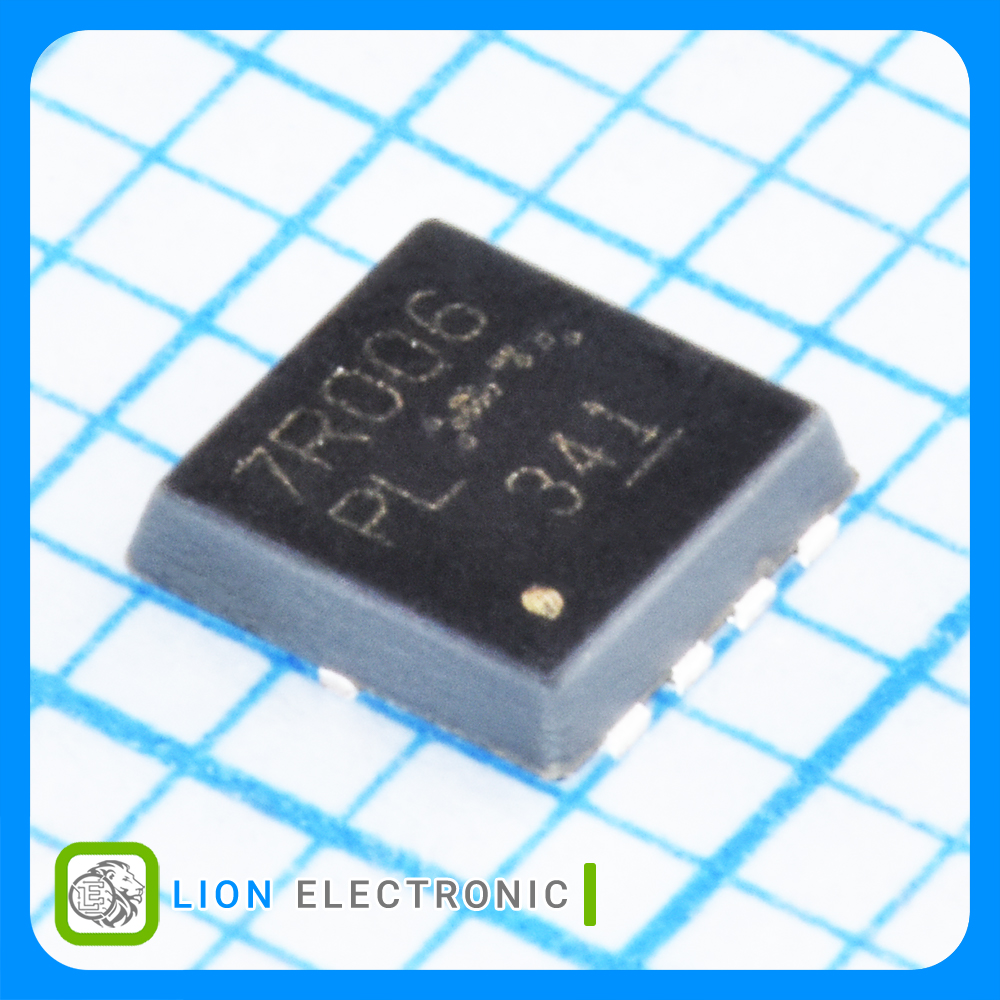

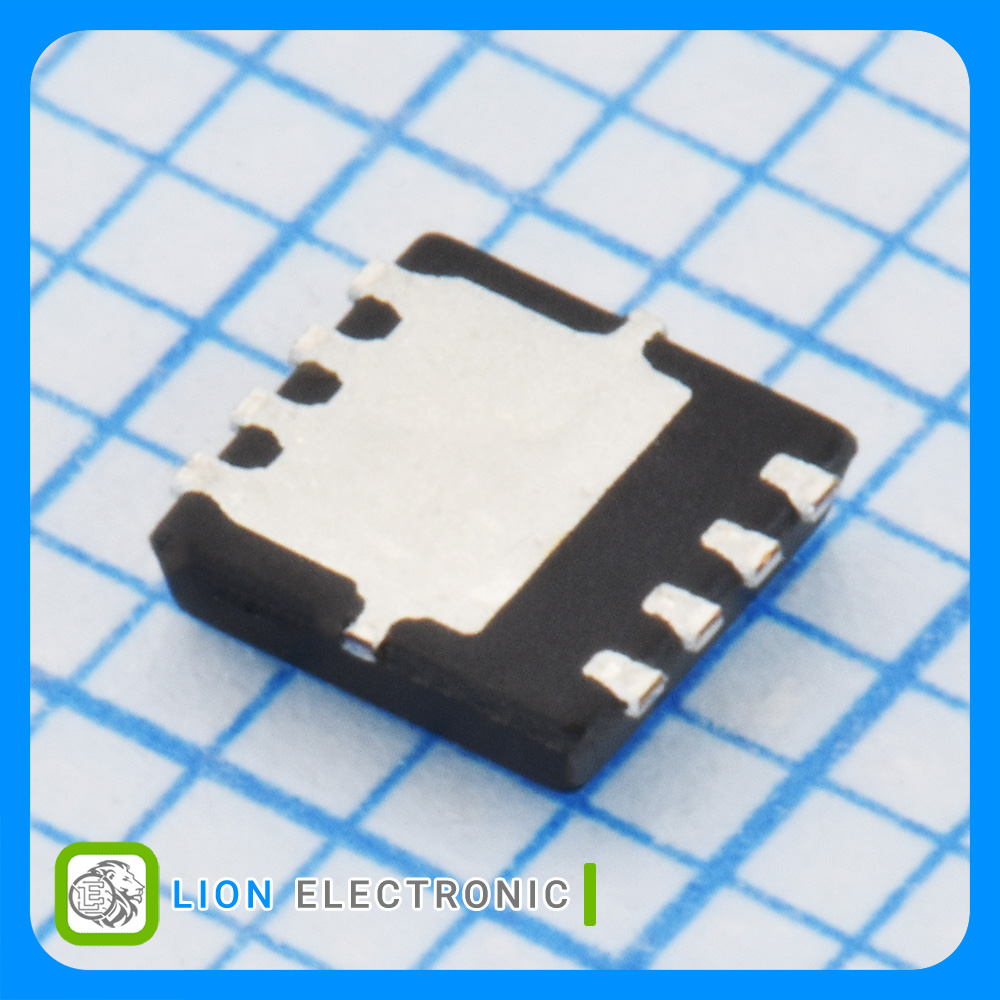

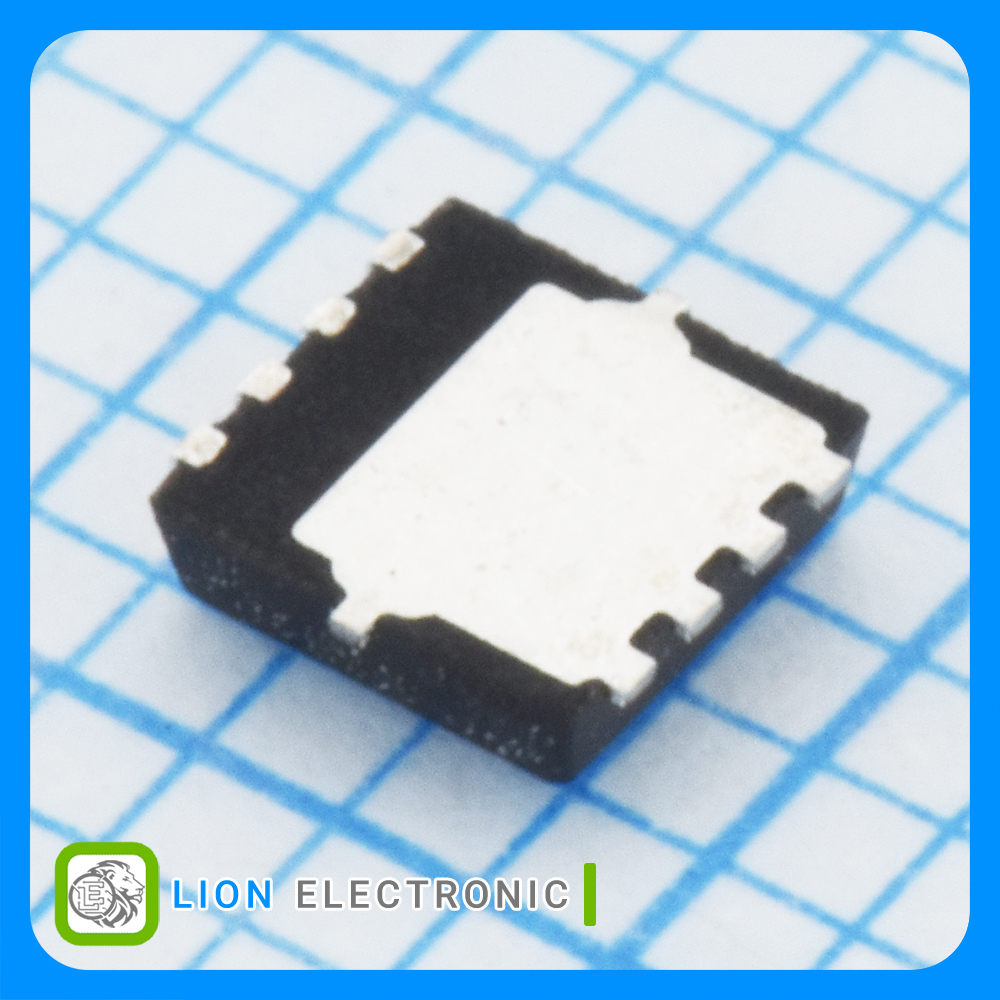

ماسفت 60 ولت 76 آمپر نوع N با پکیج TSON-8
N-CH MOSFET 60V, 76A with TSON-8 Package
Specifications
- Package/Case: TSON-8
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 76A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.5V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 5.4mΩ
- Pd - Power Dissipation: 75W
- Qg - Gate Charge: 20nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت TPN7R006PL

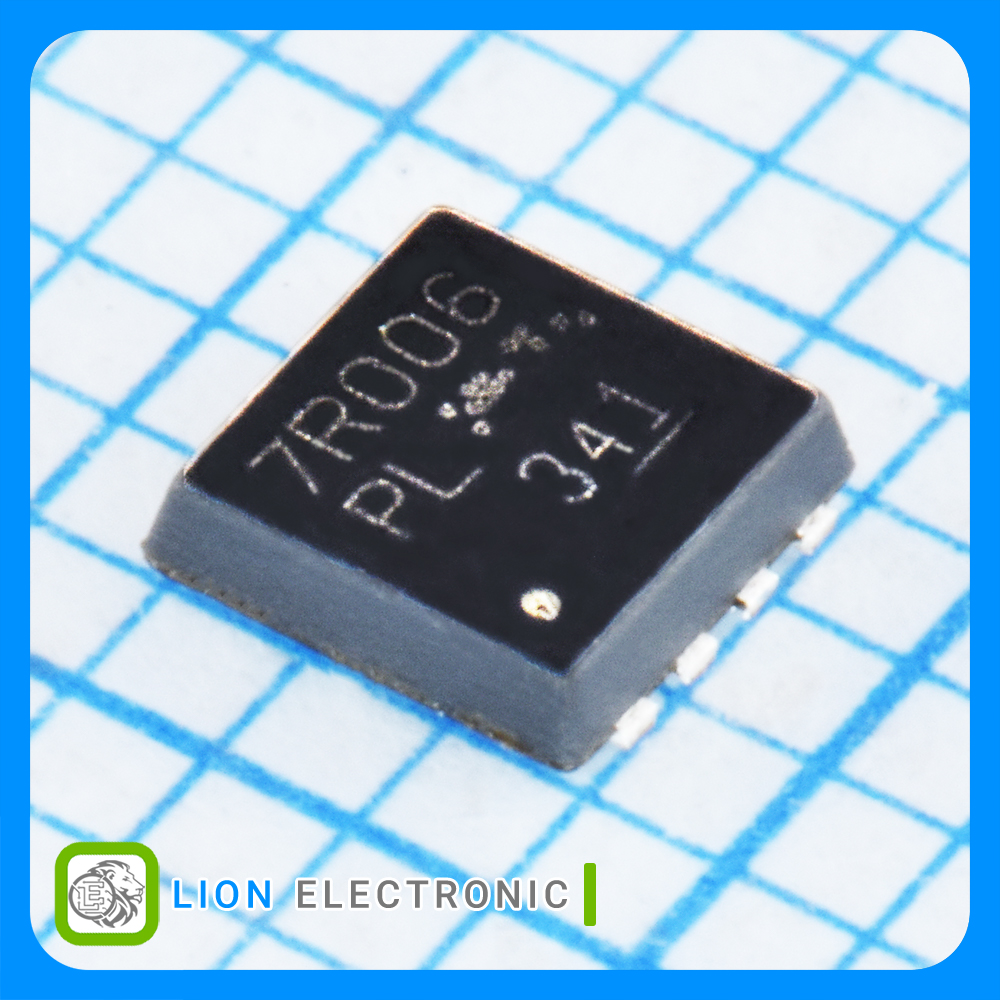

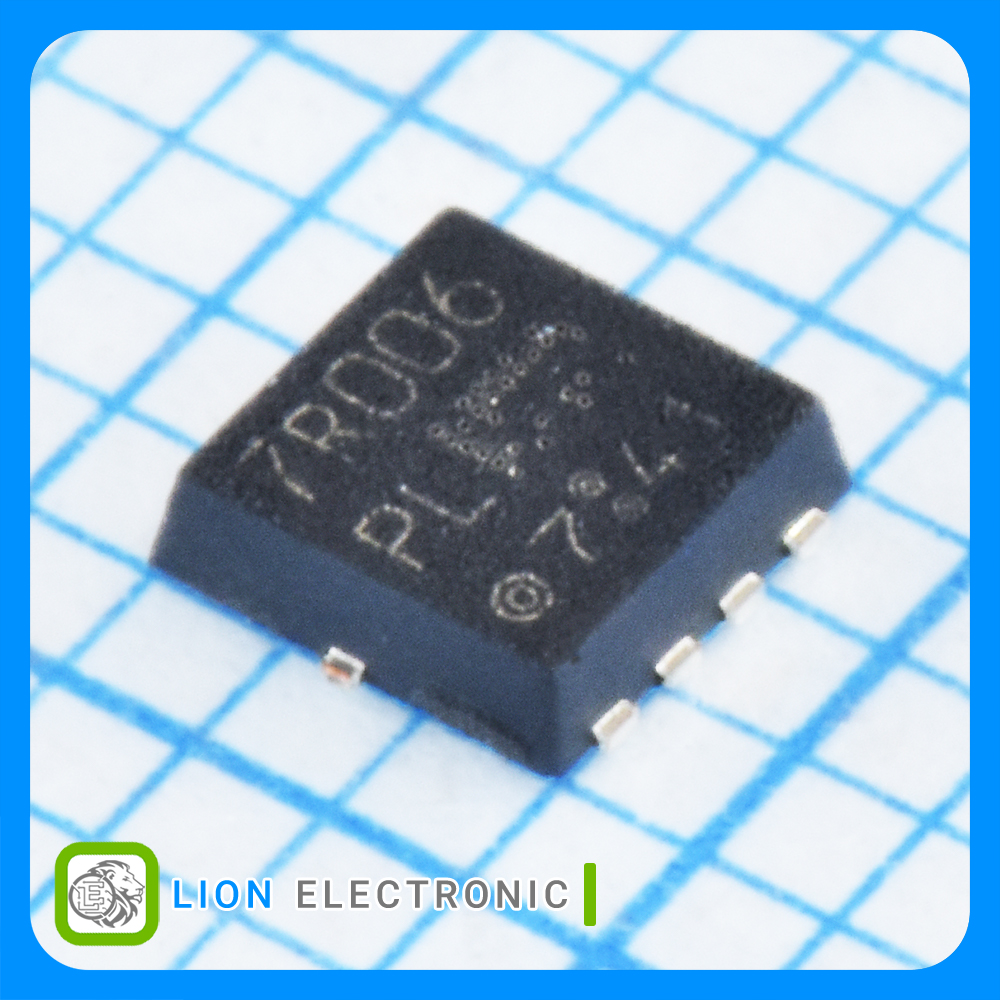

ماسفت TPN7R006PL
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
60V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
1.5V
Vgs th - Gate - Source Threshold Voltage
5.4mΩ
Rds On - Drain - Source Resistance
20nC
Qg - Gate Charge
75W
Pd - Power Dissipation
76A
Id - Continuous Drain Current
TSON-8
Package-Case
