TOSHIBA
معرفی

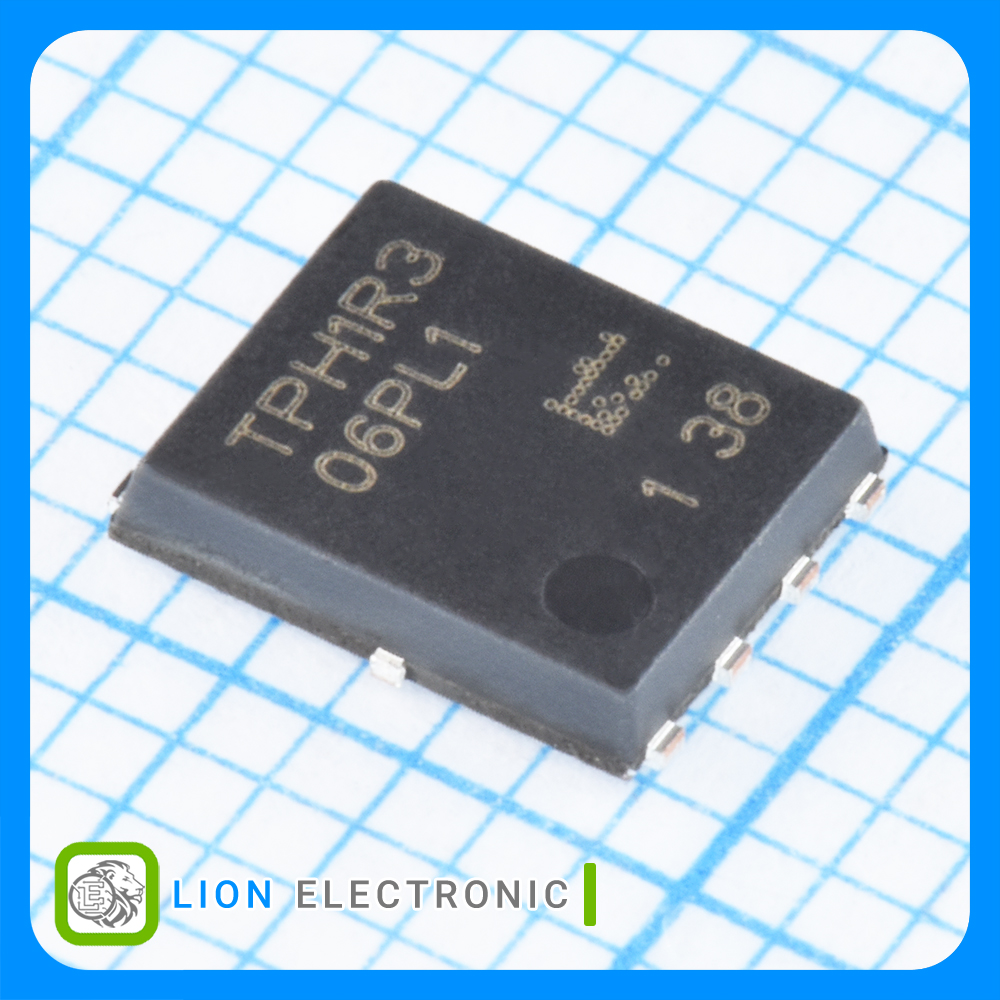

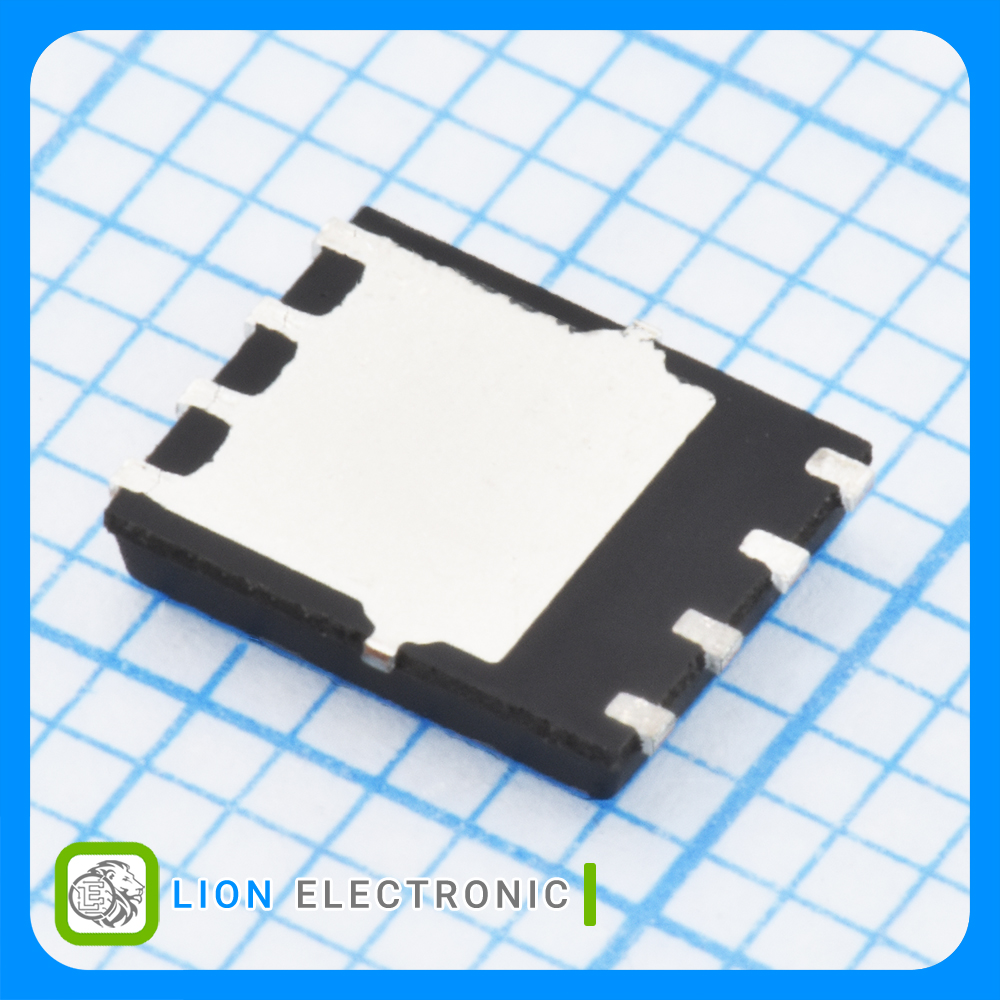

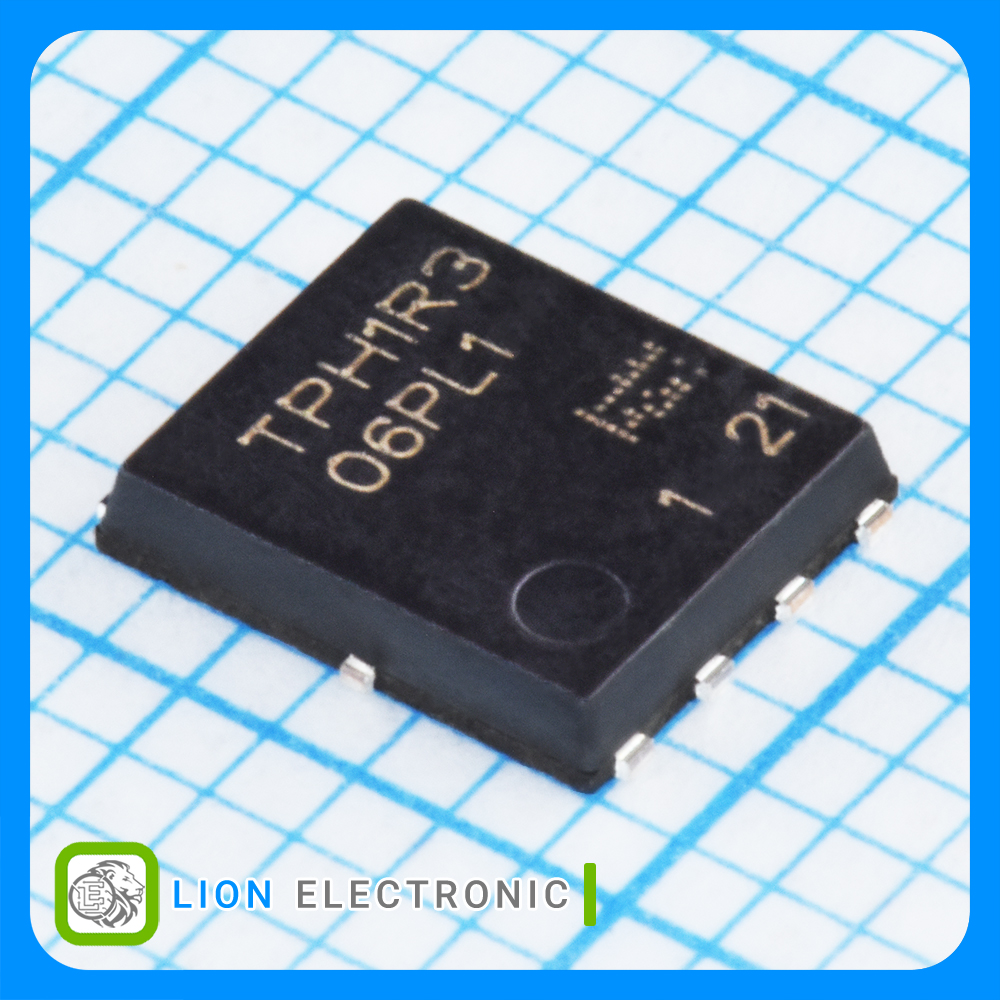

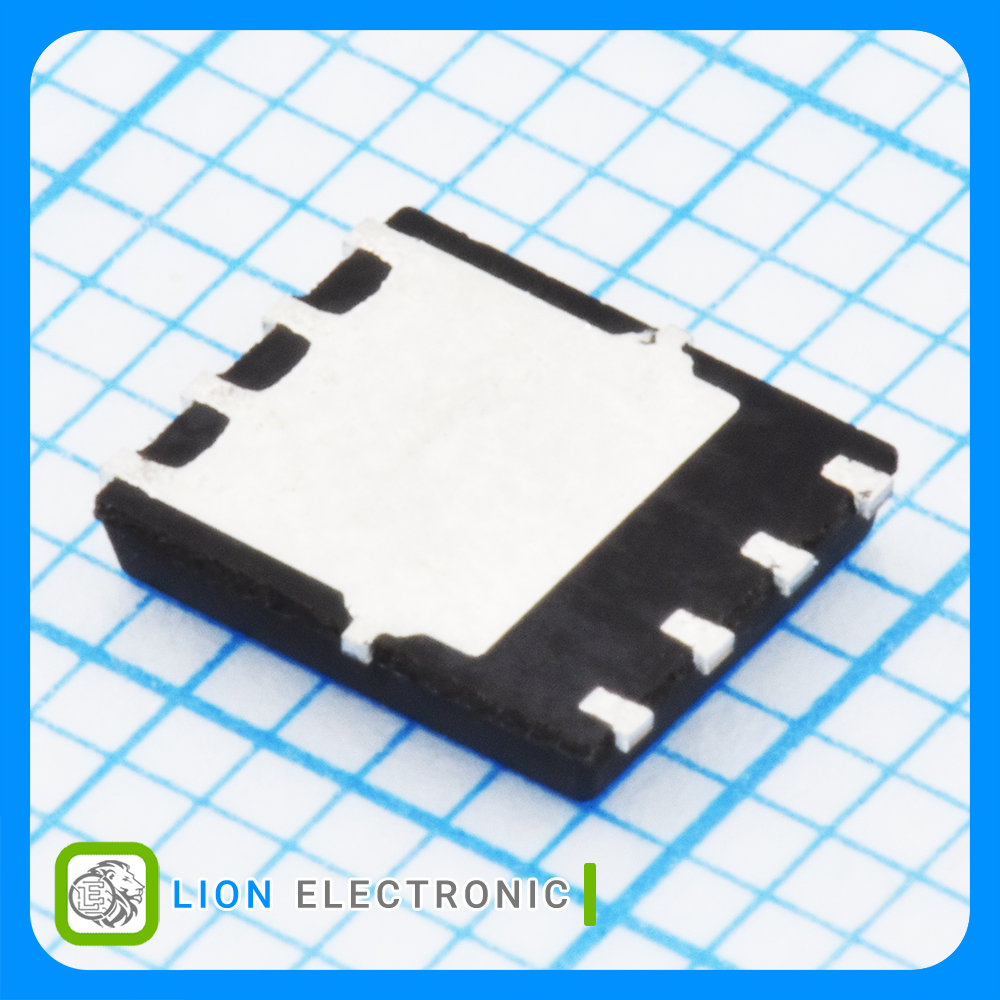

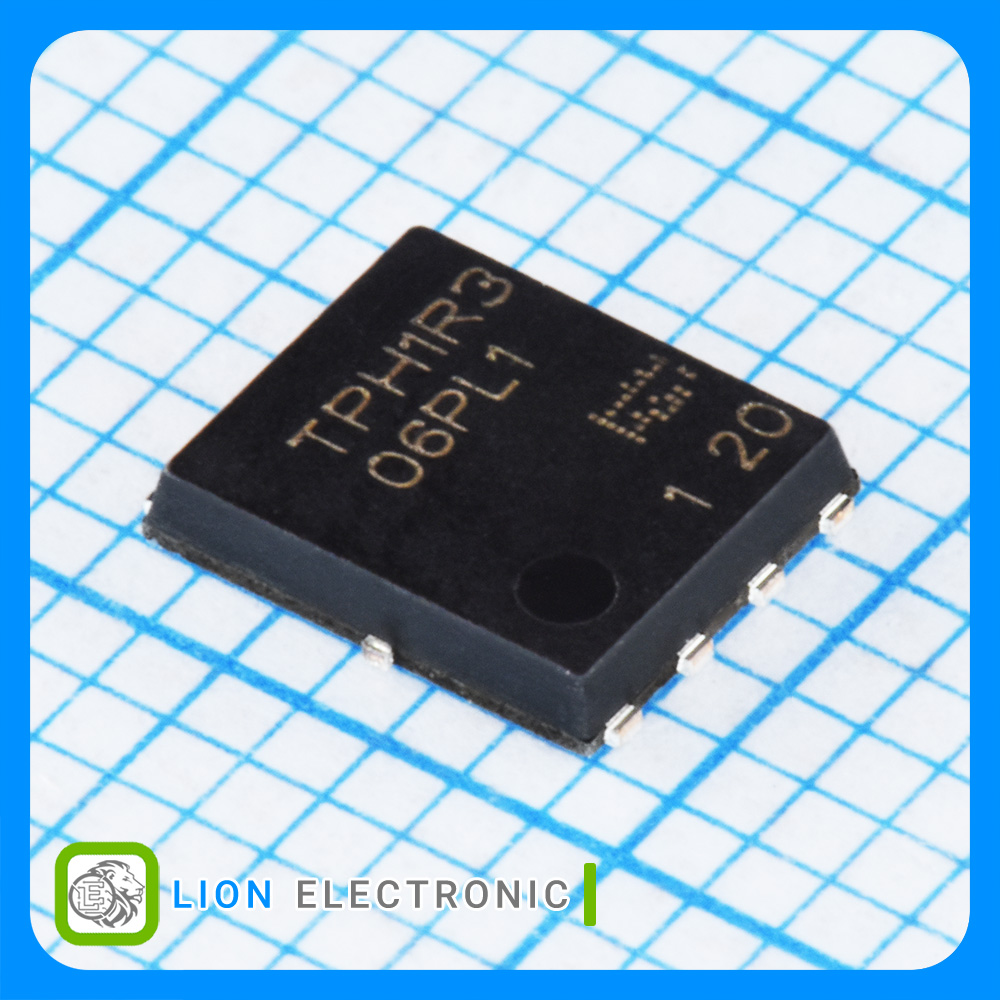

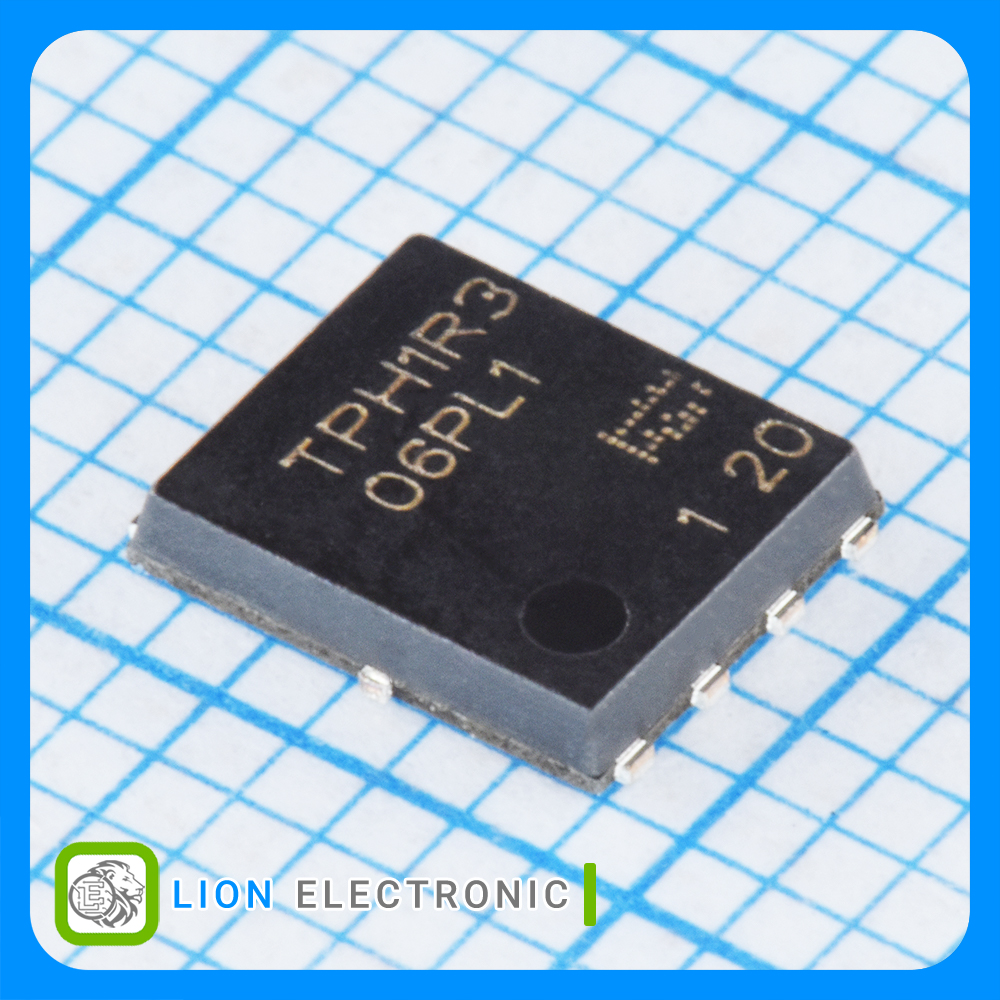

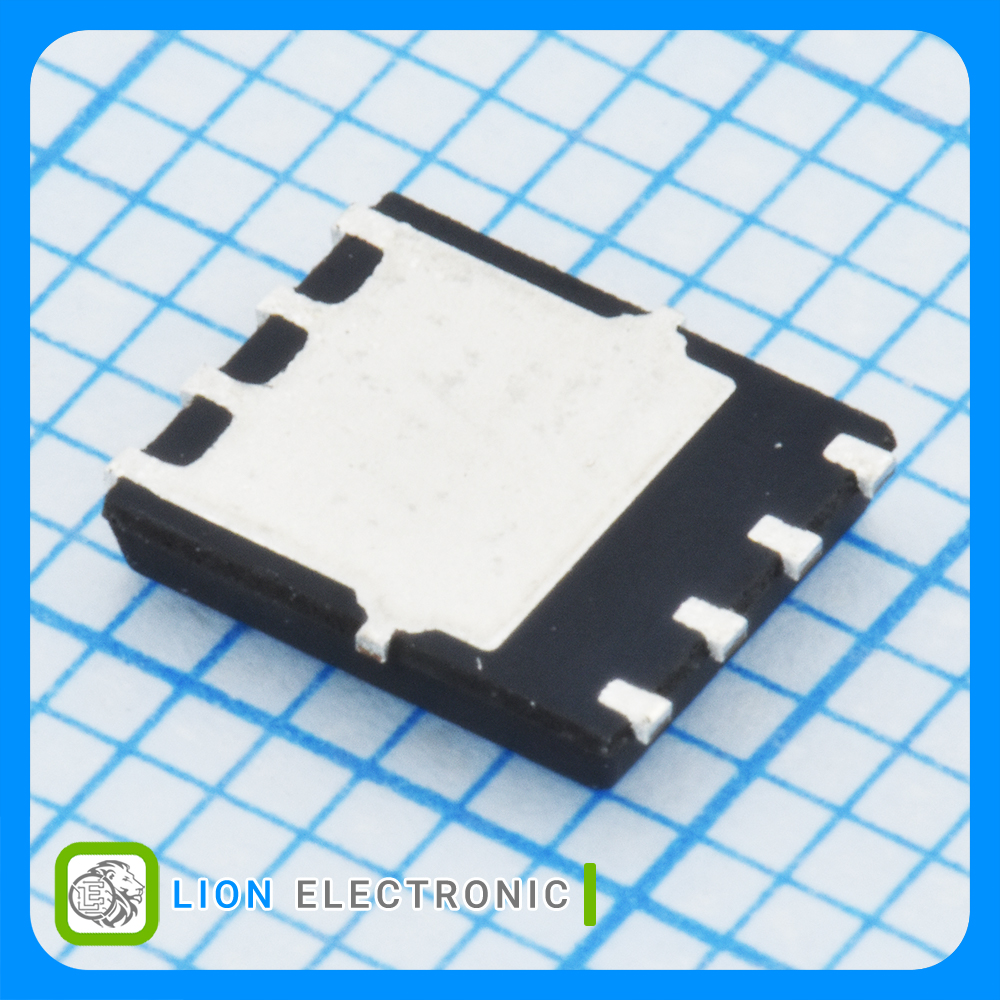

ماسفت 60 ولت 280 آمپر نوع N با پکیج SOP Advance-8
N-CH MOSFET 60V, 280A with SOP Advance-8 Package
Specifications
- Package/Case: SOP-8
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 280A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.5V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 1mΩ
- Pd - Power Dissipation: 210W
- Qg - Gate Charge: 91nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت TPH1R306PL1

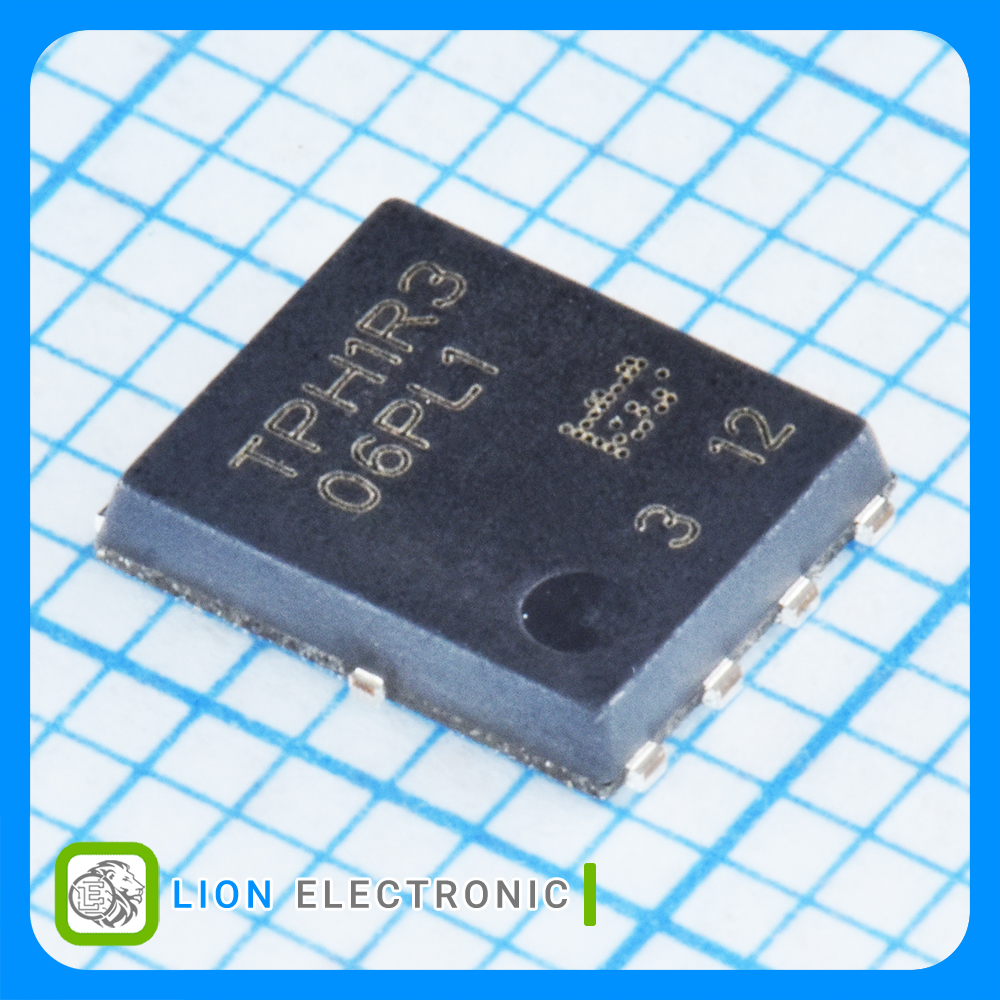

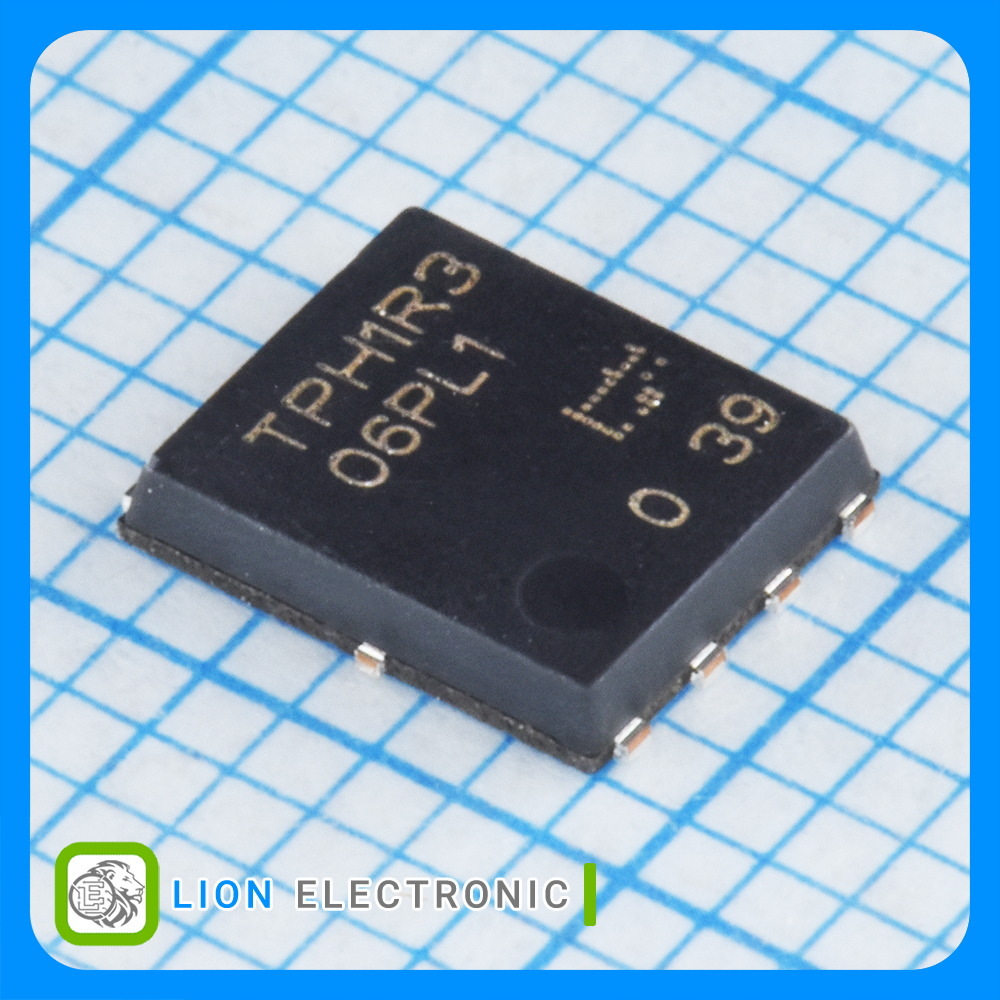

ماسفت TPH1R306PL1
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
1mΩ
Rds On - Drain - Source Resistance
±20V
Vgs - Gate - Source Voltage
60V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
1.5V
Vgs th - Gate - Source Threshold Voltage
91nC
Qg - Gate Charge
280A
Id - Continuous Drain Current
210W
Pd - Power Dissipation
SOP-8
Package-Case
