TOSHIBA
معرفی
ماسفت 60 ولت 105 آمپر نوع N با پکیج TO-220-3 عایق
N-CH MOSFET 60V, 105A with TO-220-3 Package
Specifications
- Package/Case: TO-220FP-3
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 105A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 4.4mΩ
- Pd - Power Dissipation: 35W
- Qg - Gate Charge: 46nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ماسفت TK58A06N1

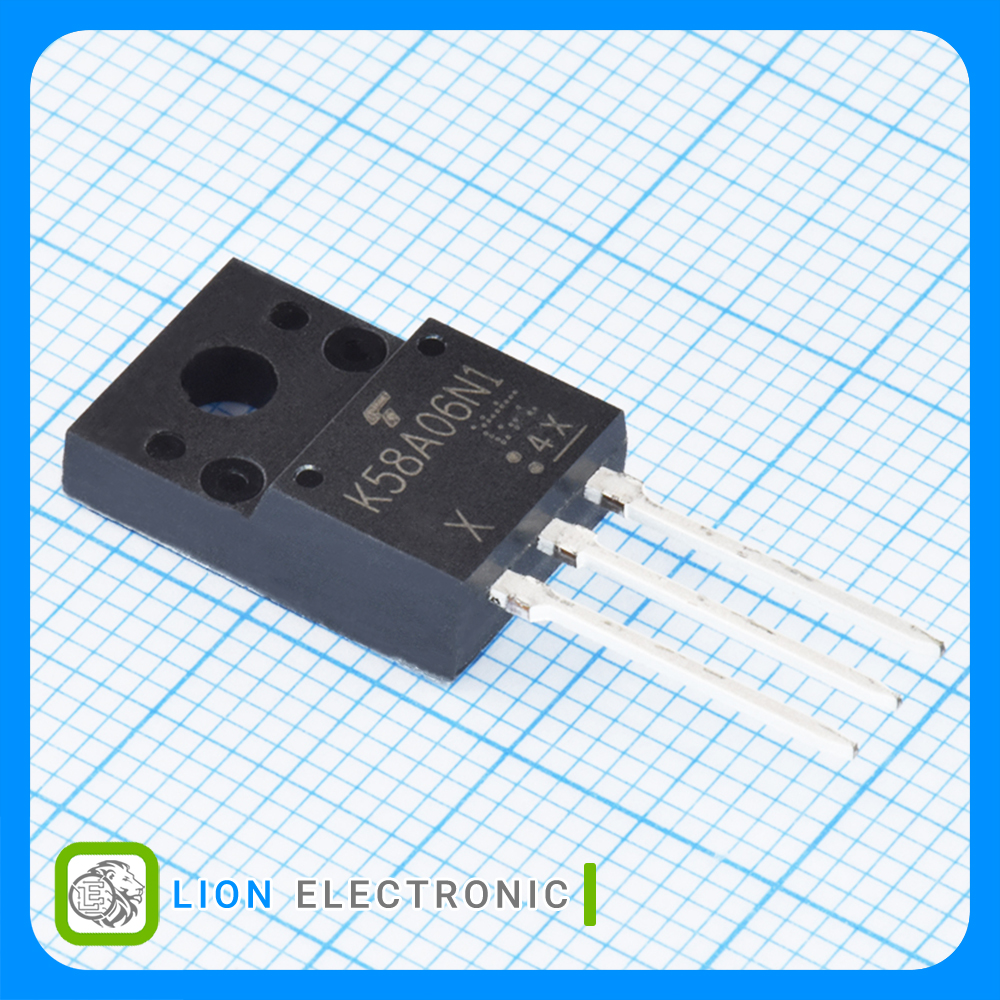

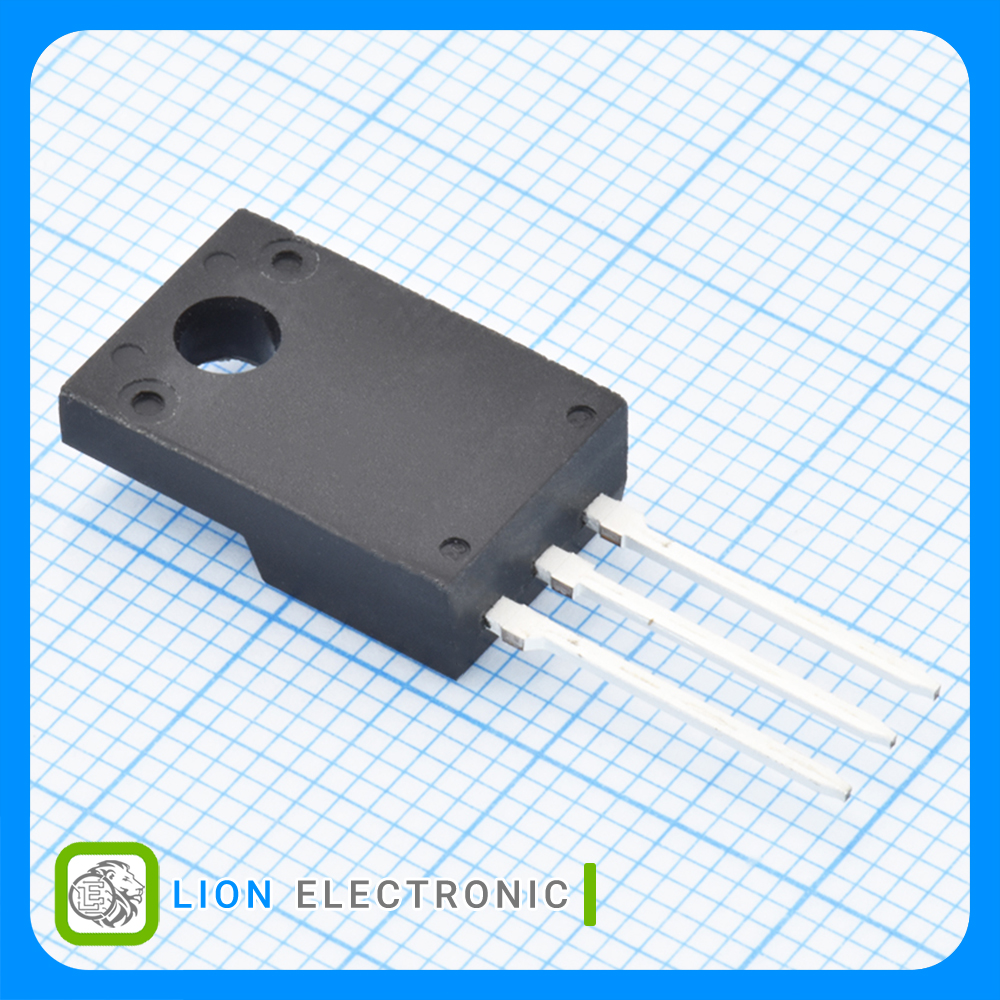

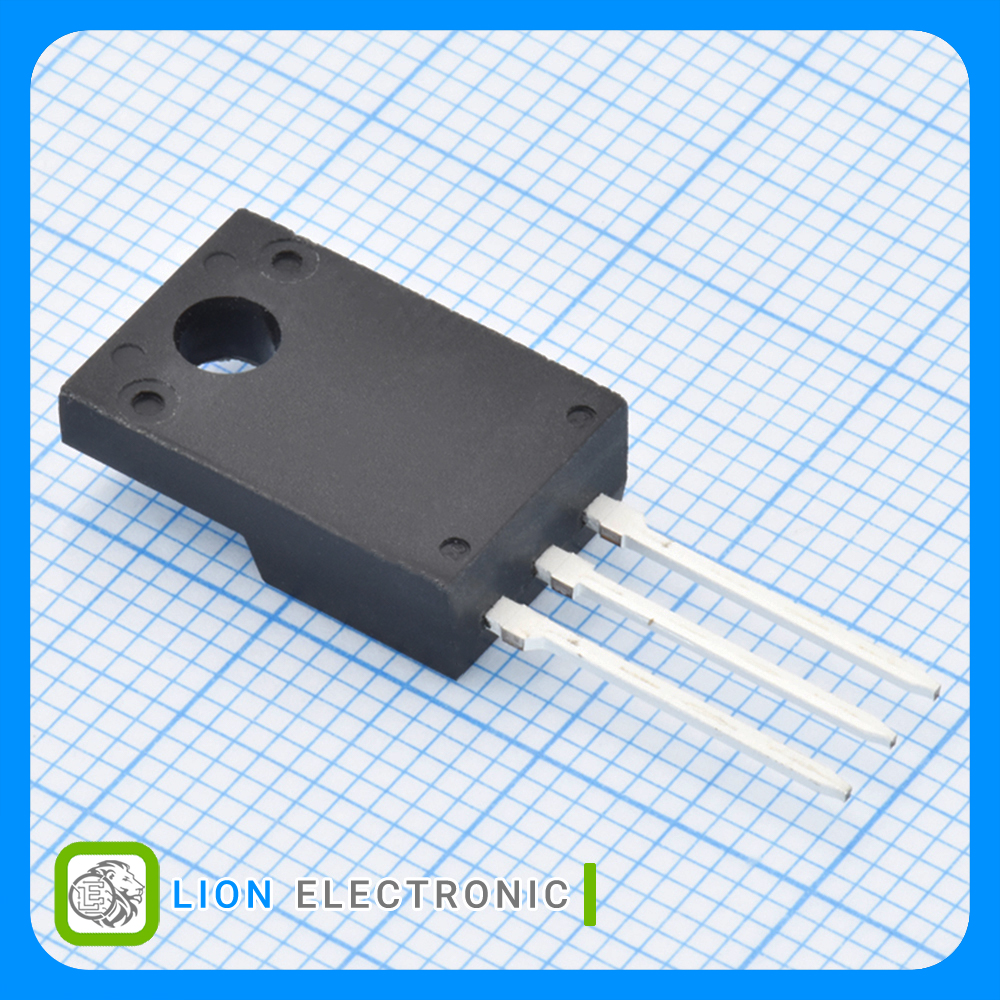

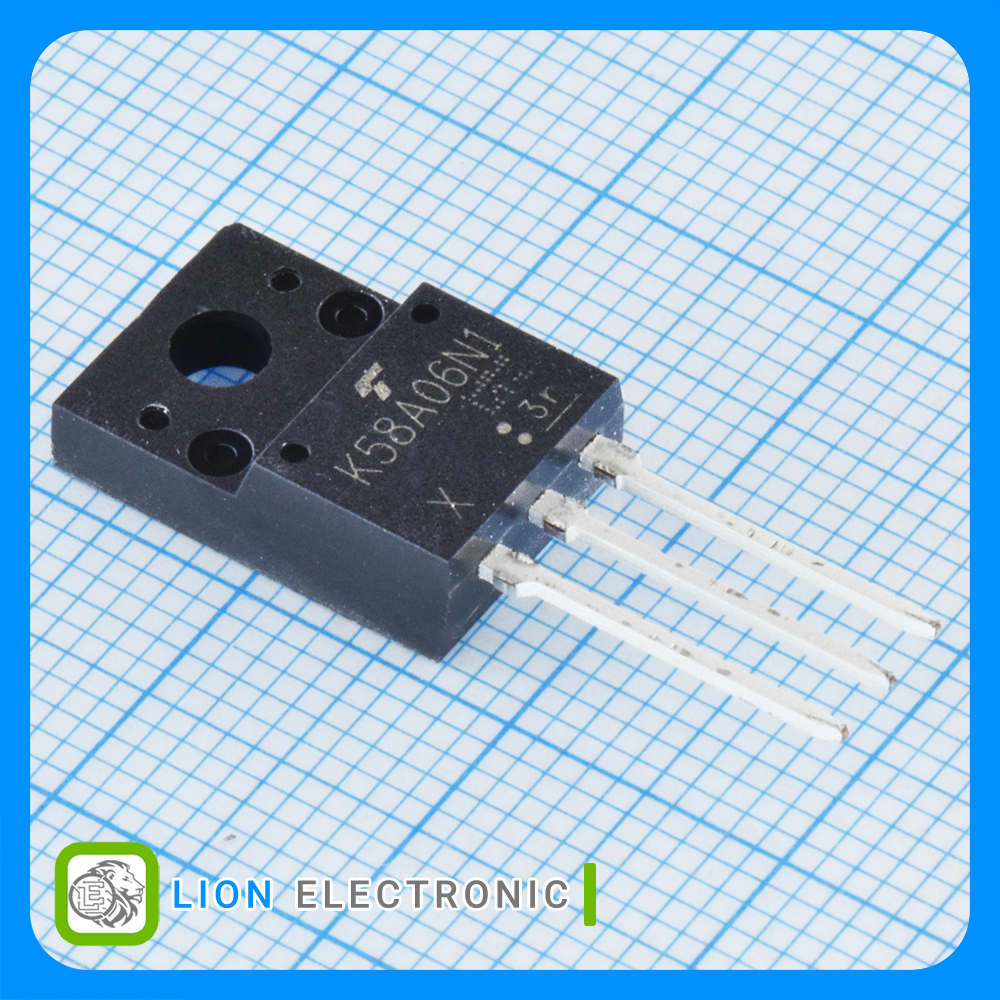

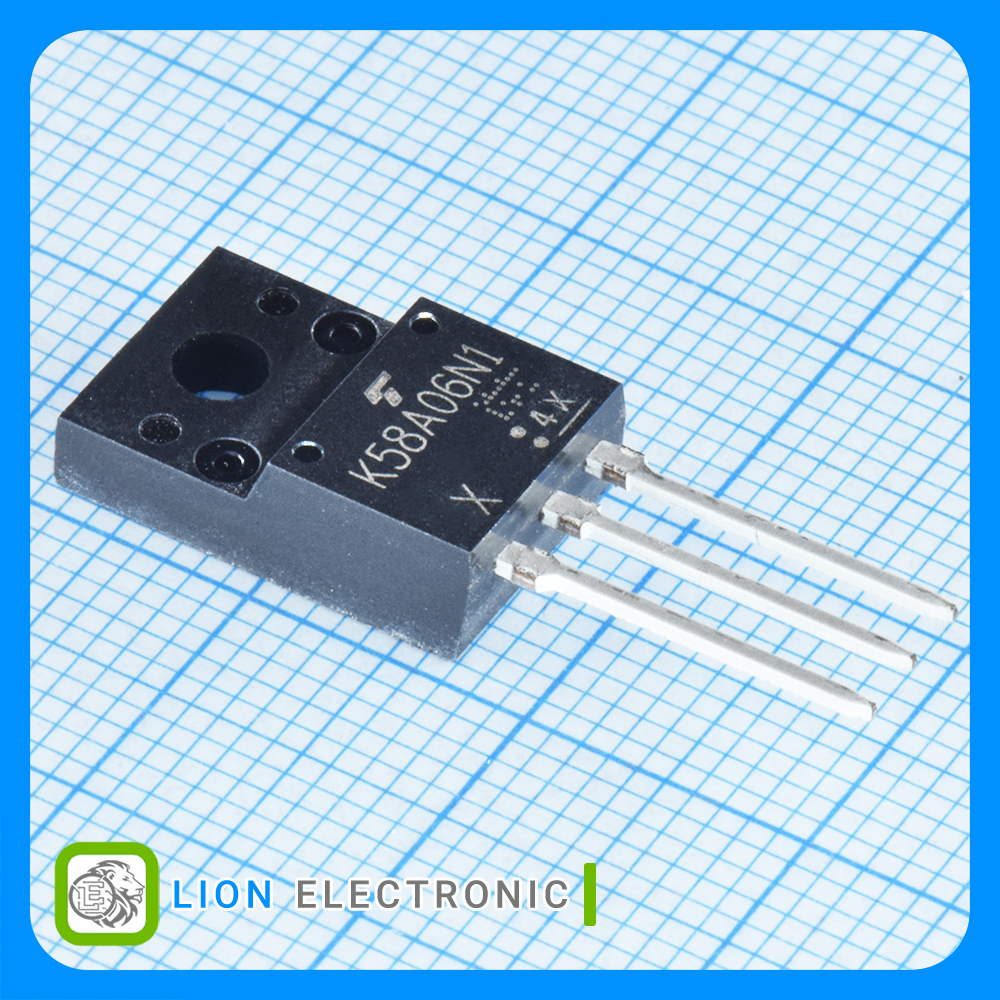

ماسفت TK58A06N1
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
60V
Vds - Drain - Source Breakdown Voltage
4.4mΩ
Rds On - Drain - Source Resistance
2V
Vgs th - Gate - Source Threshold Voltage
46nC
Qg - Gate Charge
35W
Pd - Power Dissipation
105A
Id - Continuous Drain Current
TO-220
Package-Case
