XFCN
معرفی
کانکتور FFC/FPC با 6 پین با فاصله پایه 1 میلیمتر اتصال از بالا با قفل کشویی، زاویه نصب راست

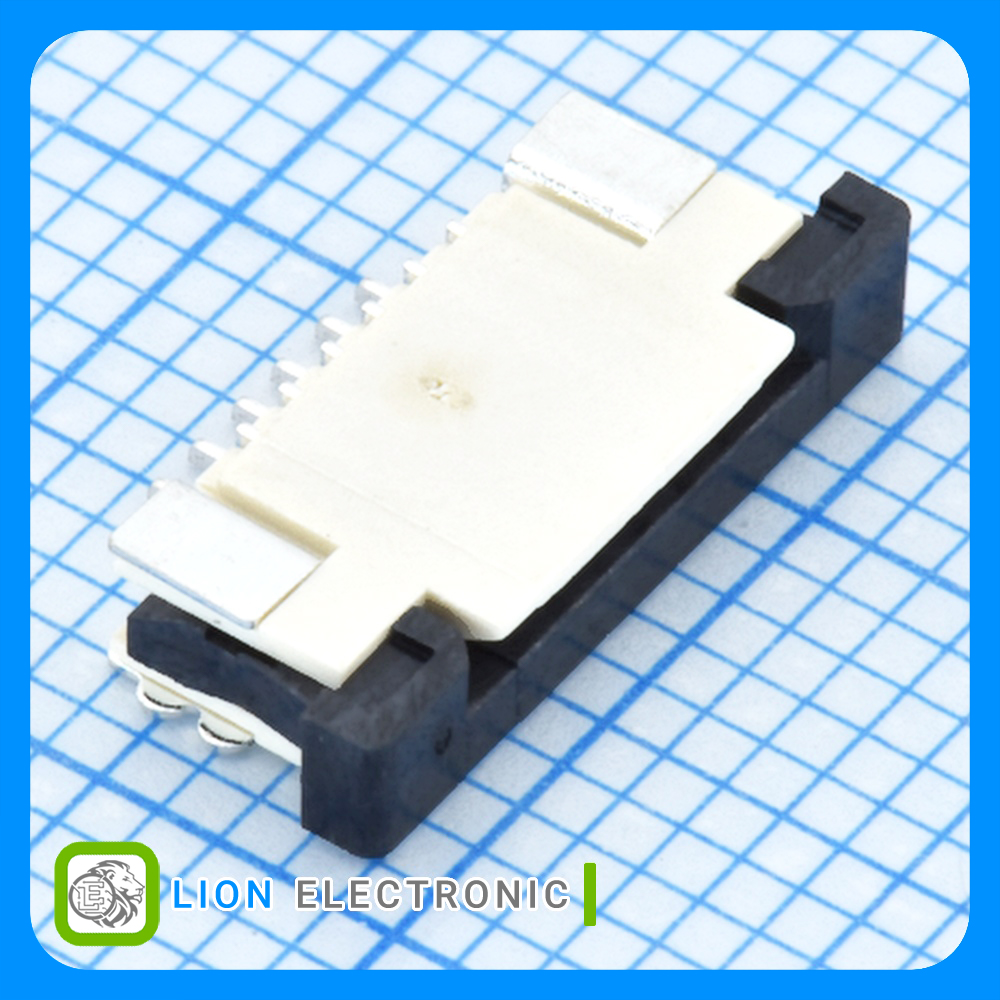

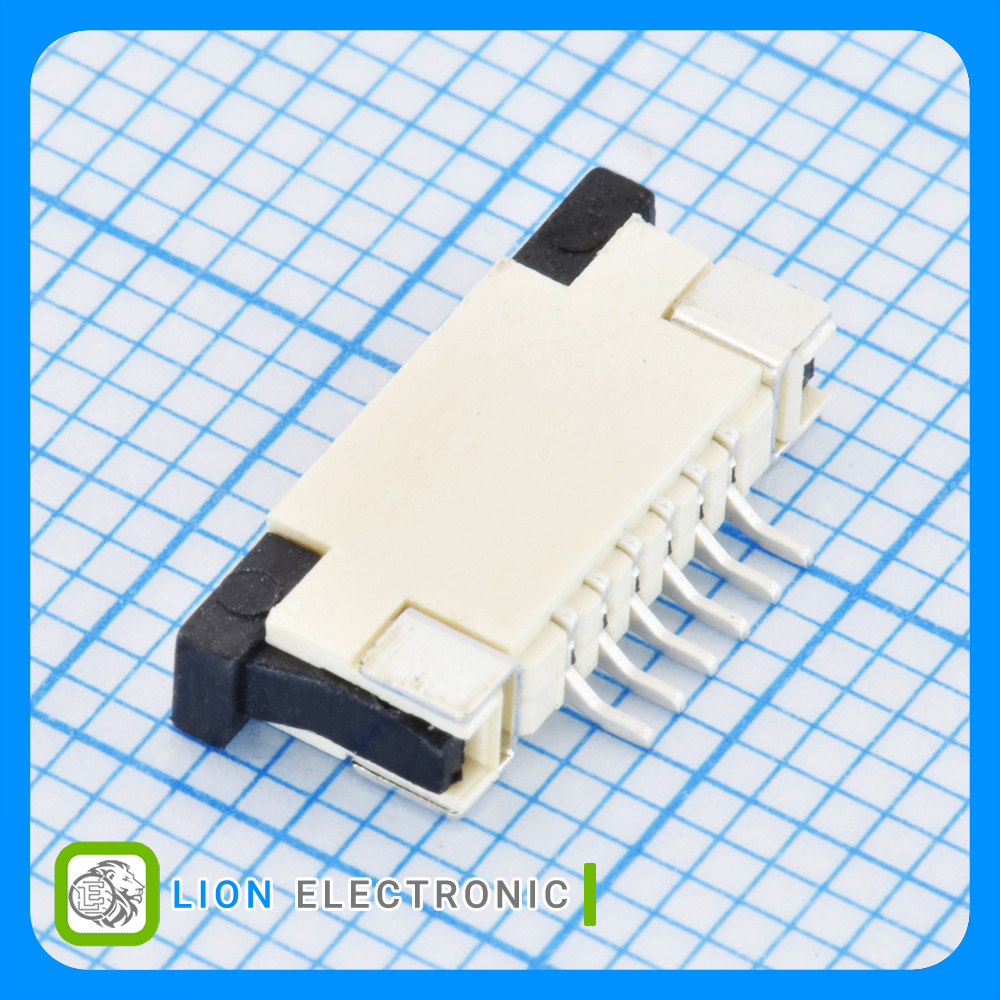

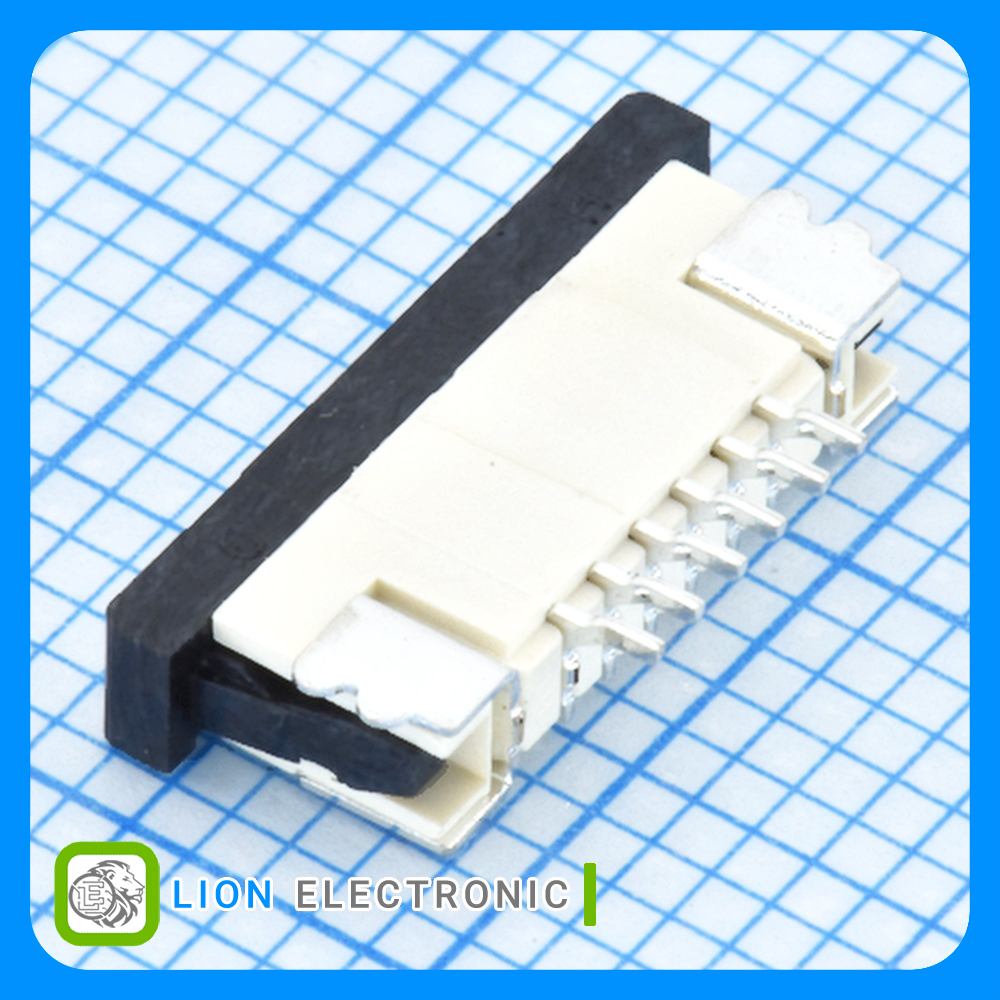

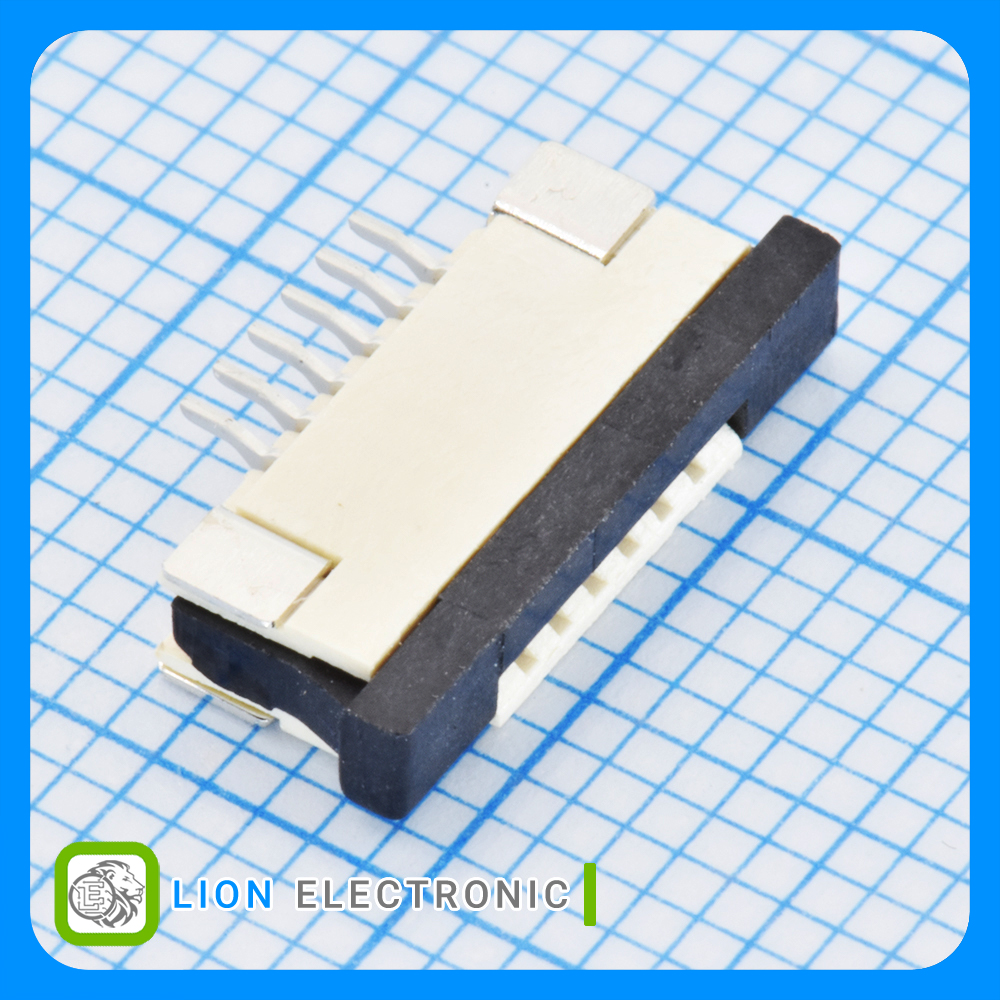

FFC/FPC Connector 6 Position, 1mm Pitch, Top Contact with Drawer Type Lock, Right Angle
Specifications
- Contact Location: Top Contact
- Locking Type: Drawer Type
- Number of Positions: 6 Position
- Pitch: 1mm
- Mounting Angle: Right Angle
- Termination style: SMD/SMT
- Minimum Operating Temperature: -25C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات کانکتور F1001-T-06-25T-R
کانکتور F1001-T-06-25T-R
Part Number
Drawer Type
Locking Type
Right Angle
Mounting Angle
Top Contact
Contact Location
1mm
Pitch
6 Position
Number of Positions
SMD/SMT
Termination style
Tube
Packaging
+85C
Maximum Operating Temperature
-25C
Minimum Operating Temperature
