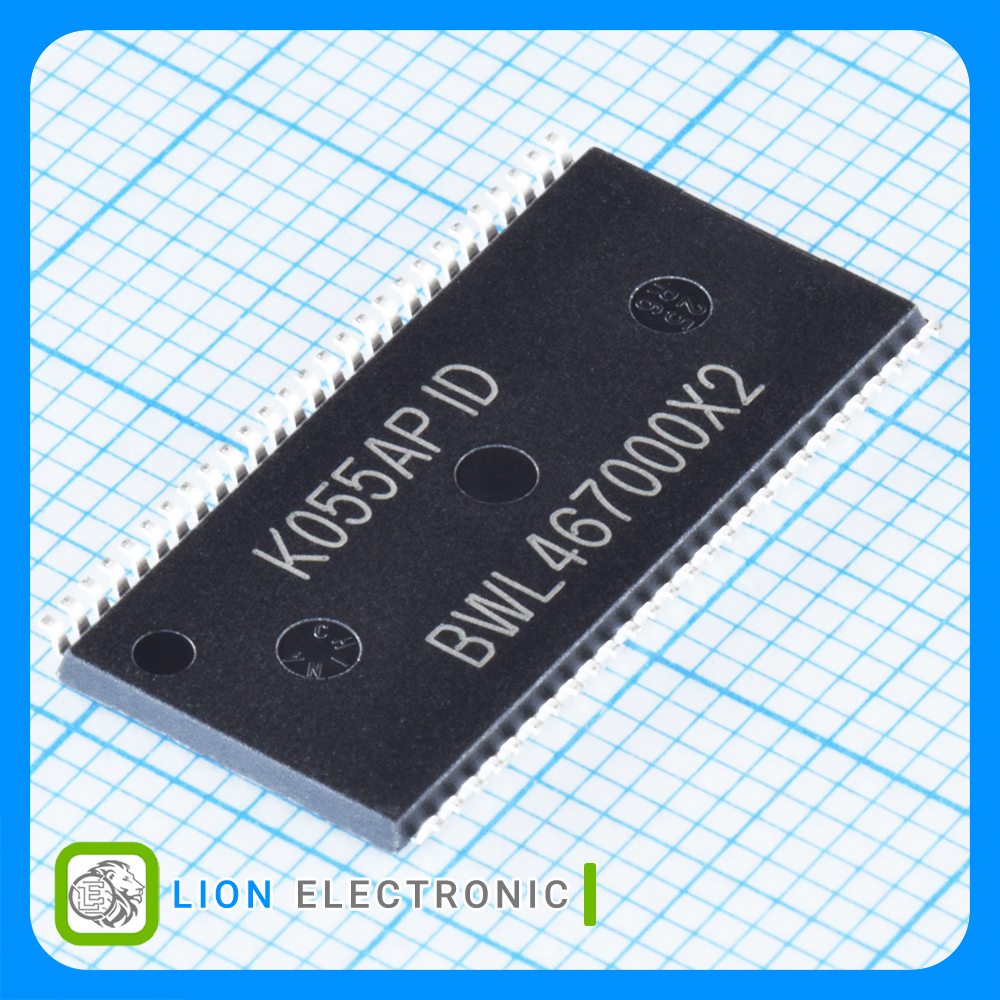

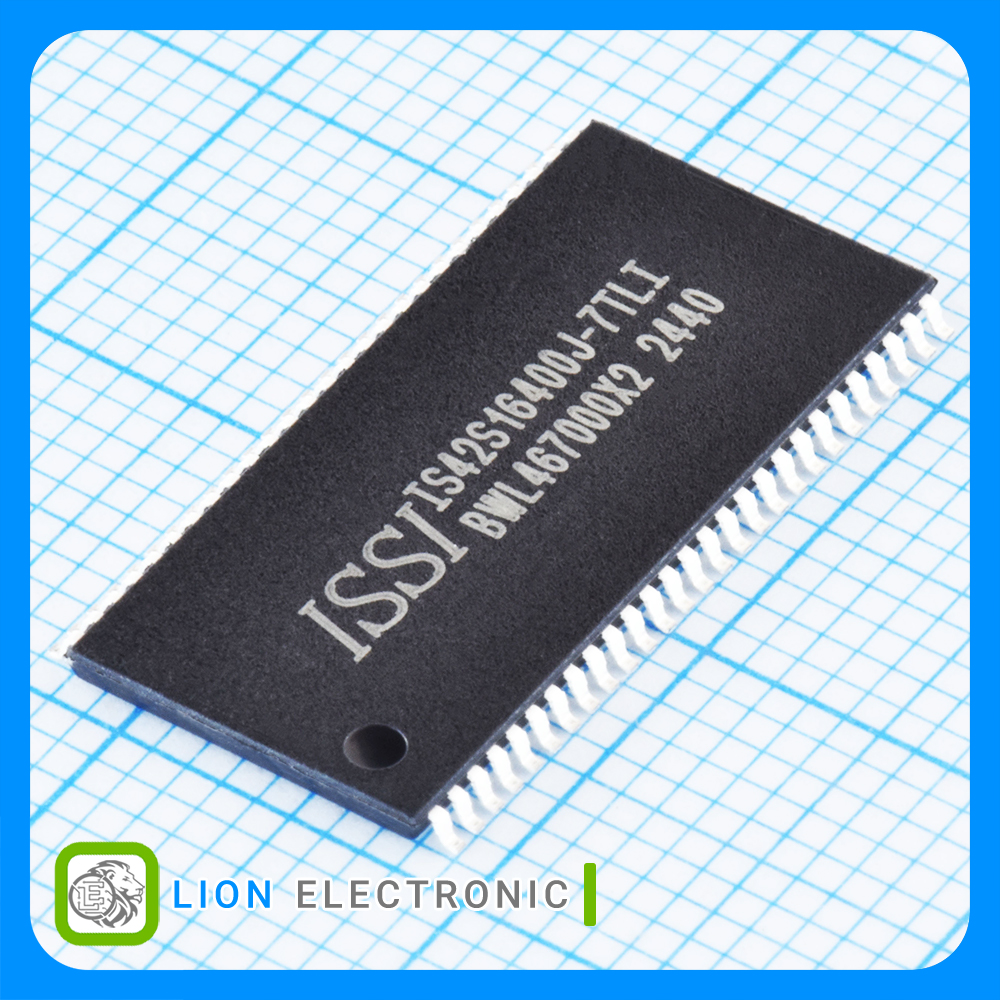

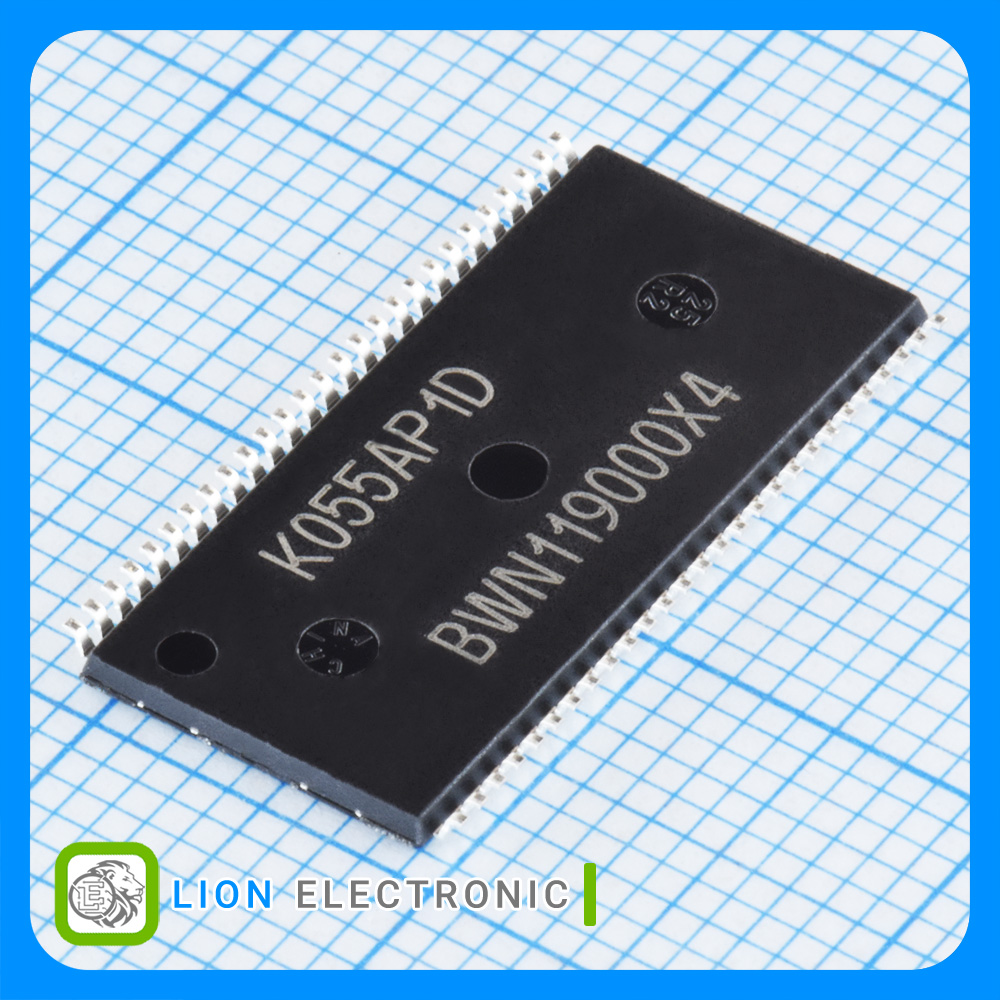

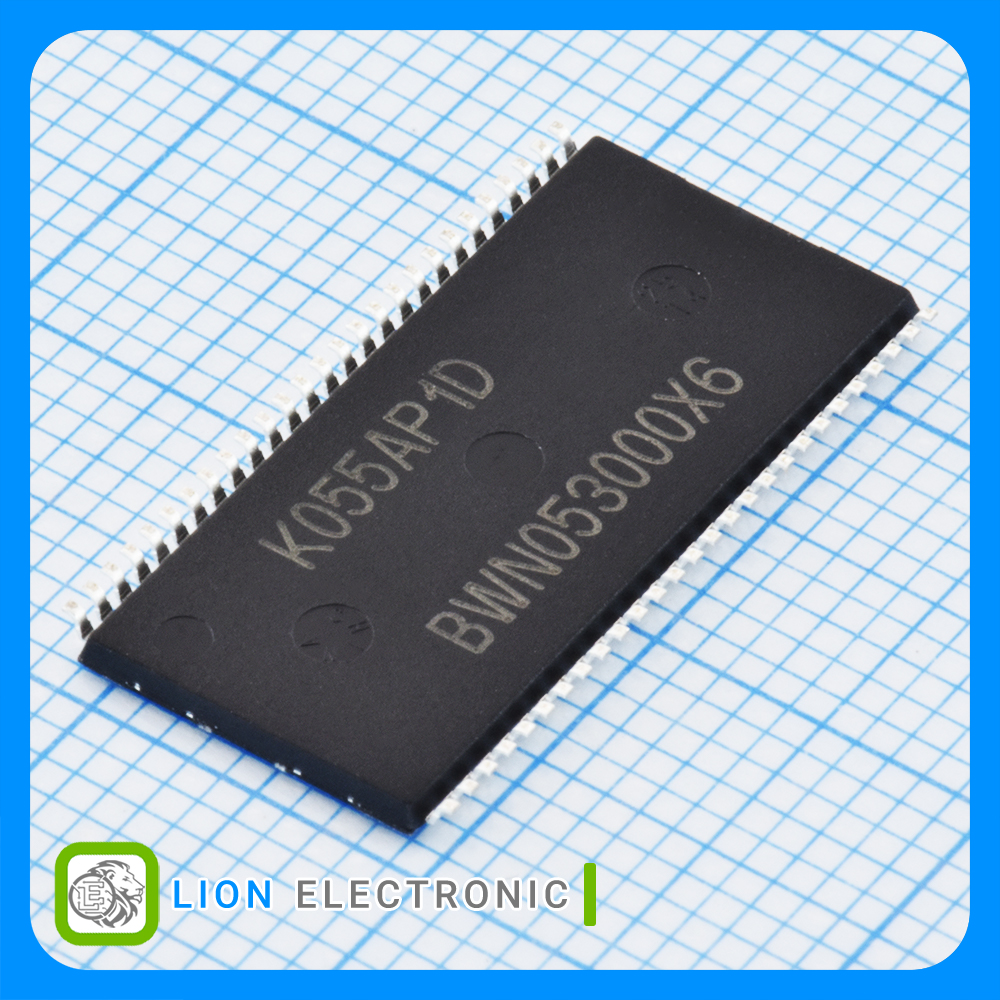

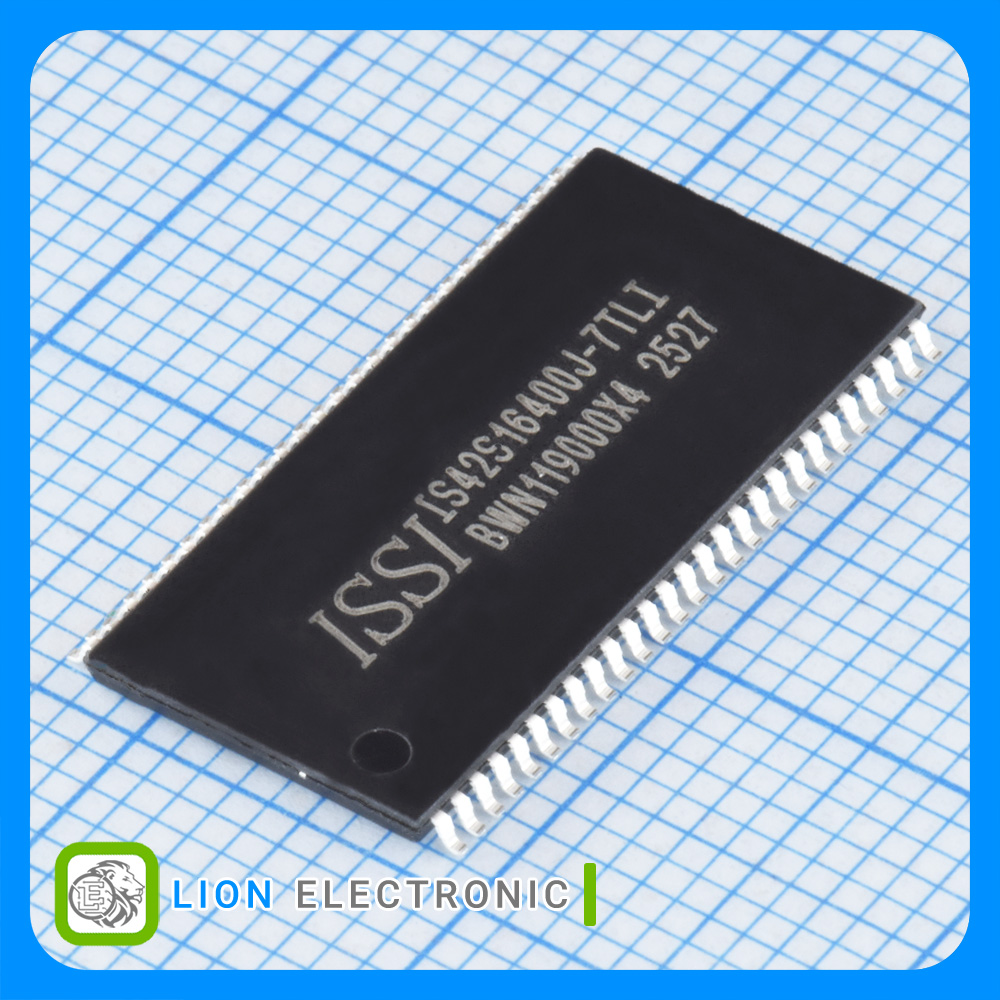

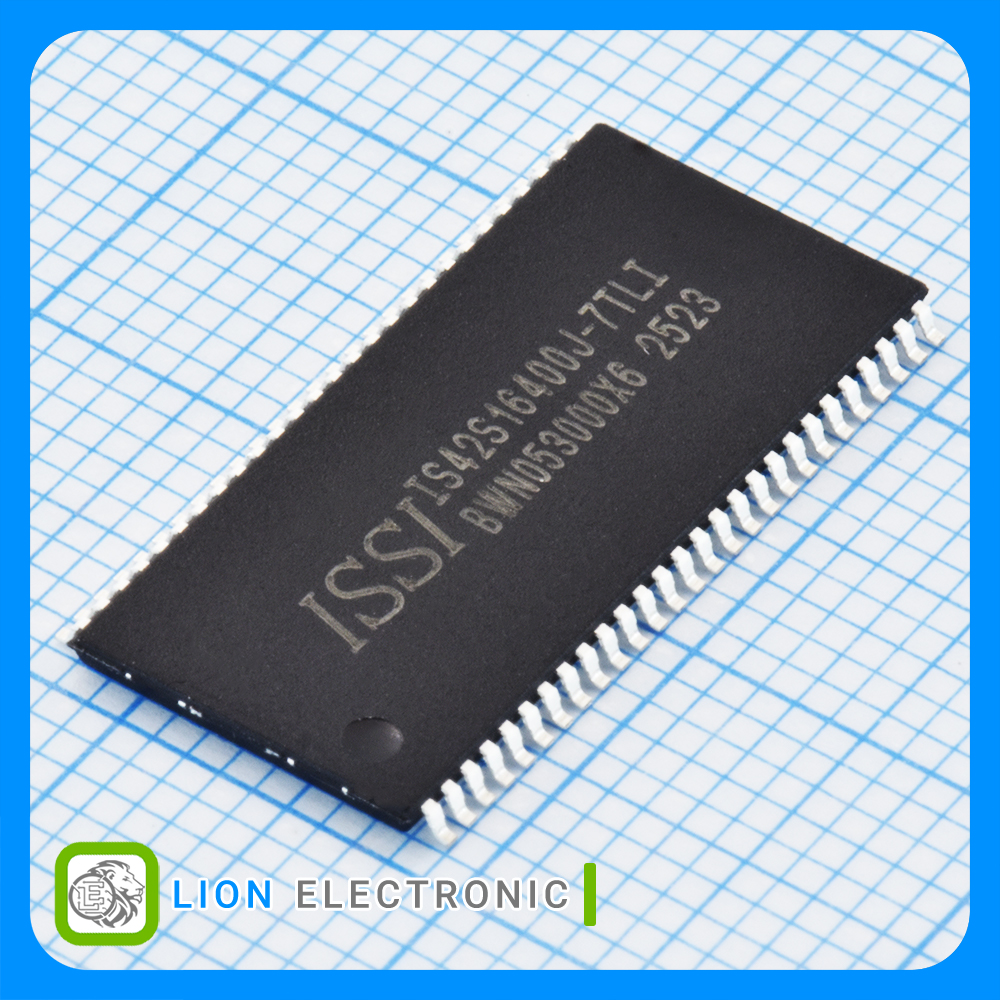

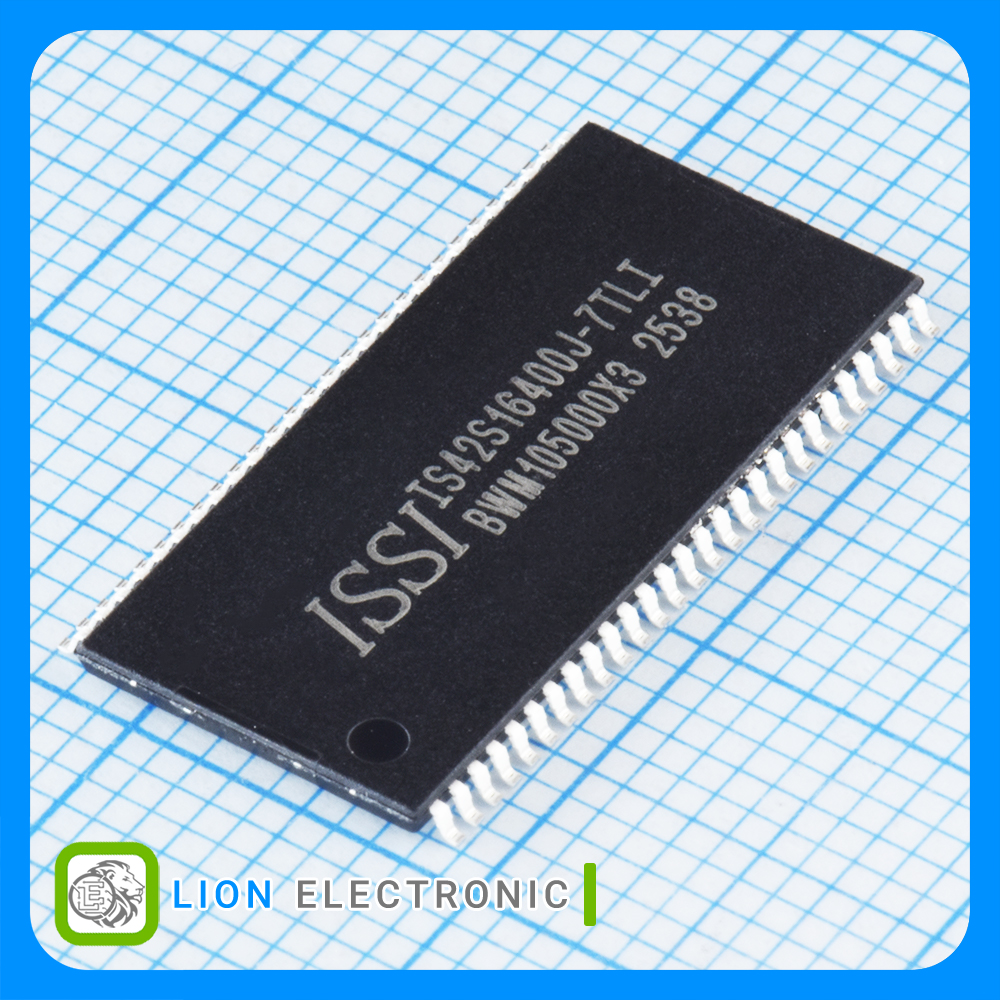

IS42S16400J-7TLI
IS42S16400J-7TLI
Part Number
508
Lion Part
Datasheet
ISSI Manufacture
آیسی حافظه SDRAM (حافظه دینامیک سنکرون) ظرفیت 64 مگابیت، سازماندهی 4M x 16 (1Mbits x 16Bits x 4Banks)، فرکانس 143 مگاهرتز، ولتاژ 3 تا 3.6 ولت، با پکیج TSOP-54
SDRAM Synchronous Dynamic RAM Memory IC, 64Mbit, 4M x 16 (1MBits x 16Bits x 4Banks), 143MHz, 3V - 3.6V Supply with TSOP-54 Package
معرفی
آیسی حافظه SDRAM (حافظه دینامیک سنکرون) ظرفیت 64 مگابیت، سازماندهی 4M x 16 (1Mbits x 16Bits x 4Banks)، فرکانس 143 مگاهرتز، ولتاژ 3 تا 3.6 ولت، با پکیج TSOP-54
SDRAM Synchronous Dynamic RAM Memory IC, 64Mbit, 4M x 16 (1MBits x 16Bits x 4Banks), 143MHz, 3V - 3.6V Supply with TSOP-54 Package
Specifications
- Type: SDRAM
- Memory Size: 64Mbit
- Data Bus Width: 16bit
- Organization: 4M x 16
- Access Time: 5.4ns
- Maximum Clock Frequency: 143MHz
- Supply Voltage - Min: 3V
- Supply Voltage - Max: 3.6V
- Supply Current - Max: 90mA
- Mounting Style: SMD/SMT
- Package/Case: TSOP-54
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
مشخصات IS42S16400J-7TLI
IS42S16400J-7TLI
Part Number
---
Interface Type
5.4ns
Access Time
16bit
Data Bus Width
-40C
Minimum Operating Temperature
Tray
Packaging
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
3.6V
Supply Voltage - Max
64Mbit
Memory Size
4M x 16
Organization
90mA
Supply Current - Max
143MHz
Maximum Clock Frequency
3V
Supply Voltage - Min
SDRAM
Type
3.3V
Operating Supply Voltage
TSOP-54
Package-Case
