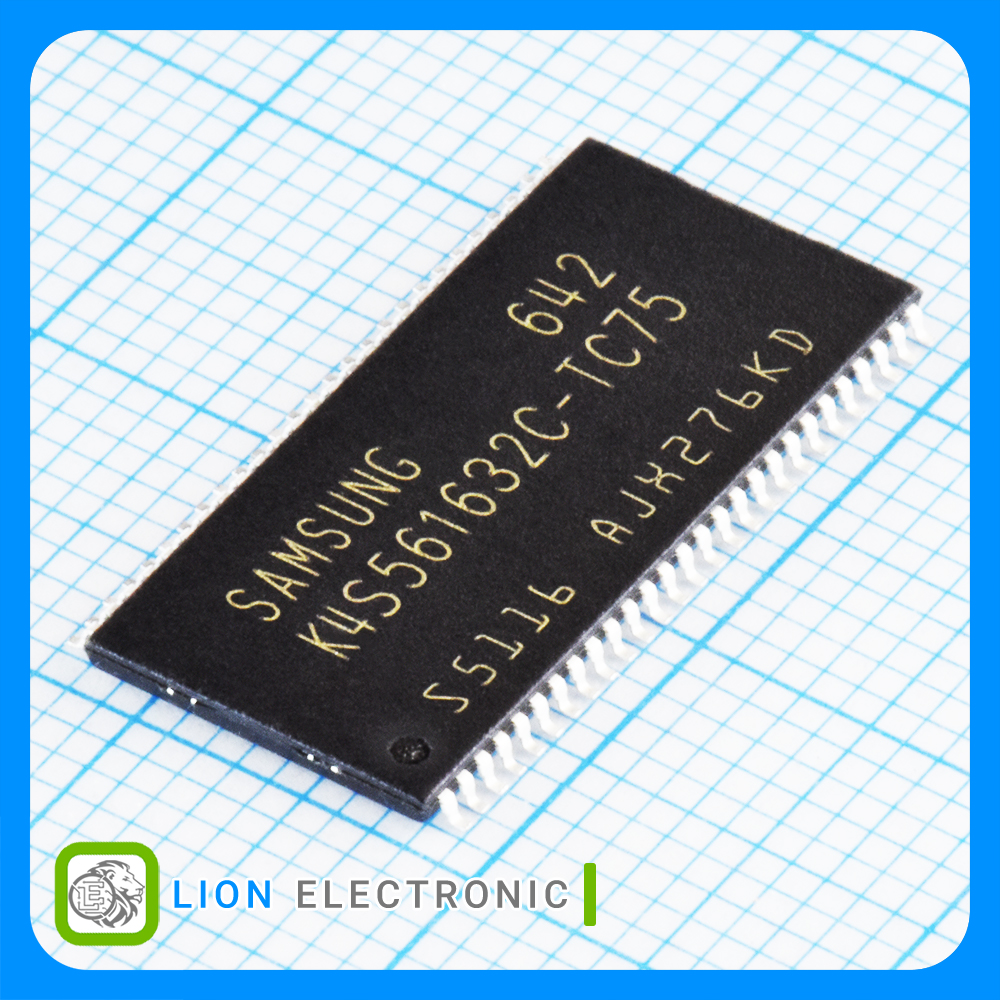

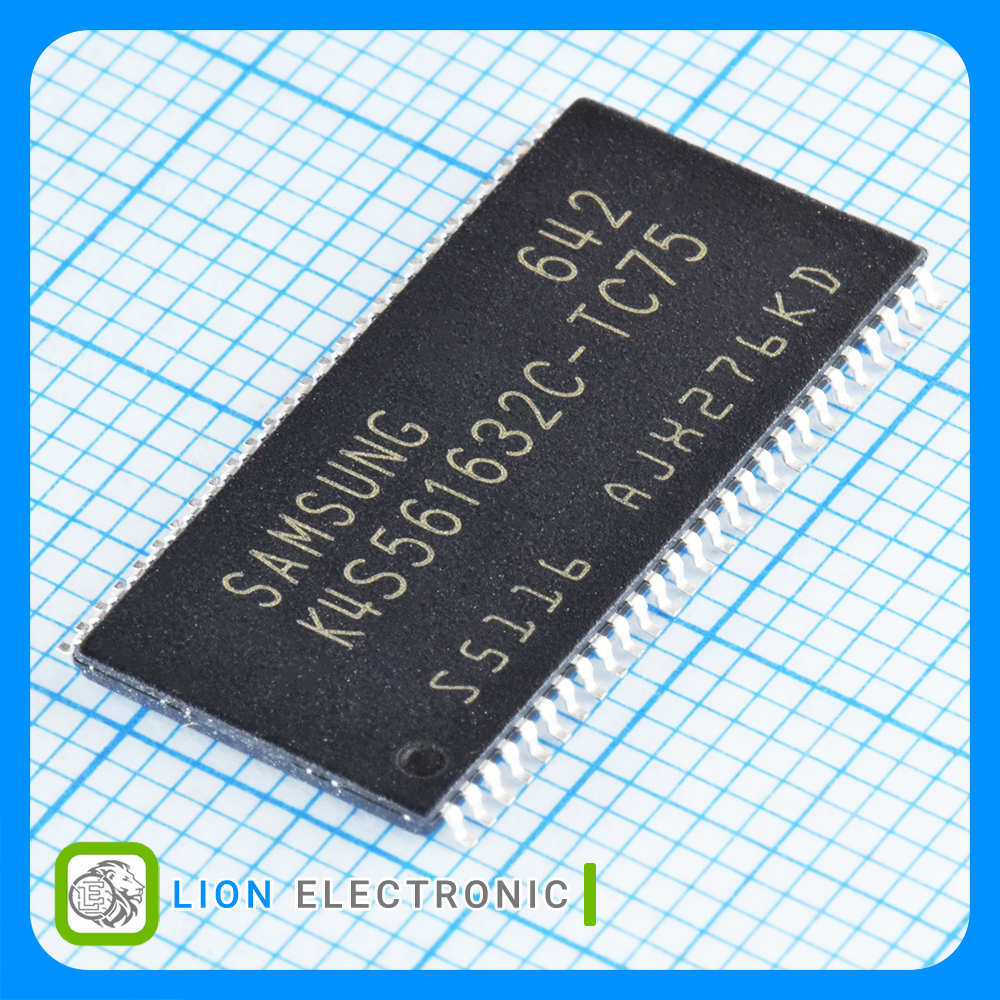

K4S561632C-TC75
K4S561632C-TC75
Part Number
513
Lion Part
Datasheet
Samsung Electronics Manufacture
حافظه SDRAM سنکرون ظرفیت 256 مگابیت (4Mx16x4 Banks) با سطح منطقی LVTTL، سازماندهی 16Mx16 فرکانس 133 مگاهرتز با پکیج TSOP-54
SDRAM 256Mbit, 4M x 16 x 4 Banks Synchronous DRAM LVTTL, 16M x 16, 133MHz with TSOP-54 Package
معرفی
حافظه SDRAM سنکرون ظرفیت 256 مگابیت (4Mx16x4 Banks) با سطح منطقی LVTTL، سازماندهی 16Mx16 فرکانس 133 مگاهرتز با پکیج TSOP-54
SDRAM 256Mbit, 4M x 16 x 4 Banks Synchronous DRAM LVTTL, 16M x 16, 133MHz with TSOP-54 Package
Specifications
- Type: SDRAM
- Memory Size: 256Mbit
- Data Bus Width: 16bit
- Organization: 16M x 16
- Access Time: 5.4ns
- Maximum Clock Frequency: 133MHz
- Supply Voltage - Min: 3V
- Supply Voltage - Max: 3.6V
- Supply Current - Max: 200mA
- Mounting Style: SMD/SMT
- Package/Case: TSOP-54
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
مشخصات K4S561632C-TC75
K4S561632C-TC75
Part Number
5.4ns
Access Time
-55C
Minimum Operating Temperature
16bit
Data Bus Width
Tray
Packaging
SMD/SMT
Mounting Style
3.6V
Supply Voltage - Max
256Mbit
Memory Size
+150C
Maximum Operating Temperature
16M x 16
Organization
133MHz
Maximum Clock Frequency
200mA
Supply Current - Max
3V
Supply Voltage - Min
1W
Pd - Power Dissipation
SDRAM
Product Type
SDRAM
Type
3.3V
Operating Supply Voltage
Parallel
Interface Type
TSOP-54
Package-Case
