TOSHIBA
معرفی

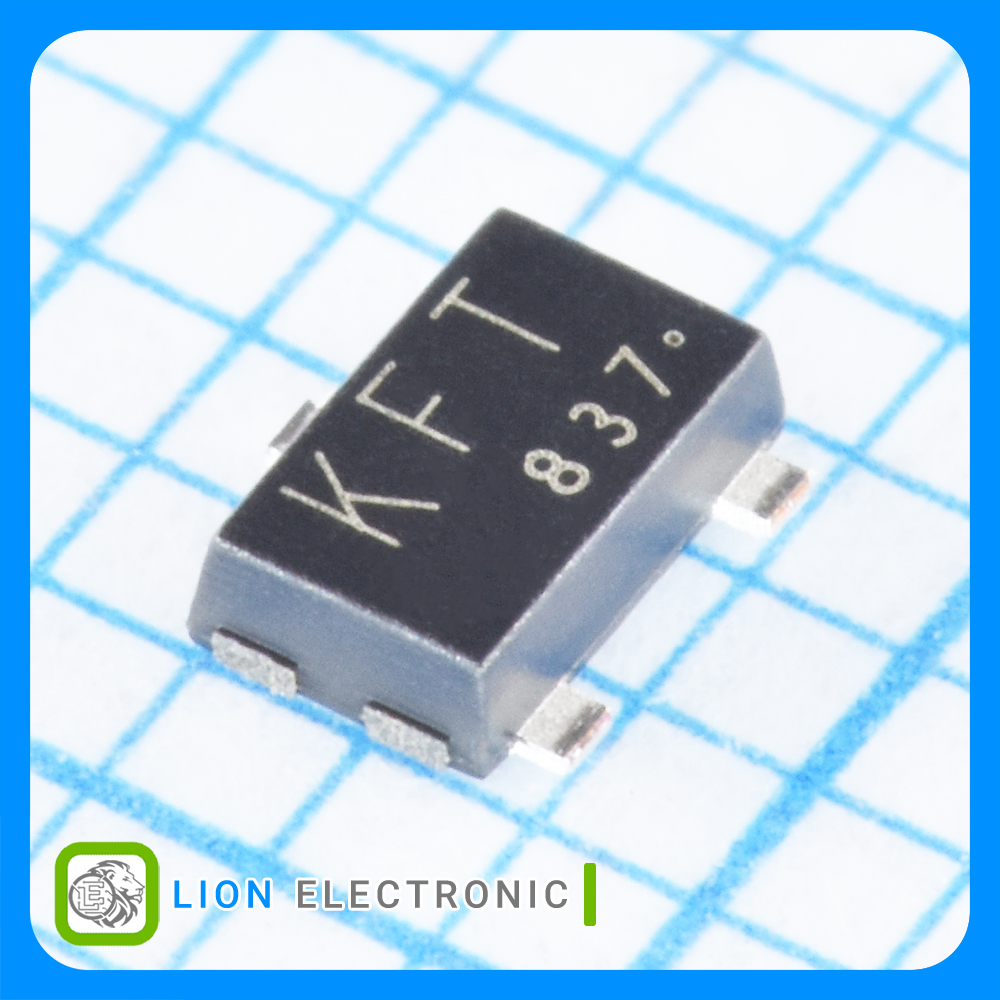

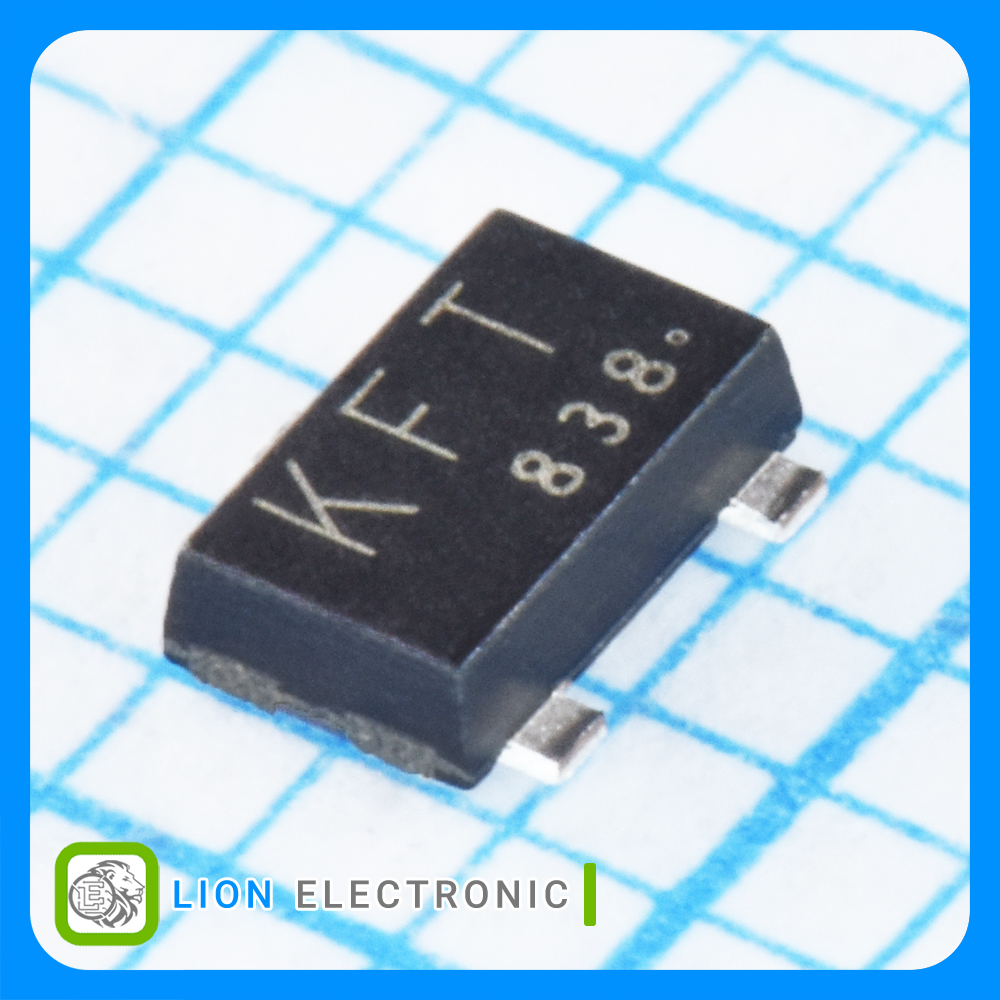

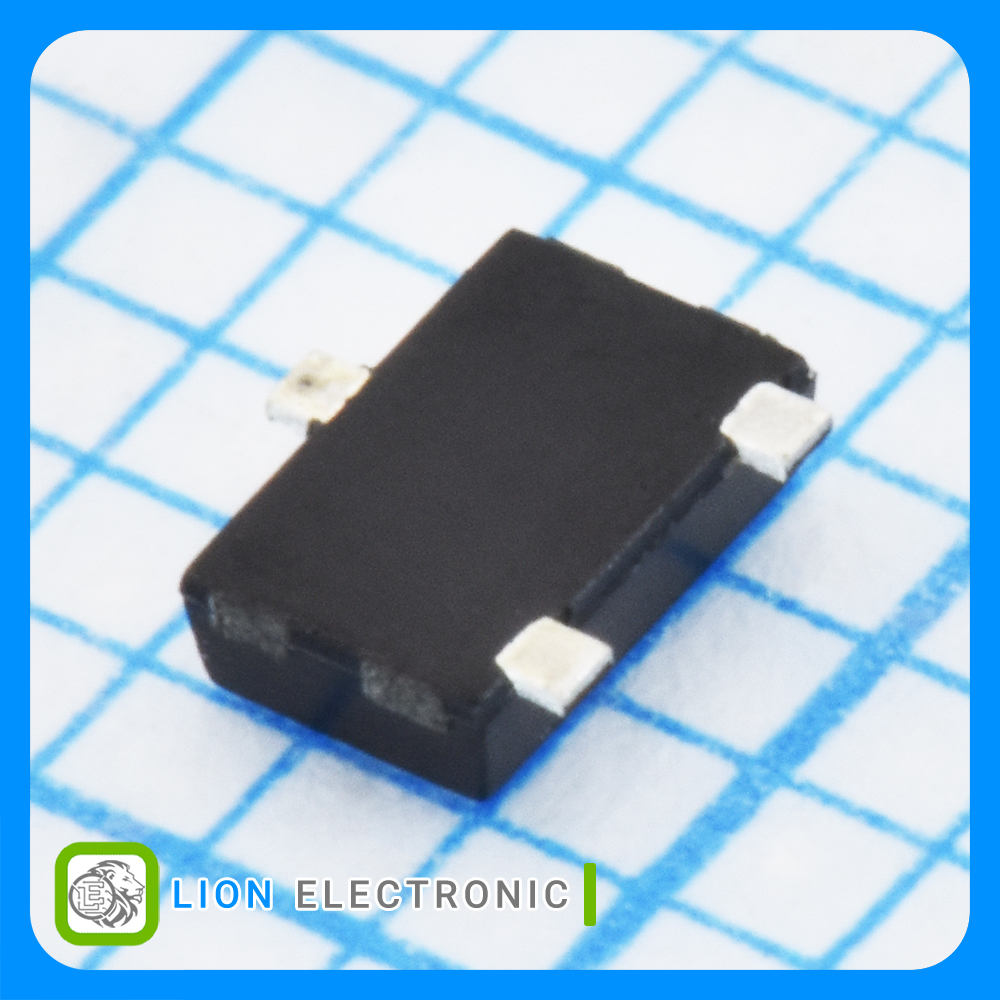

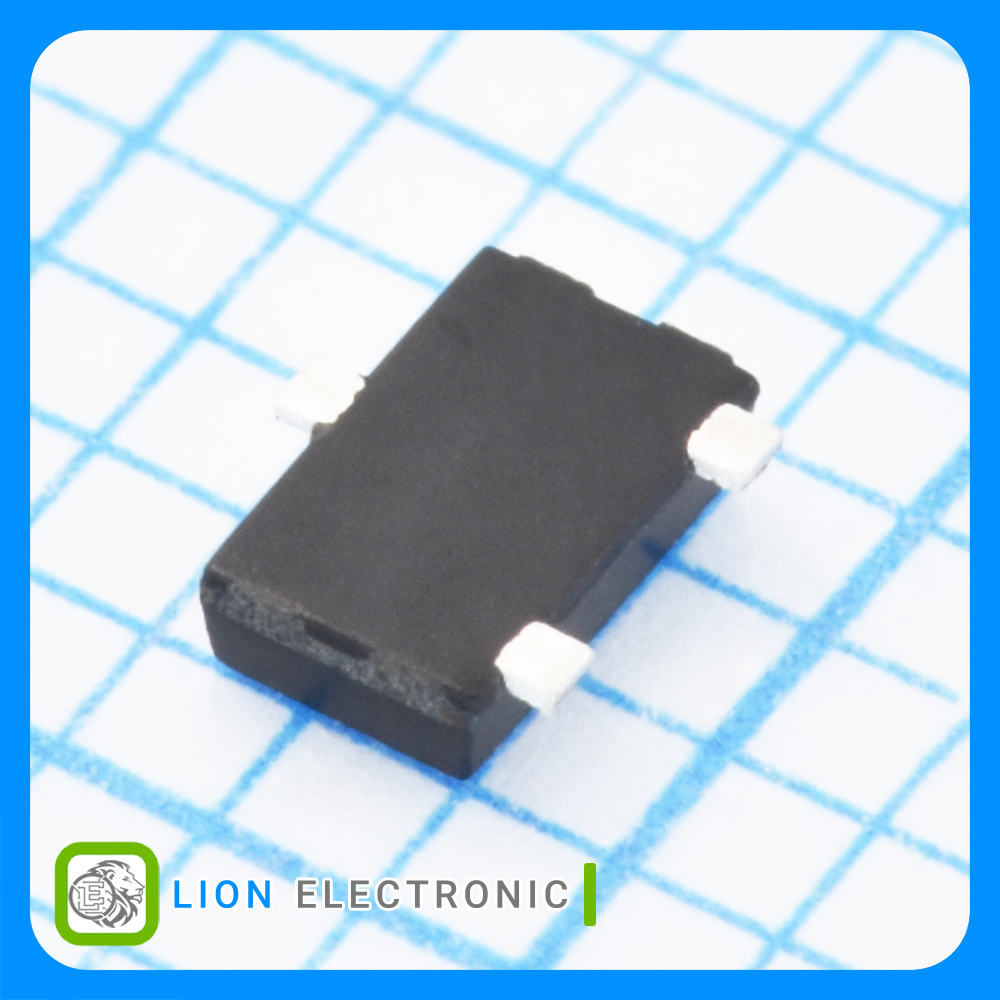

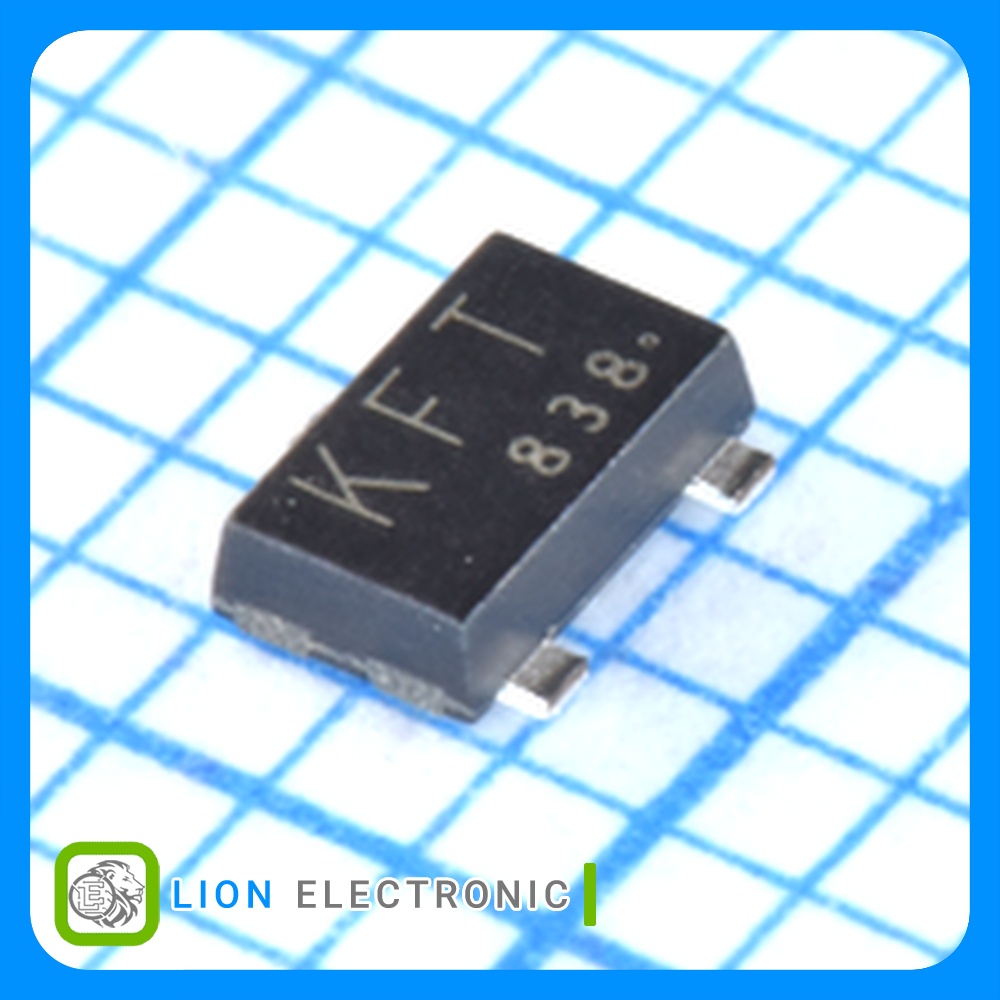

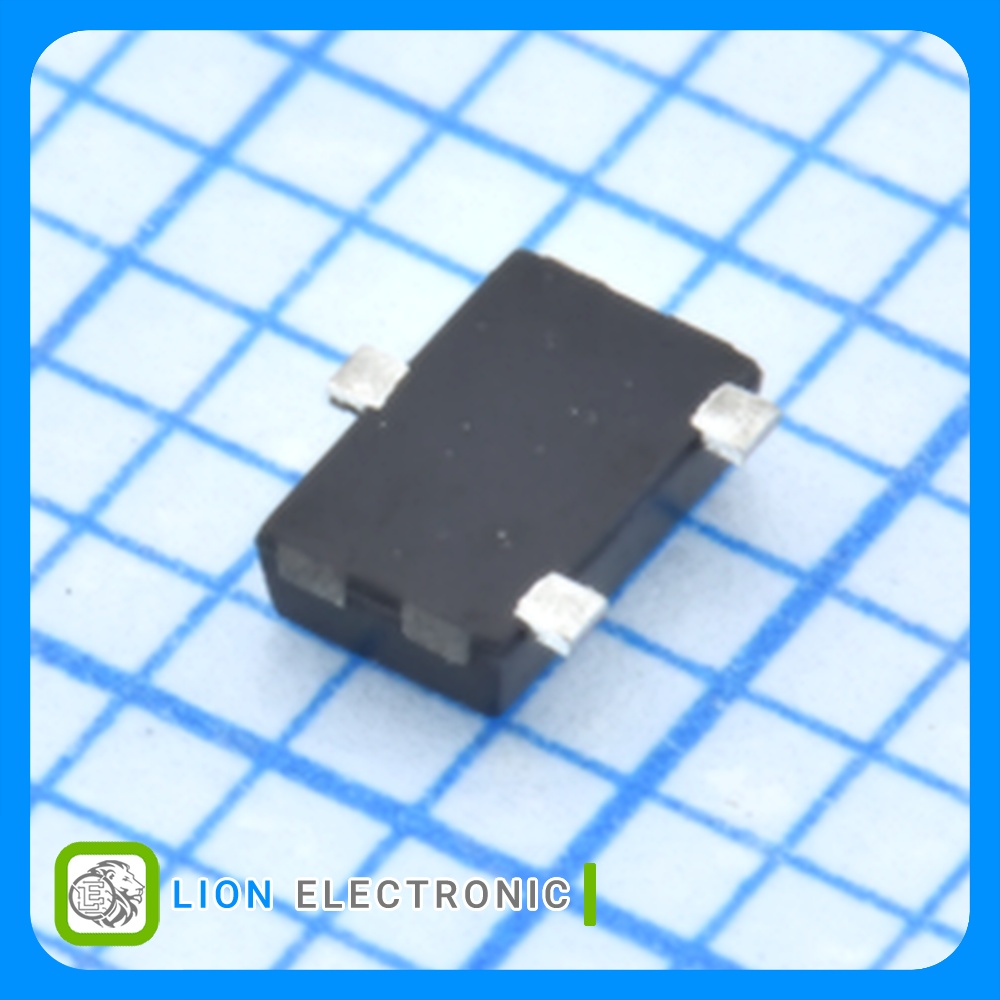

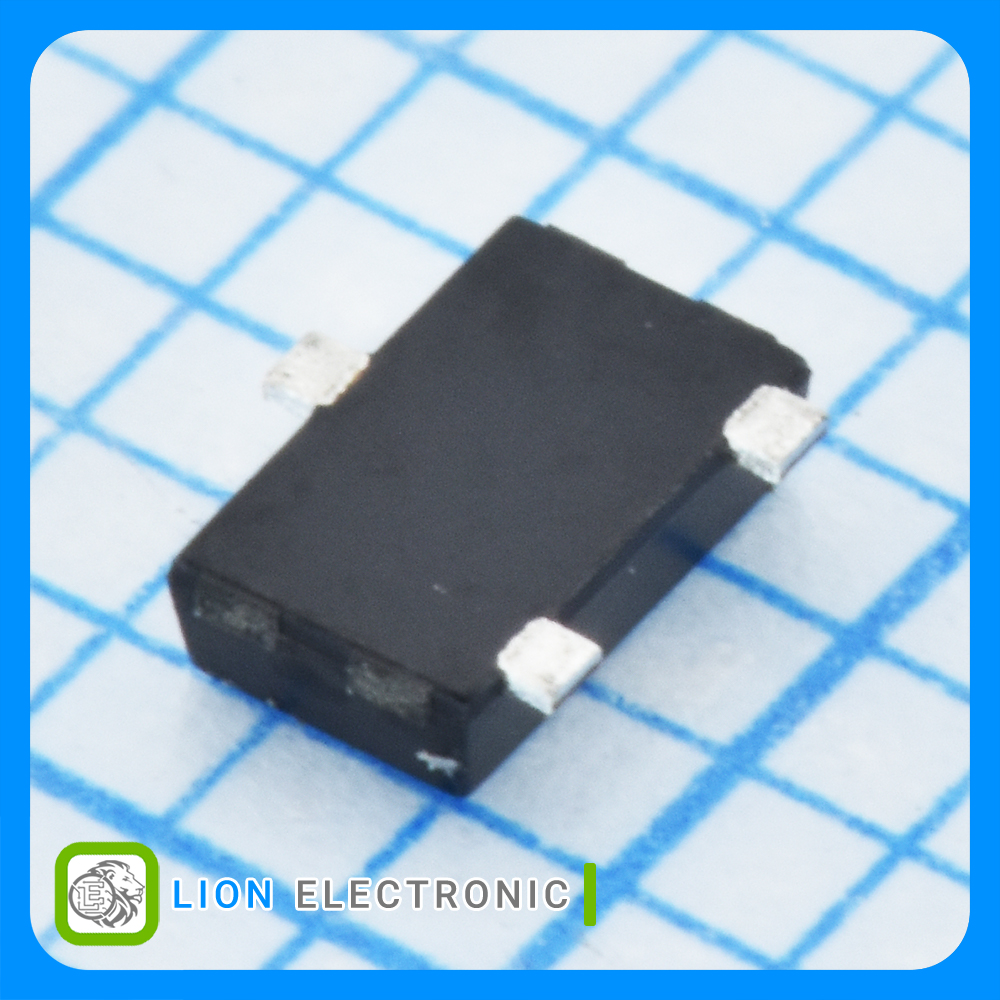

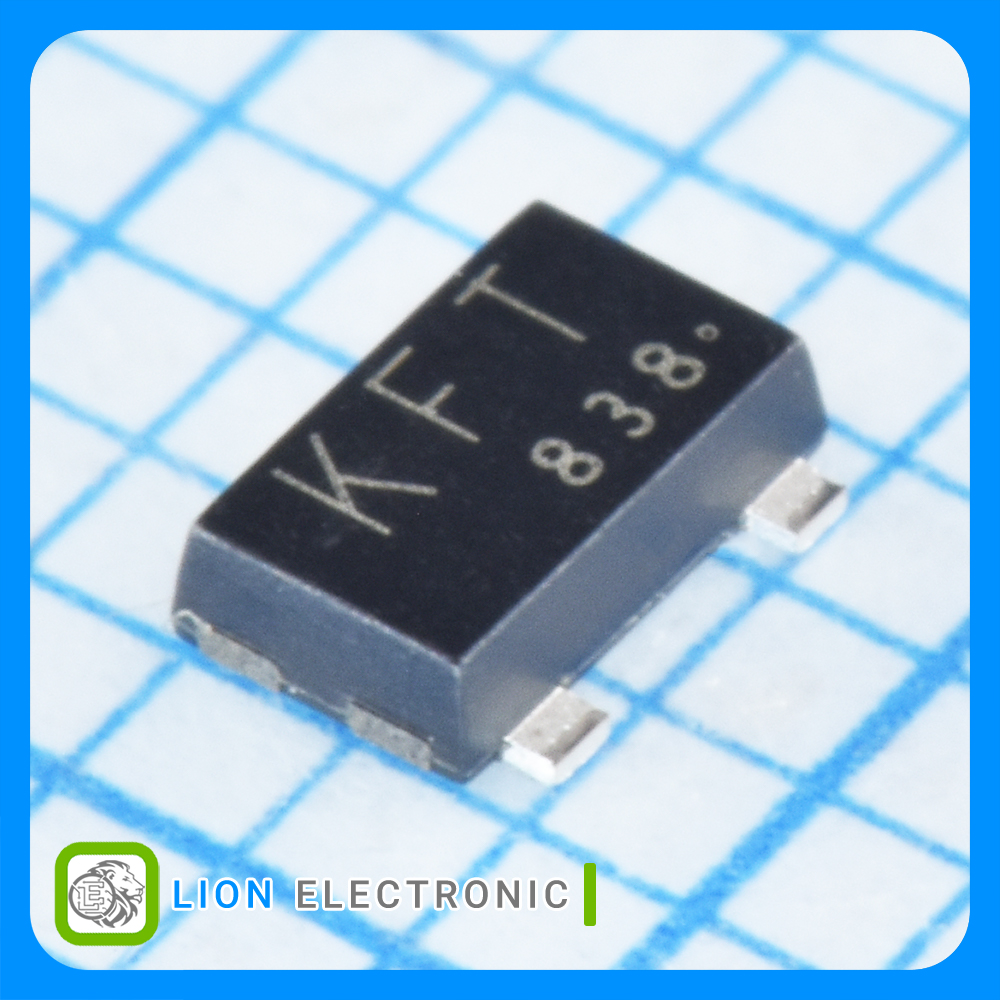

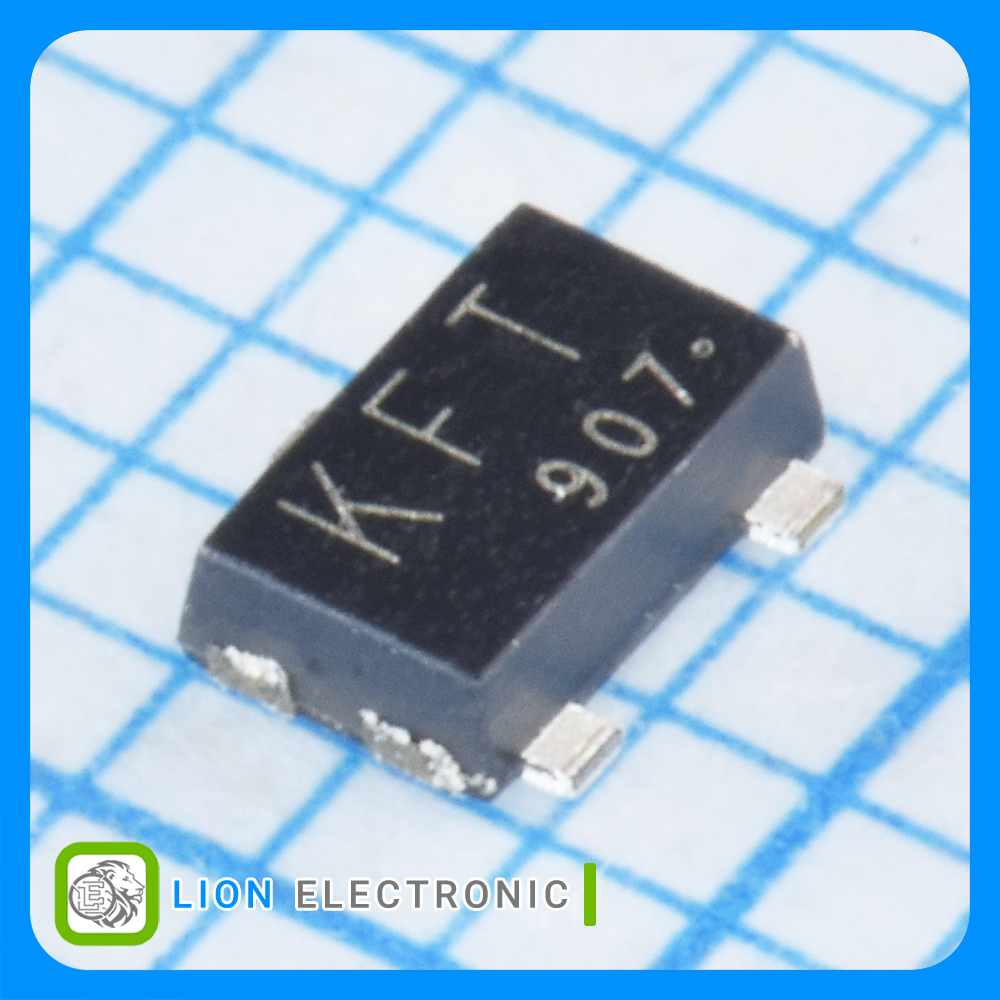

ماسفت 100 ولت 3.5 آمپر نوع N با پکیج SOT-23F-3
MOSFET N-CH 100V, 3.5A with SOT-23F-3 Package
Specifications
- Package/Case: SOT-23F
- Vds - Drain - Source Breakdown Voltage: 100V
- Id - Continuous Drain Current: 3.5A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.5V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 51mΩ
- Pd - Power Dissipation: 2.4W
- Qg - Gate Charge: 3.2nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت SSM3K361R,LF

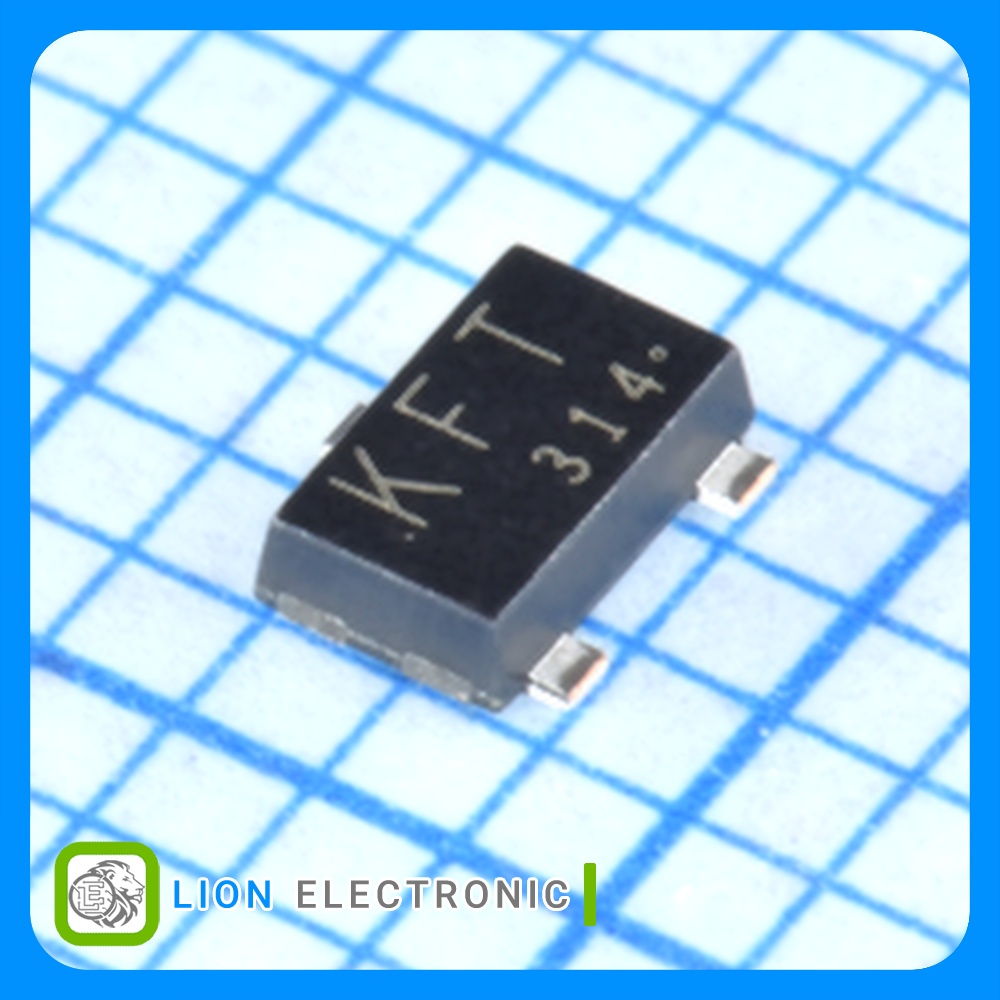

ماسفت SSM3K361R,LF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
3.2nC
Qg - Gate Charge
±20V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
100V
Vds - Drain - Source Breakdown Voltage
1.5V
Vgs th - Gate - Source Threshold Voltage
3.5A
Id - Continuous Drain Current
2.4W
Pd - Power Dissipation
51mΩ
Rds On - Drain - Source Resistance
SOT-23F
Package-Case
