TOSHIBA
معرفی

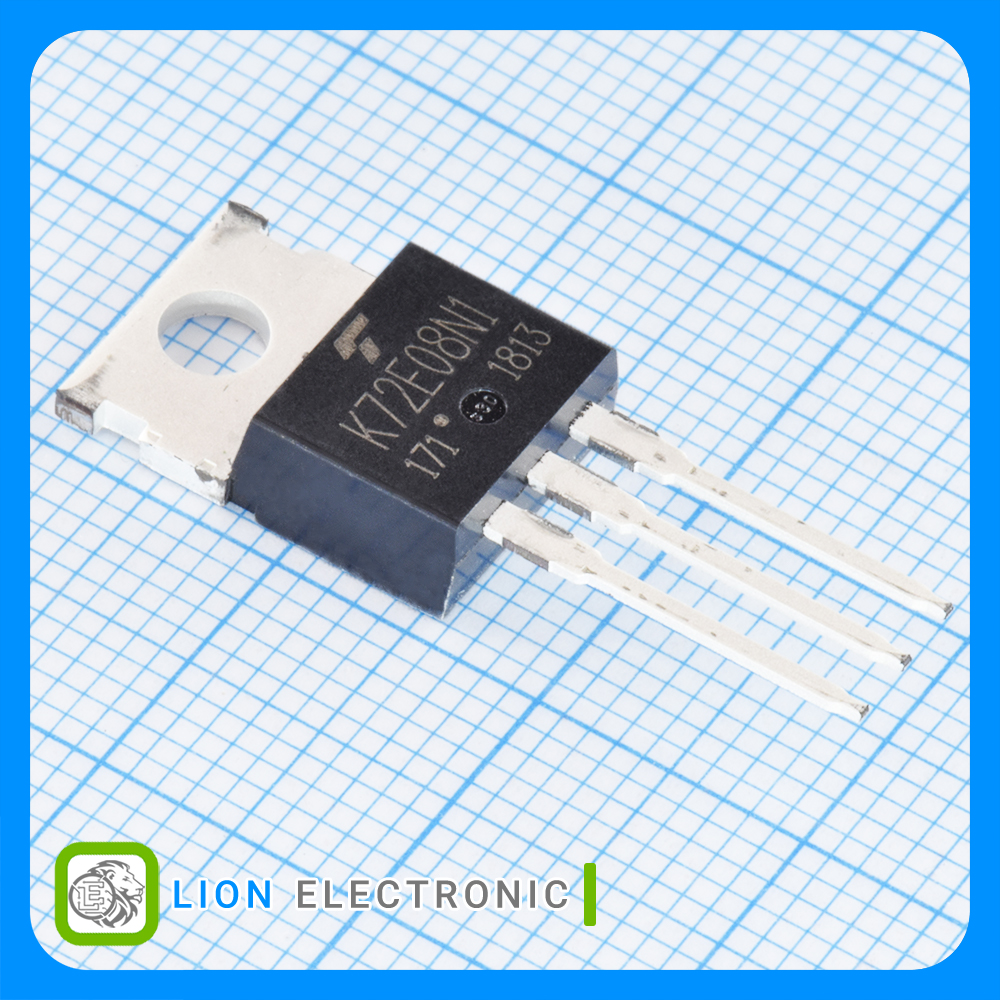

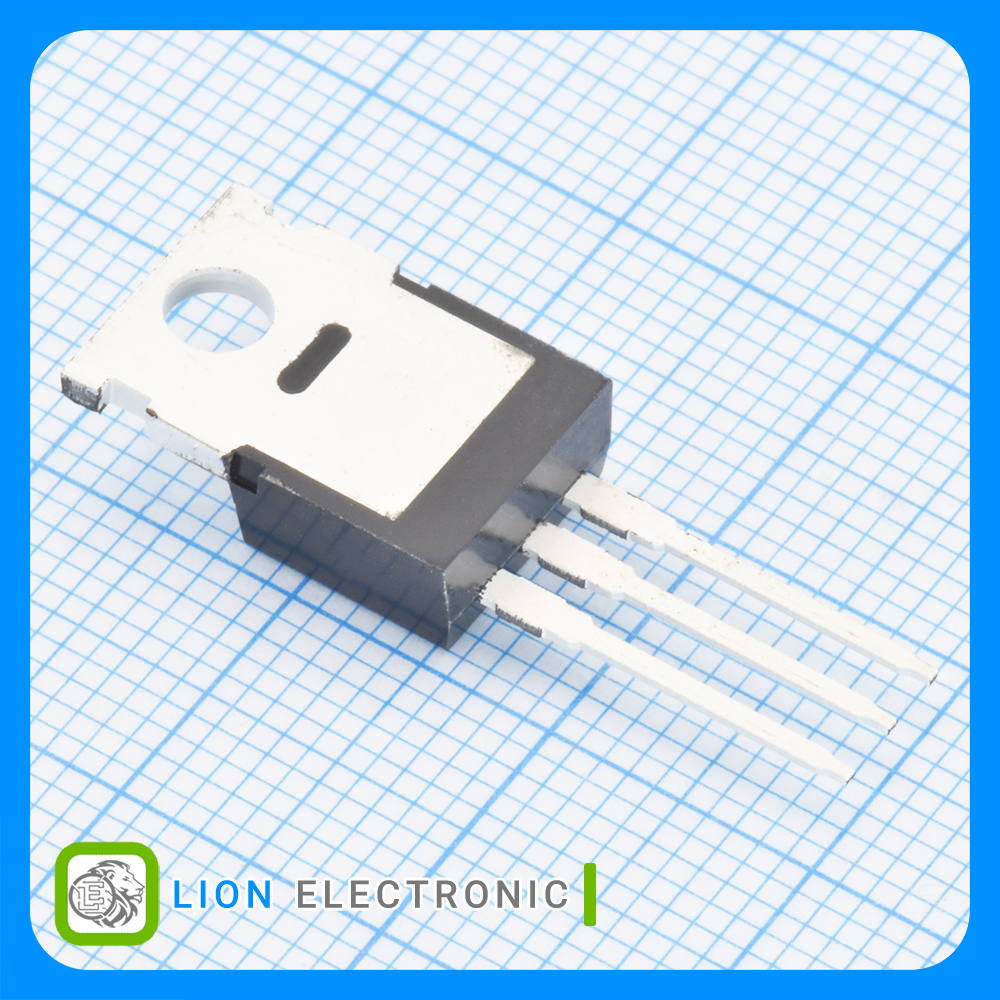

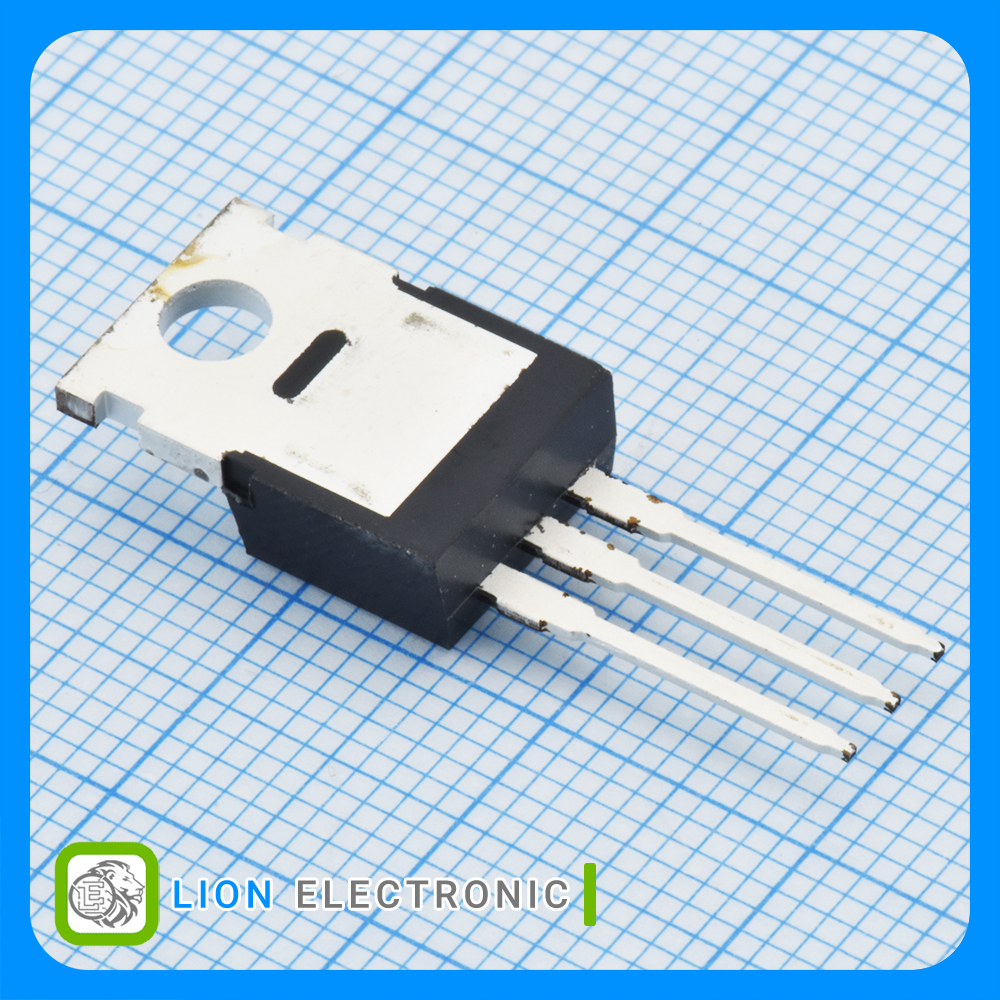

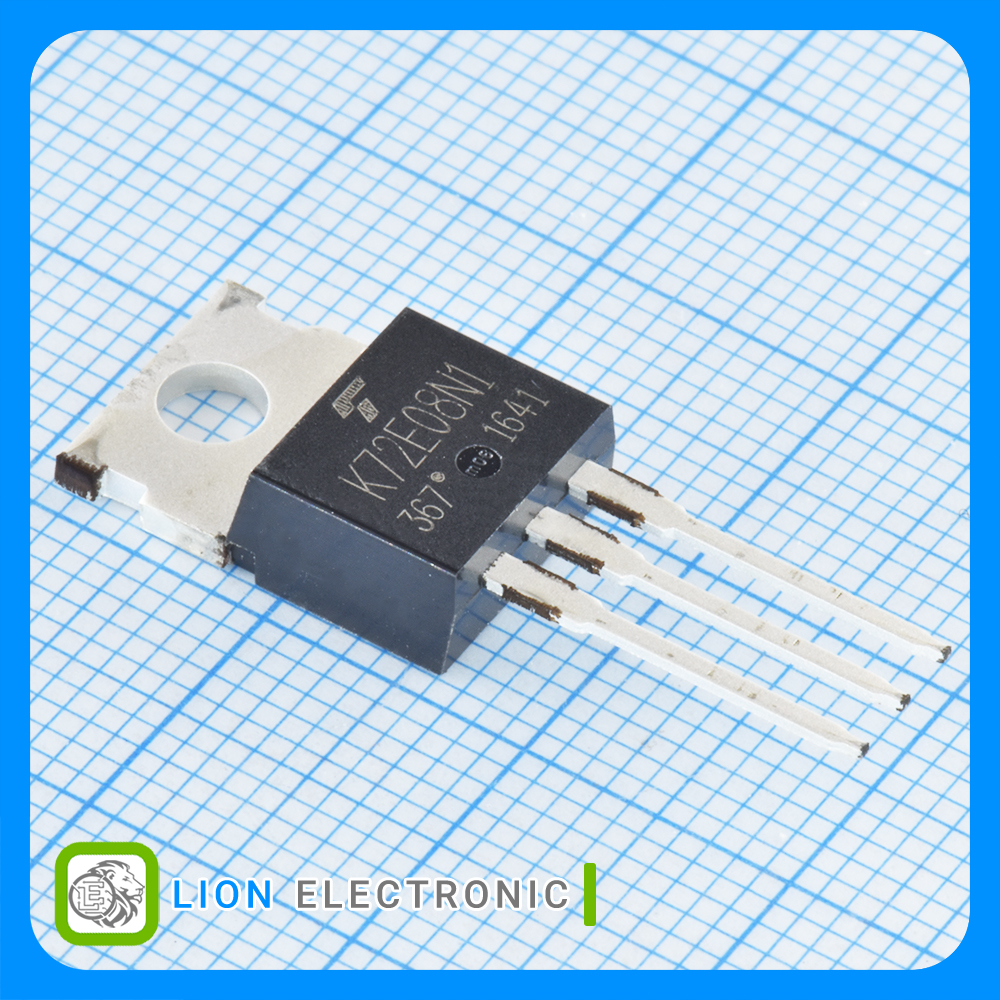

ماسفت 80 ولت 157 آمپر نوع N با پکیج TO-220-3
N-Channel MOSFET 80V, 157A with TO-220-3 Package
Specifications
- Package/Case: TO-220-3
- Vds - Drain - Source Breakdown Voltage: 80V
- Id - Continuous Drain Current: 157A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 3.6mΩ
- Pd - Power Dissipation: 192W
- Qg - Gate Charge: 81nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ماسفت TK72E08N1,S1X

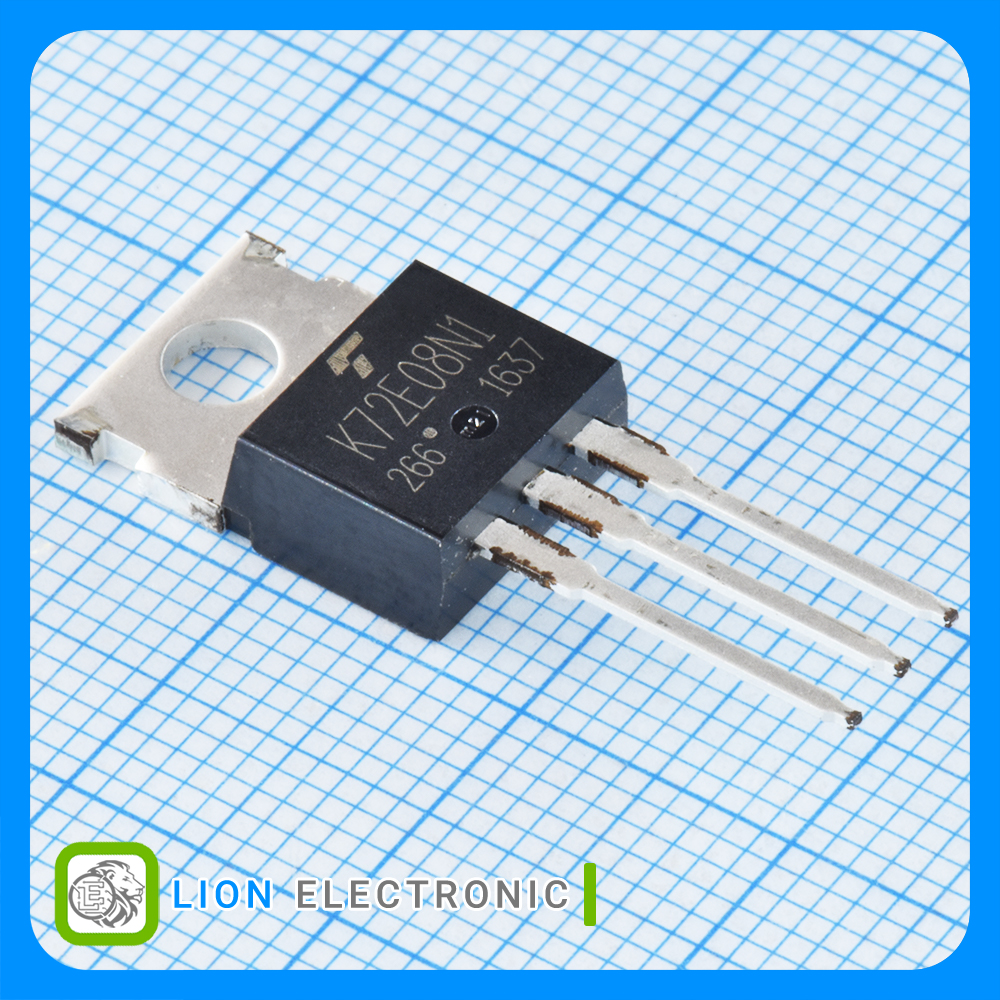

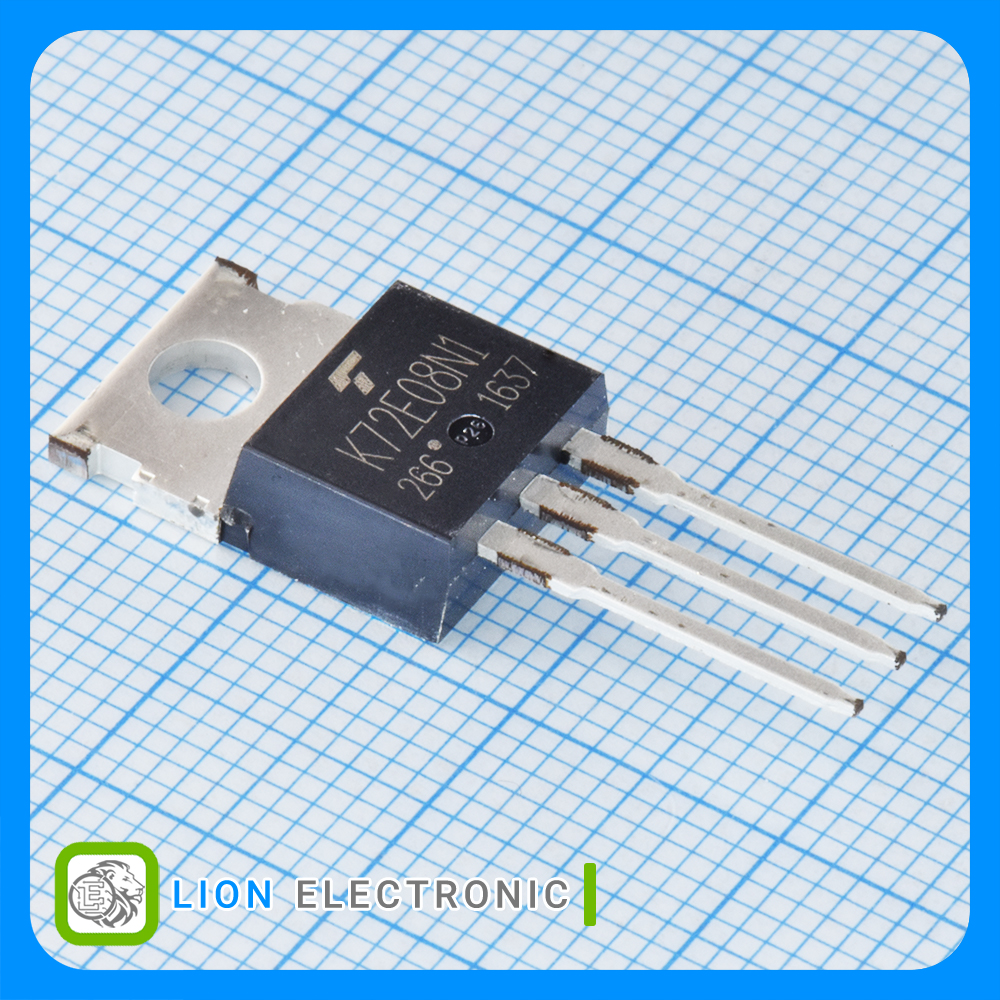

ماسفت TK72E08N1,S1X
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
80V
Vds - Drain - Source Breakdown Voltage
3.6mΩ
Rds On - Drain - Source Resistance
2V
Vgs th - Gate - Source Threshold Voltage
81nC
Qg - Gate Charge
157A
Id - Continuous Drain Current
192W
Pd - Power Dissipation
TO-220
Package-Case
