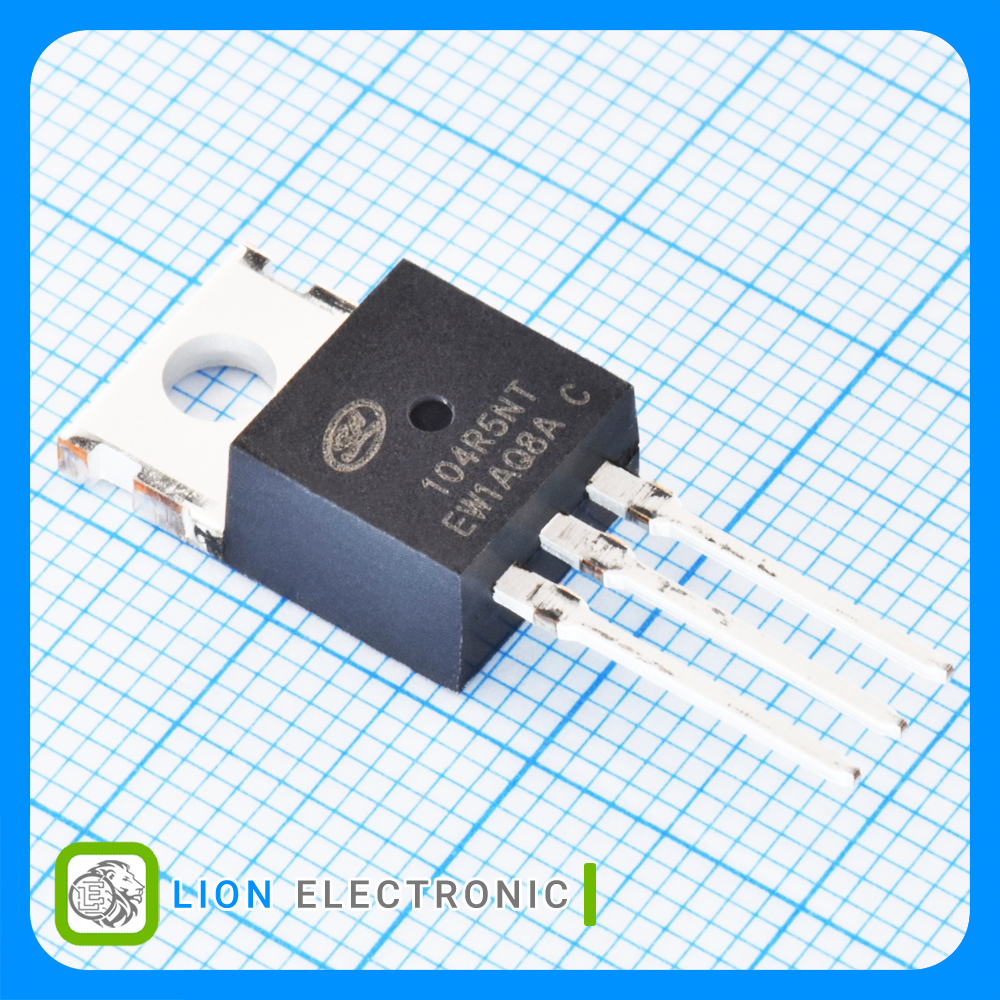

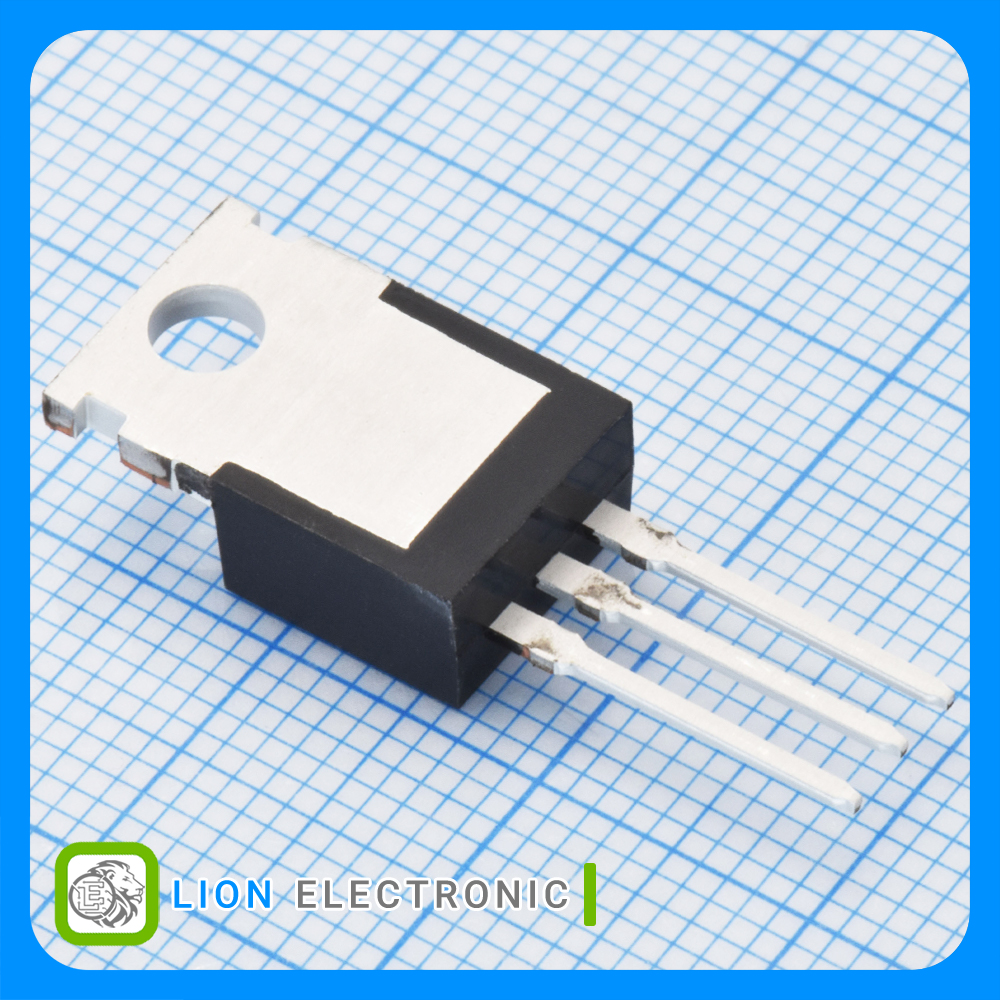

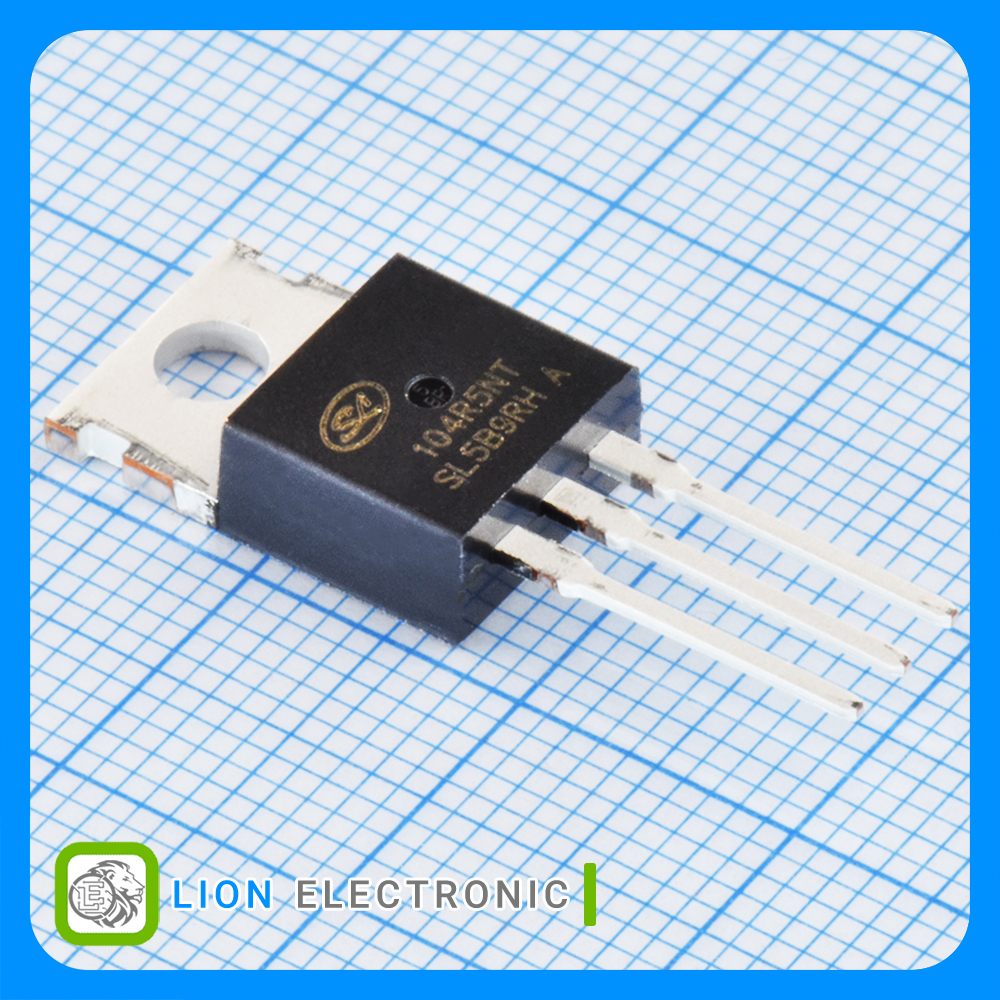

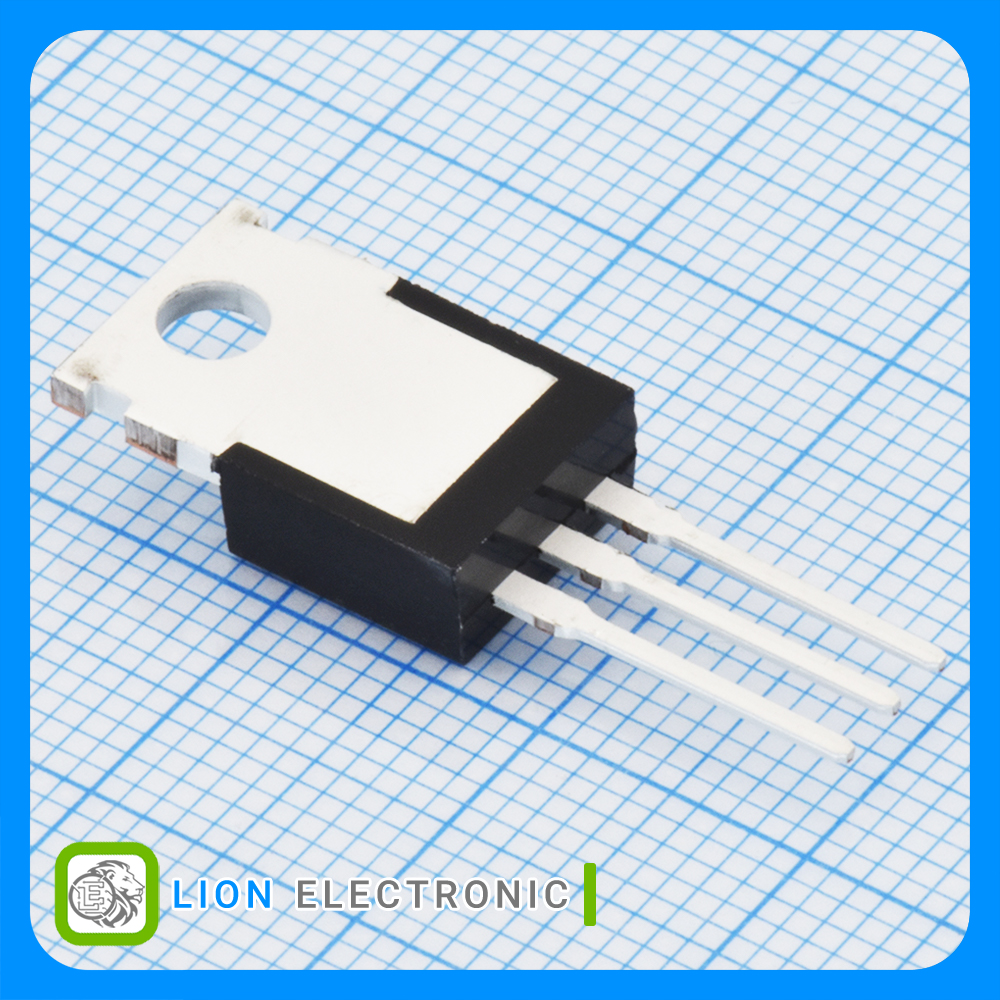

SVG104R5NT
SVG104R5NT
Part Number
5186
Lion Part
Datasheet
Hangzhou Silan Microelectronics Manufacture
ماسفت 100 ولت 120 آمپر نوع N با پکیج TO-220-3L
N-CH MOSFET 100V, 120A with TO-220-3L Package
معرفی
ماسفت 100 ولت 120 آمپر نوع N با پکیج TO-220-3L
N-CH MOSFET 100V, 120A with TO-220-3L Package
Specifications
- Package/Case: TO-220-3
- Vds - Drain - Source Breakdown Voltage: 100V
- Id - Continuous Drain Current: 120A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 3.4mΩ
- Pd - Power Dissipation: 208W
- Qg - Gate Charge: 114nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ماسفت SVG104R5NT

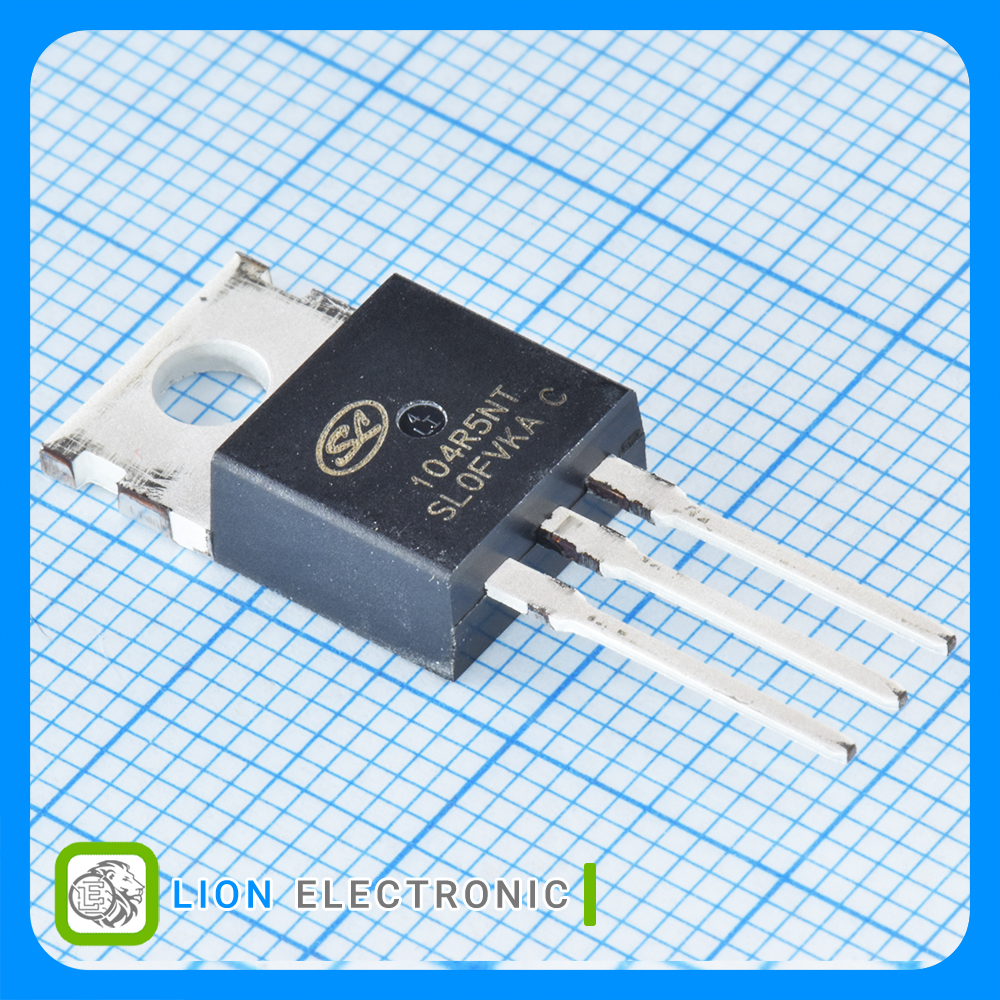

ماسفت SVG104R5NT
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
100V
Vds - Drain - Source Breakdown Voltage
3.4mΩ
Rds On - Drain - Source Resistance
2V
Vgs th - Gate - Source Threshold Voltage
114nC
Qg - Gate Charge
120A
Id - Continuous Drain Current
208W
Pd - Power Dissipation
TO-220
Package-Case
