SVT20240NT
SVT20240NT
Part Number
5228
Lion Part
Datasheet
Hangzhou Silan Microelectronics Manufacture
ماسفت 200 ولت 72 آمپر نوع N با پکیج TO-220

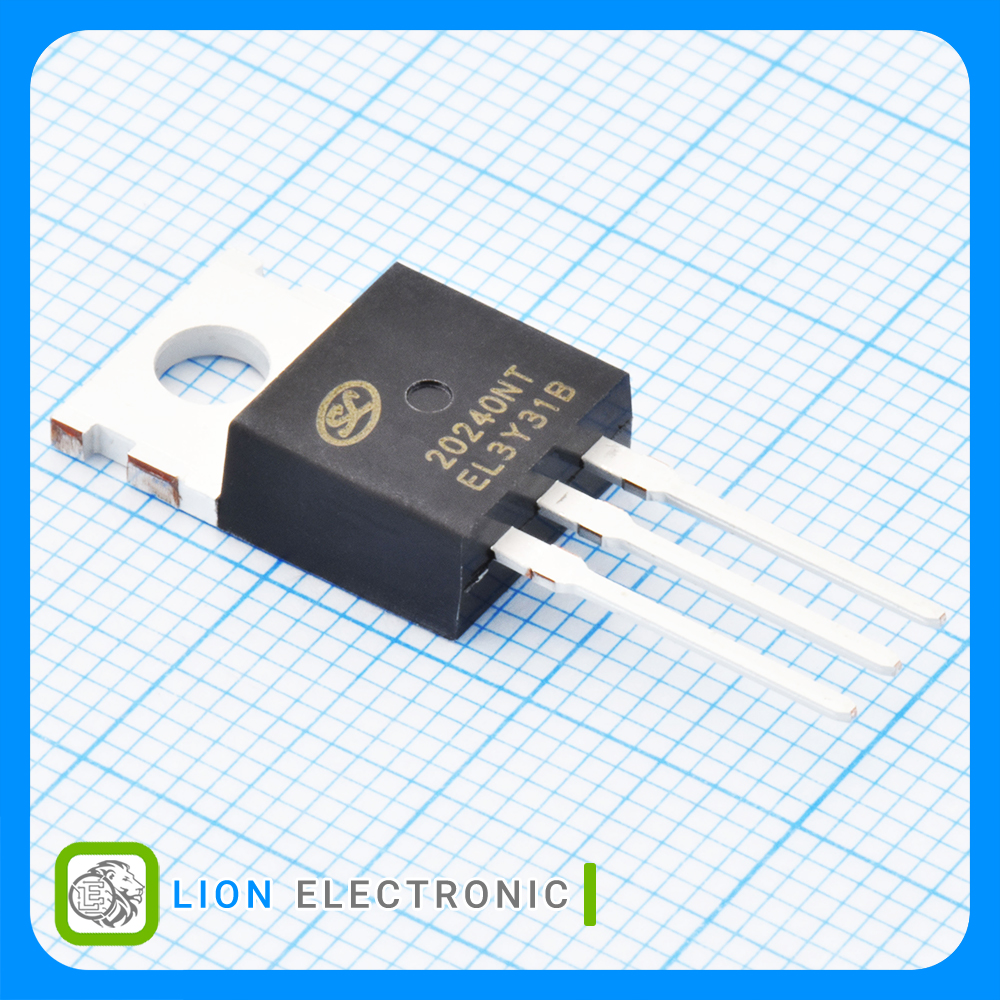

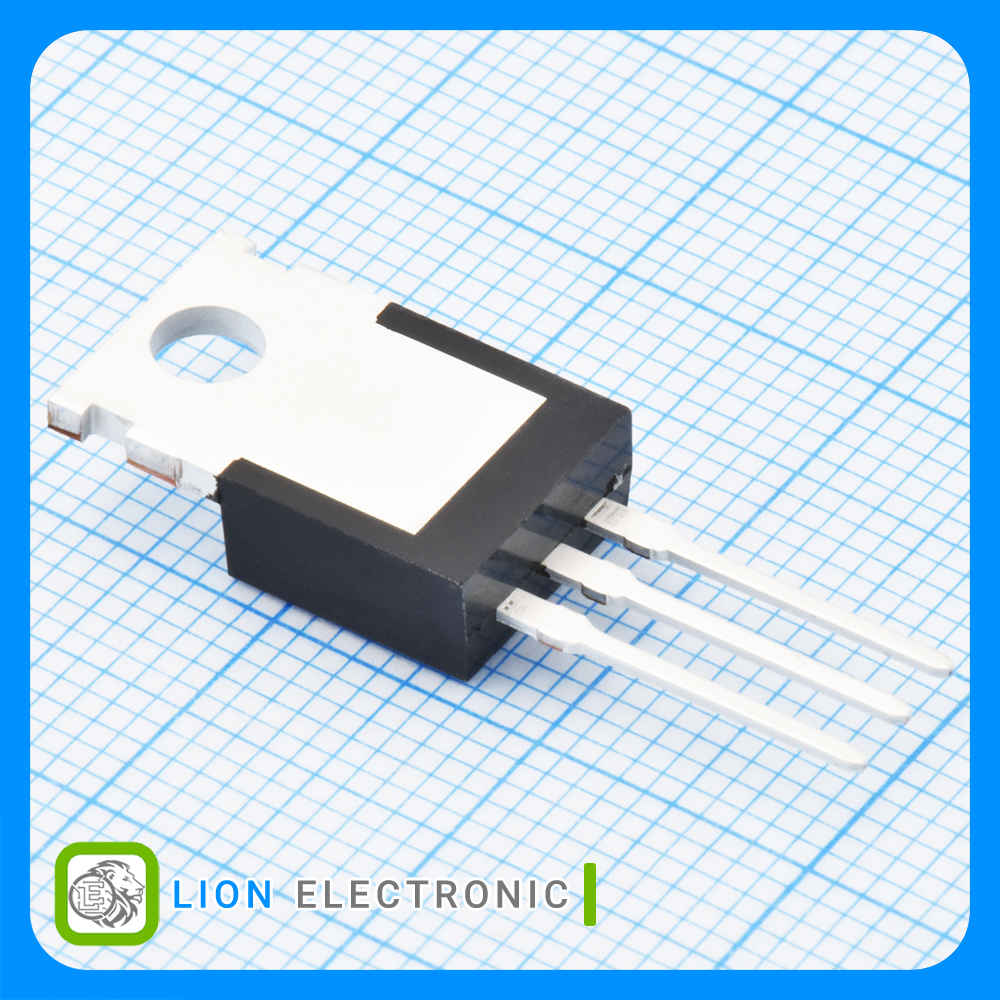

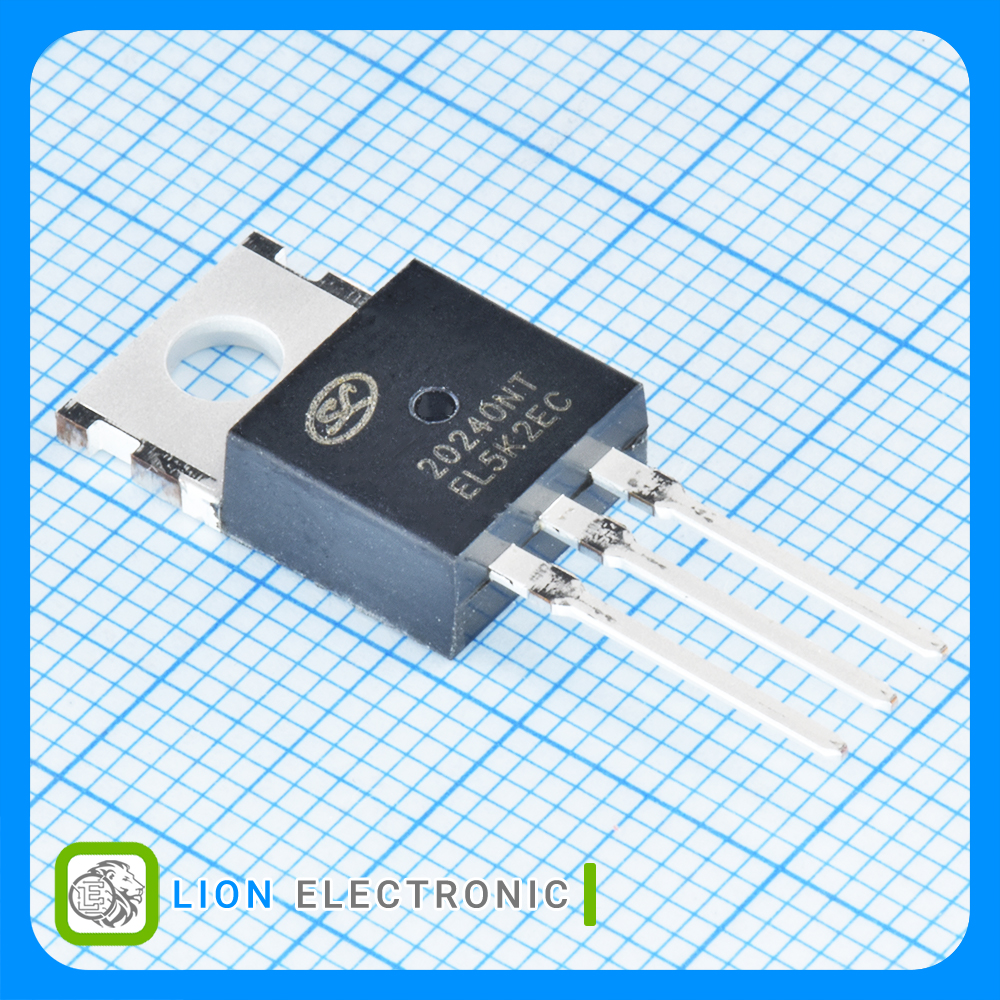

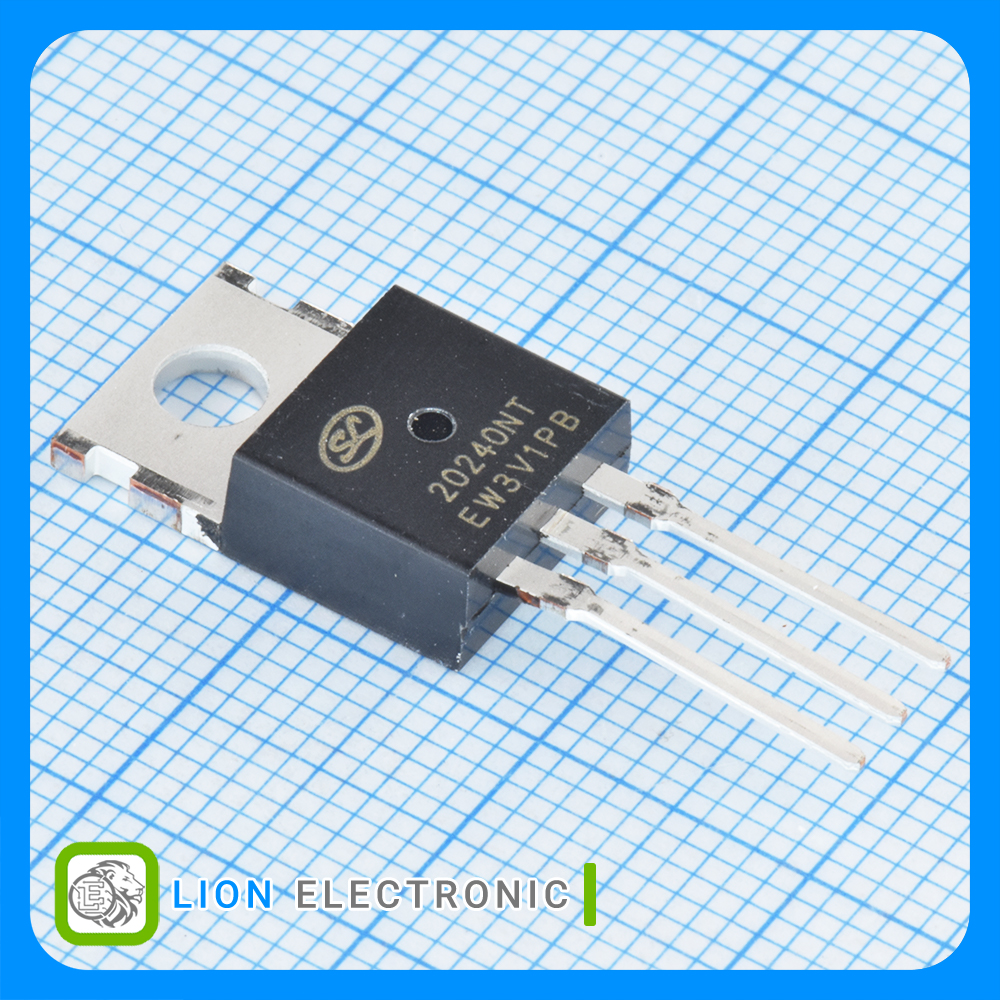

MOSFET 200V, 72A, N-Channel with TO-220 Package
معرفی
ماسفت 200 ولت 72 آمپر نوع N با پکیج TO-220
MOSFET 200V, 72A, N-Channel with TO-220 Package
Specifications
- Package/Case: TO-220-3
- Vds - Drain - Source Breakdown Voltage: 200V
- Id - Continuous Drain Current: 72A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 3V
- Vgs - Gate - Source Voltage: ±30V
- Rds On - Drain - Source Resistance: 19.7mΩ
- Pd - Power Dissipation: 263W
- Qg - Gate Charge: 83nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات SVT20240NT
SVT20240NT
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±30V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
200V
Vds - Drain - Source Breakdown Voltage
3V
Vgs th - Gate - Source Threshold Voltage
19.7mΩ
Rds On - Drain - Source Resistance
83nC
Qg - Gate Charge
72A
Id - Continuous Drain Current
263W
Pd - Power Dissipation
TO-220
Package-Case
