Nexperia
معرفی

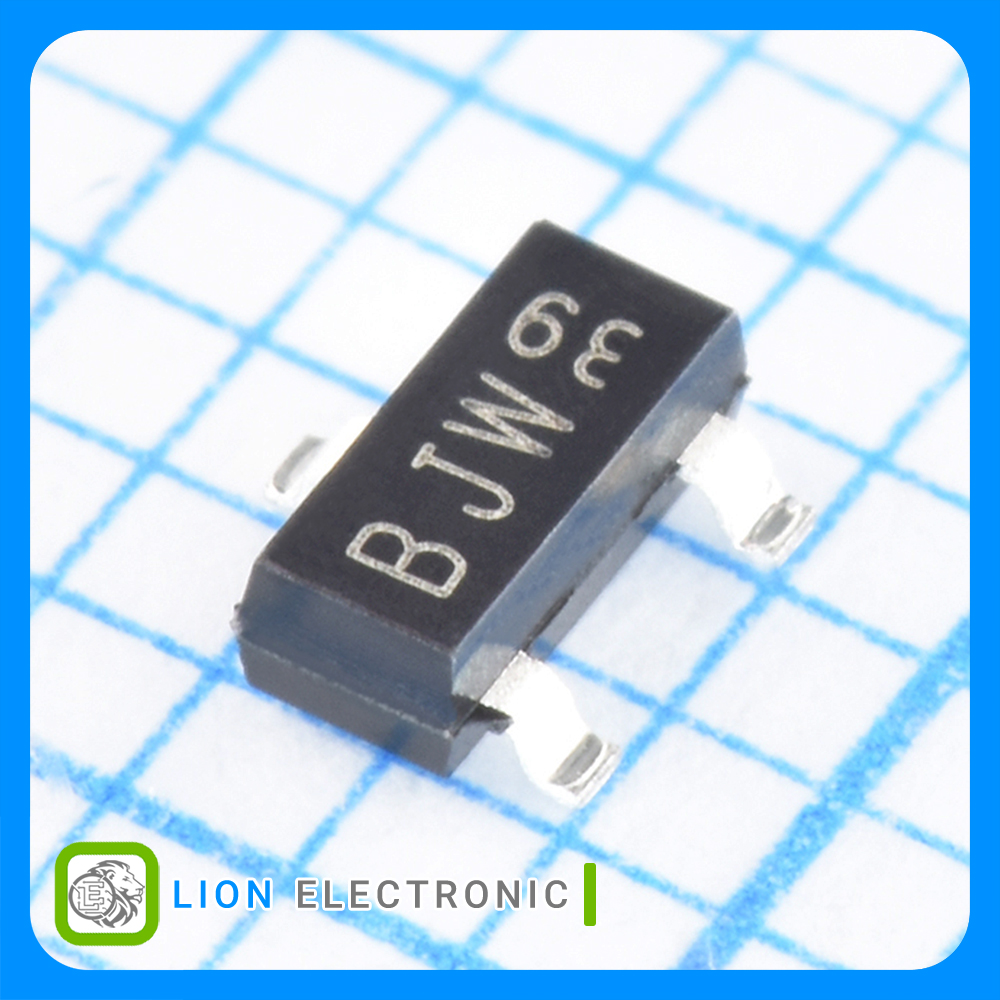

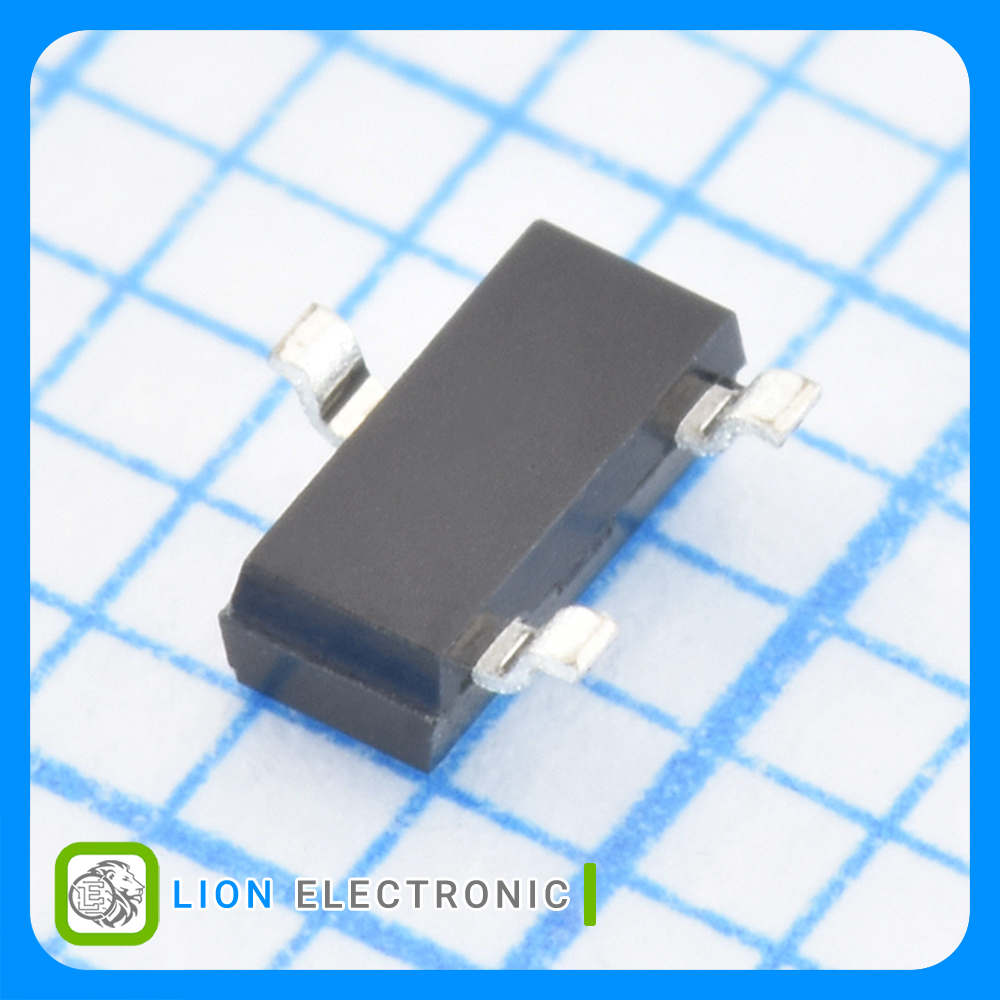

ترانزیستور PNP 45- ولت 100- میلیآمپر با پکیج SOT-23-3
BJT PNP -45V, -100mA with SOT-23-3 Package
Specifications
- Transistor Polarity: PNP
- Configuration: Single
- Collector - Emitter Voltage VCEO Max: -45V
- Maximum DC Collector Current: -100mA
- Gain Bandwidth Product fT: 100MHz
- Pd - Power Dissipation: 250mW
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-3
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ترانزیستور BCX71J,215
ترانزیستور BCX71J,215
Part Number
-65C
Minimum Operating Temperature
Reel
Packaging
-45V
Collector - Emitter Voltage VCEO Max
PNP
Transistor Polarity
100MHz
Gain Bandwidth Product fT
SMD/SMT
Mounting Style
-100mA
Maximum DC Collector Current
250mW
Pd - Power Dissipation
+150C
Maximum Operating Temperature
Single
Configuration
SOT-23-3
Package-Case
