SS8550DTA
SS8550DTA
Part Number
5707
Lion Part
Datasheet
FAIRCHILD/ONSEMI Manufacture
ترانزیستور PNP با ولتاژ 25- ولت و جریان 1.5- آمپر با پکیج TO-92-با 3 پایه خمیده

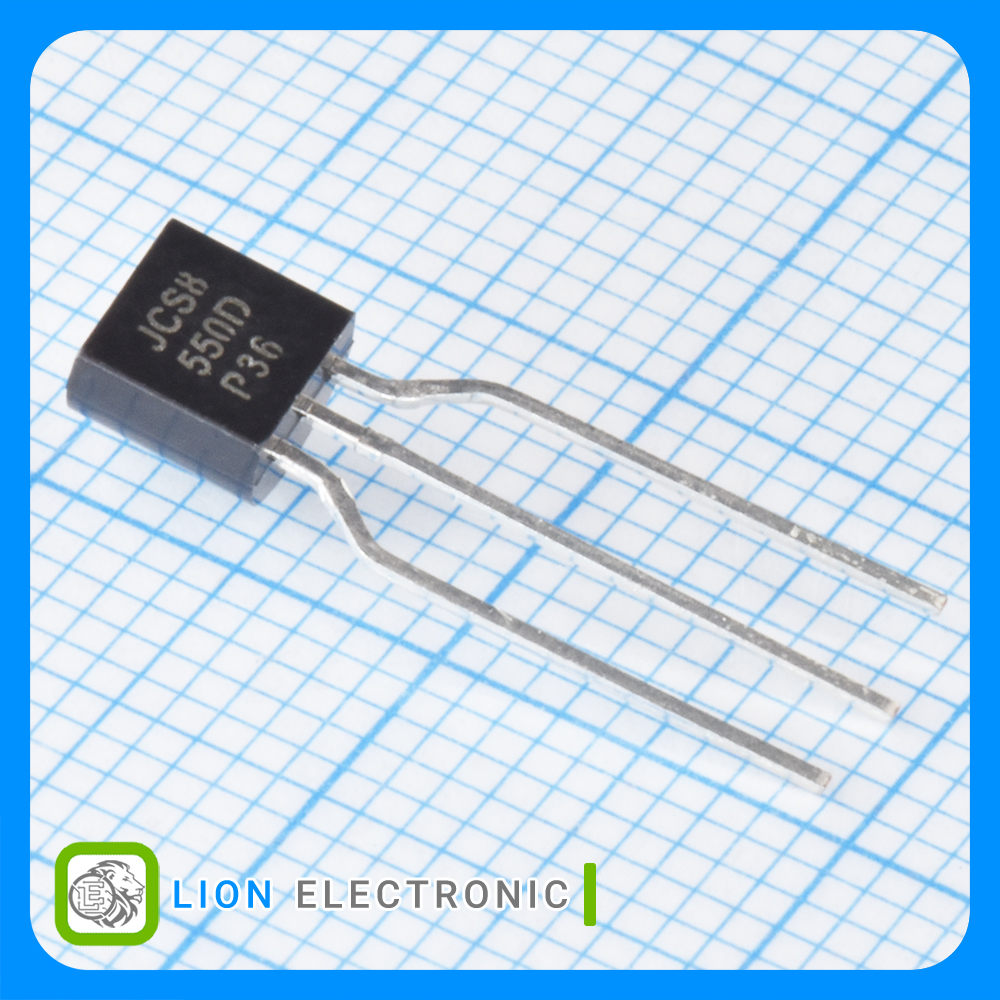

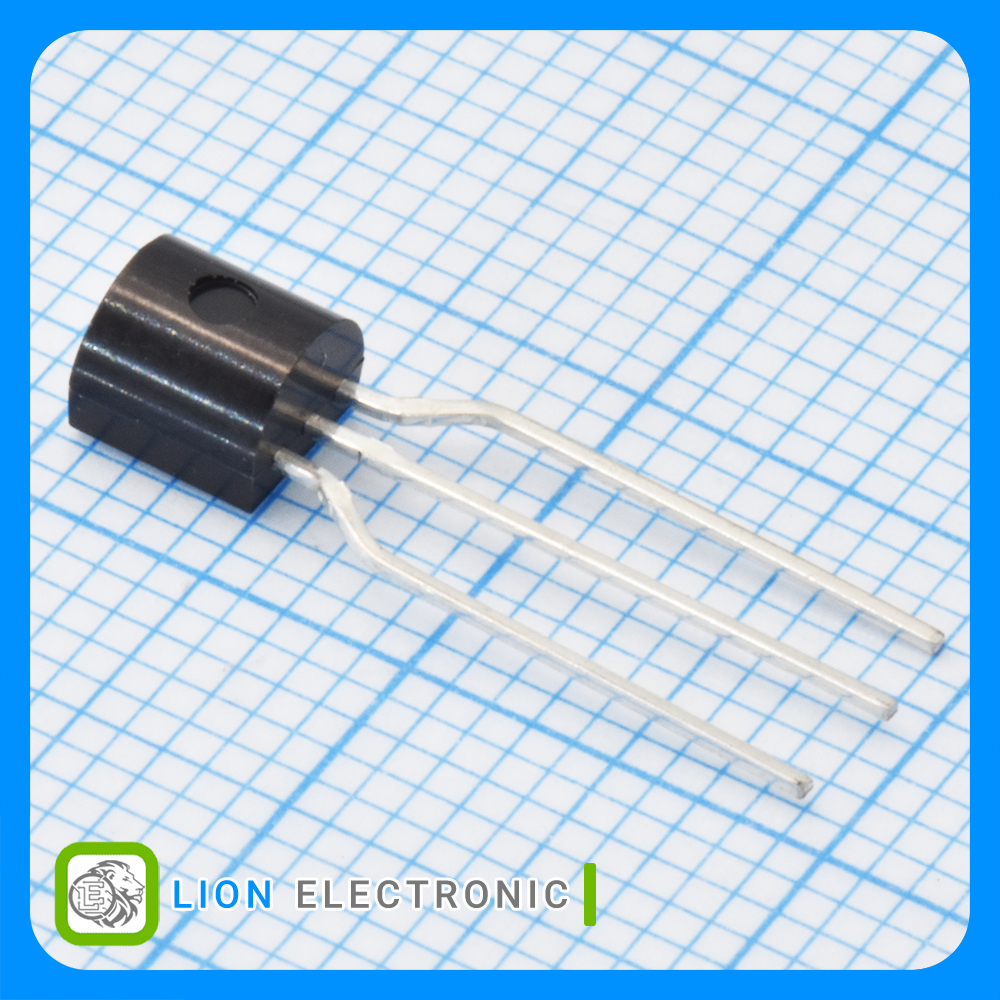

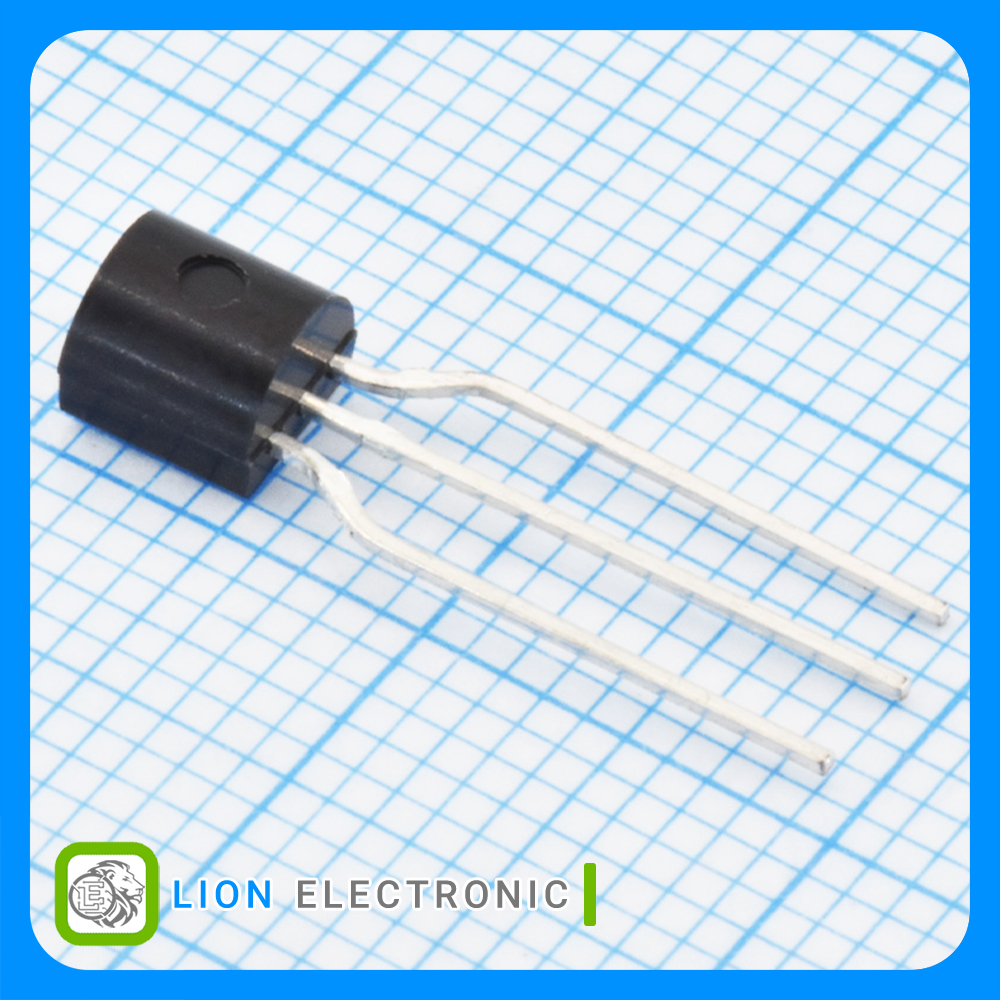

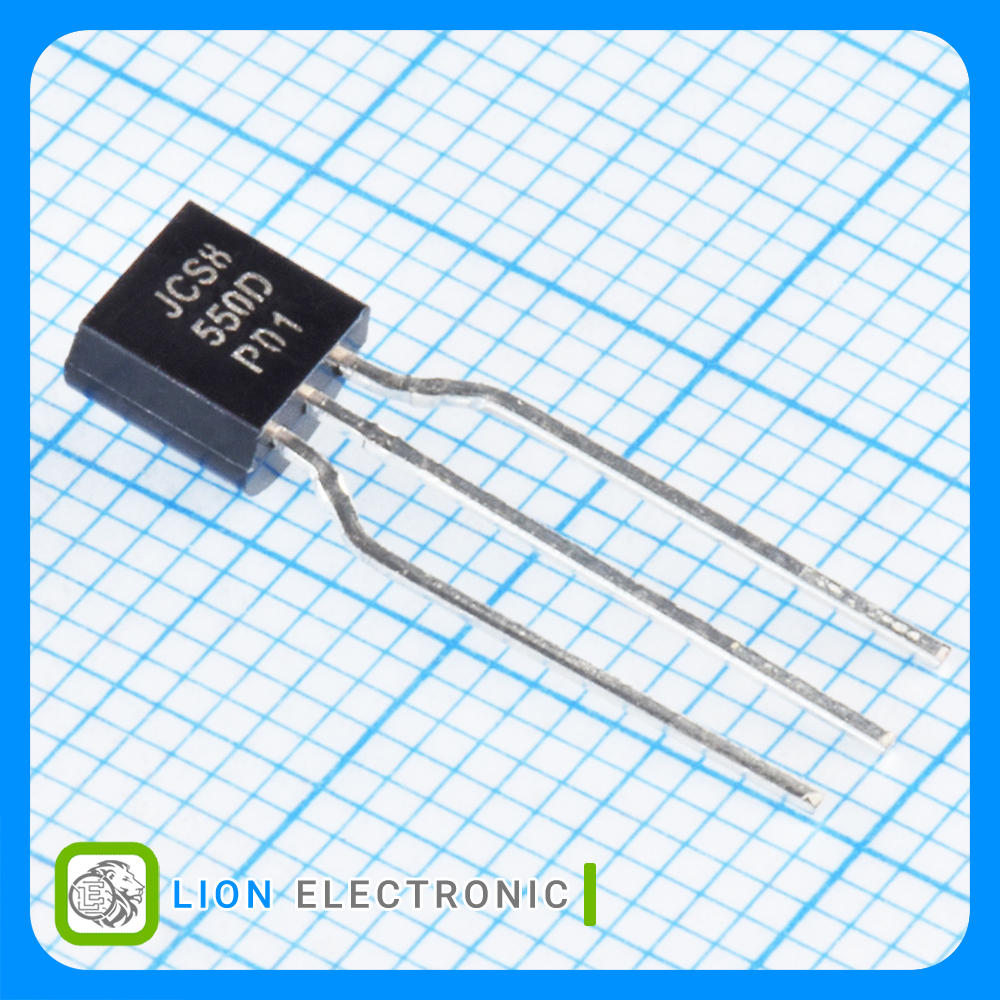

BJT PNP -25V, -1.5A with TO-92-3 Kinked Lead Package
معرفی
ترانزیستور PNP با ولتاژ 25- ولت و جریان 1.5- آمپر با پکیج TO-92-با 3 پایه خمیده
BJT PNP -25V, -1.5A with TO-92-3 Kinked Lead Package
Specifications
- Transistor Polarity: PNP
- Configuration: Single
- Collector - Emitter Voltage VCEO Max: -25V
- Maximum DC Collector Current: -1.5A
- Gain Bandwidth Product fT: 200MHz
- Pd - Power Dissipation: 1W
- Mounting Style: Through Hole
- Package/Case: TO-92-3 Kinked Lead
- Maximum Operating Temperature: +150C
- Packaging: Tape
مشخصات ترانزیستور SS8550DTA
ترانزیستور SS8550DTA
Part Number
Tape
Packaging
PNP
Transistor Polarity
-1.5A
Maximum DC Collector Current
-25V
Collector - Emitter Voltage VCEO Max
Through Hole
Mounting Style
200MHz
Gain Bandwidth Product fT
N/A
Minimum Operating Temperature
+150C
Maximum Operating Temperature
Single
Configuration
1W
Pd - Power Dissipation
TO-92-3 Kinked Lead
Package-Case
