SFEPD154BWR-7045N01
SFEPD154BWR-7045N01
Part Number
5354
Lion Part
Datasheet
SAEF TECHNOLOGY Manufacture
نمایشگر کاغذ الکترونیکی 1.54 اینچ با رزولوشن 200x200 نقطه، پنل E Ink با رابط SPI

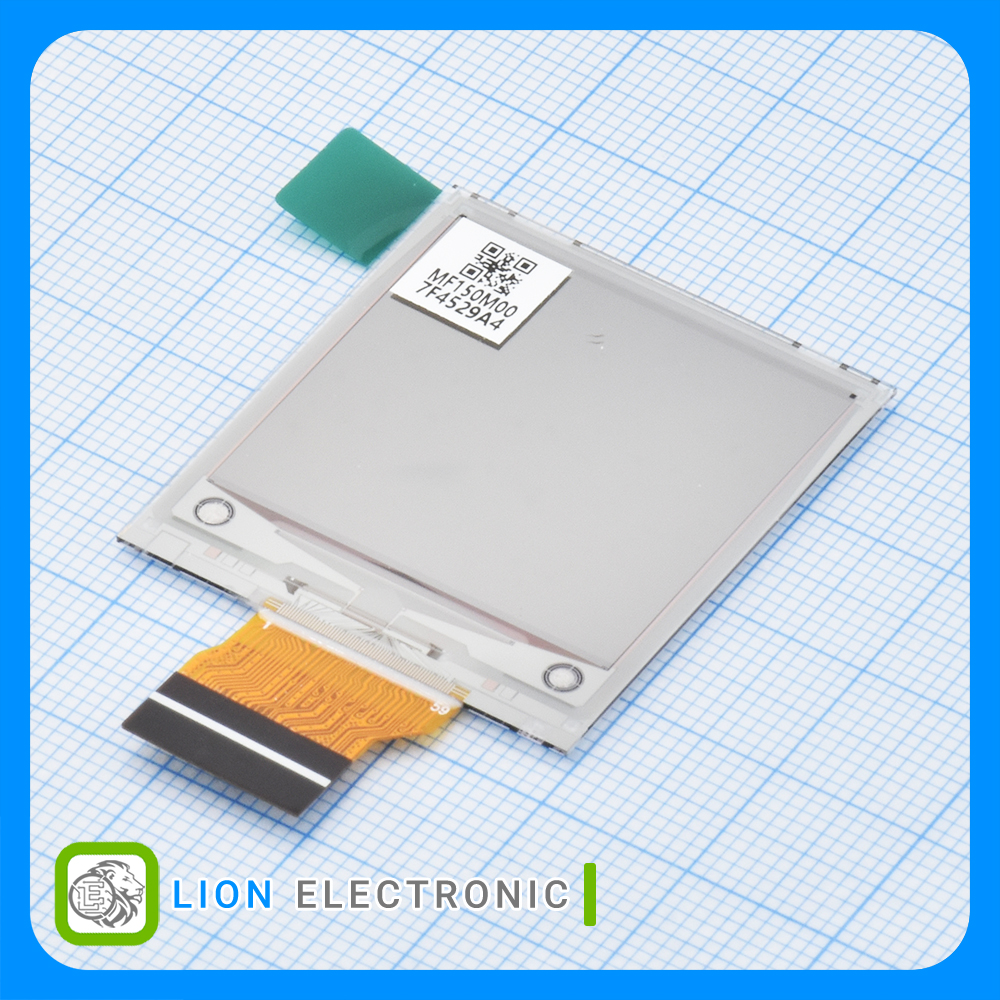

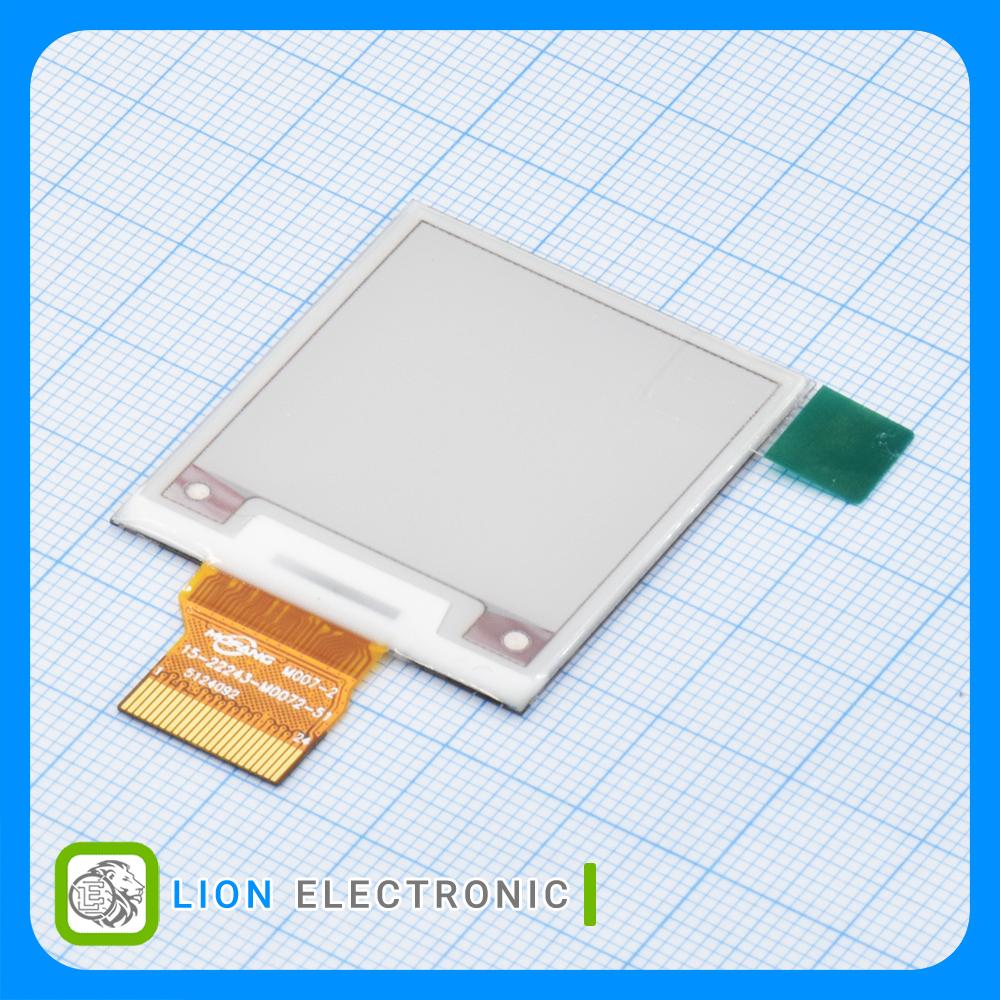

1.54 Inch 200x200 Dots Resolution E Ink Panel Electronic Paper Display with SPI Interface
معرفی
نمایشگر کاغذ الکترونیکی 1.54 اینچ با رزولوشن 200x200 نقطه، پنل E Ink با رابط SPI
1.54 Inch 200x200 Dots Resolution E Ink Panel Electronic Paper Display with SPI Interface
Specifications
- Interface Type: SPI
- Display Resolution - Pixels: 200x200
- Operating Supply Voltage: 2.5 - 3.7V
- Operating Supply Current: 2.5mA
- Display Color: Black, White
- Diagonal: 1.54in
- Modules Size - W x H x T: 37.32 x 31.80 x 1mm
- Viewing Area - W x H: 27 x 27mm
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +40C
مشخصات نمایشگر SFEPD154BWR-7045N01
نمایشگر SFEPD154BWR-7045N01
Part Number
1.54in
Diagonal
Black, White
Display Color
+40C
Maximum Operating Temperature
200x200
Display Resolution - Pixels
27 x 27mm
Viewing Area - W x H
37.32 x 31.80 x 1mm
Modules Size - W x H x T
0C
Minimum Operating Temperature
2.5 - 3.7V
Operating Supply Voltage
2.5mA
Operating Supply Current
SPI
Interface Type
