SFEPD266BWR-7048HNP16
SFEPD266BWR-7048HNP16
Part Number
5355
Lion Part
Datasheet
SAEF TECHNOLOGY Manufacture
نمایشگر کاغذ الکترونیکی 2.66 اینچ با رزولوشن 152x296 نقطه سه رنگ، پنل E Ink با رابط SPI

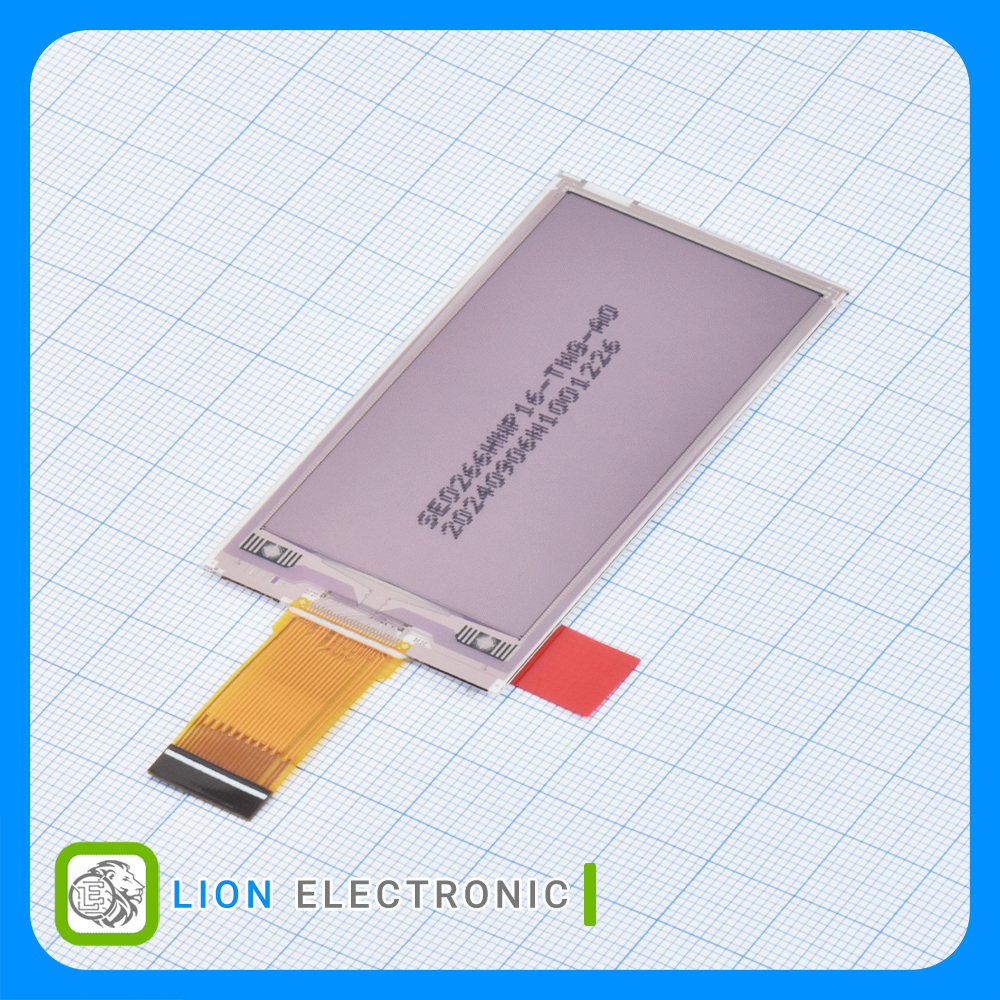

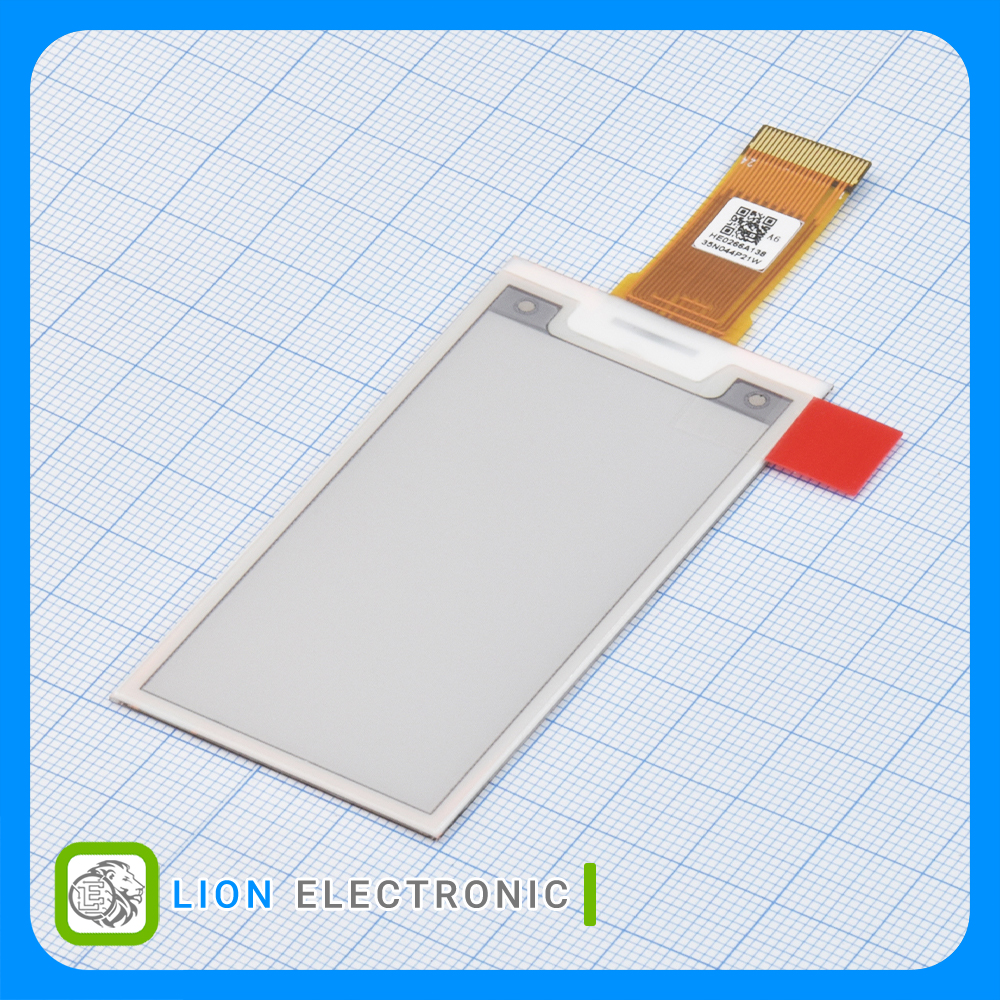

2.66 Inch 152x296 Dots Resolution 3-Color E Ink Panel Electronic Paper Display with SPI Interface
معرفی
نمایشگر کاغذ الکترونیکی 2.66 اینچ با رزولوشن 152x296 نقطه سه رنگ، پنل E Ink با رابط SPI
2.66 Inch 152x296 Dots Resolution 3-Color E Ink Panel Electronic Paper Display with SPI Interface
Specifications
- Interface Type: SPI
- Display Resolution - Pixels: 152x296
- Operating Supply Voltage: 2.5 - 3.7V
- Operating Supply Current: 3mA
- Display Color: Black, White, Red
- Diagonal: 2.66in
- Modules Size - W x H x T: 71.82 x 36.30 x 0.9mm
- Viewing Area - W x H: 60.09 x 30.70mm
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +40C
مشخصات نمایشگر SFEPD266BWR-7048HNP16
نمایشگر SFEPD266BWR-7048HNP16
Part Number
+40C
Maximum Operating Temperature
Black, White, Red
Display Color
152x296
Display Resolution - Pixels
2.66in
Diagonal
0C
Minimum Operating Temperature
60.09 x 30.70mm
Viewing Area - W x H
71.82 x 36.30 x 0.9mm
Modules Size - W x H x T
2.5 - 3.7V
Operating Supply Voltage
3mA
Operating Supply Current
SPI
Interface Type
