BWGNSCNX20-20W4
BWGNSCNX20-20W4
Part Number
5368
Lion Part
Datasheet
BAT WIRELESS Manufacture
آنتن 1.57 تا 1.58 گیگاهرتز با بهره 3-5dBi امپدانس 50 اهم کانکتور لحیمی

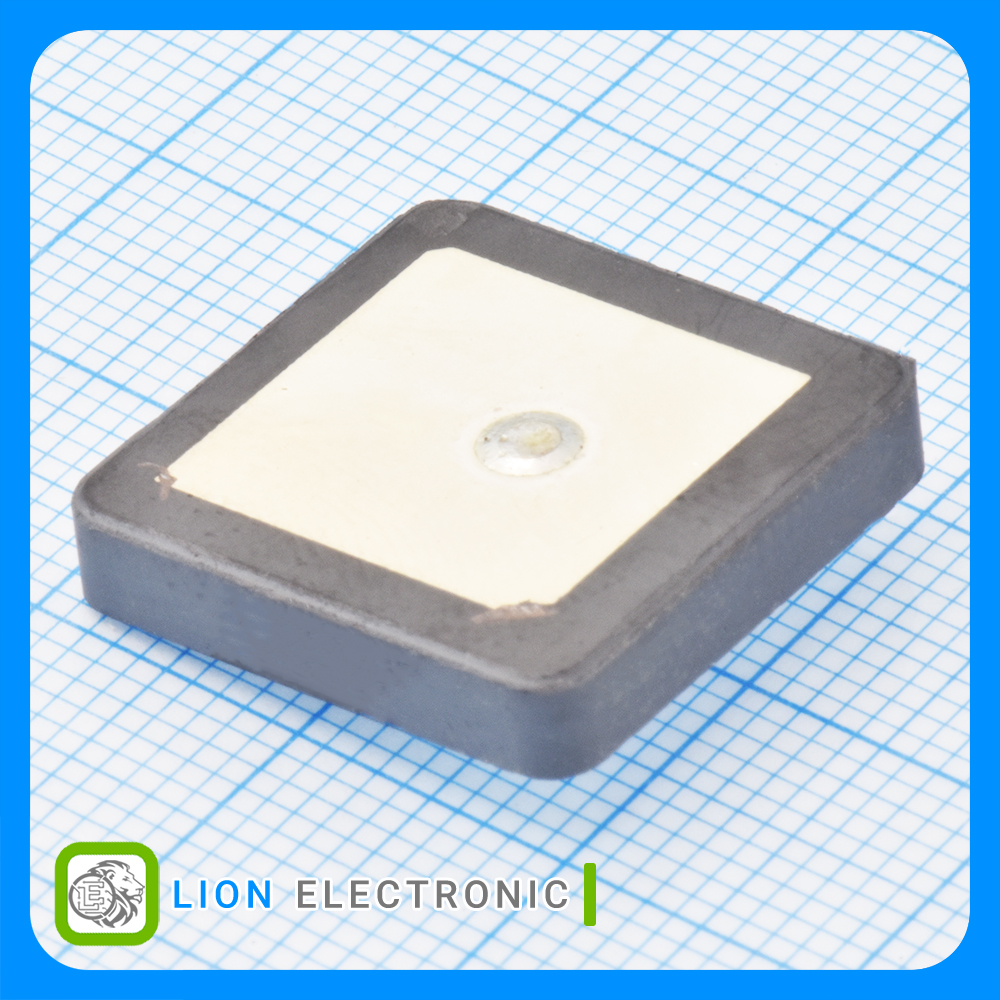

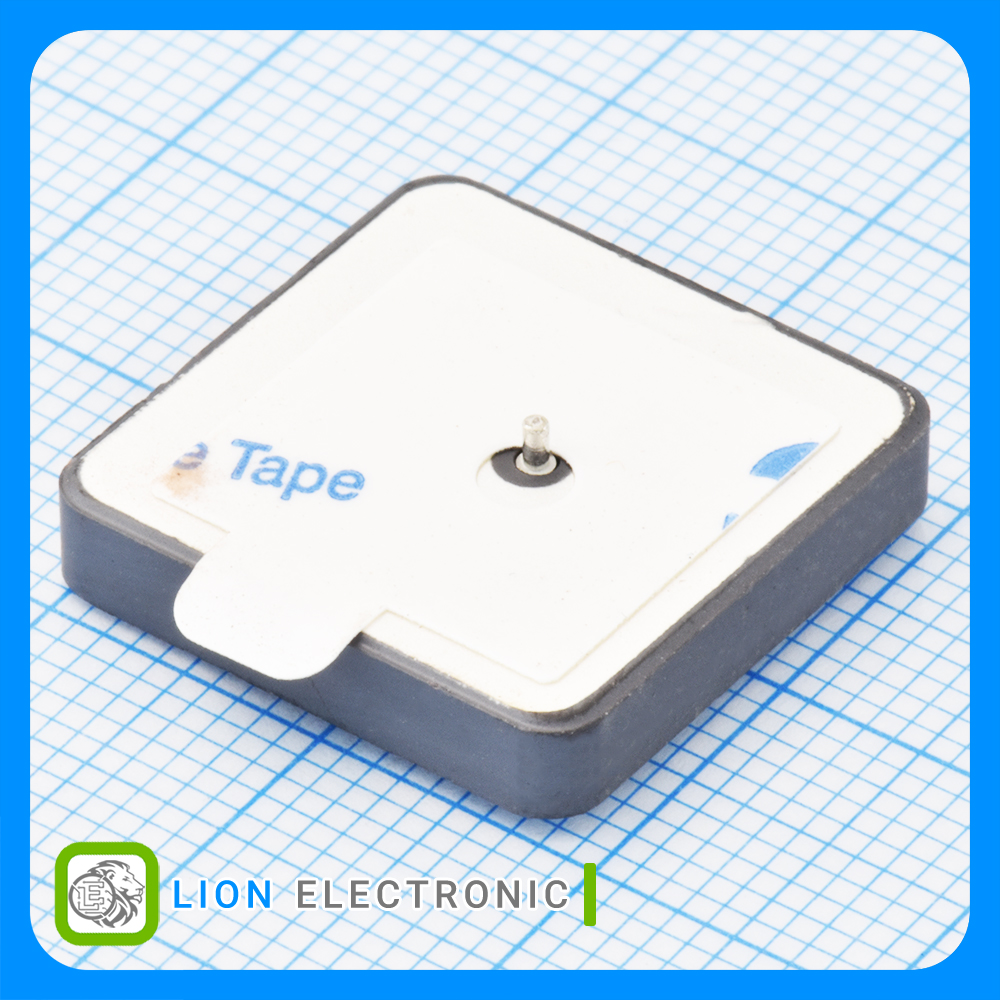

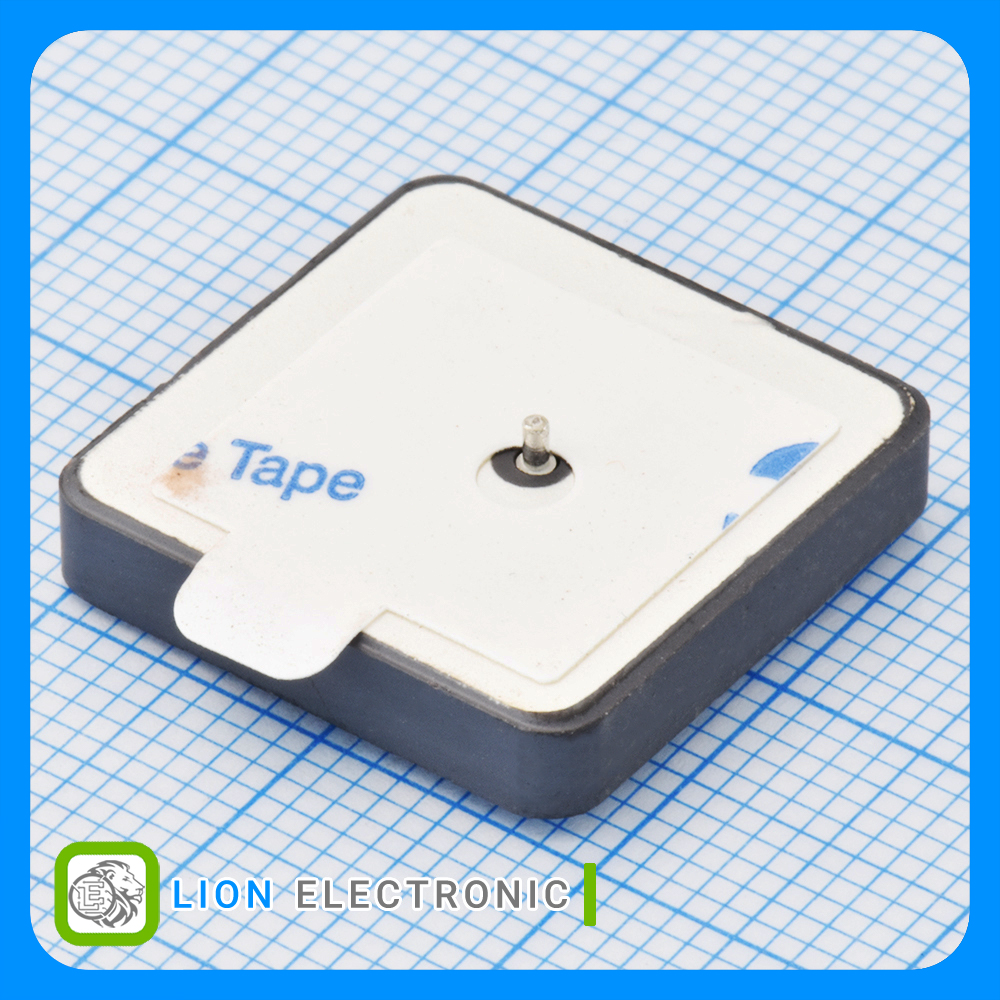

Antenna 1.57 - 1.58GHz, 3-5dBi with 50Ω and Installation by soldering Connector
معرفی
آنتن 1.57 تا 1.58 گیگاهرتز با بهره 3-5dBi امپدانس 50 اهم کانکتور لحیمی
Antenna 1.57 - 1.58GHz, 3-5dBi with 50Ω and Installation by soldering Connector
Specifications
- Antenna Connector Type: Installation by soldering
- Application: GPS Passive
- Frequency Range: 1.57 - 1.58GHz
- Gain: 3-5dBi
- Impedance: 50Ω
- Cable Length: None
- Dimensions: 20mm x 20mm x 4mm
- Mounting Style: PCB Mount
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +80C
مشخصات BWGNSCNX20-20W4
BWGNSCNX20-20W4
Part Number
Installation by soldering
Antenna Connector Type
50Ω
Impedance
-40C
Minimum Operating Temperature
PCB Mount
Mounting Style
+80C
Maximum Operating Temperature
GPS Passive
Application
3-5dBi
Gain
None
Cable Length
1.57 - 1.58GHz
Frequency Range
20mm x 20mm x 4mm
Dimensions
