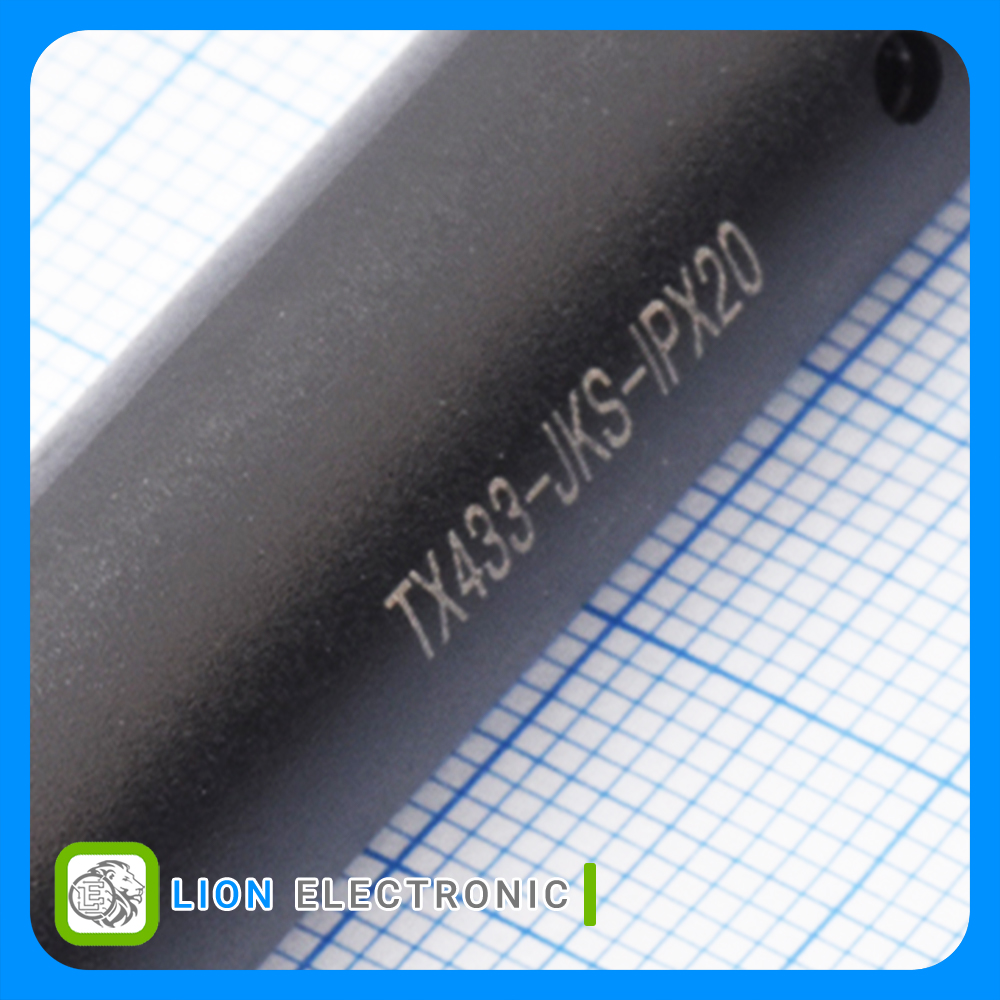

TX433-JKS-IPX20
TX433-JKS-IPX20
Part Number
5551
Lion Part
Datasheet
EBYTE Manufacture
آنتن TX433-JKS-IPX20 باند 433 مگاهرتز، 429 تا 440 مگاهرتز با بهره 3dBi، امپدانس 50 اهم، کانکتور IPEX-1، قابل پیچ روی پنل

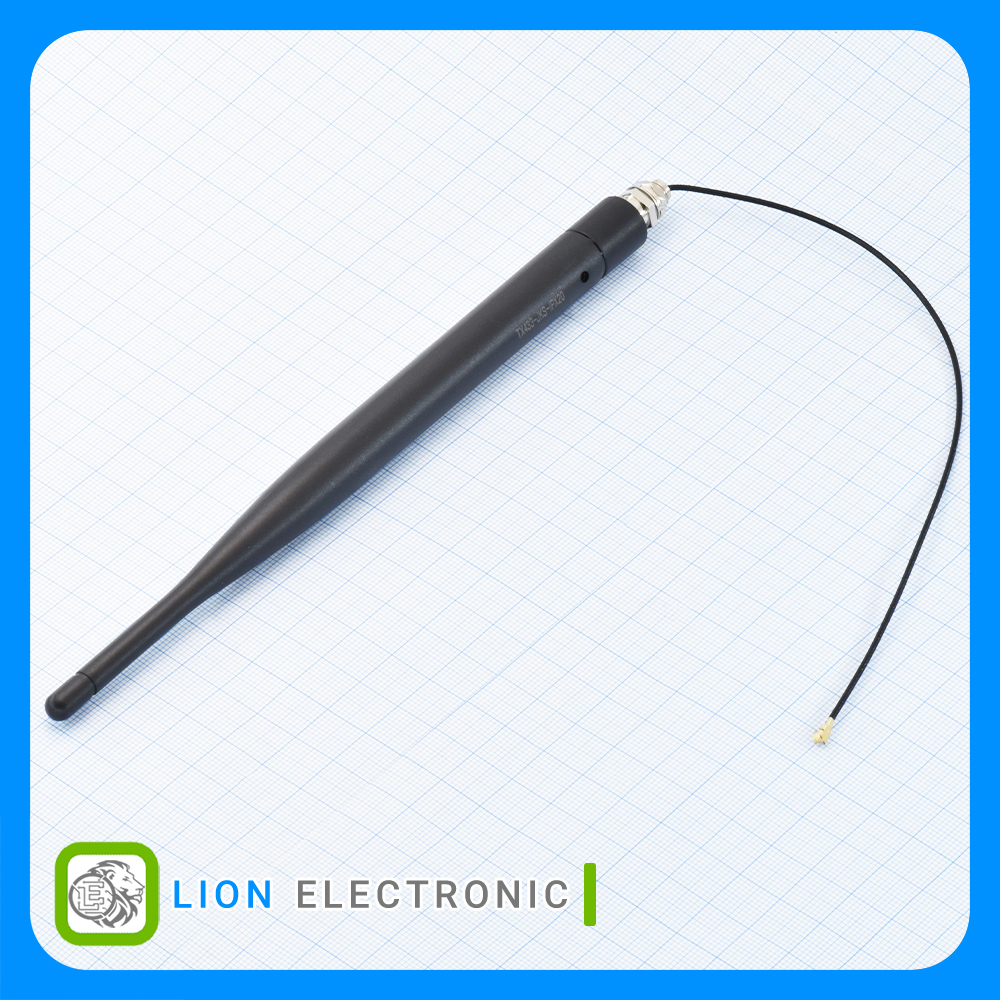

Antenna TX433-JKS-IPX20, 429 - 440MHz, 3dBi with 50Ω and IPEX-1 Connector, bendable glue stick antenna for 433MHz band, panel mountable
معرفی
آنتن TX433-JKS-IPX20 باند 433 مگاهرتز، 429 تا 440 مگاهرتز با بهره 3dBi، امپدانس 50 اهم، کانکتور IPEX-1، قابل پیچ روی پنل
Antenna TX433-JKS-IPX20, 429 - 440MHz, 3dBi with 50Ω and IPEX-1 Connector, bendable glue stick antenna for 433MHz band, panel mountable
Specifications
- Antenna Connector Type: IPEX-1
- Application: 433MHz
- Frequency Range: 429 - 440MHz
- Gain: 3dBi
- Impedance: 50Ω
- Cable Length: 200mm
- Dimensions: 171mm x 26mm
- Mounting Style: Connector
- Minimum Operating Temperature: -30C
- Maximum Operating Temperature: +75C
مشخصات TX433-JKS-IPX20
TX433-JKS-IPX20
Part Number
433MHz
Application
50Ω
Impedance
IPEX-1
Antenna Connector Type
Connector
Mounting Style
3dBi
Gain
+75C
Maximum Operating Temperature
-30C
Minimum Operating Temperature
200mm
Cable Length
429 - 440MHz
Frequency Range
171mm x 26mm
Dimensions
