TOSHIBA
معرفی

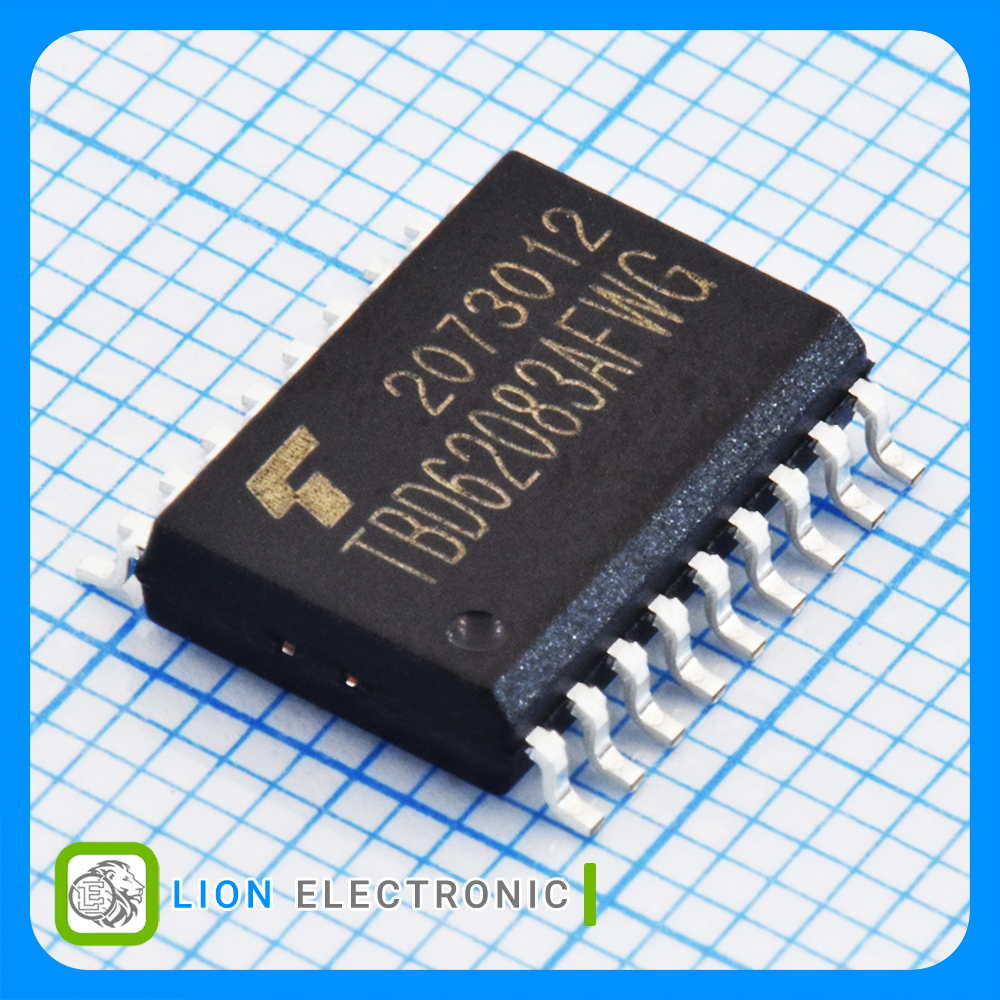

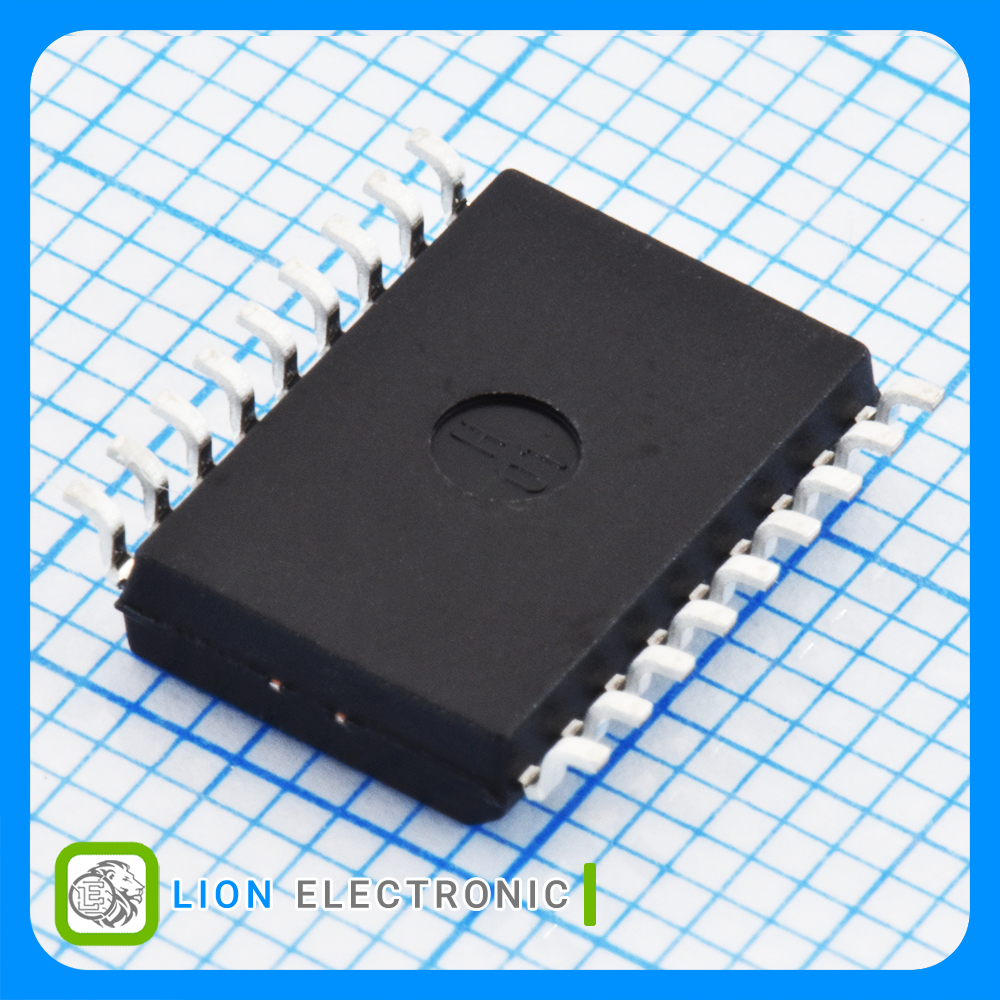

آرایه 8 تایی ماسفت DMOS نوع سینک 50 ولت 500 میلیآمپر نوع N با پکیج PSOP-18
8 DMOS transistor array with 8 circuits, N-Channel MOSFET 50V, 500mA with PSOP-18 Package
Specifications
- Package/Case: PSOP-18
- Vds - Drain - Source Breakdown Voltage: 50V
- Id - Continuous Drain Current: 500mA
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 8
- Vgs th - Gate - Source Threshold Voltage: 1.6V
- Vgs - Gate - Source Voltage: −0.5 - 30 V
- Rds On - Drain - Source Resistance: 3.25Ω
- Pd - Power Dissipation: 1.31W
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات TBD62083AFWG(Z,EHZ
TBD62083AFWG(Z,EHZ
Part Number
−0.5 - 30 V
Vgs - Gate - Source Voltage
Enhancement
Channel Mode
500mA
Current Limit
Reel
Packaging
8
Number of Outputs
-40C
Minimum Operating Temperature
400ns
On Time - Max
SMD/SMT
Mounting Style
800ns
Off Time - Max
+85C
Maximum Operating Temperature
8
Number of Channels
50V
Vds - Drain - Source Breakdown Voltage
3.25Ω
On Resistance - Max
1.6V
Vgs th - Gate - Source Threshold Voltage
400mA
Output Current
500mA
Id - Continuous Drain Current
1.31W
Pd - Power Dissipation
Low Side
Type
2.5 - 25V
Operating Supply Voltage
N/A
Qg - Gate Charge
3.25Ω
Rds On - Drain - Source Resistance
PSOP-18
Package-Case
