TOSHIBA
معرفی

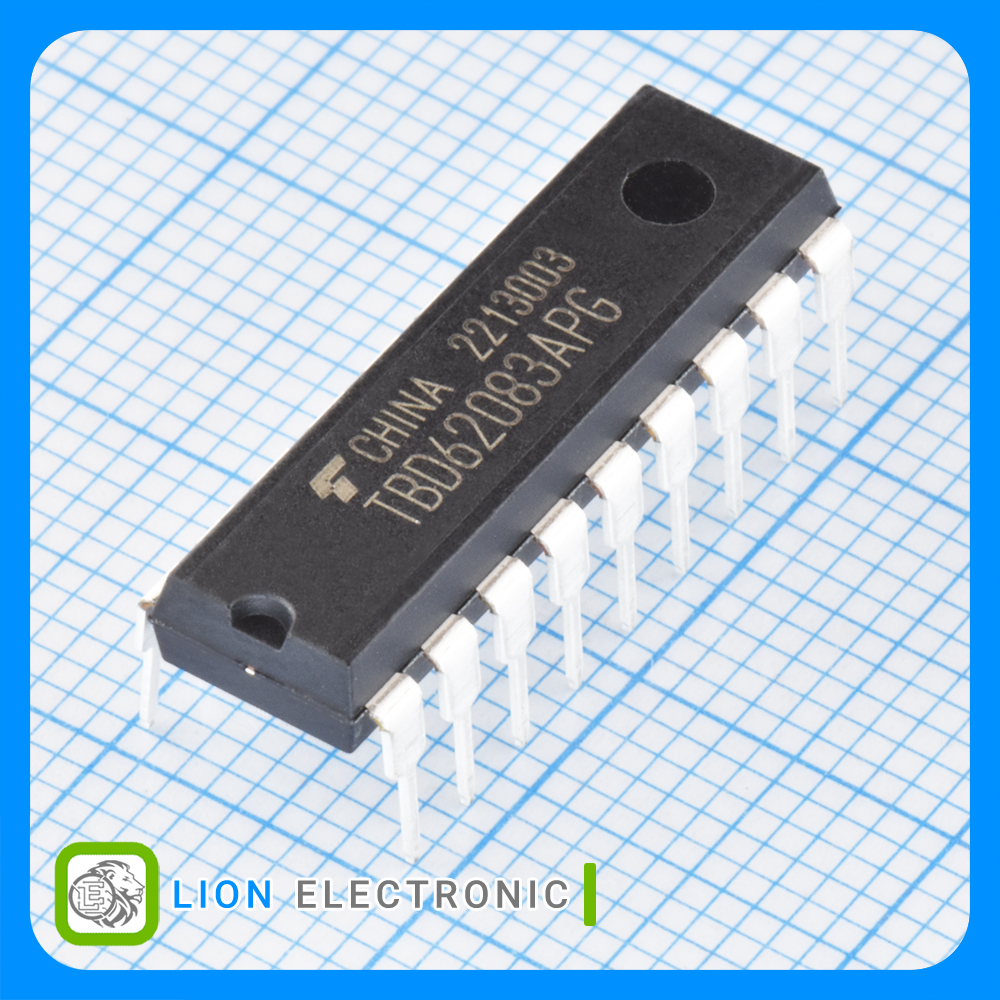

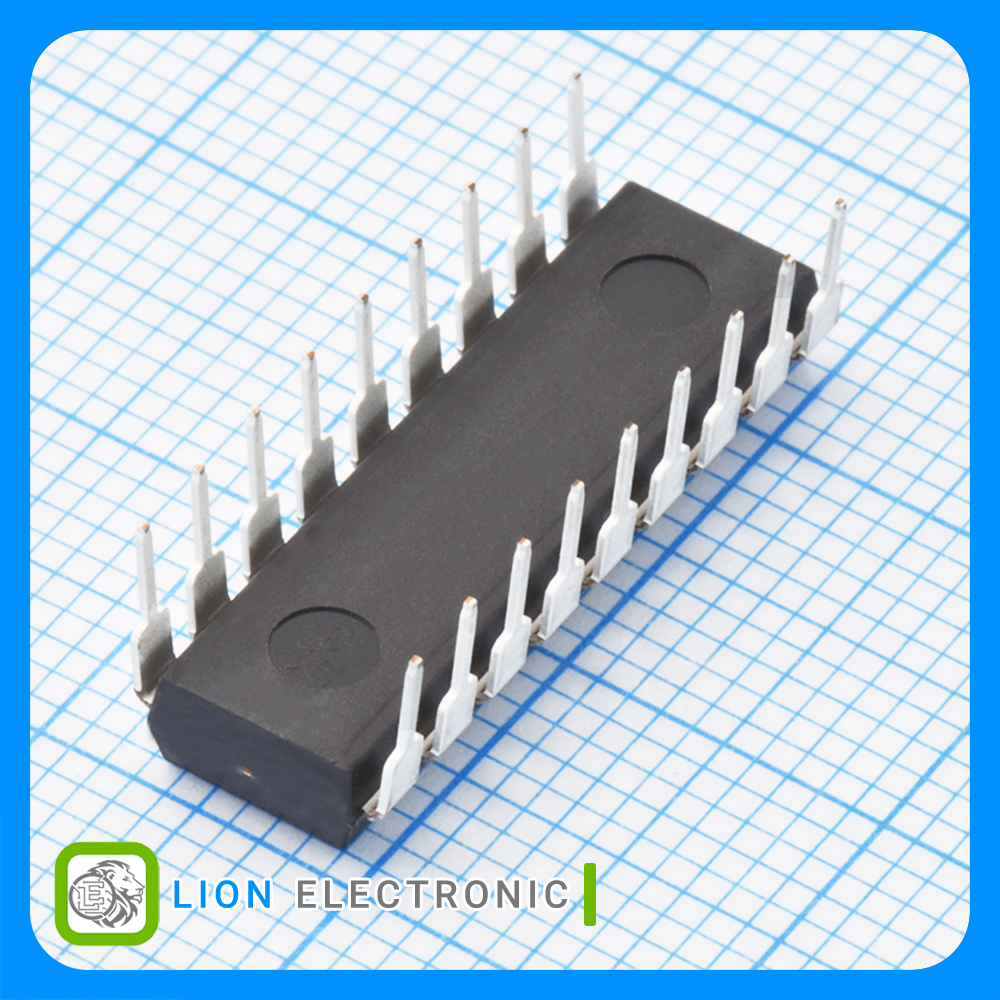

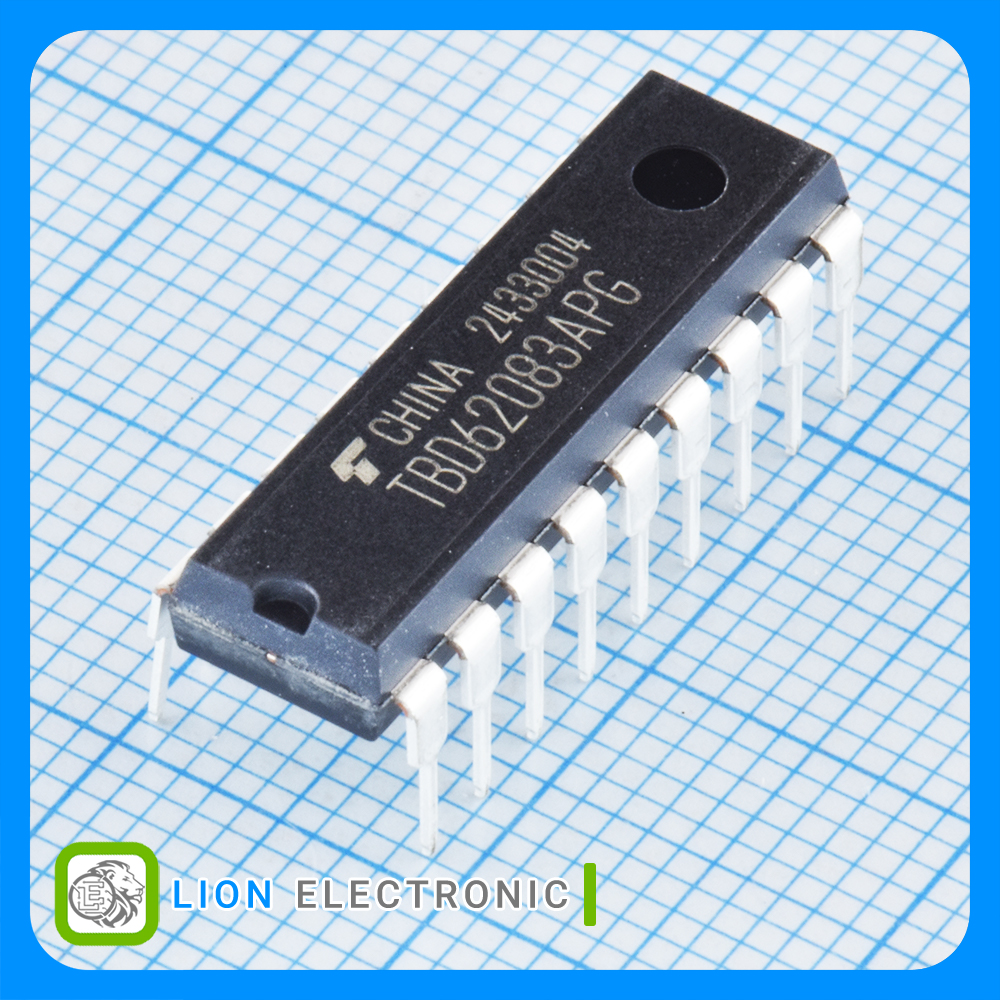

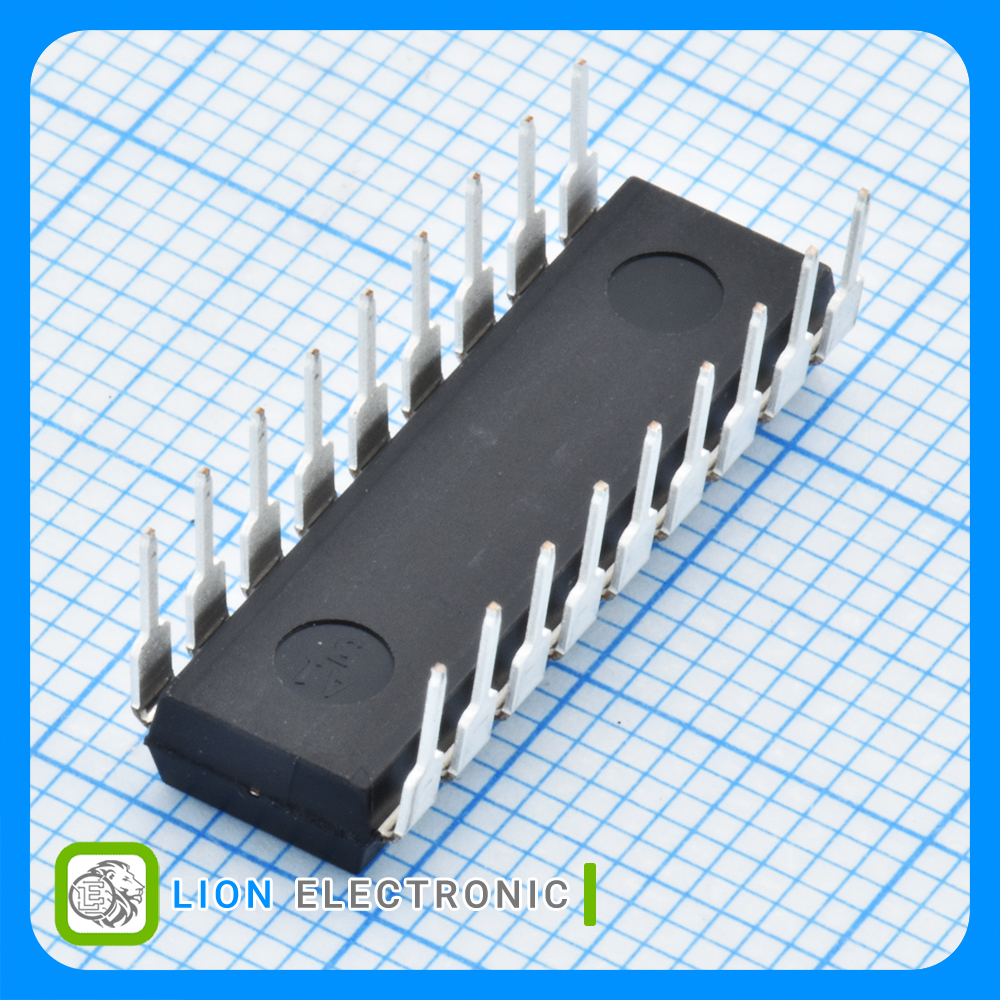

آرایه 8 تایی ماسفت DMOS نوع سینک 50 ولت 500 میلیآمپر نوع N با پکیج PDIP-18
8 DMOS transistor array with 8 circuits, N-Channel MOSFET 50V, 500mA with PDIP-18 Package
Specifications
- Package/Case: PDIP-18
- Vds - Drain - Source Breakdown Voltage: 50V
- Id - Continuous Drain Current: 500mA
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 8
- Vgs th - Gate - Source Threshold Voltage: 1.6V
- Vgs - Gate - Source Voltage: −0.5 - 30 V
- Rds On - Drain - Source Resistance: 3.25Ω
- Pd - Power Dissipation: 1.47W
- Mounting Style: Through Hole
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات TBD62083APG
TBD62083APG
Part Number
−0.5 - 30 V
Vgs - Gate - Source Voltage
Enhancement
Channel Mode
500mA
Current Limit
8
Number of Outputs
-40C
Minimum Operating Temperature
400ns
On Time - Max
Tube
Packaging
+85C
Maximum Operating Temperature
800ns
Off Time - Max
Through Hole
Mounting Style
8
Number of Channels
50V
Vds - Drain - Source Breakdown Voltage
3.25Ω
On Resistance - Max
1.6V
Vgs th - Gate - Source Threshold Voltage
500mA
Output Current
500mA
Id - Continuous Drain Current
Low Side
Type
1.47W
Pd - Power Dissipation
2.5 - 25V
Operating Supply Voltage
DIP-18
Package-Case
N/A
Qg - Gate Charge
3.25Ω
Rds On - Drain - Source Resistance
