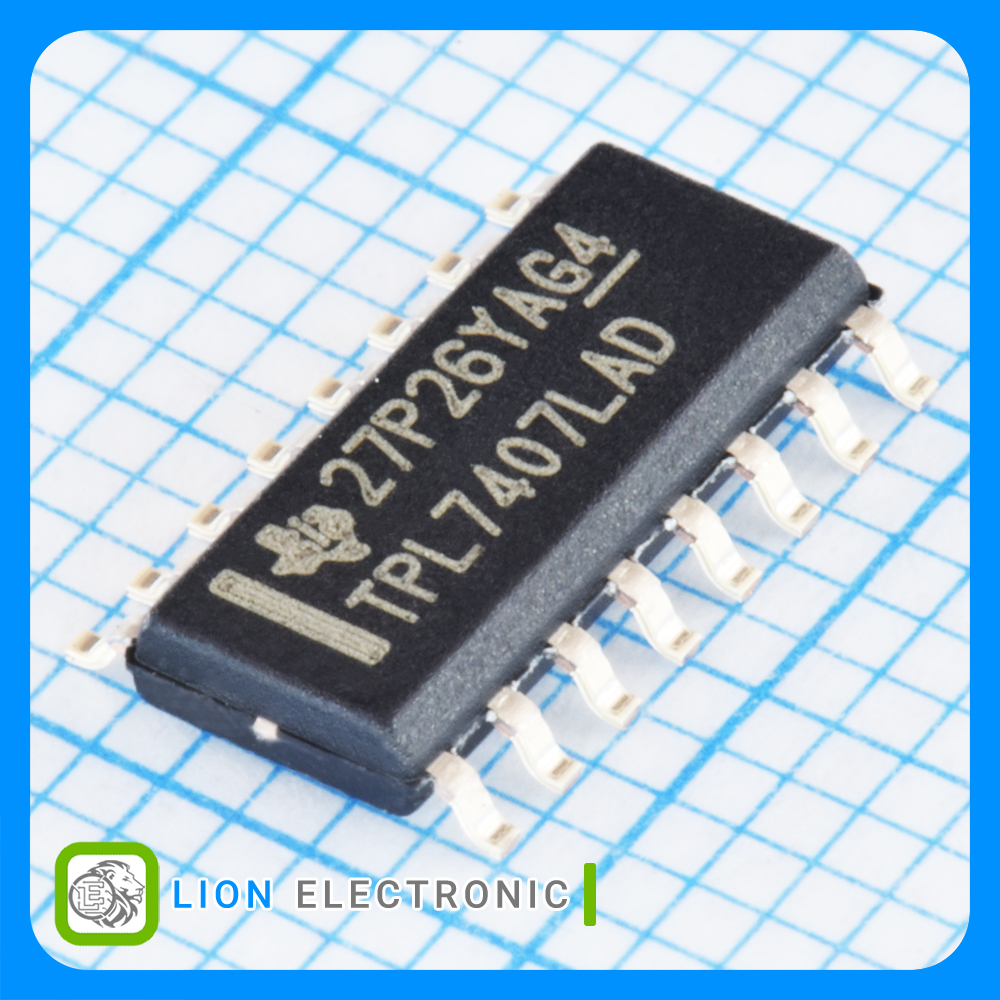

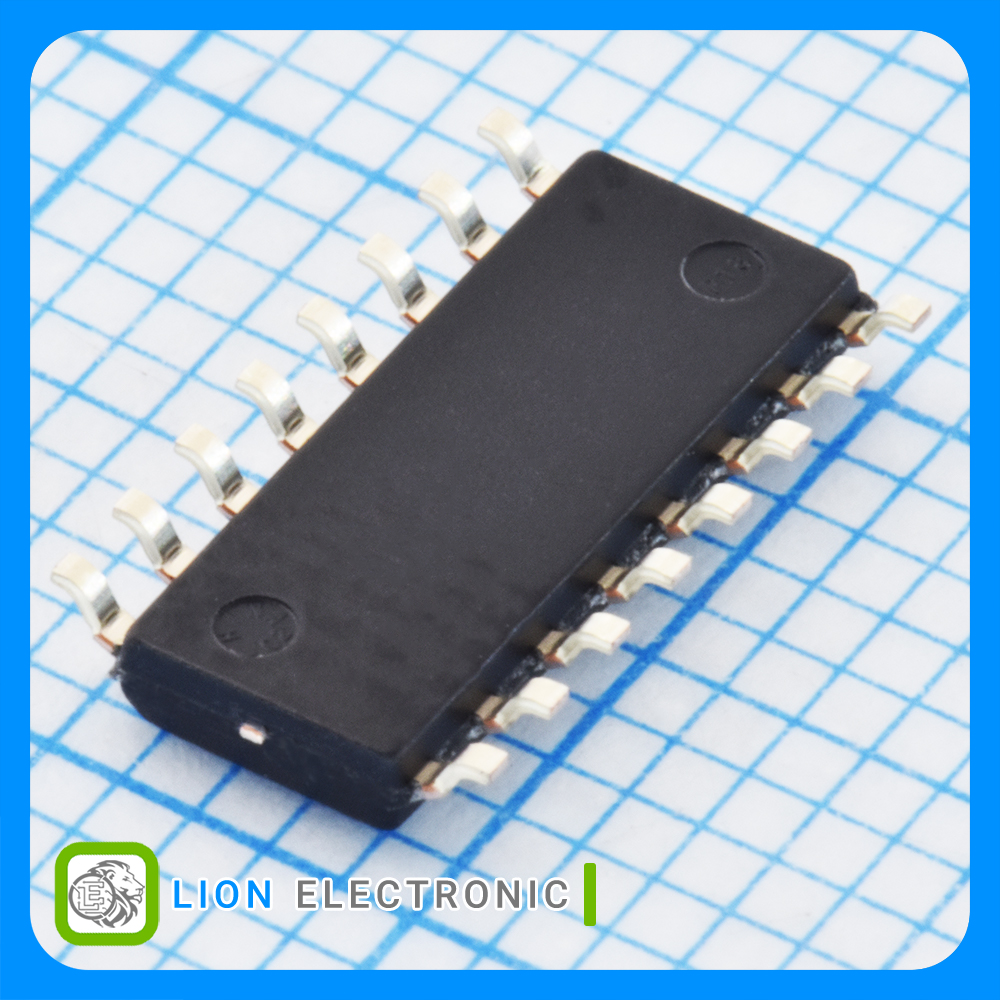

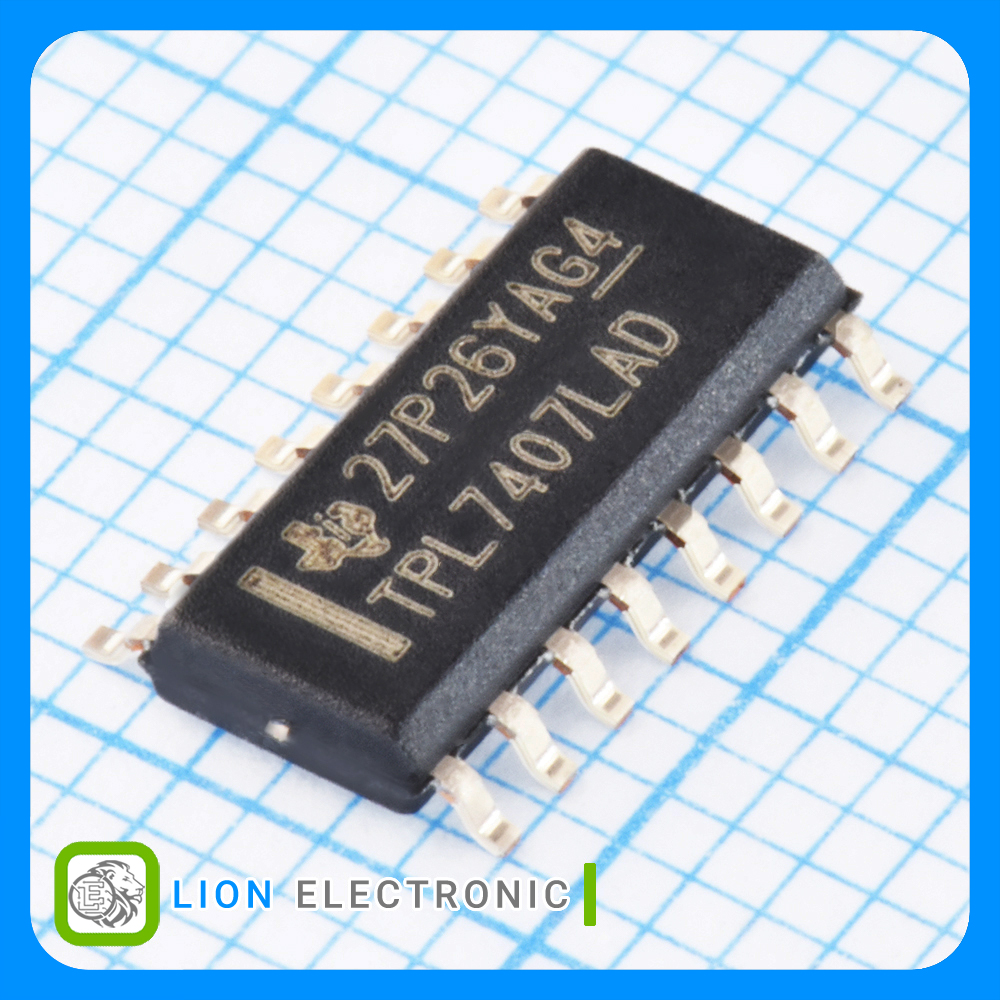

TPL7407LADR
TPL7407LADR
Part Number
5412
Lion Part
Datasheet
Texas Instruments Manufacture
آرایه 7 تایی ماسفت NMOS سمت پایین (Low-Side) با ولتاژ 30 ولت و جریان 600 میلی‌آمپر با دیود کلمپ کاتد مشترک برای سوئیچینگ بارهای القایی با پکیج SOIC-16 باریک
7 NMOS transistor array 30V, 600mA with common-cathode clamp diodes for switching inductive loads, SOIC-16 Narrow Package
معرفی
آرایه 7 تایی ماسفت NMOS سمت پایین (Low-Side) با ولتاژ 30 ولت و جریان 600 میلی‌آمپر با دیود کلمپ کاتد مشترک برای سوئیچینگ بارهای القایی با پکیج SOIC-16 باریک
7 NMOS transistor array 30V, 600mA with common-cathode clamp diodes for switching inductive loads, SOIC-16 Narrow Package
Specifications
- Package/Case: SOIC-16 Narrow
- Vds - Drain - Source Breakdown Voltage: 50V
- Id - Continuous Drain Current: 600mA
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 7
- Vgs th - Gate - Source Threshold Voltage: 1.5V
- Vgs - Gate - Source Voltage: +7V
- Rds On - Drain - Source Resistance: 2.5Ω
- Pd - Power Dissipation: 1.3W
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات TPL7407LADR
TPL7407LADR
Part Number
Enhancement
Channel Mode
7
Number of Outputs
Reel
Packaging
350ns
On Time - Max
-40C
Minimum Operating Temperature
350ns
Off Time - Max
+7V
Vgs - Gate - Source Voltage
SMD/SMT
Mounting Style
600mA
Current Limit
7
Number of Channels
+125C
Maximum Operating Temperature
50V
Vds - Drain - Source Breakdown Voltage
2.5Ω
On Resistance - Max
1.5V
Vgs th - Gate - Source Threshold Voltage
600mA
Output Current
600mA
Id - Continuous Drain Current
1.3W
Pd - Power Dissipation
Low Side
Type
N/A
Qg - Gate Charge
2.5Ω
Rds On - Drain - Source Resistance
6.5 - 30V
Operating Supply Voltage
SOIC-16W
Package-Case
