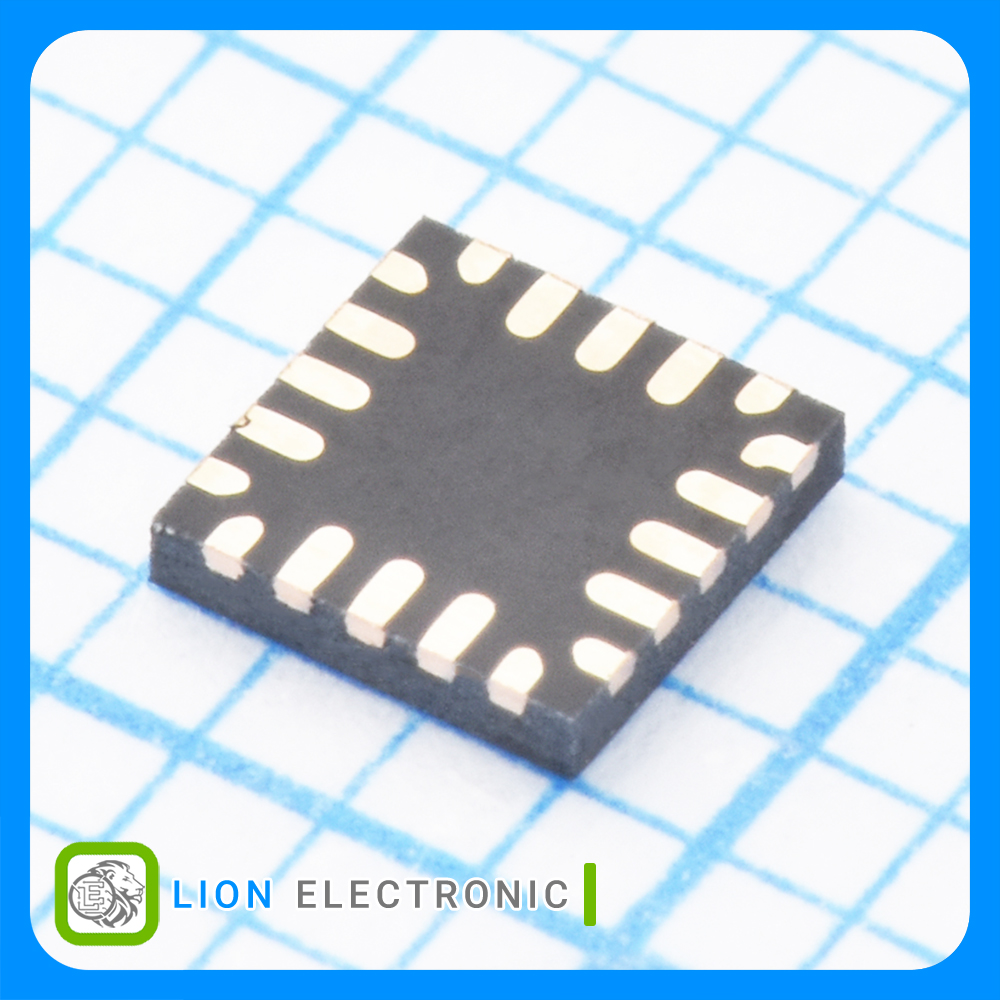

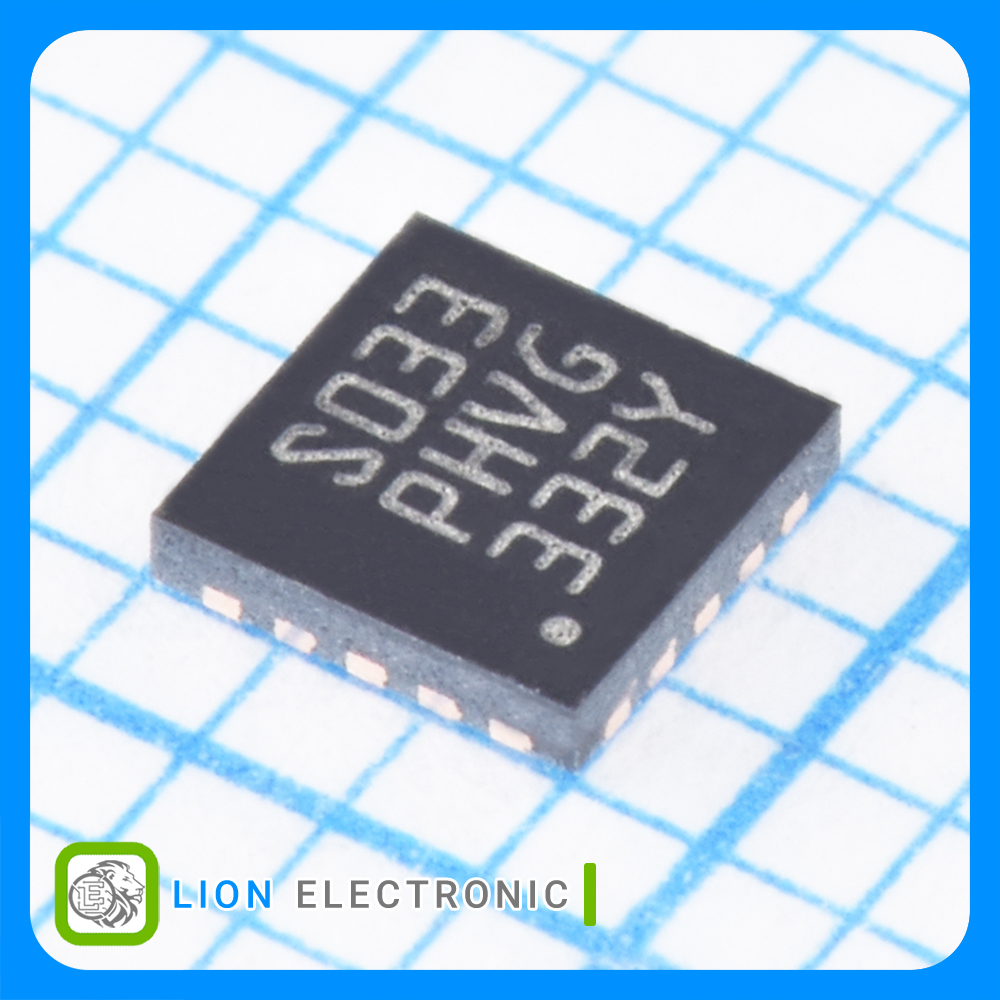

STM8S003F3U6TR
STM8S003F3U6TR
Part Number
5417
Lion Part
Datasheet
STMicroelectronics Manufacture
میکروکنترلر STM8S003F3 Value Line 8 بیت 16 مگاهرتز 8 کیلوبایت حافظه فلش 1 کیلوبایت رم با پکیج QFN-20
STM8 Value Line Microcontroller STM8S003F3 8bit 16MHz, 8kB Flash Memory, 1kB RAM with QFN-20 Package
معرفی
میکروکنترلر STM8S003F3 Value Line 8 بیت 16 مگاهرتز 8 کیلوبایت حافظه فلش 1 کیلوبایت رم با پکیج QFN-20
STM8 Value Line Microcontroller STM8S003F3 8bit 16MHz, 8kB Flash Memory, 1kB RAM with QFN-20 Package
Specifications
- Series: STM8S003F3
- Core: STM8
- Interface Type: I2C, SPI, UART
- Number of I/Os: 16
- ADC Resolution: 10bit
- Program Memory Size: 8kB
- Data RAM Size: 1kB
- Data Bus Width: 8bit
- Maximum Clock Frequency: 16MHz
- Operating Supply Voltage: 2.95 - 5.5V
- Mounting Style: SMD/SMT
- Package/Case: QFN-20
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات STM8S003F3U6TR
STM8S003F3U6TR
Part Number
8bit
Data Bus Width
10bit
ADC Resolution
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
16MHz
Maximum Clock Frequency
8kB
Program Memory Size
16
Number of I-Os
1kB
Data RAM Size
STM8
Core
2.95 - 5.5V
Operating Supply Voltage
I2C, SPI, UART
Interface Type
QFN-20
Package-Case
