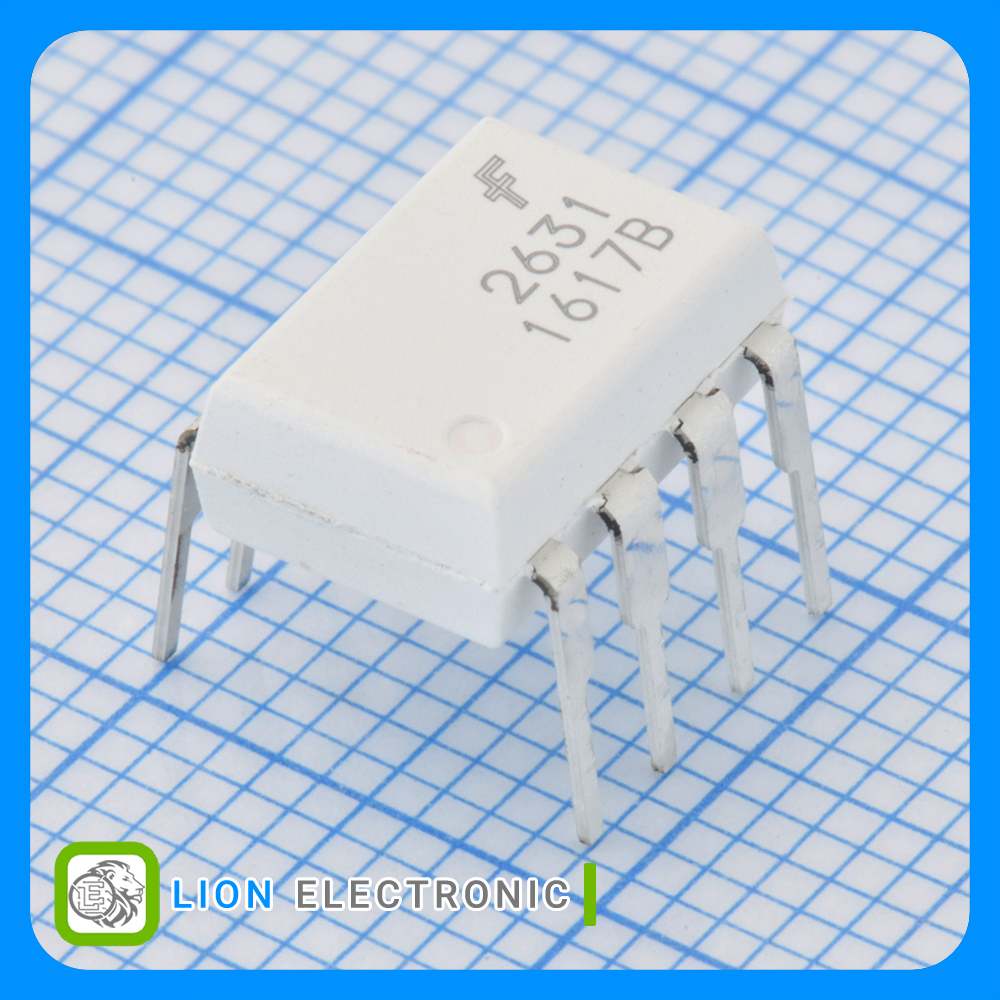

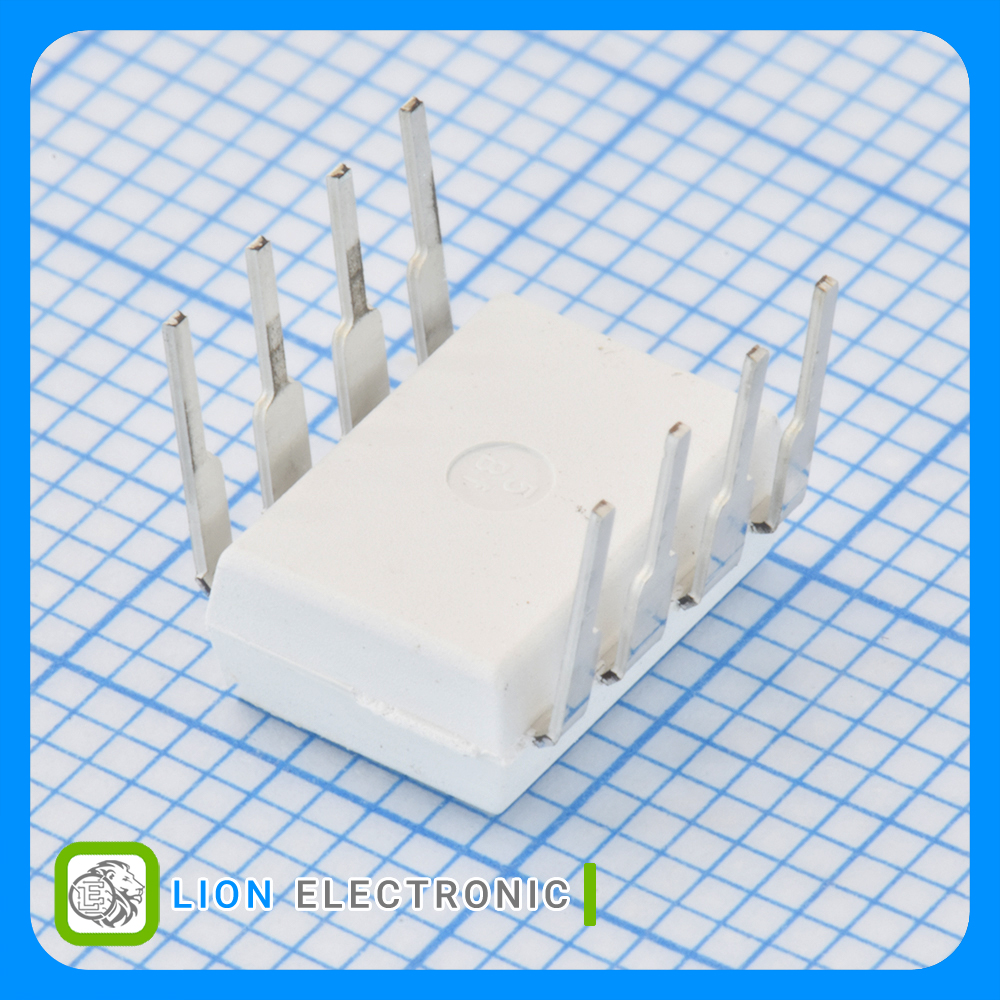

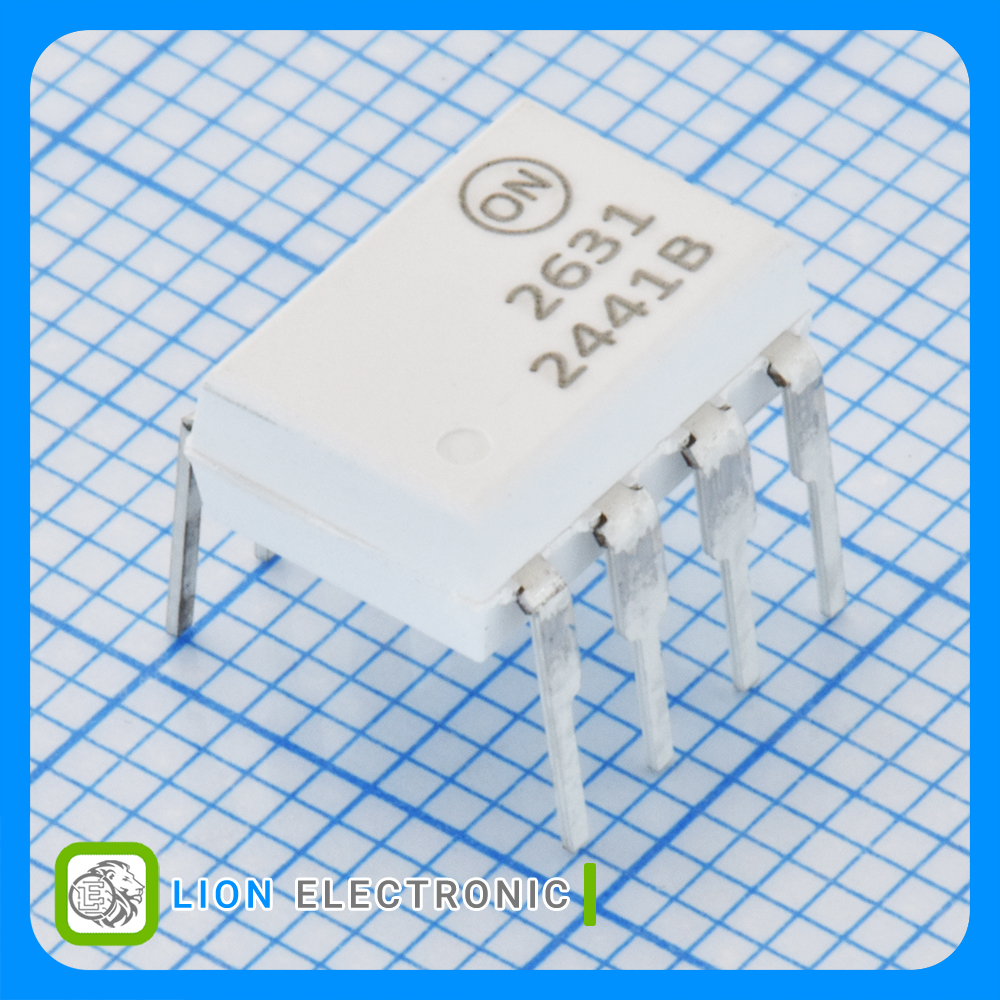

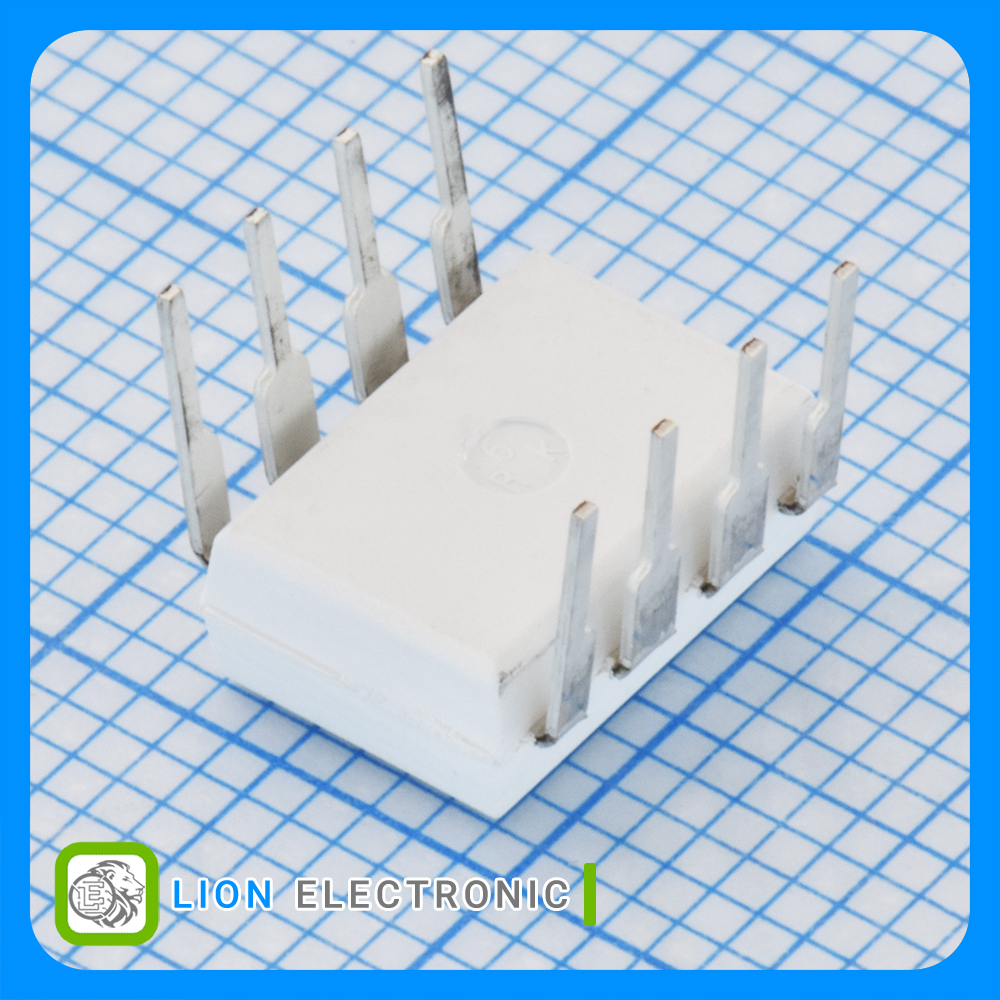

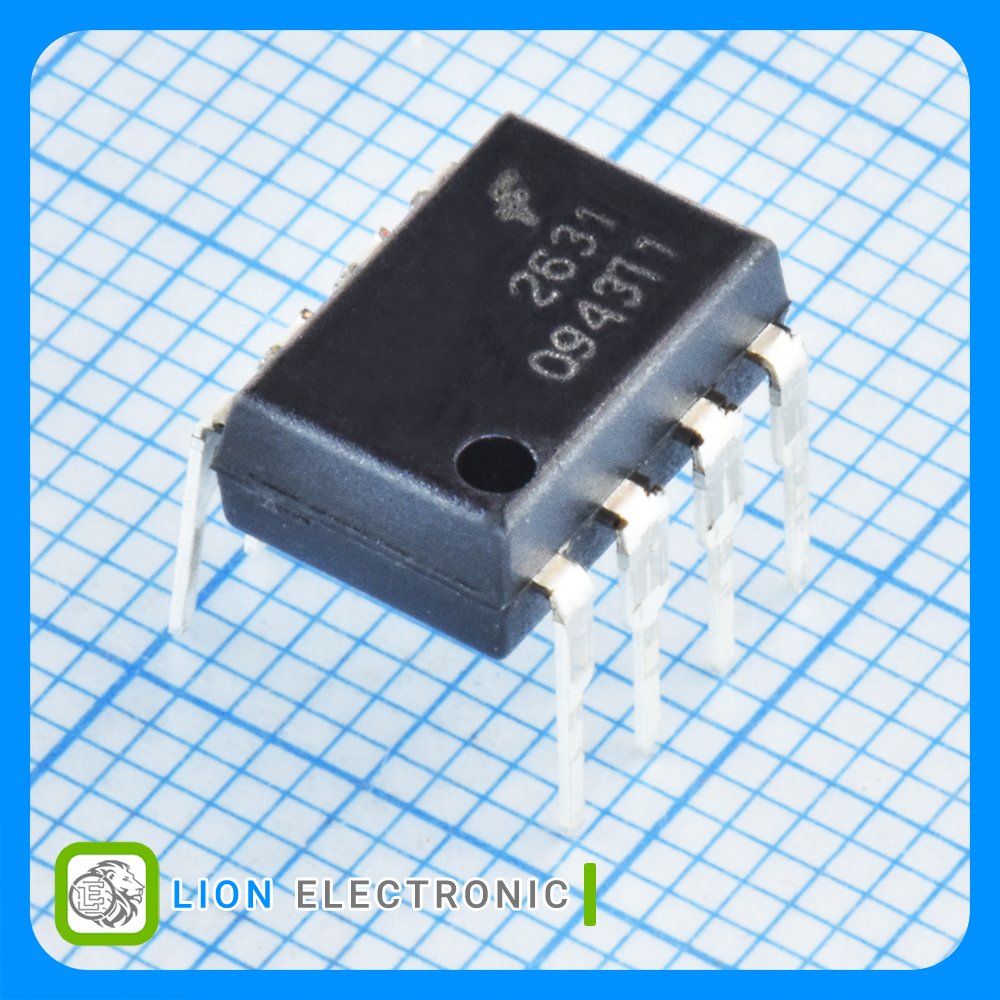

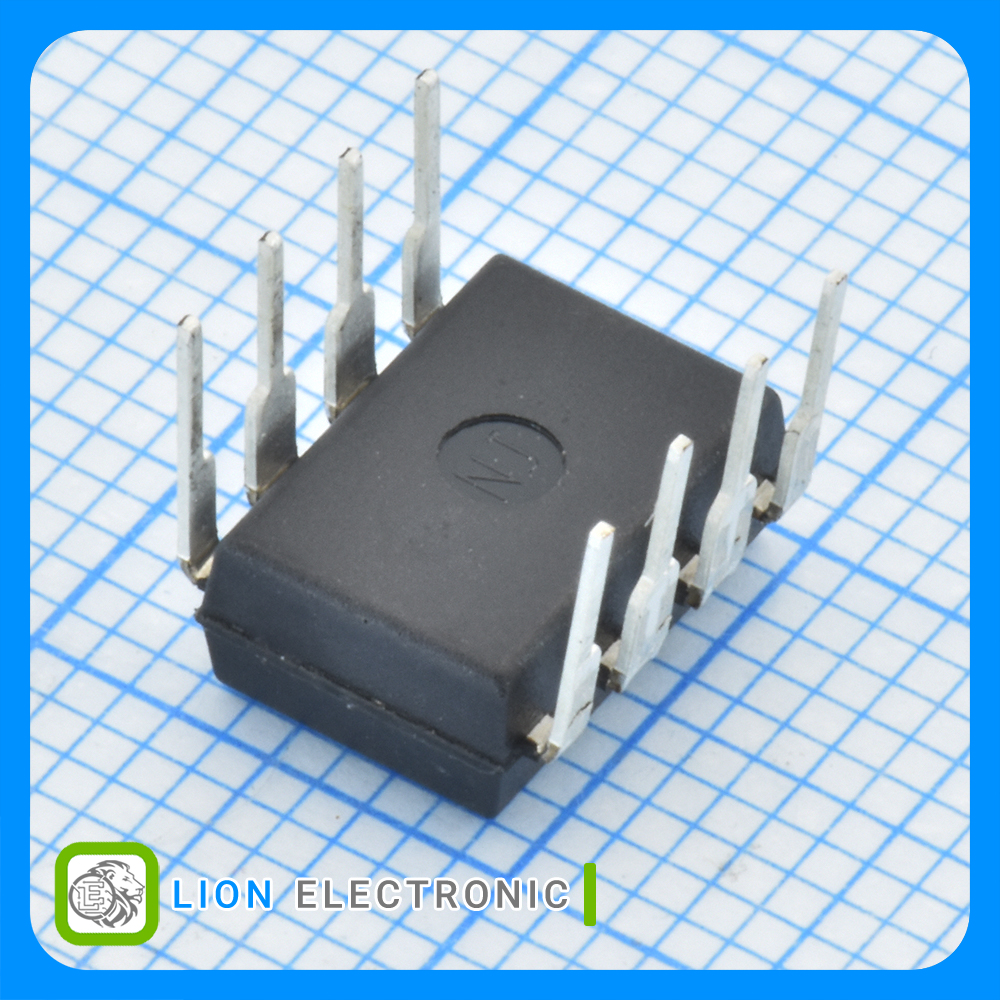

HCPL2631
HCPL2631
Part Number
548
Lion Part
Datasheet
FAIRCHILD/ONSEMI Manufacture
اپتوکوپلر پرسرعت 2 کاناله با خروجی کلکتور باز 1.4 ولت 10 میلیآمپر 60 میلیوات 10Mbit/s ایزولاسیون 5 کیلوولت RMS با پکیج PDIP-8
Dual-Channel High Speed 10Mbit/s Logic Gate Optocoupler, Open Collector Output, 1.4V, 10mA, 60mW, 5kVrms Isolation with PDIP-8 Package
معرفی
اپتوکوپلر پرسرعت 2 کاناله با خروجی کلکتور باز 1.4 ولت 10 میلیآمپر 60 میلیوات 10Mbit/s ایزولاسیون 5 کیلوولت RMS با پکیج PDIP-8
Dual-Channel High Speed 10Mbit/s Logic Gate Optocoupler, Open Collector Output, 1.4V, 10mA, 60mW, 5kVrms Isolation with PDIP-8 Package
Specifications
- Output Type: Open Collector
- Number of Channels: 2
- Vf - Forward Voltage: 1.4V
- If - Forward Current: 10mA
- Pd - Power Dissipation: 60mW
- Isolation Voltage: 5kVrms
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات HCPL2631
HCPL2631
Part Number
2
Number of Channels
10mA
If - Forward Current
-40C
Minimum Operating Temperature
60mW
Pd - Power Dissipation
Tube
Packaging
+85C
Maximum Operating Temperature
Through Hole
Mounting Style
5kVrms
Isolation Voltage
Open Collector
Output Type
High Speed Optocouplers
Product Type
1.4V
Vf - Forward Voltage
DIP-8
Package-Case
