TOSHIBA
معرفی

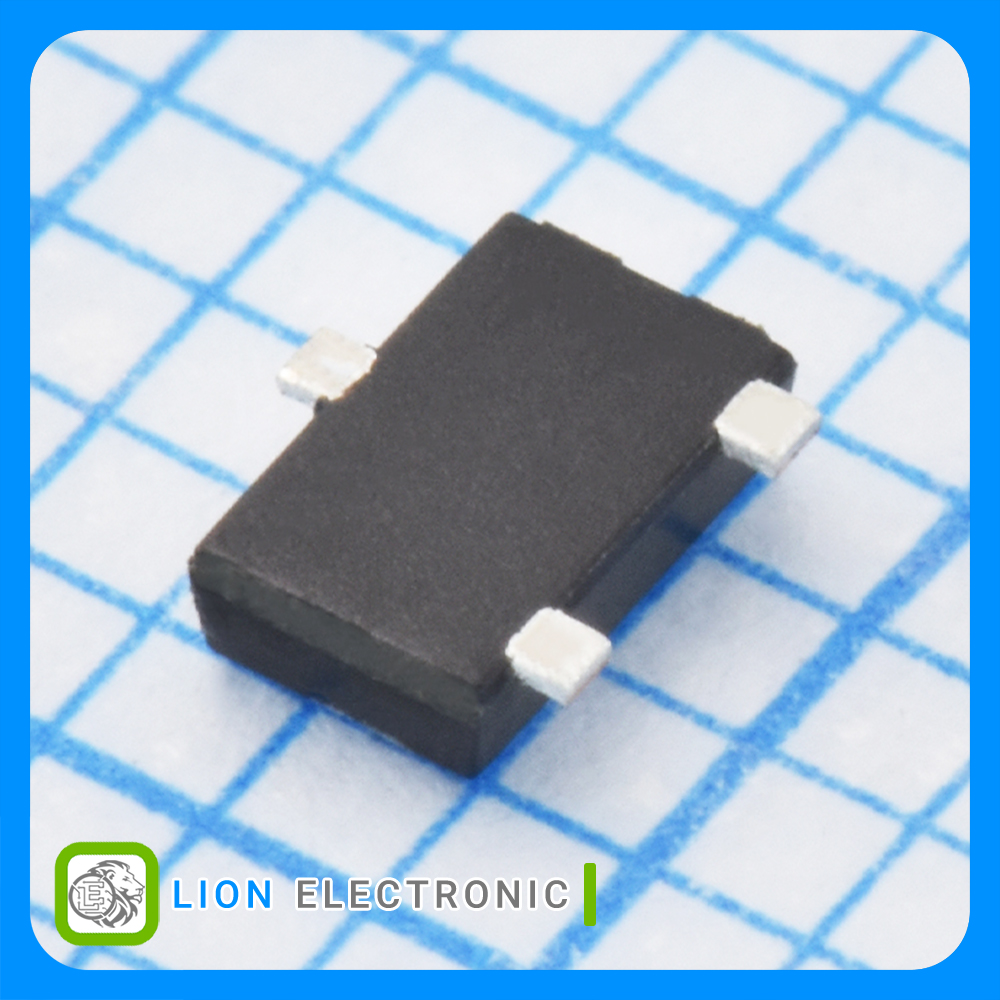

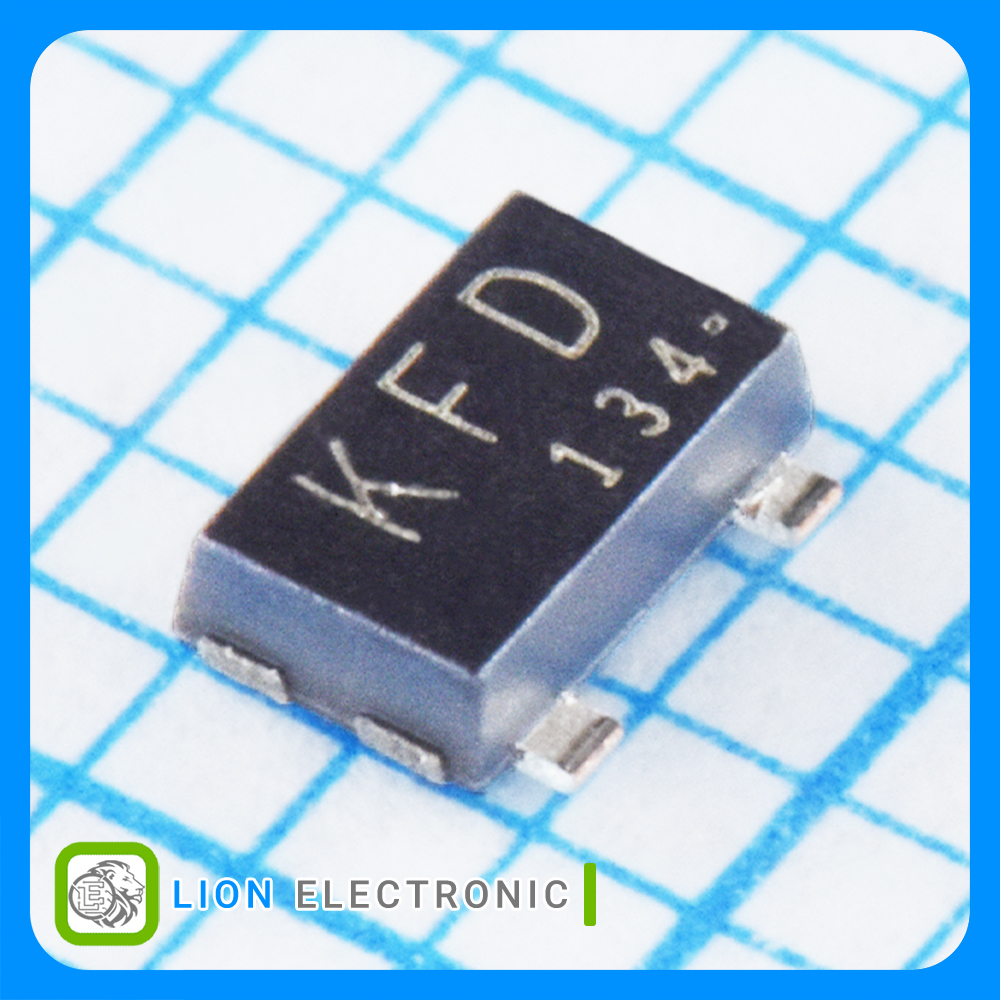

ماسفت 30 ولت 4 آمپر نوع N با پکیج SOT-23F
N-Channel MOSFET 30V, 4A with SOT-23F Package
Specifications
- Package/Case: SOT-23F
- Vds - Drain - Source Breakdown Voltage: 30V
- Id - Continuous Drain Current: 4A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 400mV
- Vgs - Gate - Source Voltage: ±12V
- Rds On - Drain - Source Resistance: 45mΩ
- Pd - Power Dissipation: 2W
- Qg - Gate Charge: 2.2nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت SSM3K324R,LF

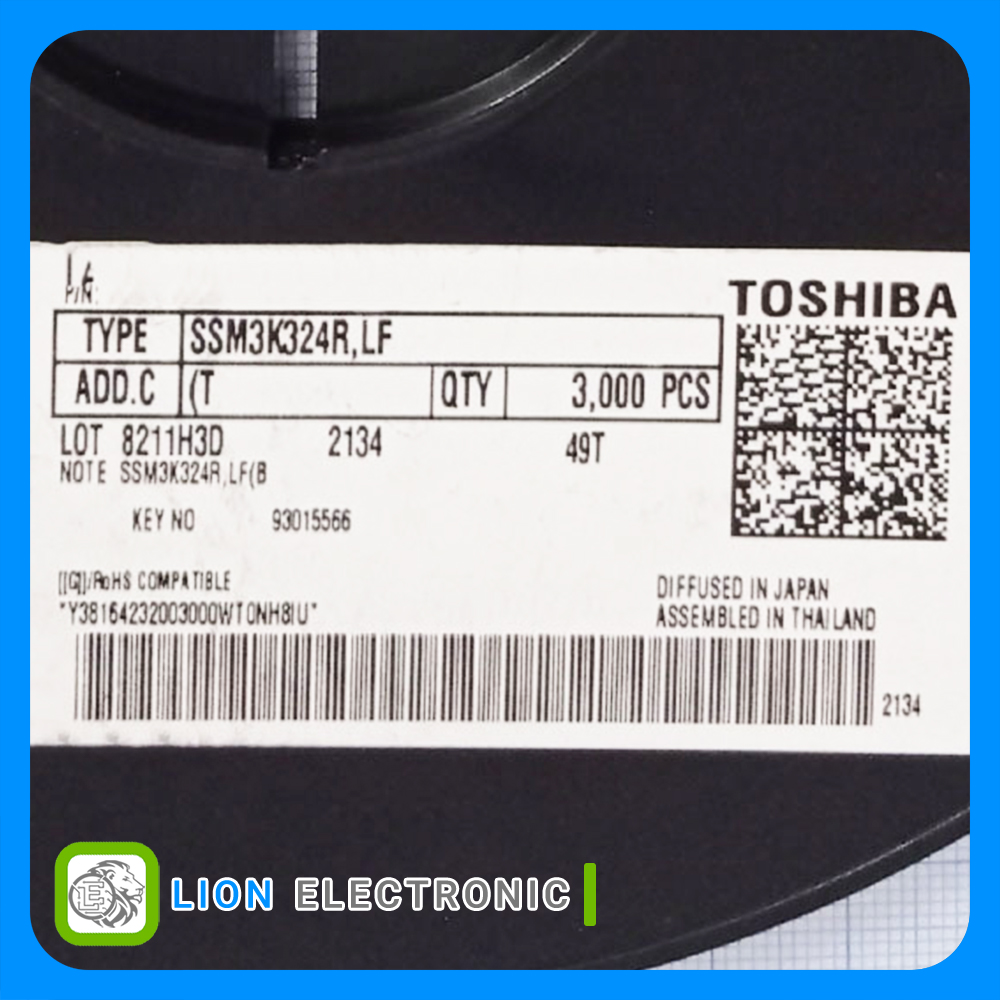

ماسفت SSM3K324R,LF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
2.2nC
Qg - Gate Charge
SMD/SMT
Mounting Style
±12V
Vgs - Gate - Source Voltage
30V
Vds - Drain - Source Breakdown Voltage
400mV
Vgs th - Gate - Source Threshold Voltage
+150C
Maximum Operating Temperature
4A
Id - Continuous Drain Current
2W
Pd - Power Dissipation
45mΩ
Rds On - Drain - Source Resistance
SOT-23F
Package-Case
