TOSHIBA
معرفی

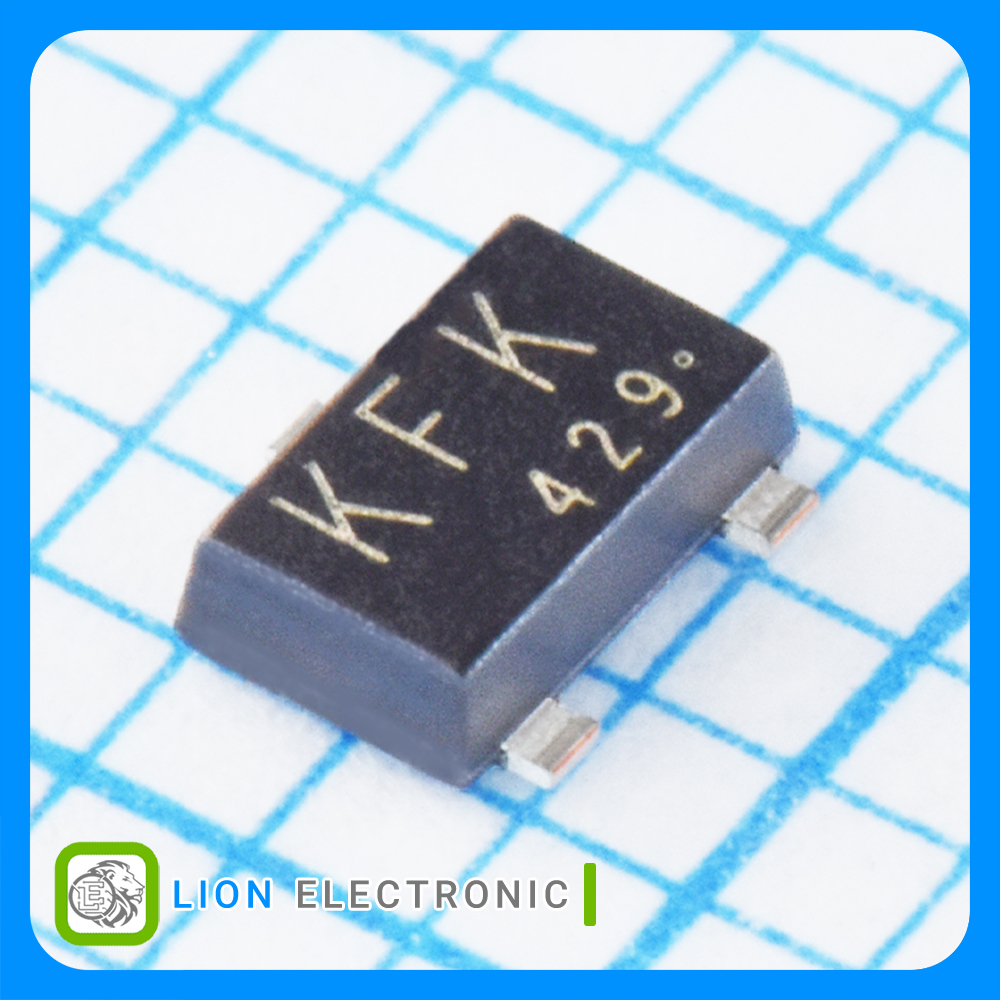

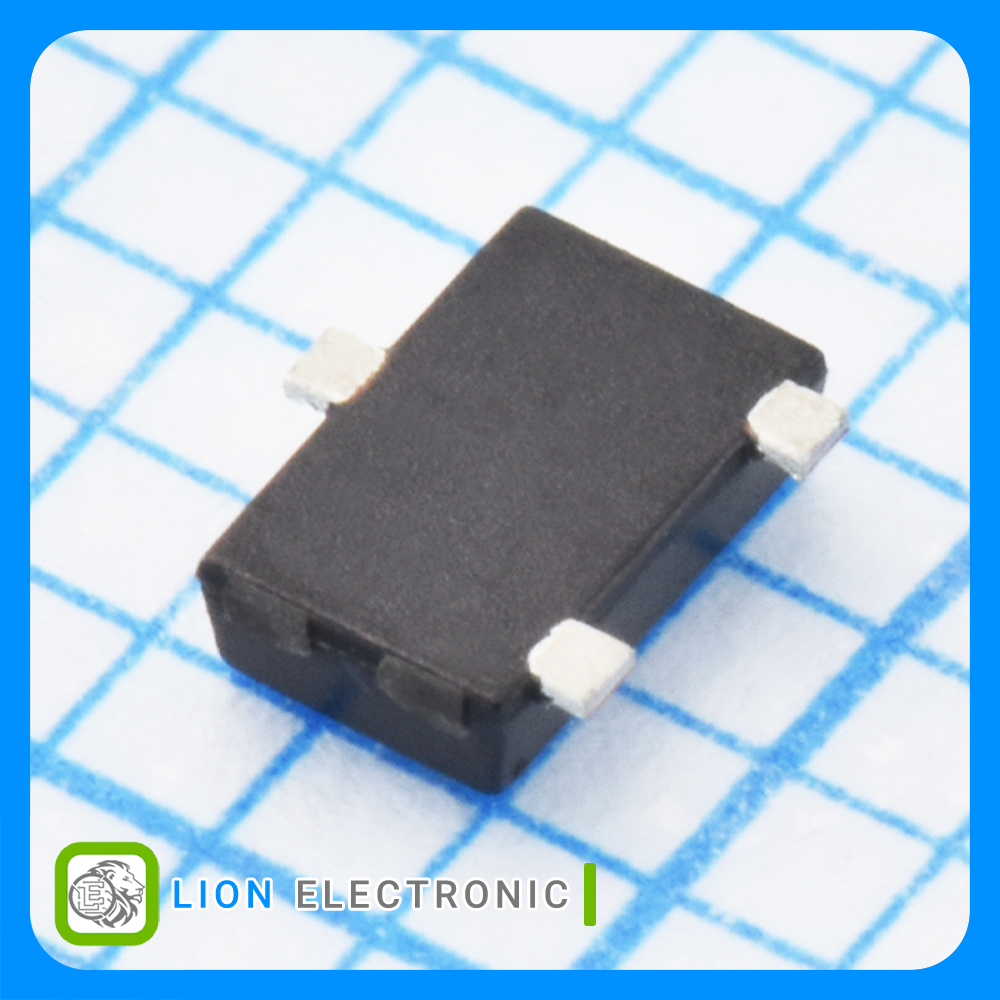

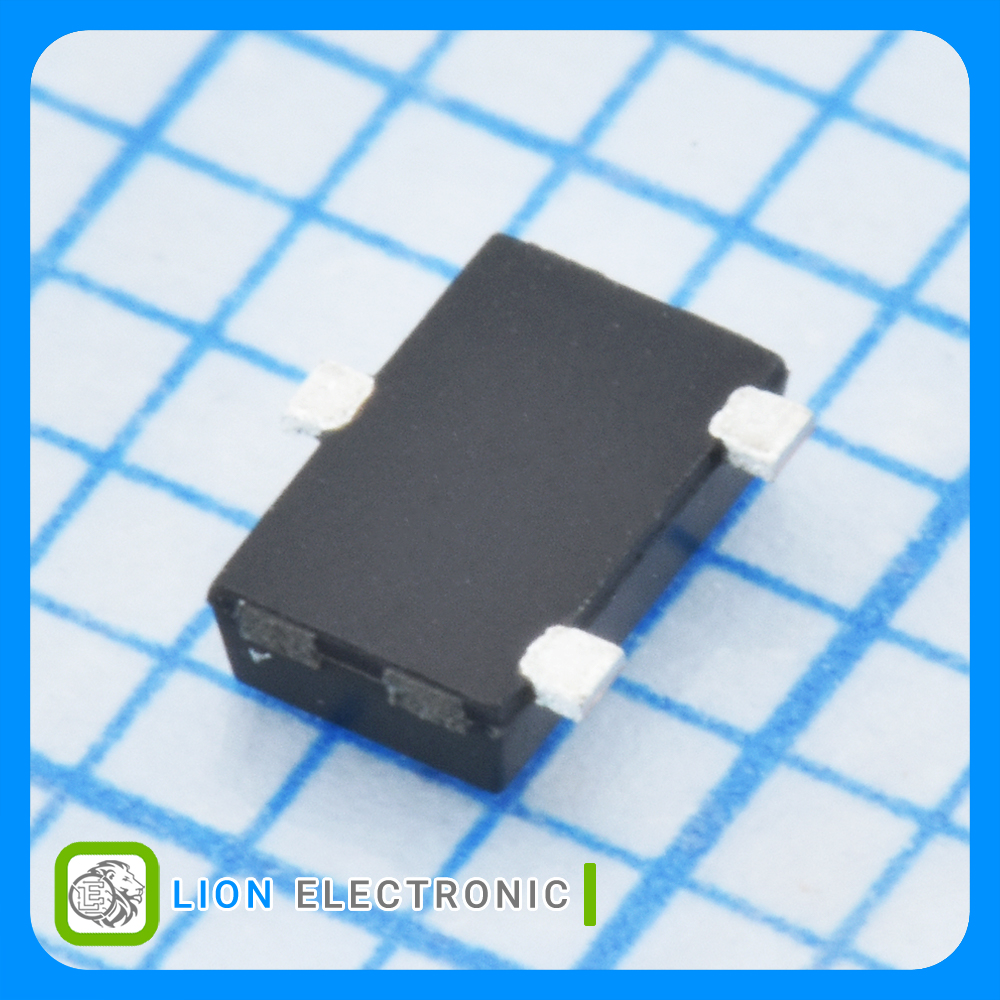

ماسفت 30 ولت 6 آمپر نوع N با پکیج SOT-23F
N-Channel MOSFET 30V, 6A with SOT-23F Package
Specifications
- Package/Case: SOT-23F
- Vds - Drain - Source Breakdown Voltage: 30V
- Id - Continuous Drain Current: 6A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.3V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 18.7mΩ
- Pd - Power Dissipation: 2W
- Qg - Gate Charge: 3.4nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت SSM3K333R,LF

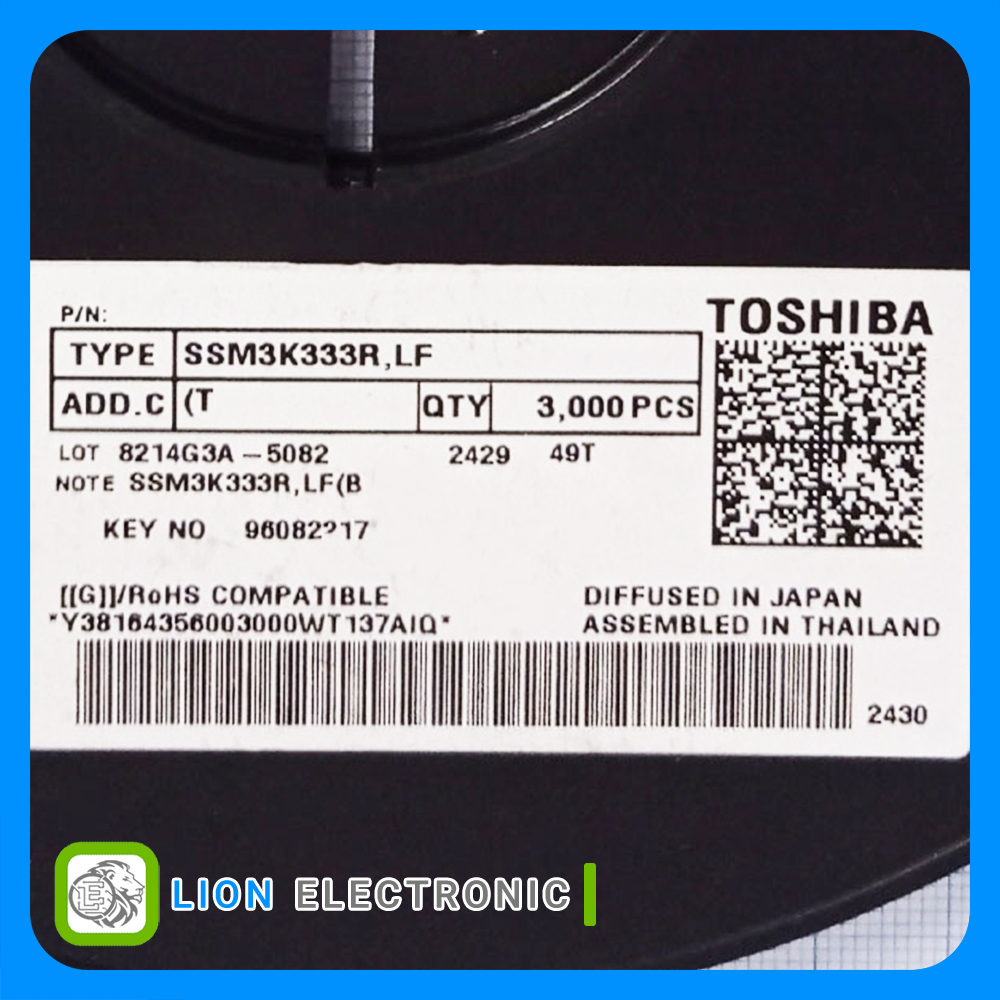

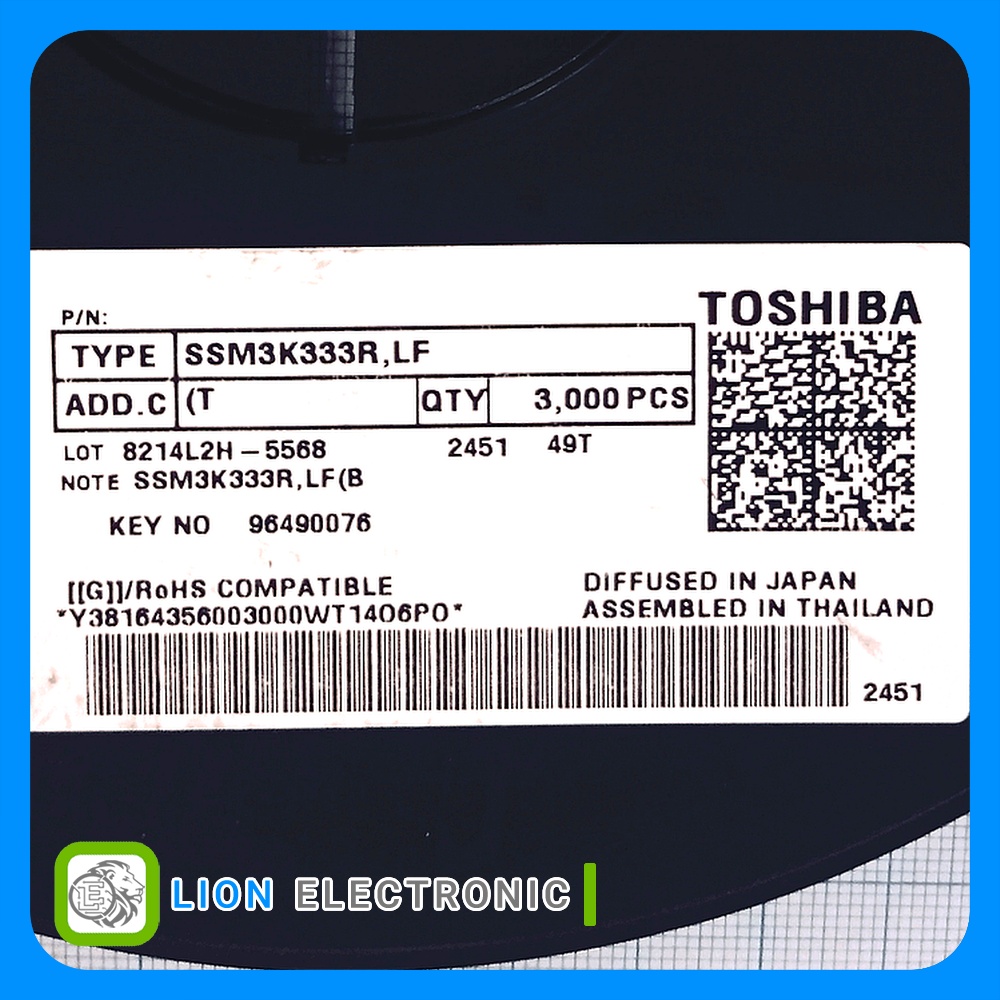

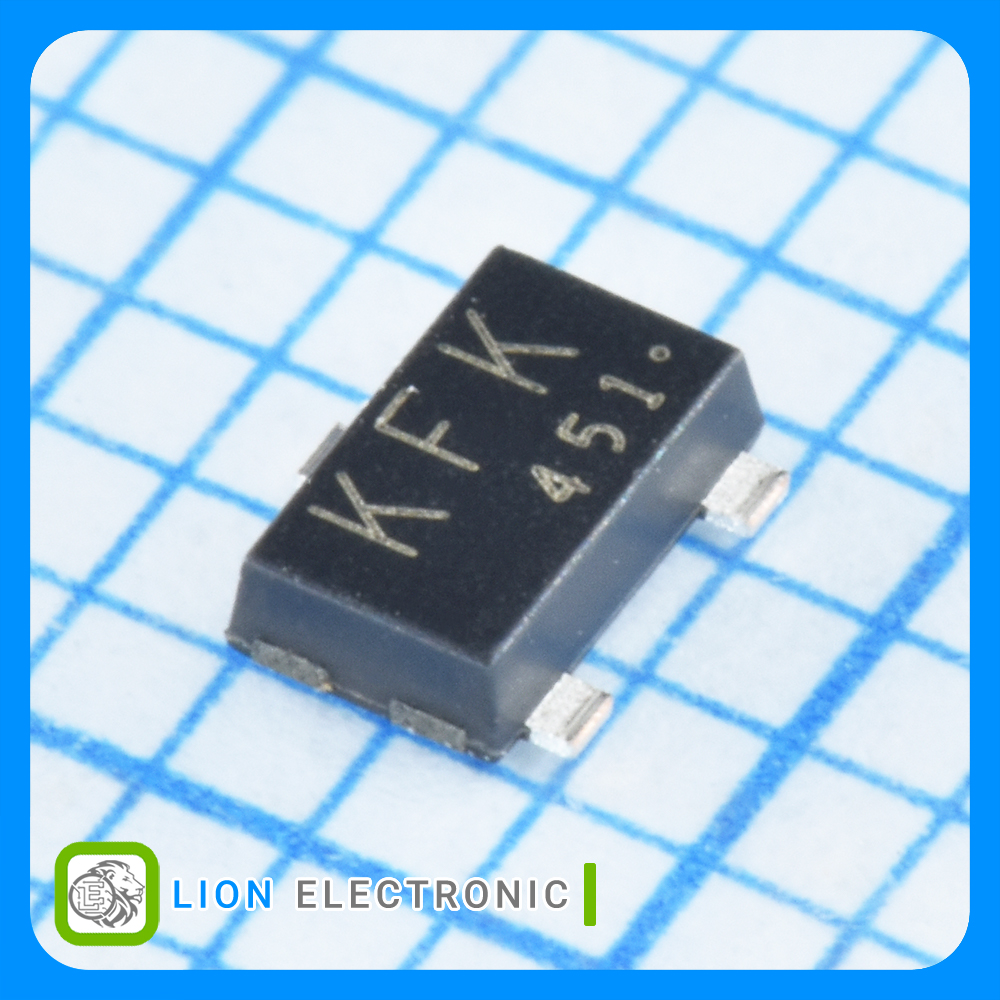

ماسفت SSM3K333R,LF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
3.4nC
Qg - Gate Charge
30V
Vds - Drain - Source Breakdown Voltage
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
1.3V
Vgs th - Gate - Source Threshold Voltage
2W
Pd - Power Dissipation
18.7mΩ
Rds On - Drain - Source Resistance
6A
Id - Continuous Drain Current
SOT-23F
Package-Case
