DMHT6016LFJ-13
DMHT6016LFJ-13
Part Number
5603
Lion Part
Datasheet
Diodes Incorporated Manufacture
ماسفت 60 ولت 10.6 آمپر نوع N چهار کاناله با پکیج V-DFN5045-12 (Type B)

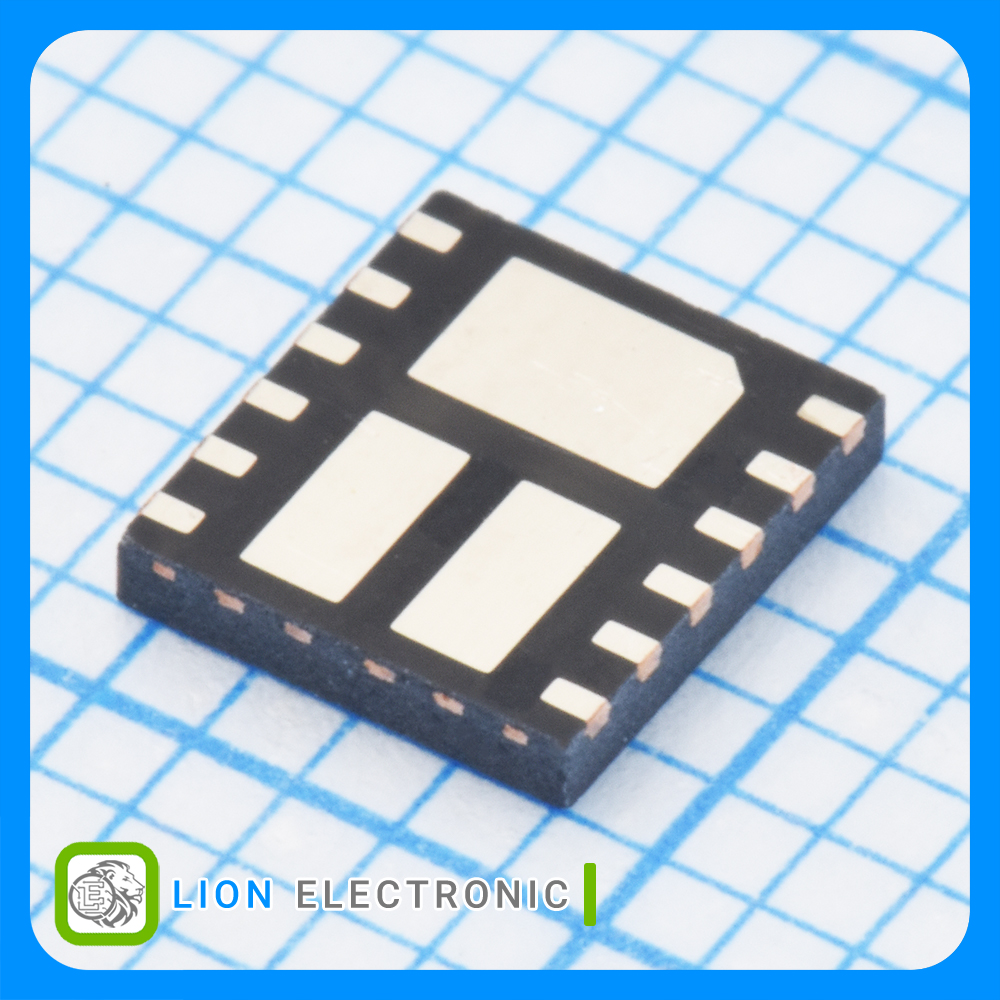

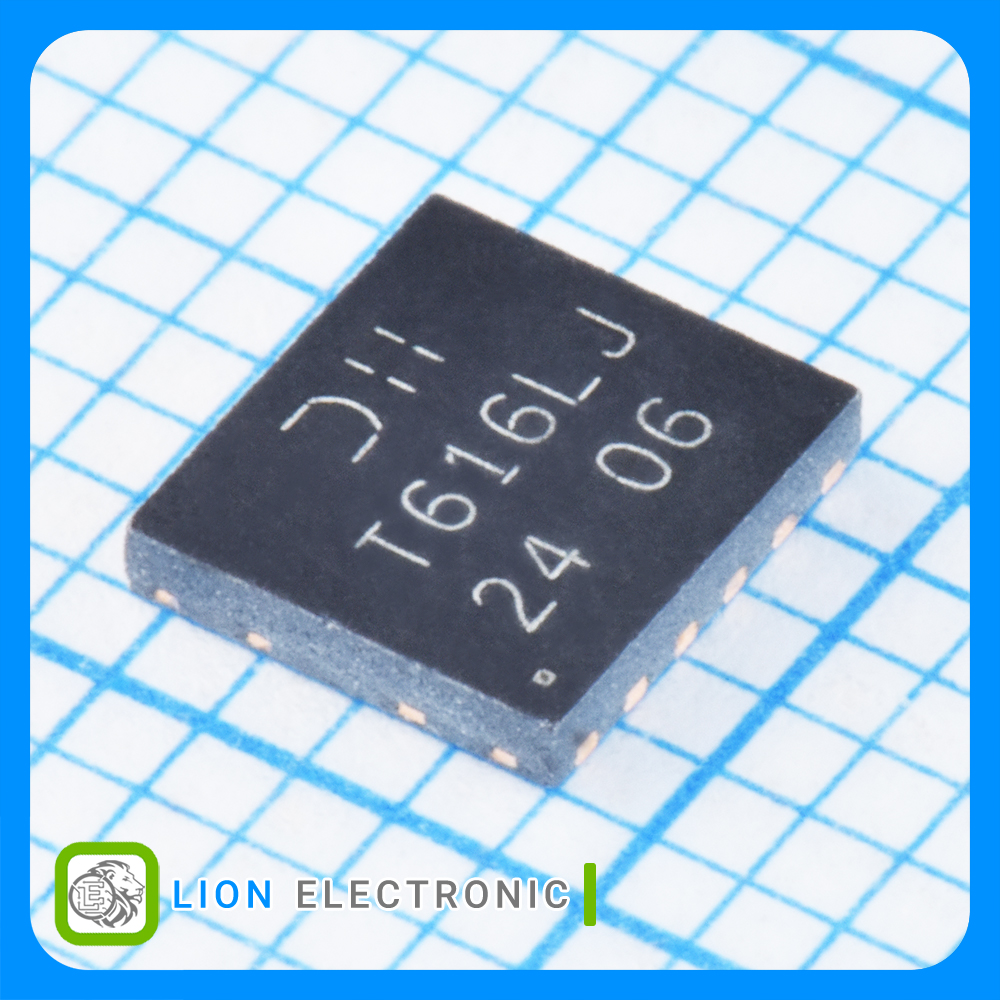

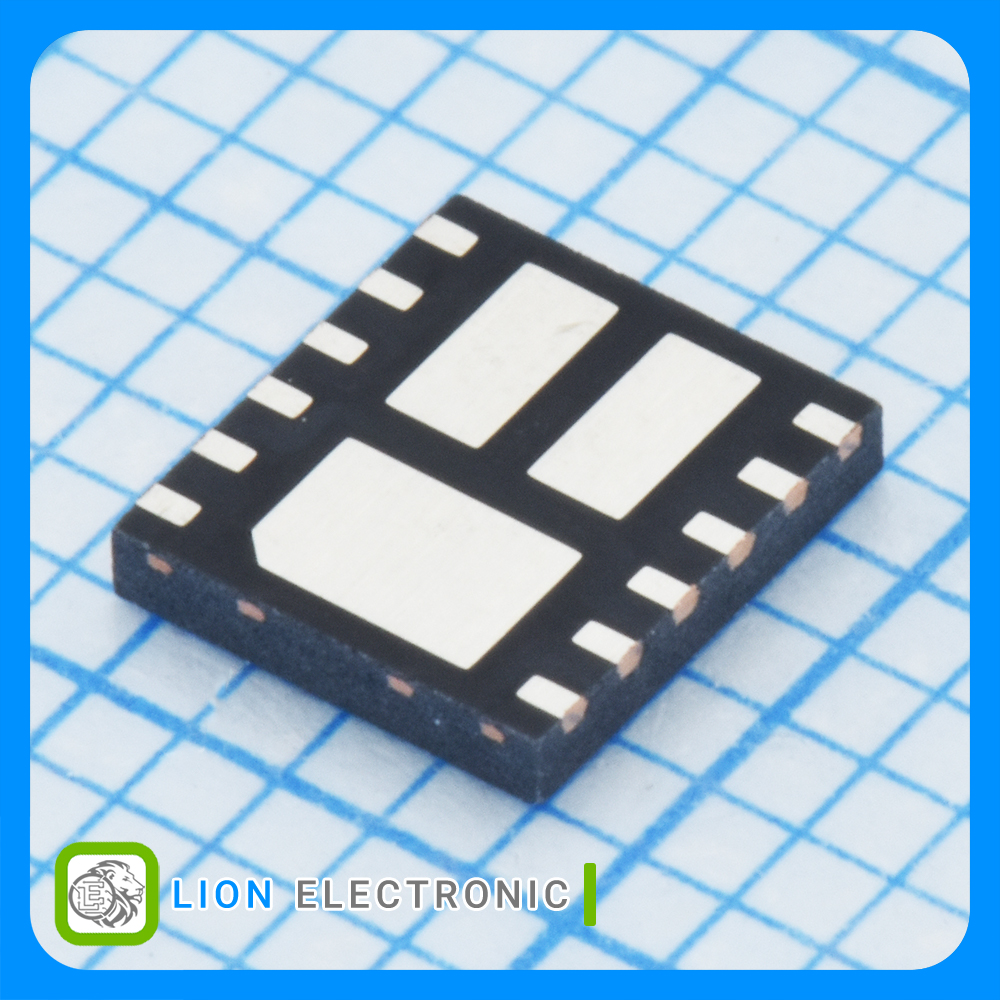

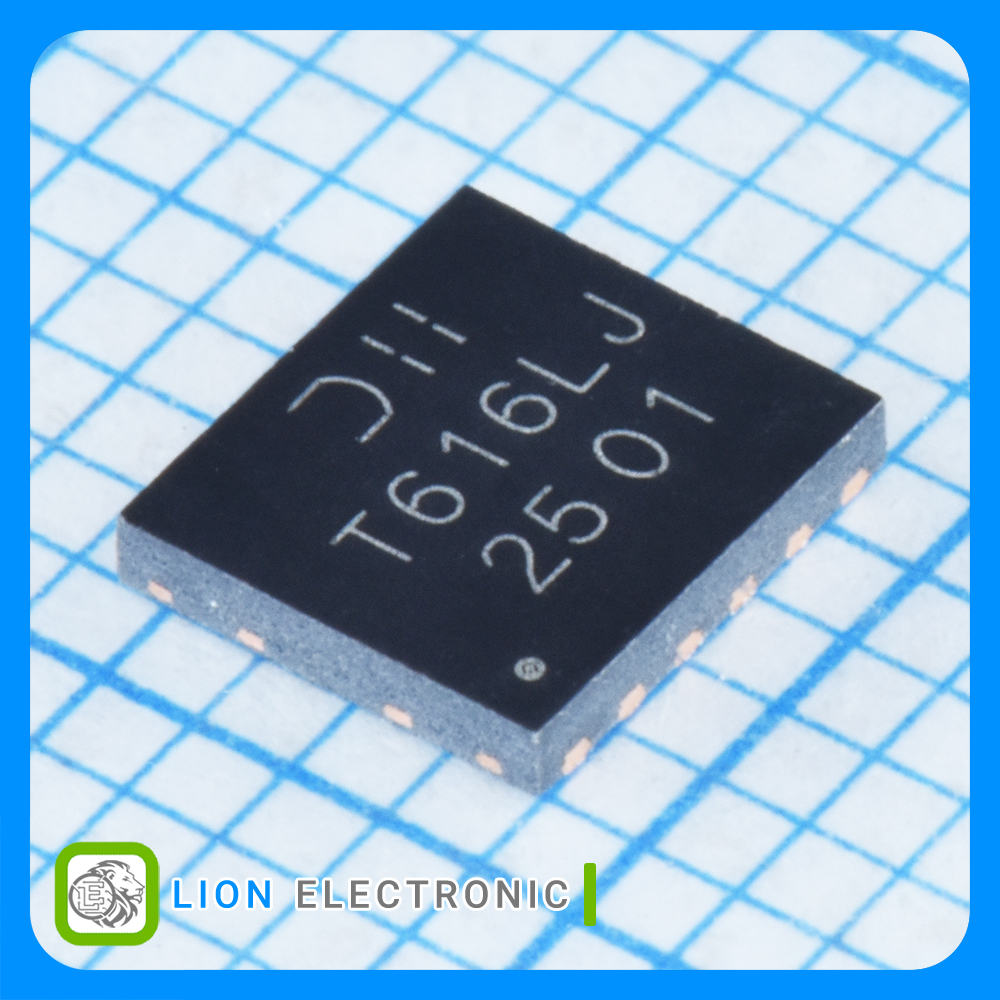

4-CH N-Channel MOSFET 60V, 10.6A with V-DFN5045-12 (Type B) Package
معرفی
ماسفت 60 ولت 10.6 آمپر نوع N چهار کاناله با پکیج V-DFN5045-12 (Type B)
4-CH N-Channel MOSFET 60V, 10.6A with V-DFN5045-12 (Type B) Package
Specifications
- Package/Case: V-DFN5045-12 (Type B)
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 10.6A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 4
- Vgs th - Gate - Source Threshold Voltage: 1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 17mΩ
- Pd - Power Dissipation: 1.16W
- Qg - Gate Charge: 17nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت DMHT6016LFJ-13
ماسفت DMHT6016LFJ-13
Part Number
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
4
Number of Channels
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
60V
Vds - Drain - Source Breakdown Voltage
1V
Vgs th - Gate - Source Threshold Voltage
17nC
Qg - Gate Charge
1.16W
Pd - Power Dissipation
17mΩ
Rds On - Drain - Source Resistance
10.6A
Id - Continuous Drain Current
V-DFN5045-12 (Type B)
Package-Case
