IPD90R1K2C3
IPD90R1K2C3
Part Number
5607
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت 900 ولت 5.1 آمپر نوع N با پکیج TO-252-3

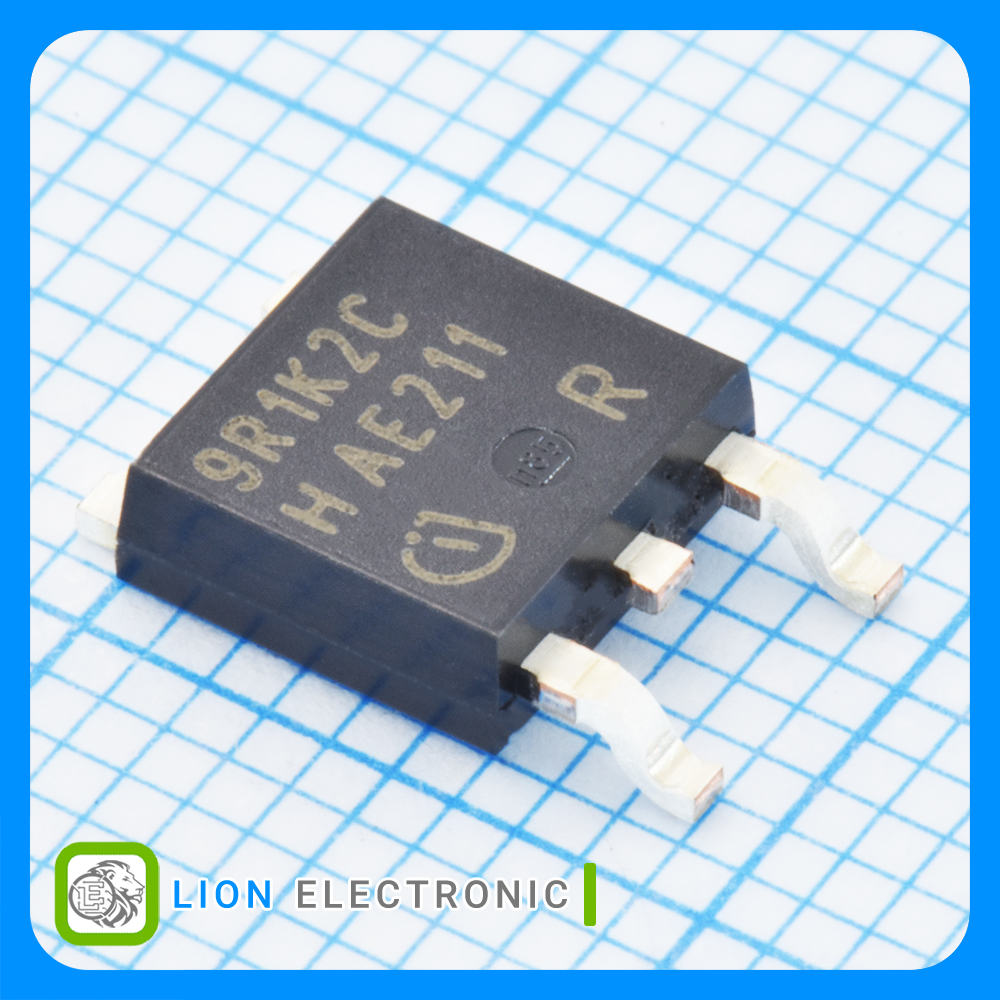

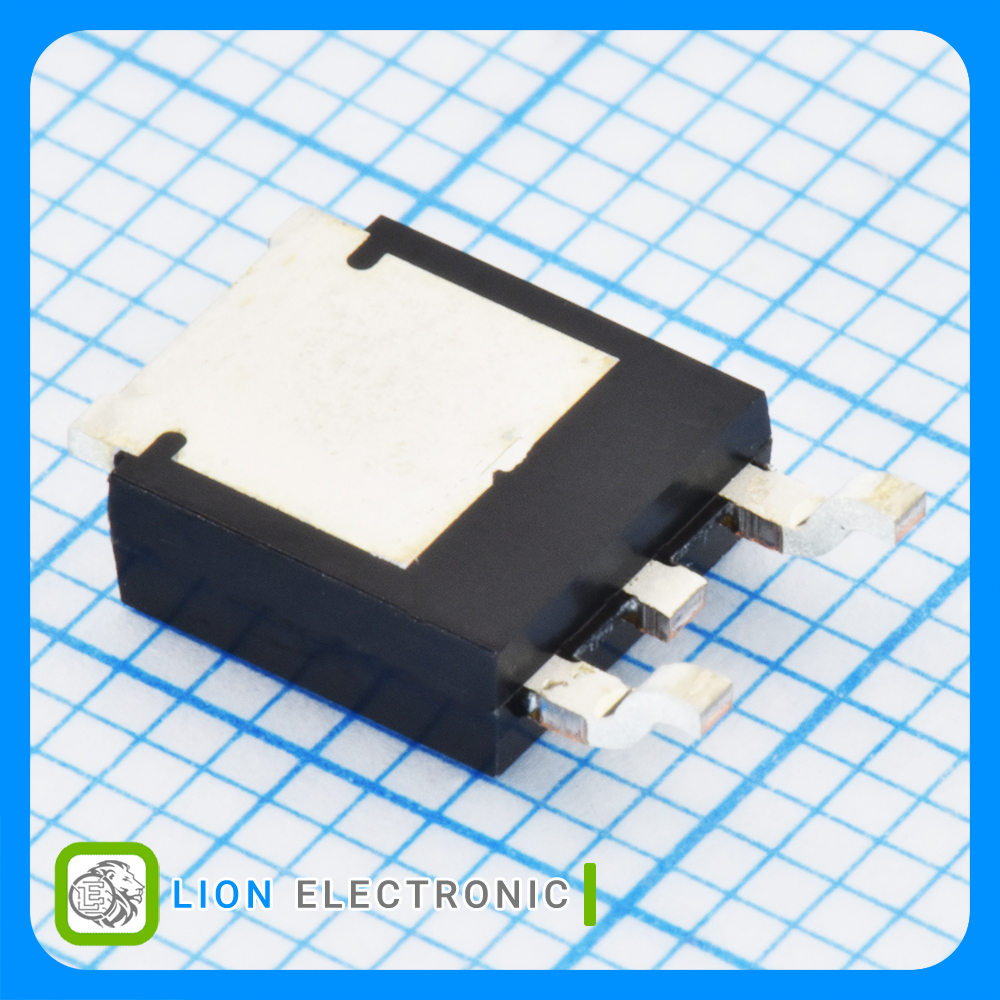

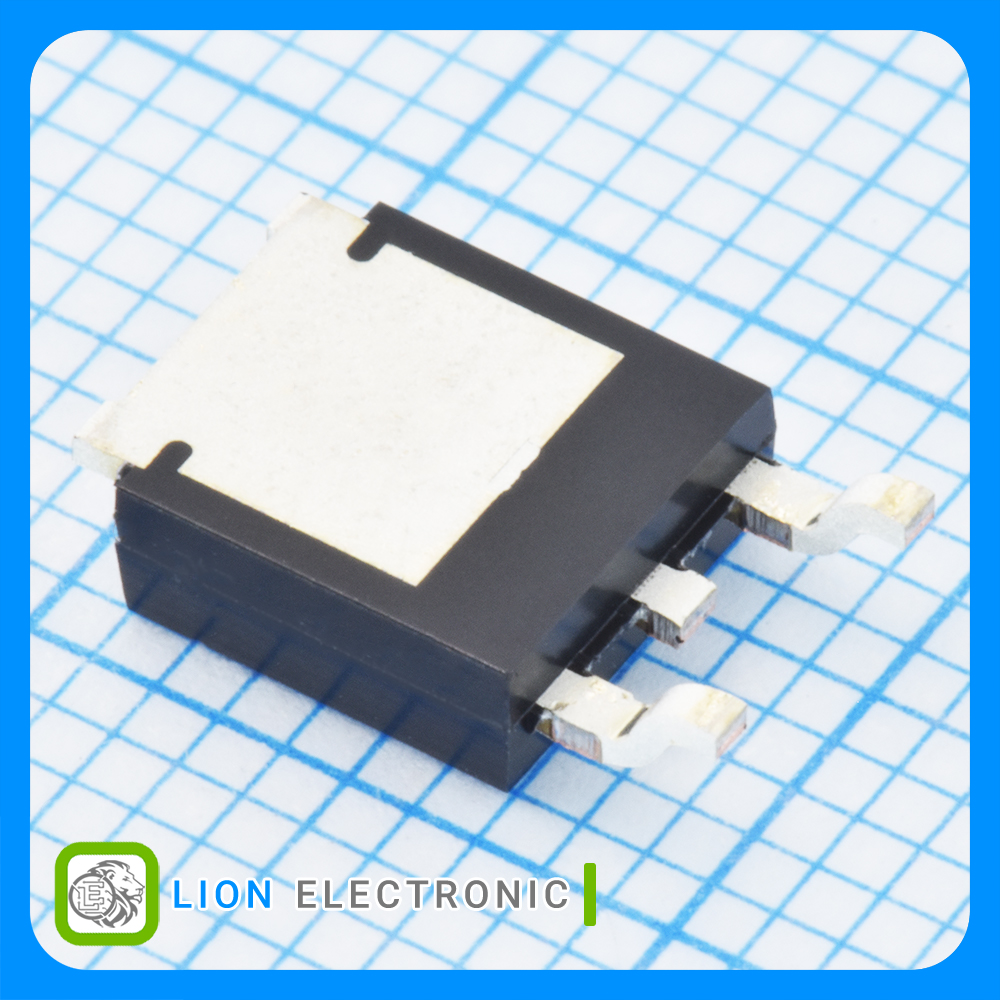

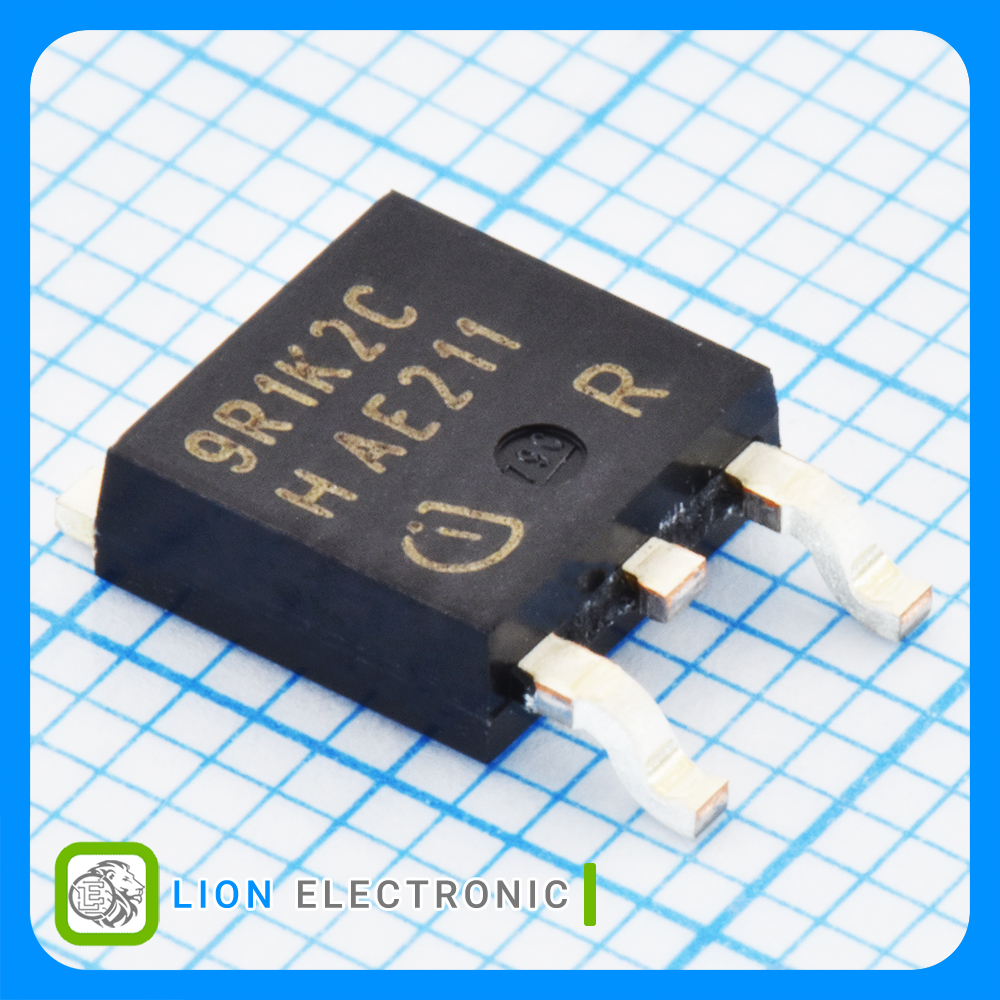

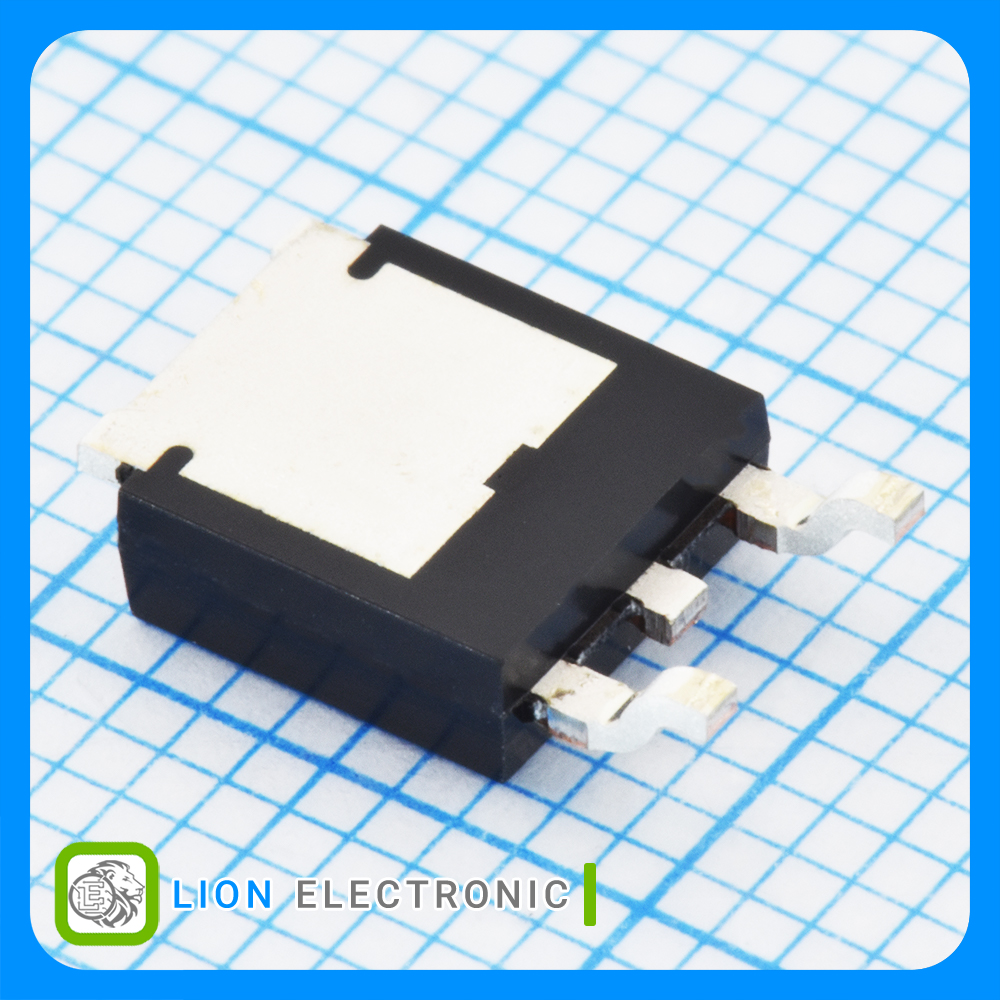

N-Channel MOSFET 900V, 5.1A with TO-252-3 Package
معرفی
ماسفت 900 ولت 5.1 آمپر نوع N با پکیج TO-252-3
N-Channel MOSFET 900V, 5.1A with TO-252-3 Package
Specifications
- Package/Case: TO-252-3
- Vds - Drain - Source Breakdown Voltage: 900V
- Id - Continuous Drain Current: 5.1A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2.5V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 940mΩ
- Pd - Power Dissipation: 83W
- Qg - Gate Charge: 28nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت IPD90R1K2C3
ماسفت IPD90R1K2C3
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
900V
Vds - Drain - Source Breakdown Voltage
2.5V
Vgs th - Gate - Source Threshold Voltage
28nC
Qg - Gate Charge
5.1A
Id - Continuous Drain Current
DPAK
Package-Case
83W
Pd - Power Dissipation
940mΩ
Rds On - Drain - Source Resistance
