پل دیود 1000 ولت 1 آمپر با پکیج DB

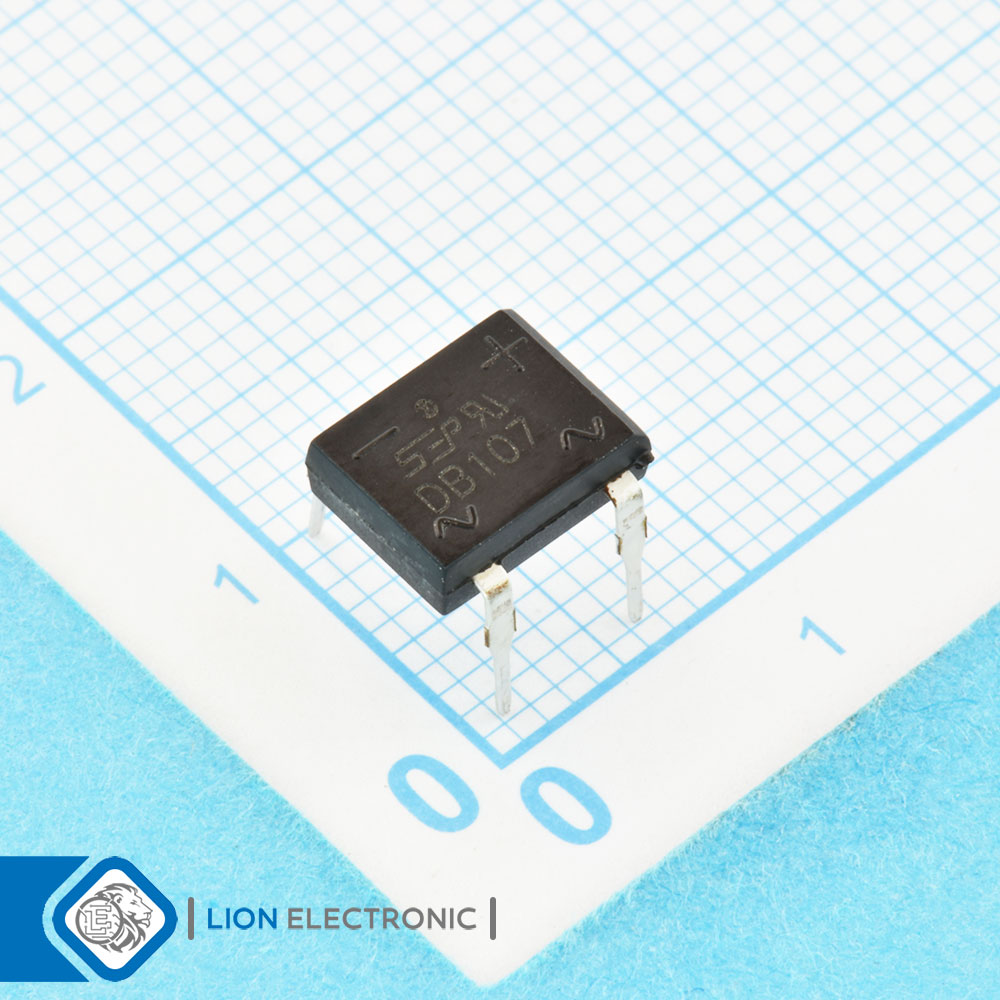

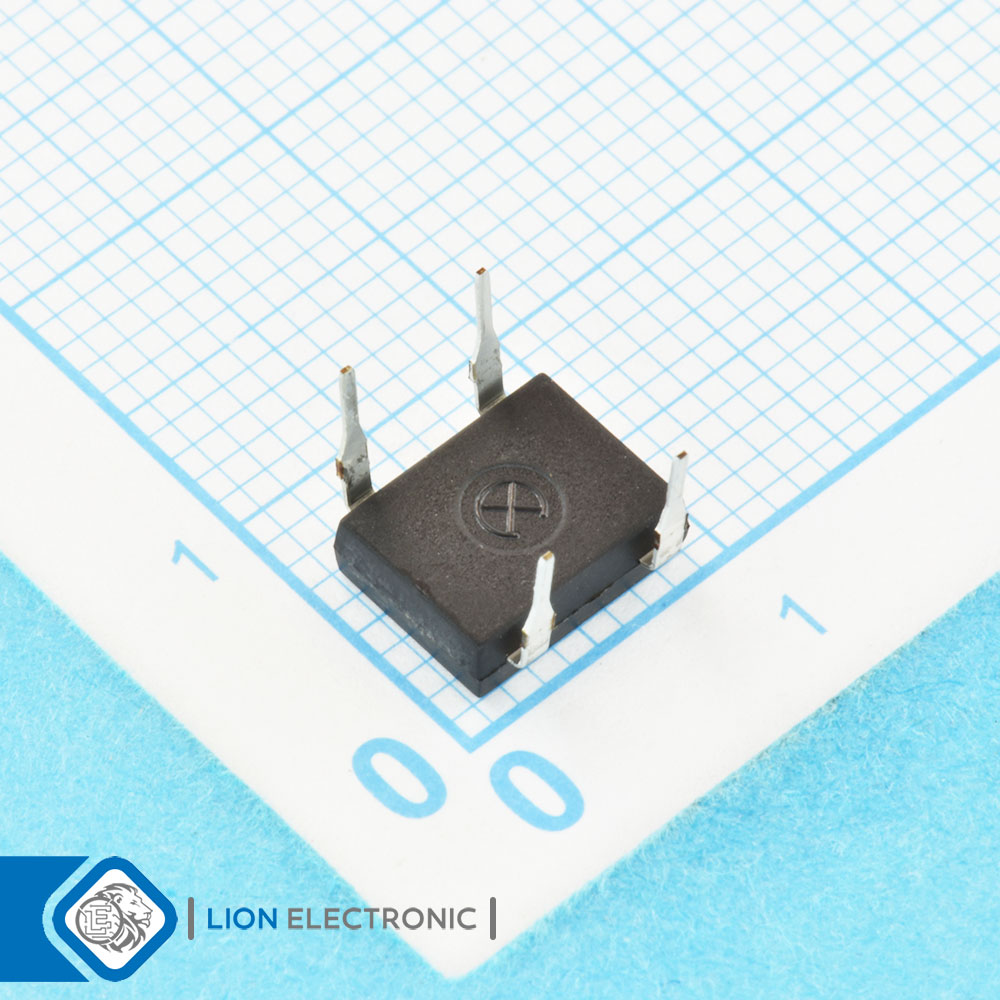

Bridge Rectifier 1A, 1000V with DB Package
Specifications
- Type: Single Phase Bridge
- Peak Reverse Voltage: 1kV
- If - Forward Current: 1A
- Max Surge Current: 50A
- Vf - Forward Voltage: 1.1V
- Mounting Style: Through Hole
- Package/Case: DB
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات DB107
DB107
Part Number
-55C
Minimum Operating Temperature
1kV
Peak Reverse Voltage
Through Hole
Termination style
Tube
Packaging
Through Hole
Mounting Style
50A
Max Surge Current
3.4mm
Height
+150C
Maximum Operating Temperature
8.8mm
Length
6.5mm
Width
1A
If - Forward Current
1.1V
Vf - Forward Voltage
DB
Package-Case
Single Phase Bridge
Type
