HUAYI
معرفی

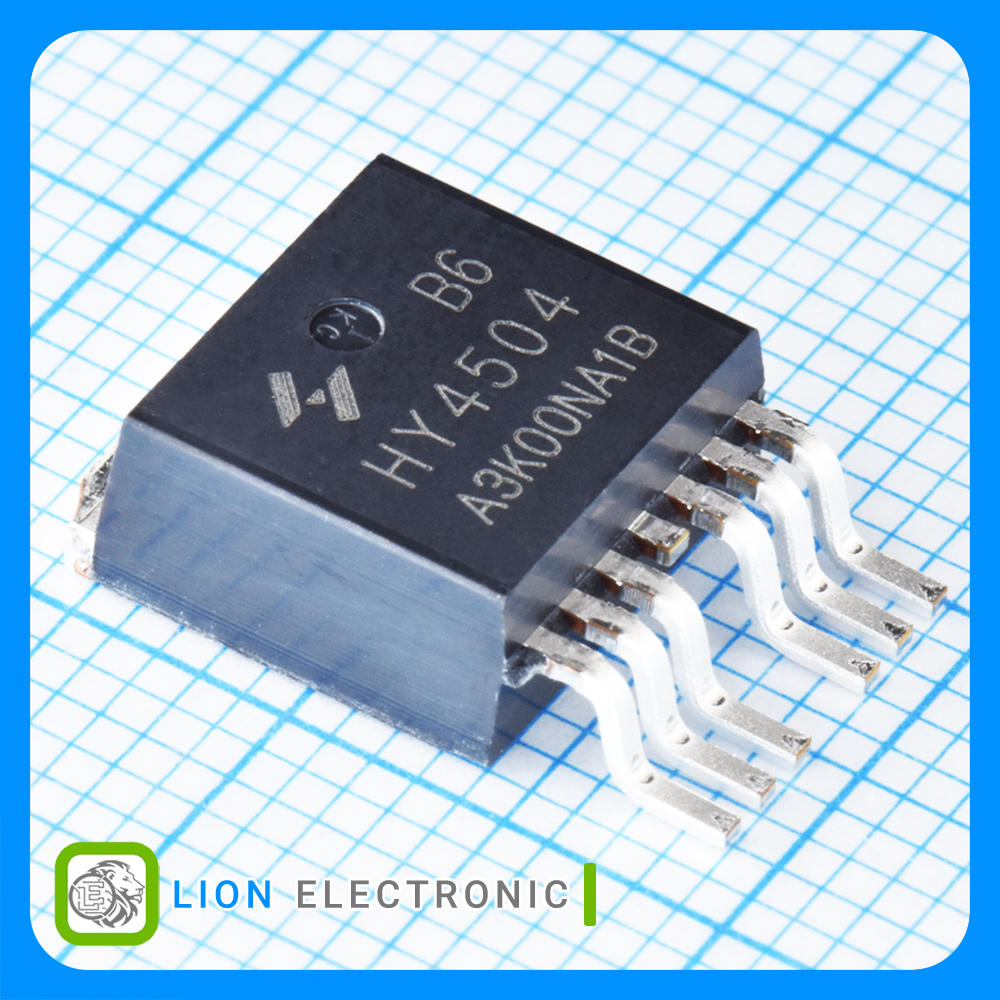

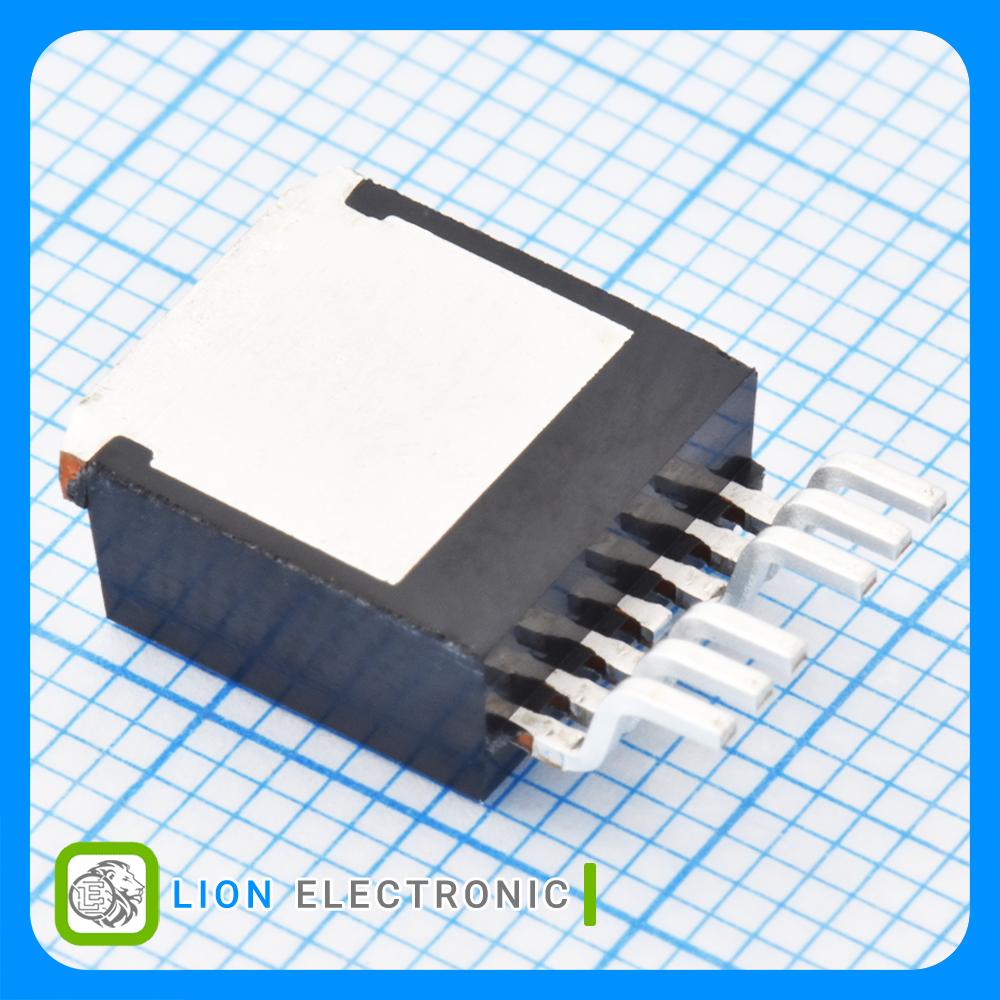

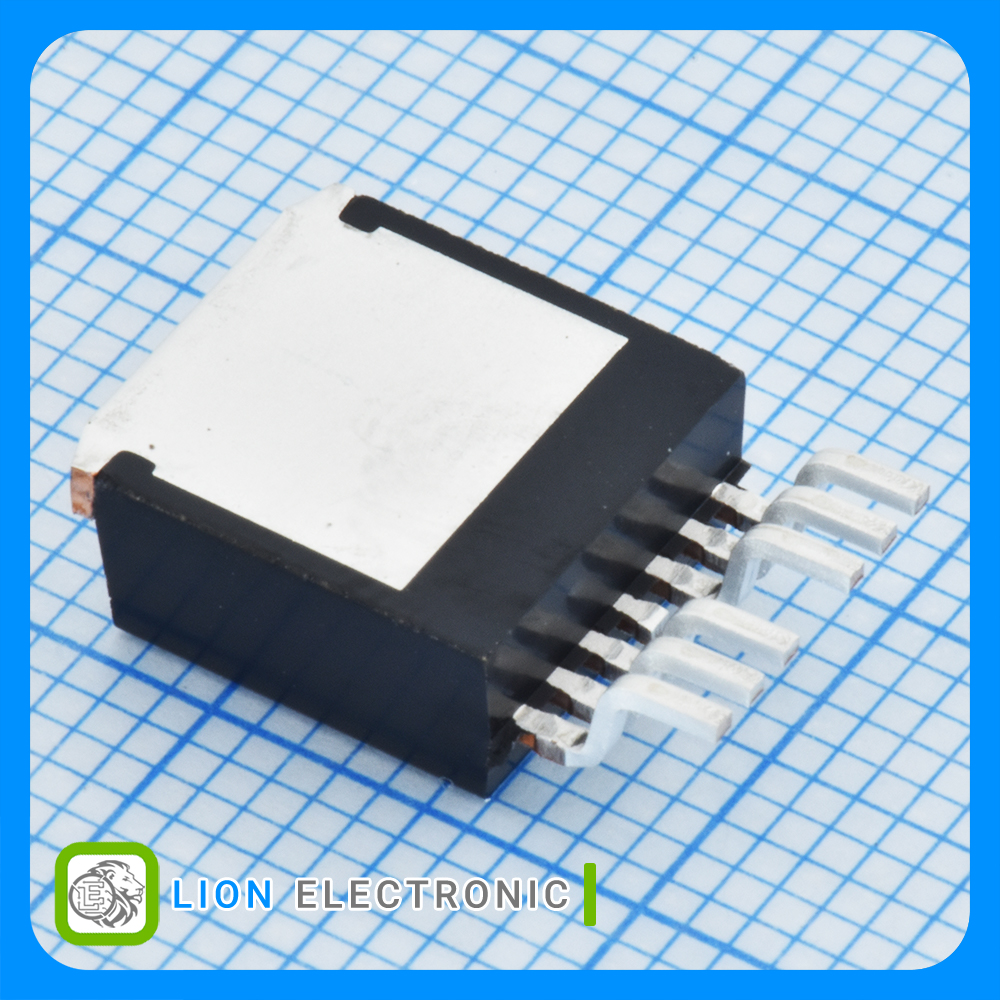

ماسفت 40 ولت 322 آمپر نوع N با پکیج TO-263-6
N-CH MOSFET 40V, 322A with TO-263-6 Package
Specifications
- Package/Case: TO-263-6
- Vds - Drain - Source Breakdown Voltage: 40V
- Id - Continuous Drain Current: 322A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 1.5mΩ
- Pd - Power Dissipation: 375W
- Qg - Gate Charge: 208nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات ماسفت HY4504B6

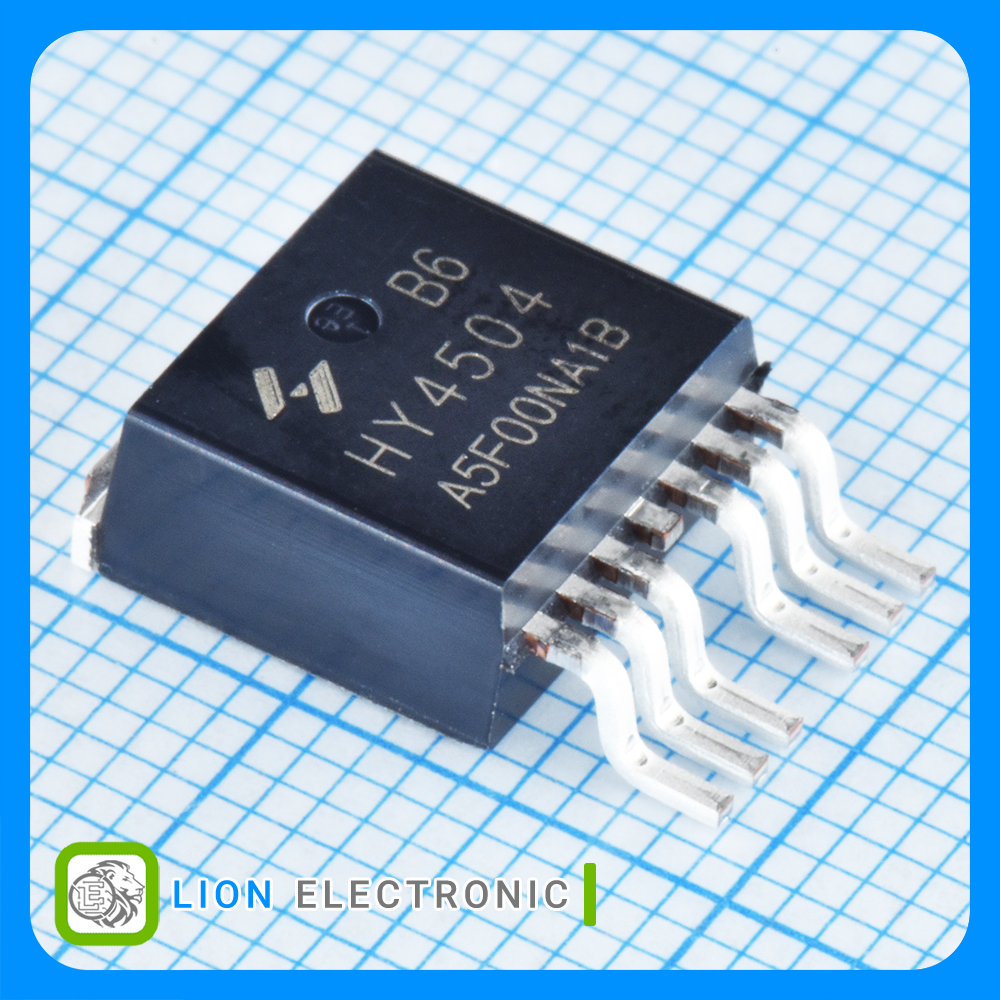

ماسفت HY4504B6
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
SMD/SMT
Mounting Style
1.5mΩ
Rds On - Drain - Source Resistance
±20V
Vgs - Gate - Source Voltage
40V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
2V
Vgs th - Gate - Source Threshold Voltage
208nC
Qg - Gate Charge
322A
Id - Continuous Drain Current
375W
Pd - Power Dissipation
TO-263-6
Package-Case
