BPP1D5007QA
BPP1D5007QA
Part Number
5746
Lion Part
Datasheet
BPSemiconductor Manufacture
ماژول قدرت (IPM) با MOSFET و HVIC برای موتورهای BLDC و PMSM

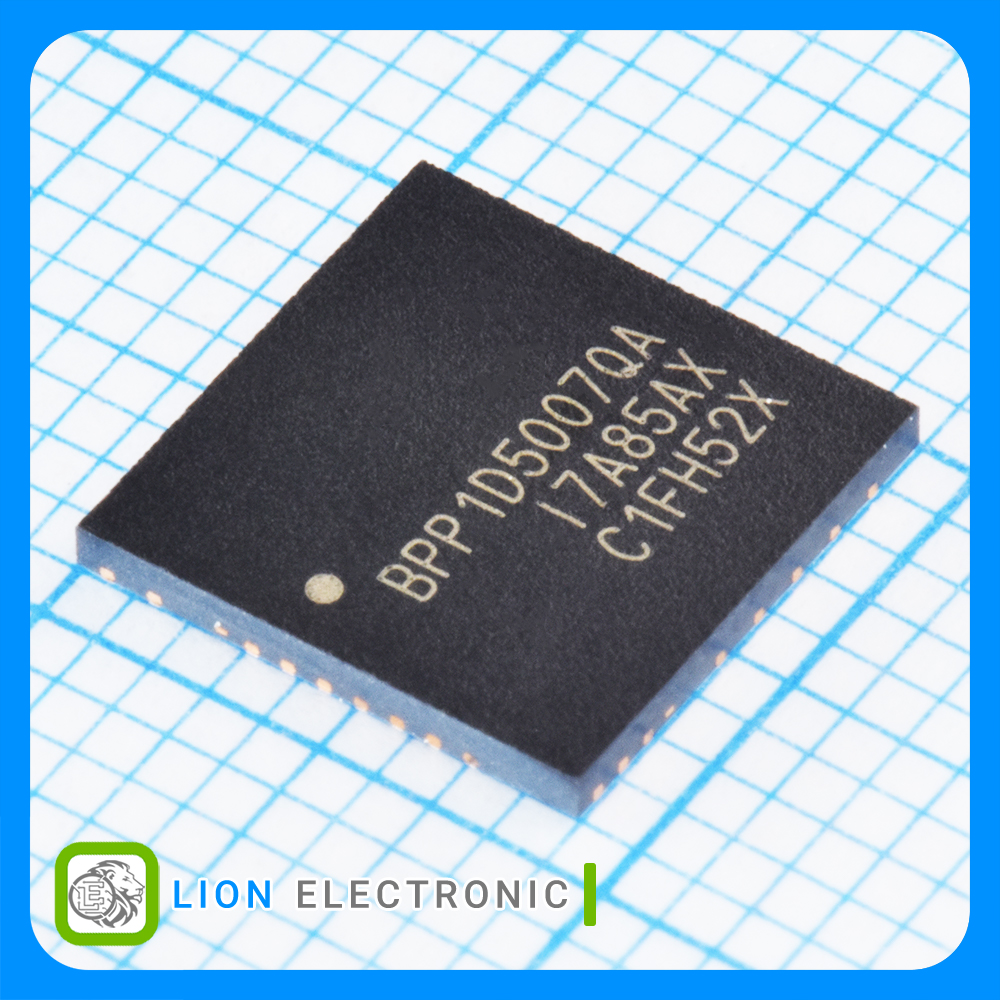

BPP1D5007QA is a high voltage 1-Phase IPM
(Intelligent Power Module). It integrates HVIC and
high-performance MOSFET for BLDC and PMSM
motors.
مشخصات BPP1D5007QA
BPP1D5007QA
Part Number
Enhancement
Channel Mode
2
Number of Channels
N-Channel
Transistor Polarity
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+105C
Maximum Operating Temperature
-20/+10V
Vgs - Gate - Source Voltage
500V
Vds - Drain - Source Breakdown Voltage
10 - 20V
Vgs th - Gate - Source Threshold Voltage
7A
Id - Continuous Drain Current
N/A
Qg - Gate Charge
N/A
Rds On - Drain - Source Resistance
N/A
Pd - Power Dissipation
QFN 9x9
Package-Case
