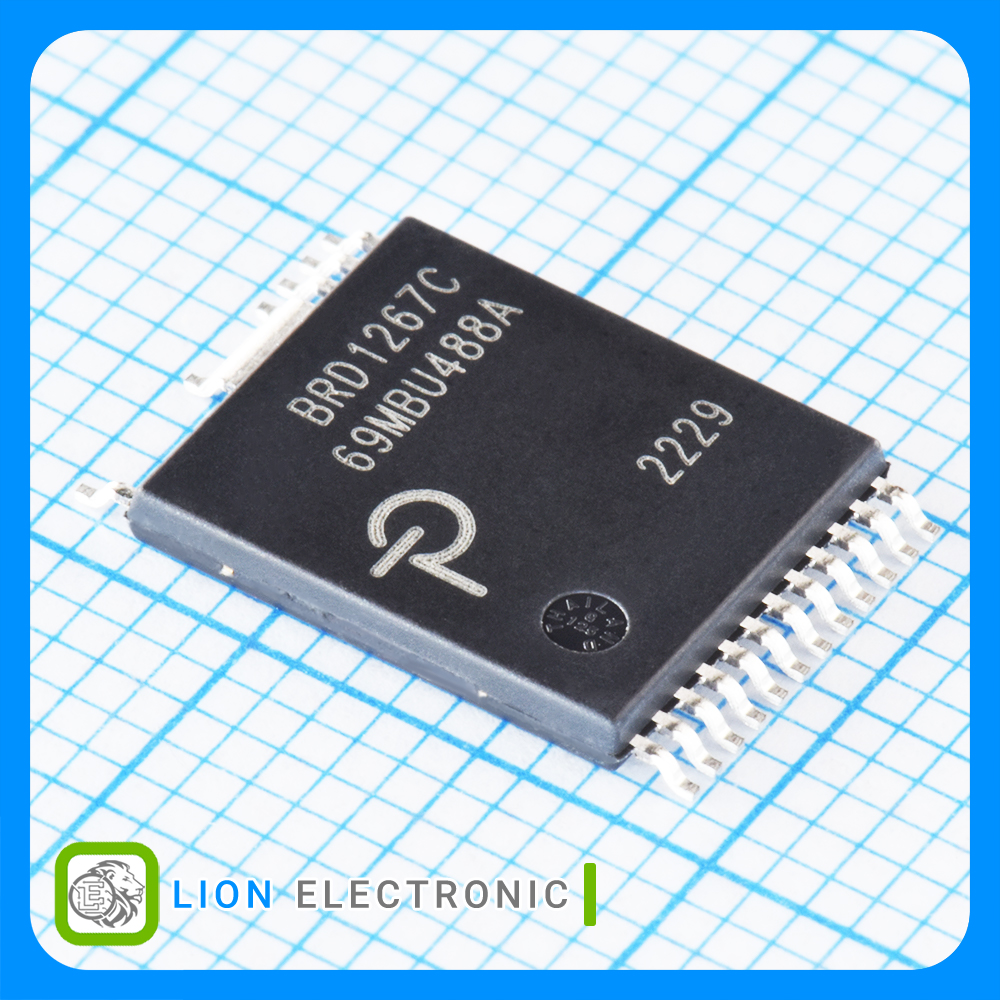

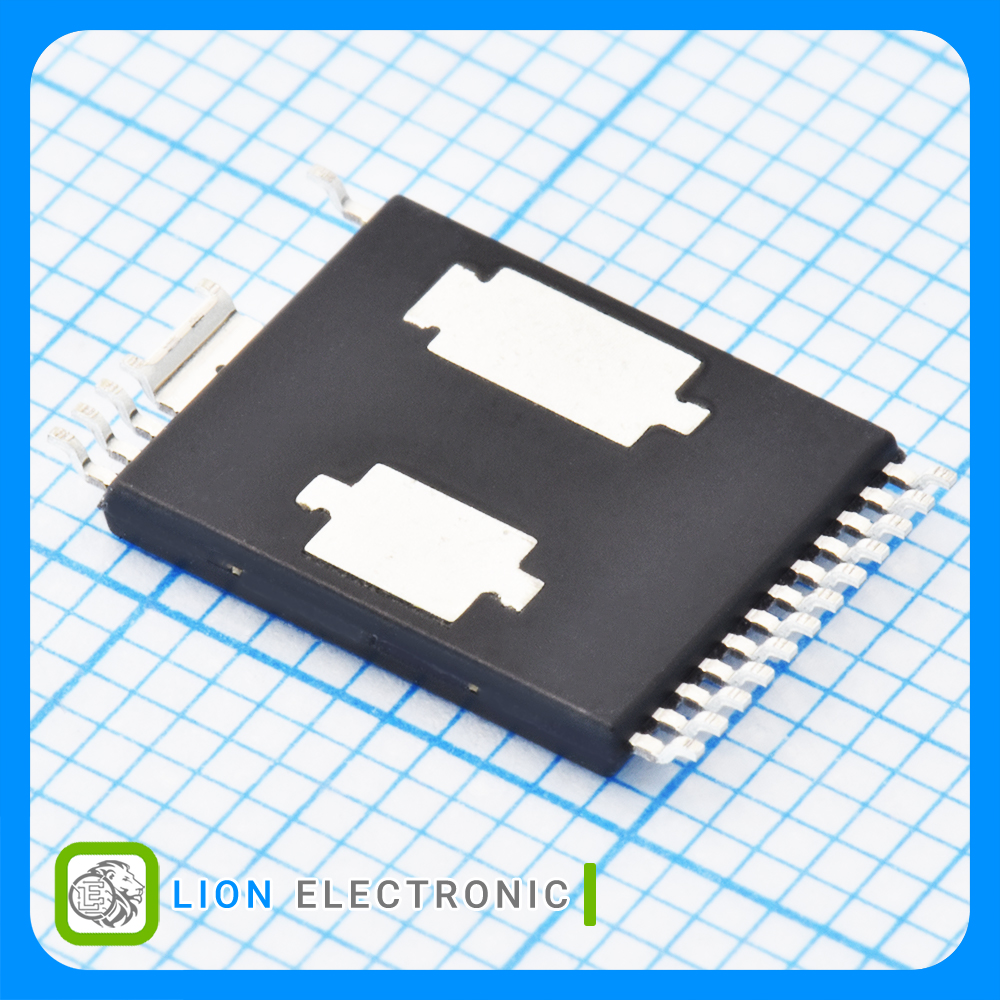

BRD1267C-TL
BRD1267C-TL
Part Number
5749
Lion Part
Datasheet
Power Integrations Manufacture
درایور موتور نیمپل 600 ولت با ماسفت نوع N و حفاظت داخلی و مانیتورینگ سیستم، 600 ولت 1.3 آمپر با پکیج InSOP-24C
600V N-channel High-Voltage, Self-Powered, Half-bridge Motor Driver with Integrated Device Protection and System Monitoring, MOSFET 600V, 1.3A with InSOP-24C Package
معرفی
درایور موتور نیمپل 600 ولت با ماسفت نوع N و حفاظت داخلی و مانیتورینگ سیستم، 600 ولت 1.3 آمپر با پکیج InSOP-24C
600V N-channel High-Voltage, Self-Powered, Half-bridge Motor Driver with Integrated Device Protection and System Monitoring, MOSFET 600V, 1.3A with InSOP-24C Package
Specifications
- Package/Case: InSOP-24C
- Vds - Drain - Source Breakdown Voltage: 600V
- Id - Continuous Drain Current: 1.3A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 2
- Vgs - Gate - Source Voltage: 14V
- Rds On - Drain - Source Resistance: 47mΩ
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات آیسی درایور موتور BRD1267C-TL

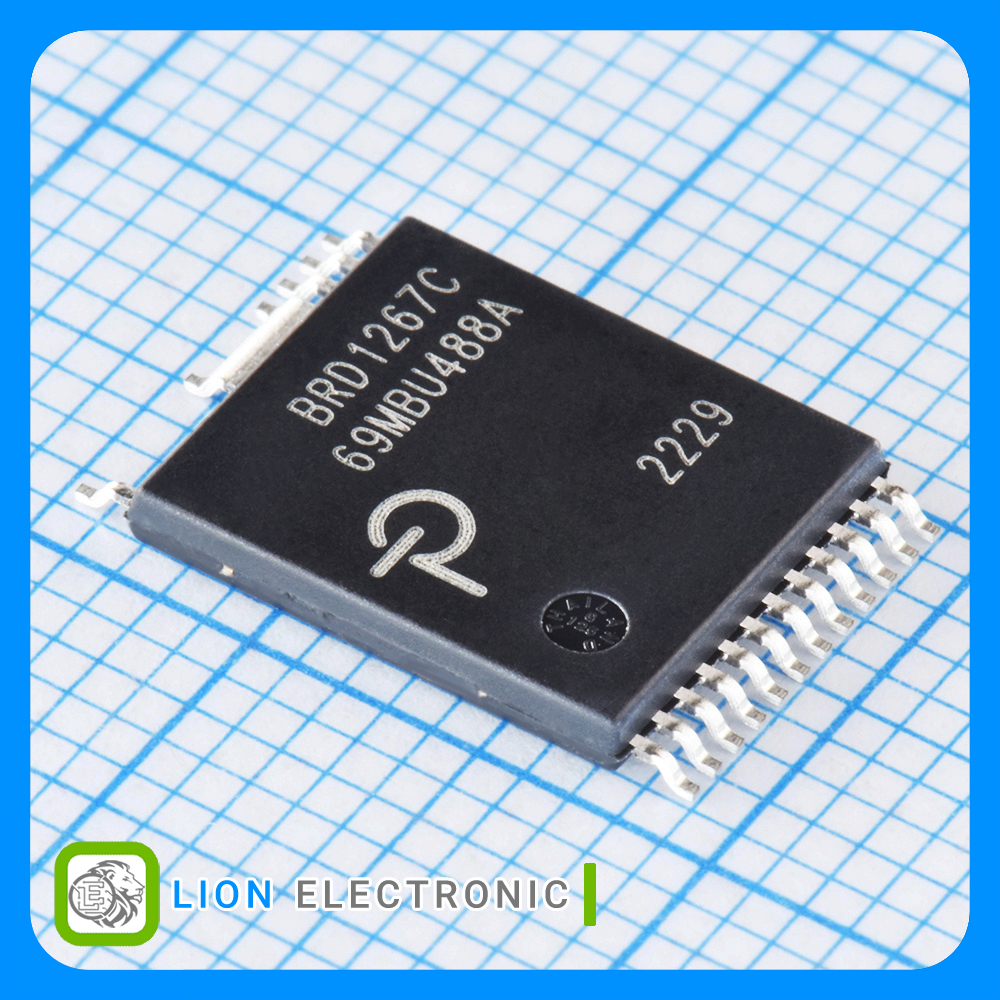

آیسی درایور موتور BRD1267C-TL
Part Number
2
Number of Channels
Enhancement
Channel Mode
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
14V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
600V
Vds - Drain - Source Breakdown Voltage
Half-Bridge Drivers
Product
1.3A
Id - Continuous Drain Current
N/A
Vgs th - Gate - Source Threshold Voltage
Motion Controller
Type
11.5A
Output Current
47mΩ
Rds On - Drain - Source Resistance
InSOP-24C
Package-Case
N/A
Qg - Gate Charge
N/A
Pd - Power Dissipation
N/A
Operating Supply Current
600V
Operating Supply Voltage
