معرفی

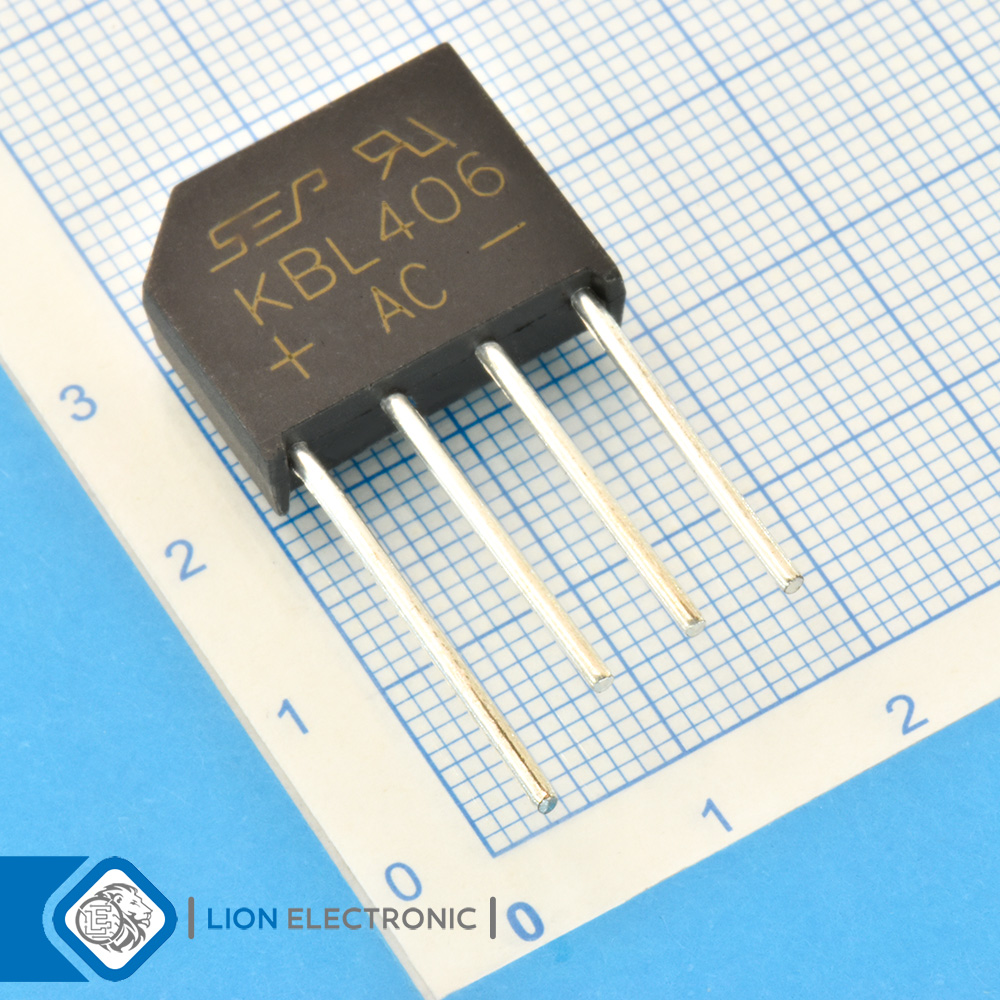

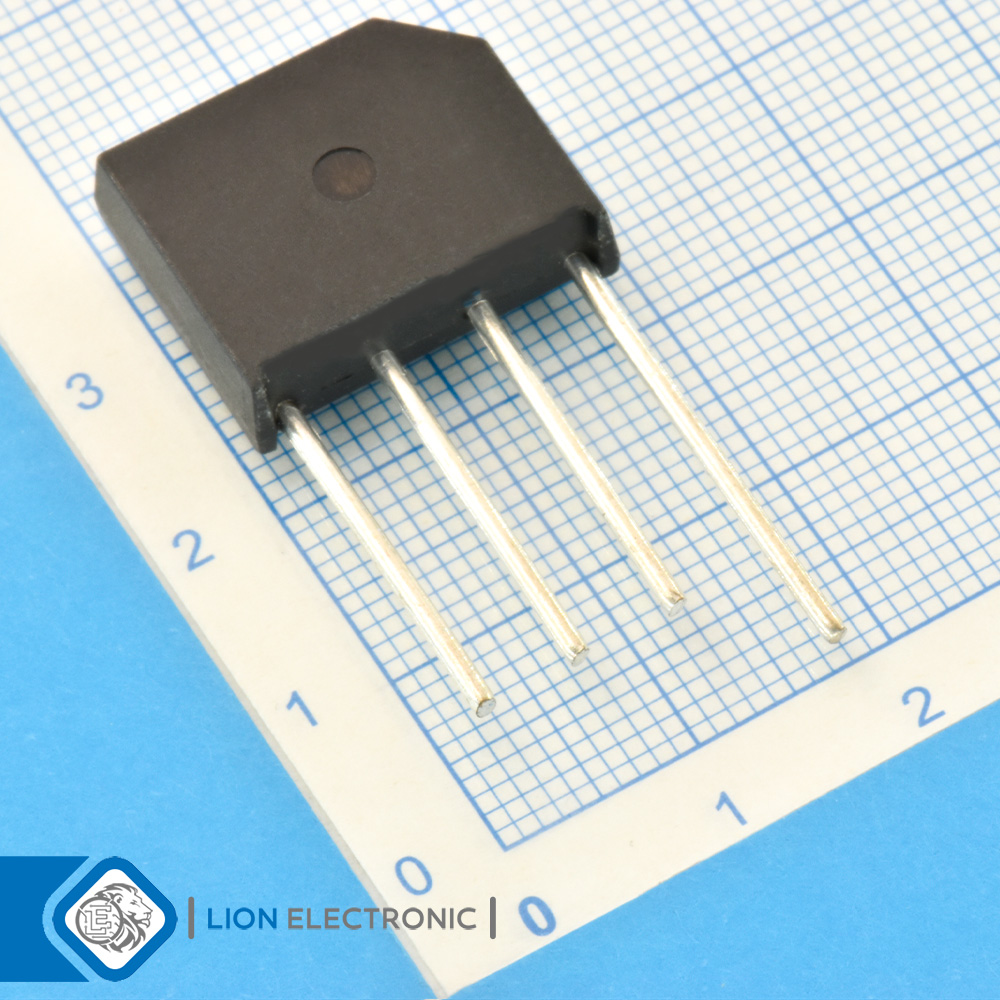

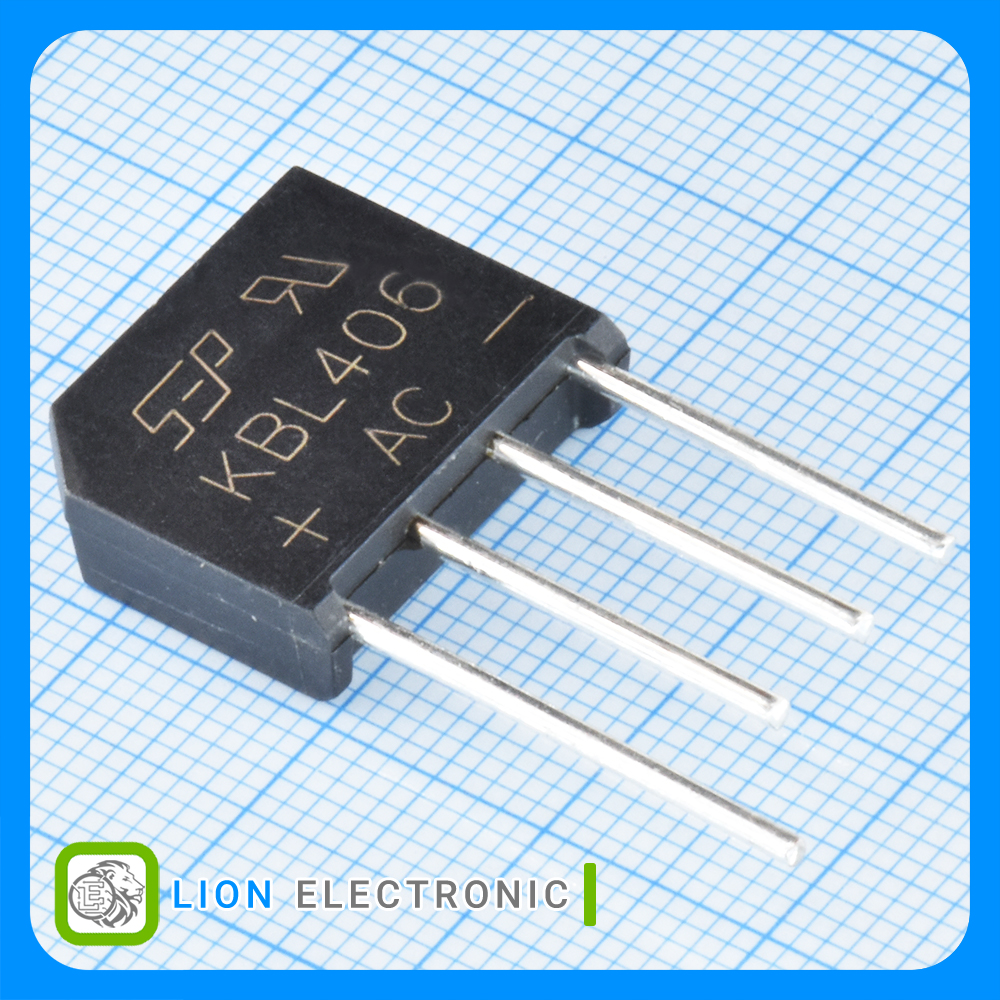

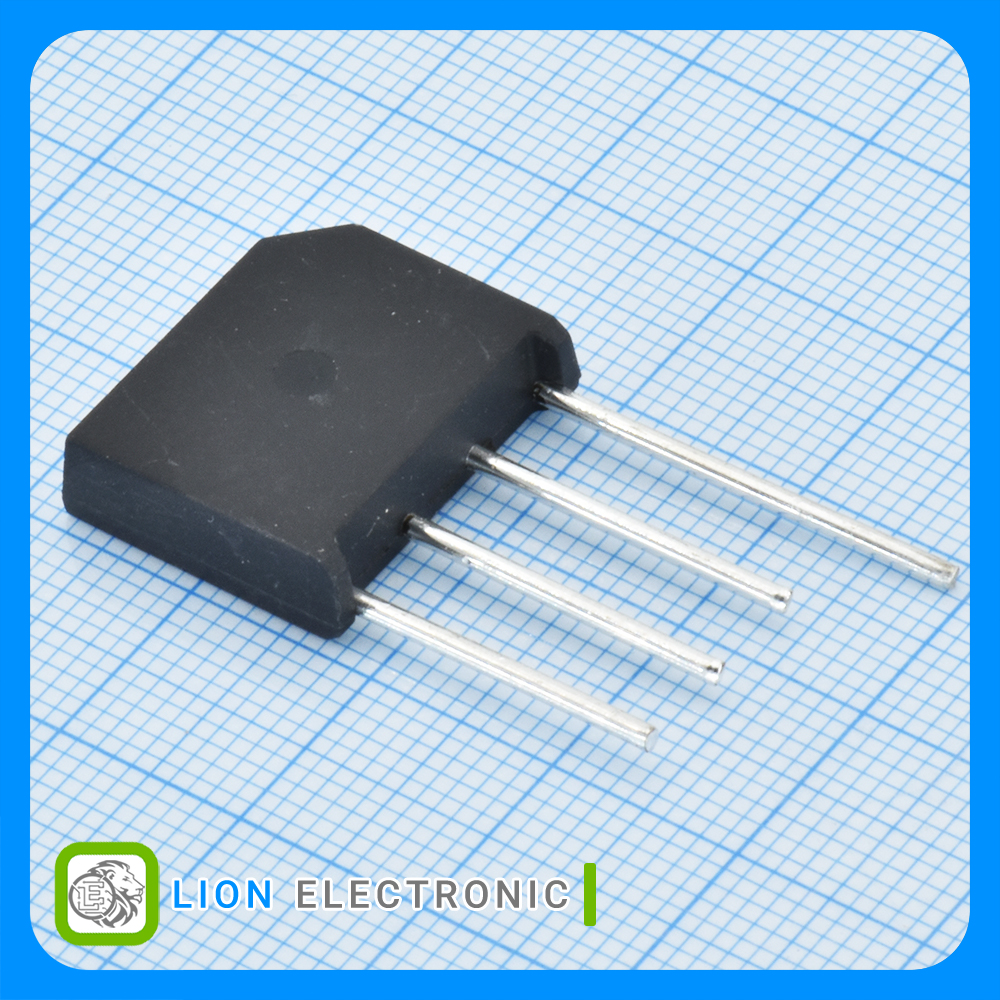

پل دیود 600 ولت 4 آمپر با پکیج KBL
Bridge Rectifier 4A, 600V with KBL Package
Specifications
- Type: Single Phase Bridge
- Peak Reverse Voltage: 600V
- If - Forward Current: 4A
- Max Surge Current: 200A
- Vf - Forward Voltage: 1.1V
- Mounting Style: Through Hole
- Package/Case: KBL
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
- Packaging: Bulk
مشخصات KBL406
KBL406
Part Number
-55C
Minimum Operating Temperature
Bulk
Packaging
600V
Peak Reverse Voltage
Through Hole
Termination style
10uA
Ir - Reverse Current
Through Hole
Mounting Style
+125C
Maximum Operating Temperature
6.48mm
Width
200A
Max Surge Current
4A
If - Forward Current
1.1V
Vf - Forward Voltage
19.6mm
Length
16.38mm
Height
Single Phase Bridge
Type
KBL
Package-Case
