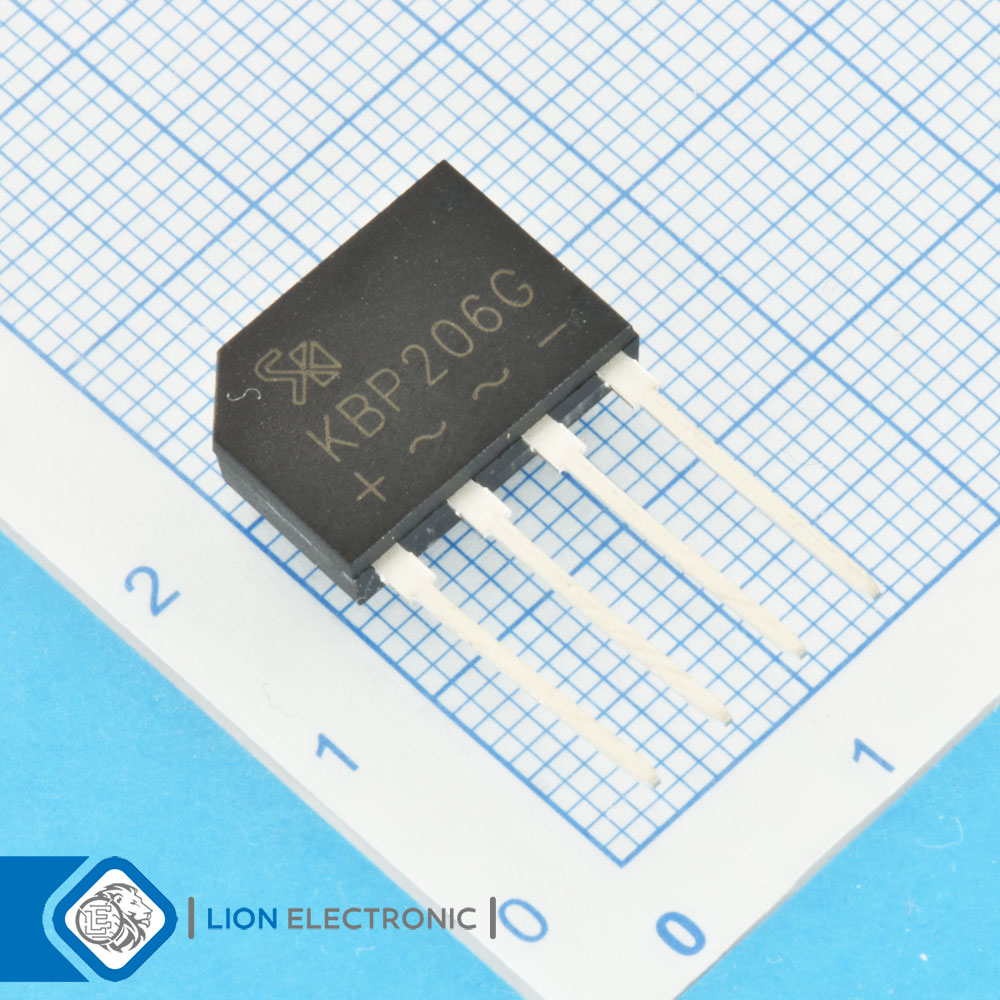

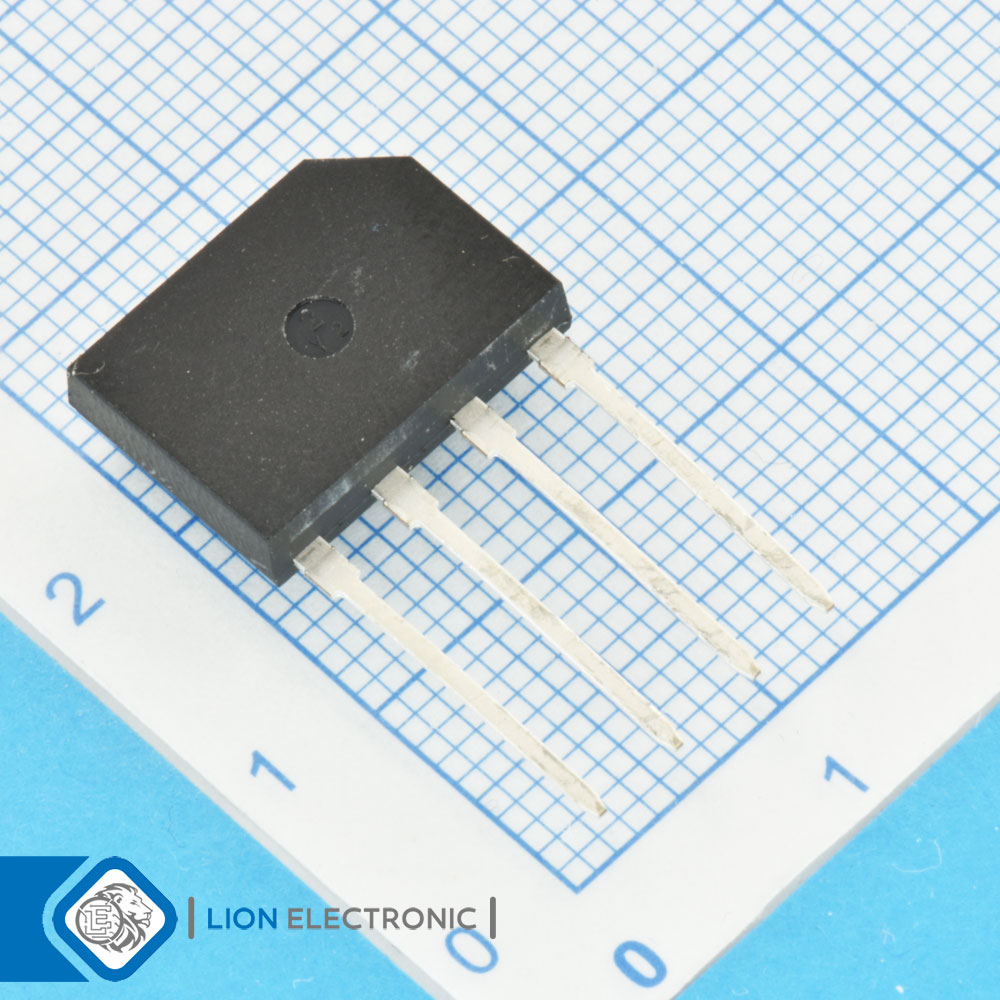

پل دیود 600 ولت 2 آمپر با پکیج KBP
Bridge Rectifier 2A, 600V with KBP Package
Specifications
- Type: Single Phase Bridge
- Peak Reverse Voltage: 600V
- If - Forward Current: 2A
- Max Surge Current: 65A
- Vf - Forward Voltage: 1.1V
- Mounting Style: Through Hole
- Package/Case: KBP
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات KBP206G
KBP206G
Part Number
600V
Peak Reverse Voltage
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Termination style
10uA
Ir - Reverse Current
Through Hole
Mounting Style
3.9mm
Width
65A
Max Surge Current
+150C
Maximum Operating Temperature
2A
If - Forward Current
15.24mm
Length
1.1V
Vf - Forward Voltage
11.68mm
Height
Single Phase Bridge
Type
KBP
Package-Case
