معرفی
پل دیود 1000 ولت 6 آمپر با پکیج KBU

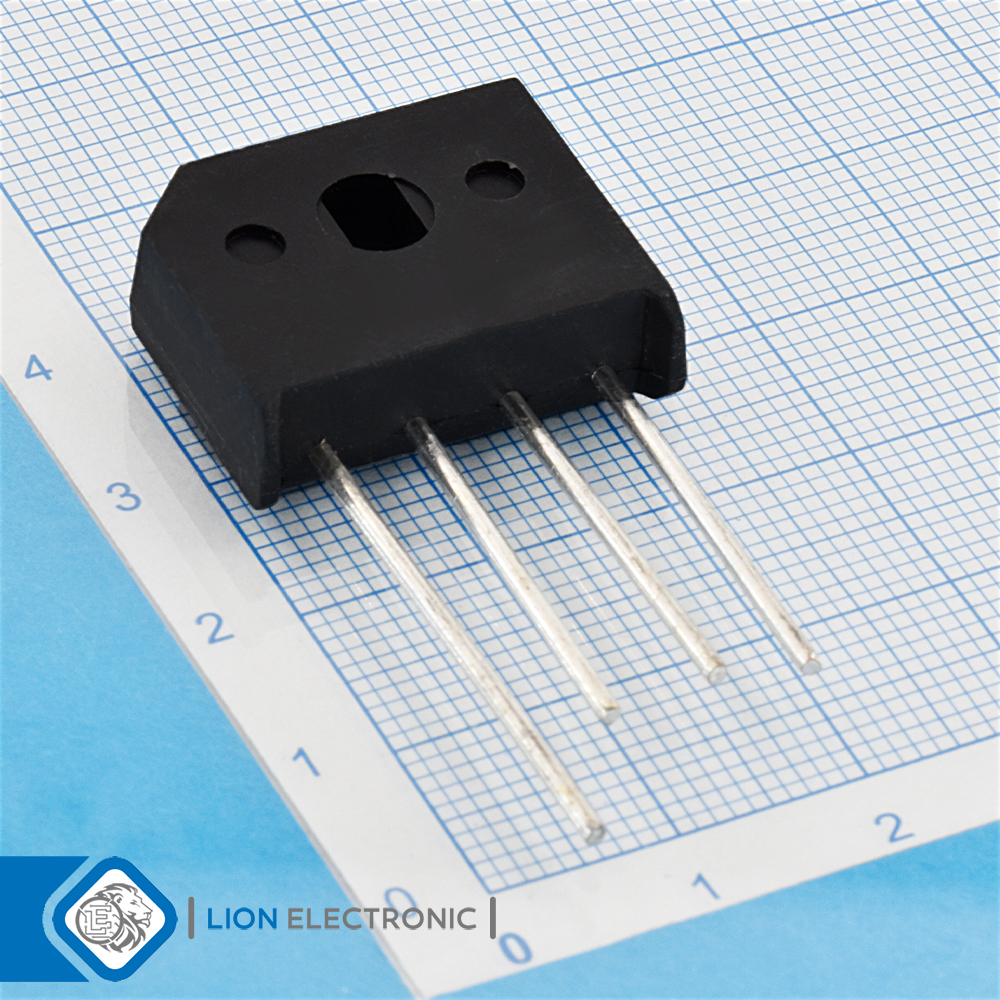

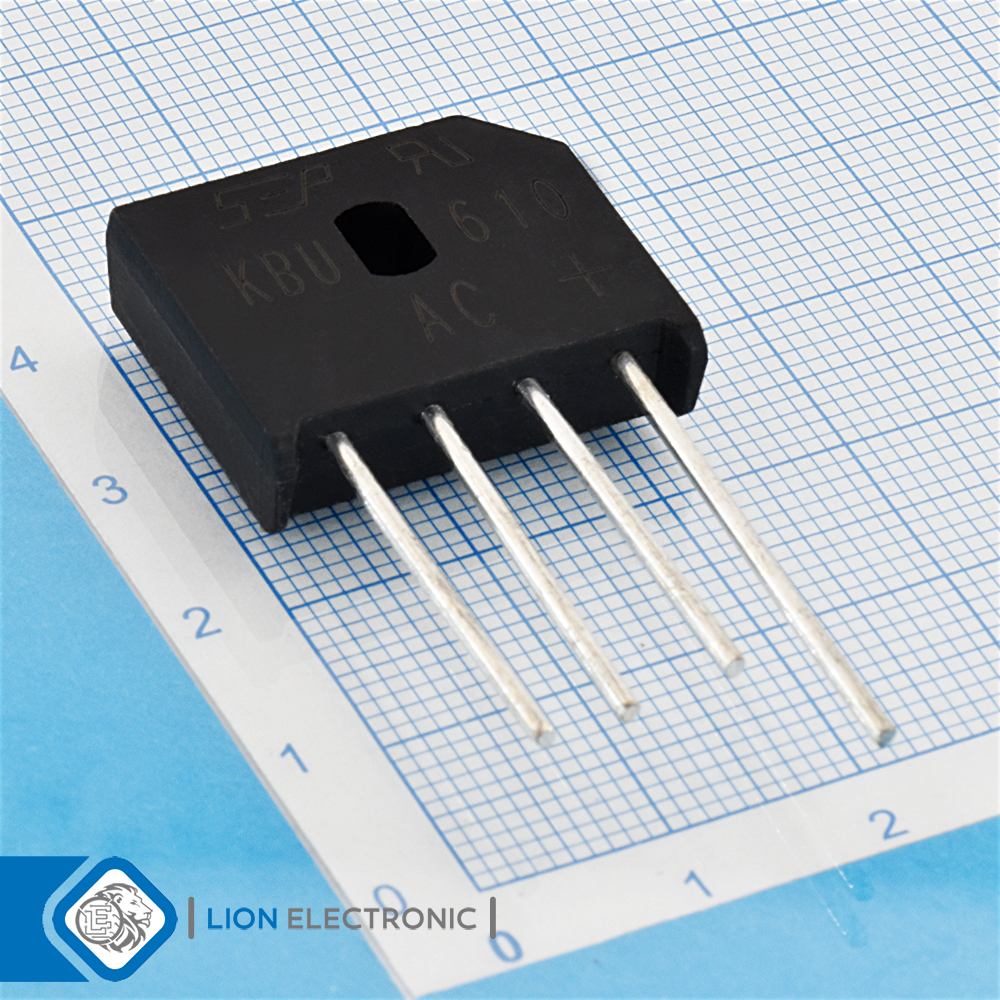

Bridge Rectifier 6A, 1000V with KBU Package
Specifications
- Type: Single Phase Bridge
- Peak Reverse Voltage: 1kV
- If - Forward Current: 6A
- Max Surge Current: 250A
- Vf - Forward Voltage: 1.1V
- Mounting Style: Through Hole
- Package/Case: KBU
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Box
مشخصات KBU610
KBU610
Part Number
Box
Packaging
-55C
Minimum Operating Temperature
1kV
Peak Reverse Voltage
Through Hole
Termination style
Through Hole
Mounting Style
+150C
Maximum Operating Temperature
250A
Max Surge Current
6.8mm
Width
6A
If - Forward Current
1.1V
Vf - Forward Voltage
23.2mm
Length
19.3mm
Height
Single Phase Bridge
Type
KBU
Package-Case
