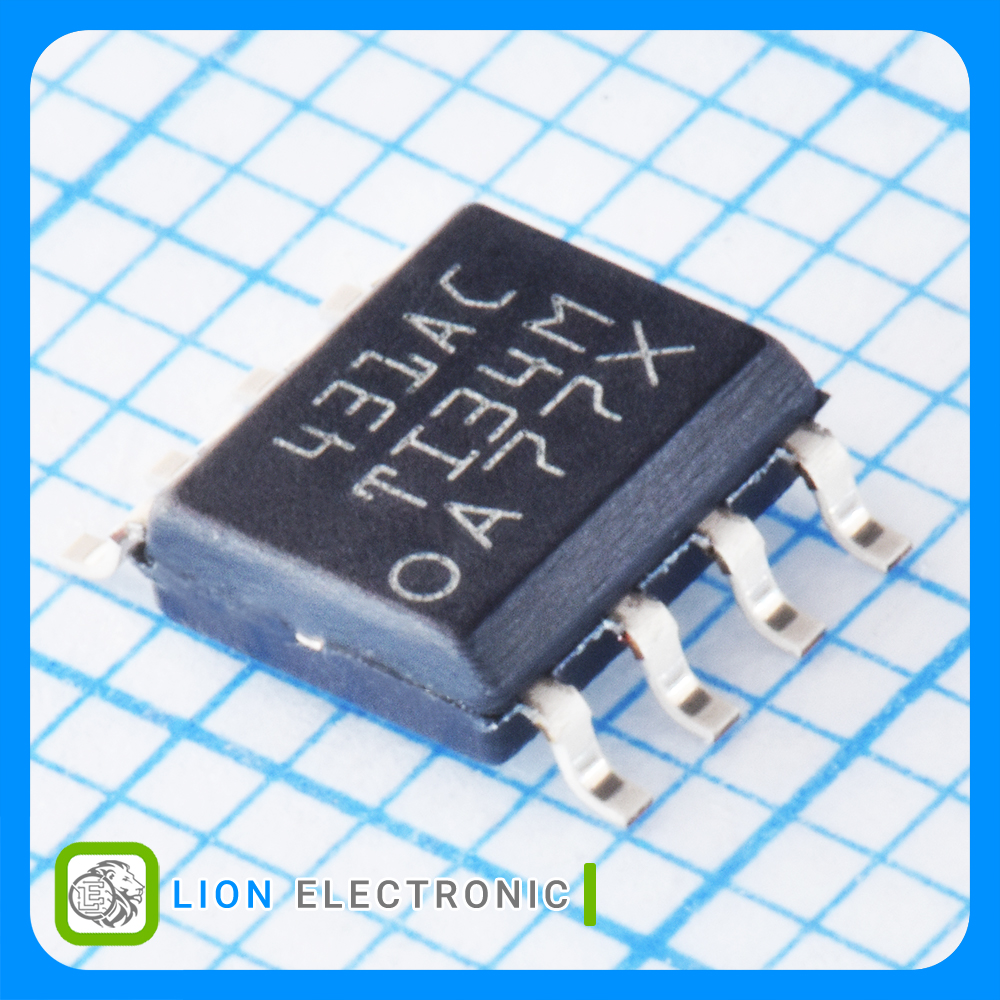

TL431ACDR
TL431ACDR
Part Number
602
Lion Part
Datasheet
Texas Instruments Manufacture
منبع ولتاژ مرجع قابل تنظیم دقت 1% با پکیج SOIC-8
Precision Programmable Voltage Reference Adjustable, 1% Accuracy with SOIC-8 Package
معرفی
منبع ولتاژ مرجع قابل تنظیم دقت 1% با پکیج SOIC-8
Precision Programmable Voltage Reference Adjustable, 1% Accuracy with SOIC-8 Package
Specifications
- Reference Type: Shunt Adjustable Precision References
- Output Voltage: Adjustable
- Shunt Current - Max: 100mA
- Series VREF - Input Voltage - Max: 37V
- Temperature Coefficient: 92PPM/C
- Initial Accuracy: 1%
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آیسی ولتاژ رفرنس TL431ACDR

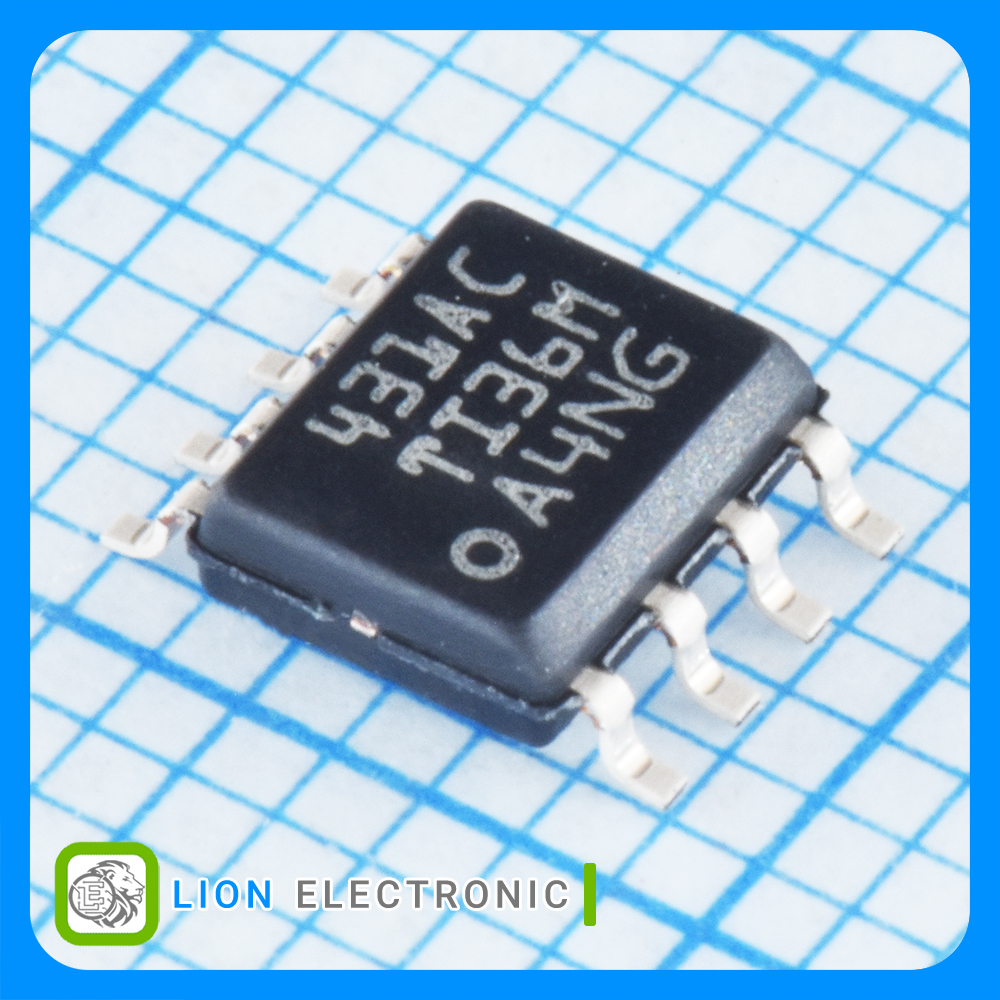

آیسی ولتاژ رفرنس TL431ACDR
Part Number
Adjustable
Output Voltage
Shunt Adjustable Precision References
Reference Type
600uA
Shunt Current - Min
Reel
Packaging
-40C
Minimum Operating Temperature
100mA
Shunt Current - Max
1%
Initial Accuracy
SMD/SMT
Mounting Style
37V
Series VREF - Input Voltage - Max
±1.5%
Accuracy
92PPM/C
Temperature Coefficient
+125C
Maximum Operating Temperature
Voltage References
Product
SOIC-8
Package-Case
