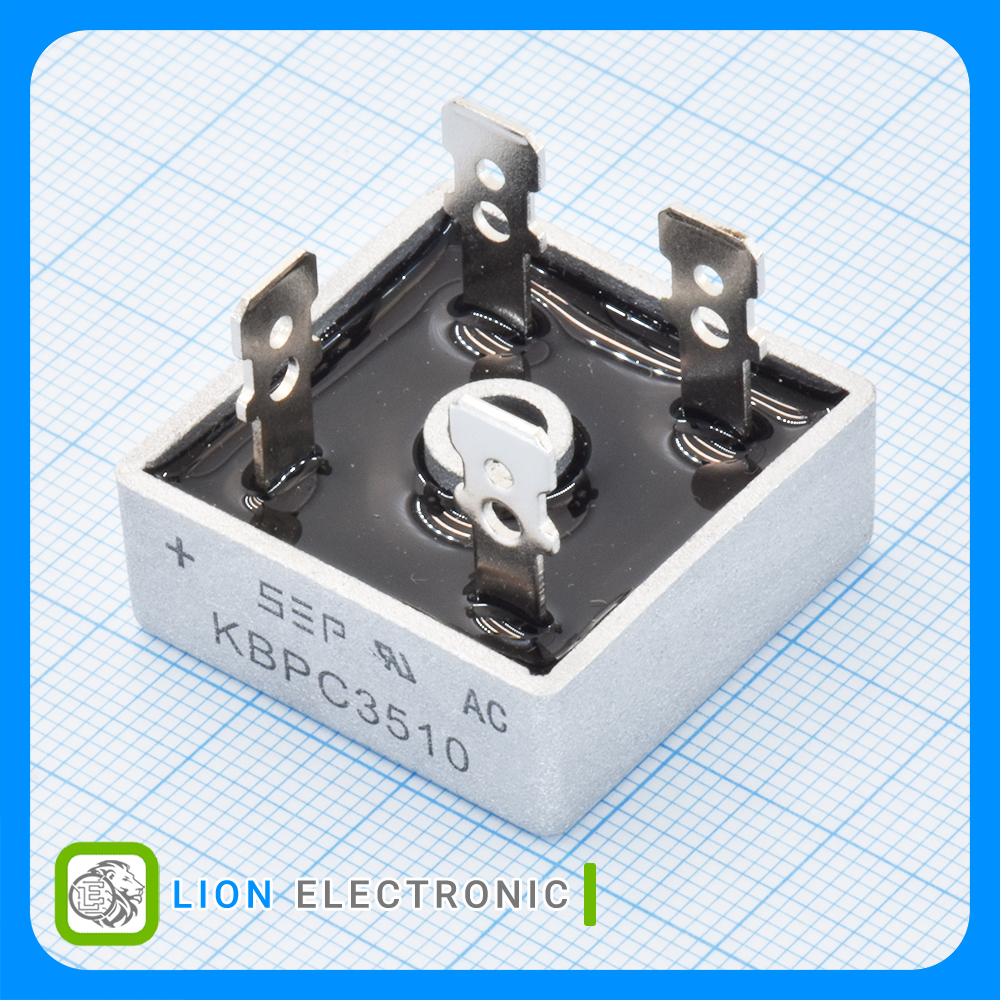

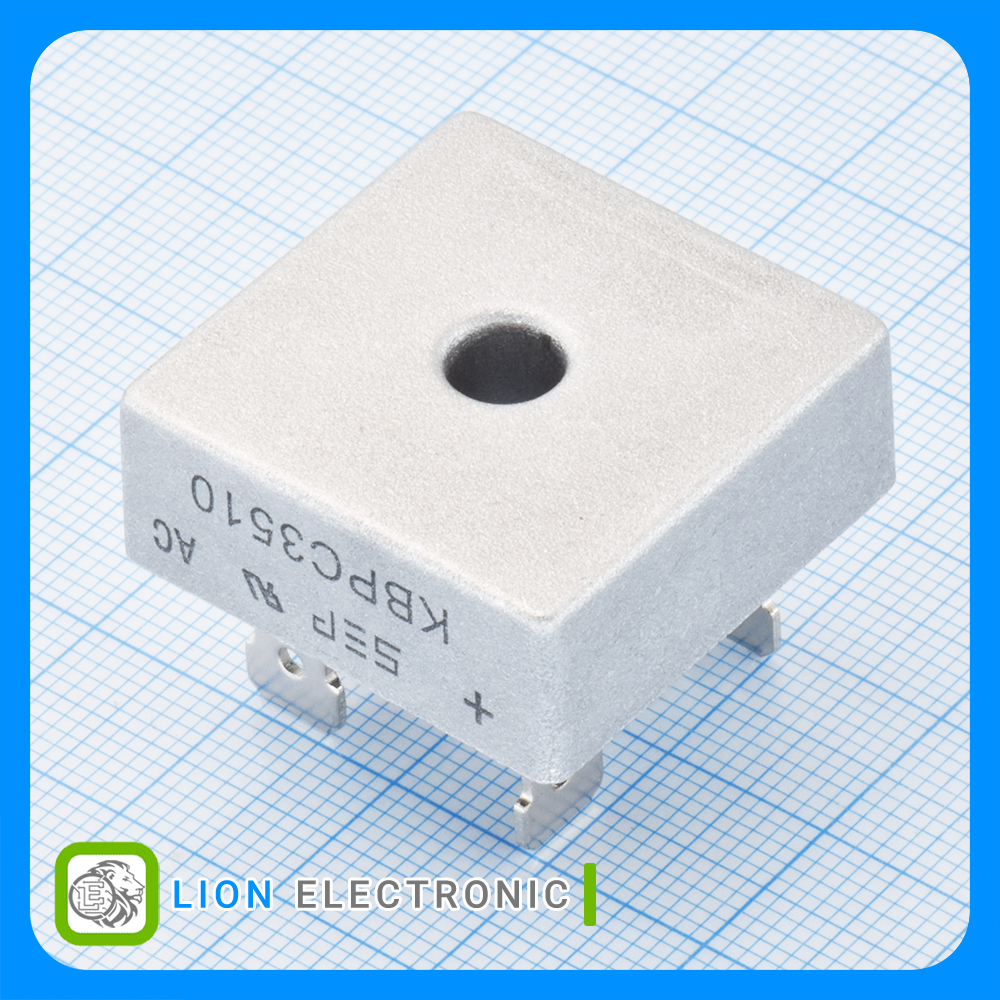

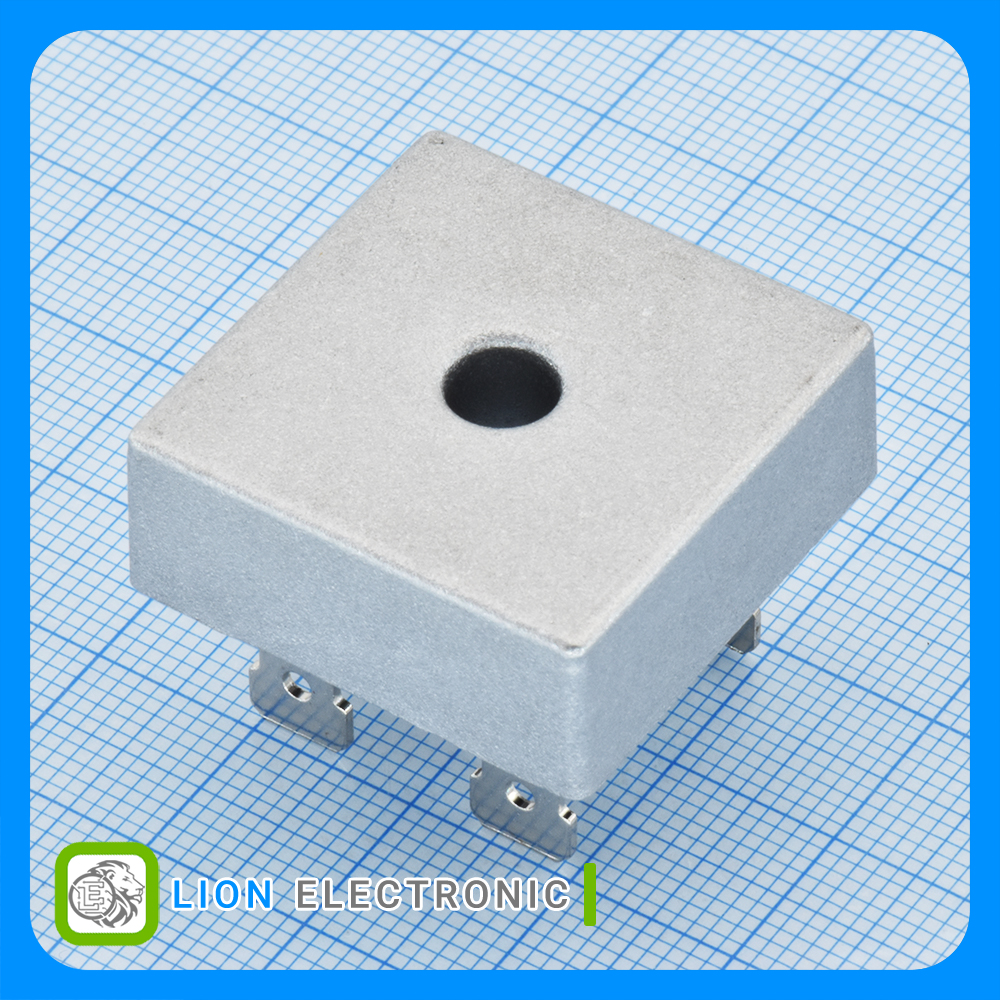

پل دیود 1000 ولت 35 آمپر با پکیج KBPC
Bridge Rectifier 35A, 1000V with KBPC Package
Specifications
- Type: Single Phase Bridge
- Peak Reverse Voltage: 1kV
- If - Forward Current: 35A
- Max Surge Current: 400A
- Vf - Forward Voltage: 1V
- Mounting Style: Through Hole
- Package/Case: KBPC
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Bulk
مشخصات KBPC3510

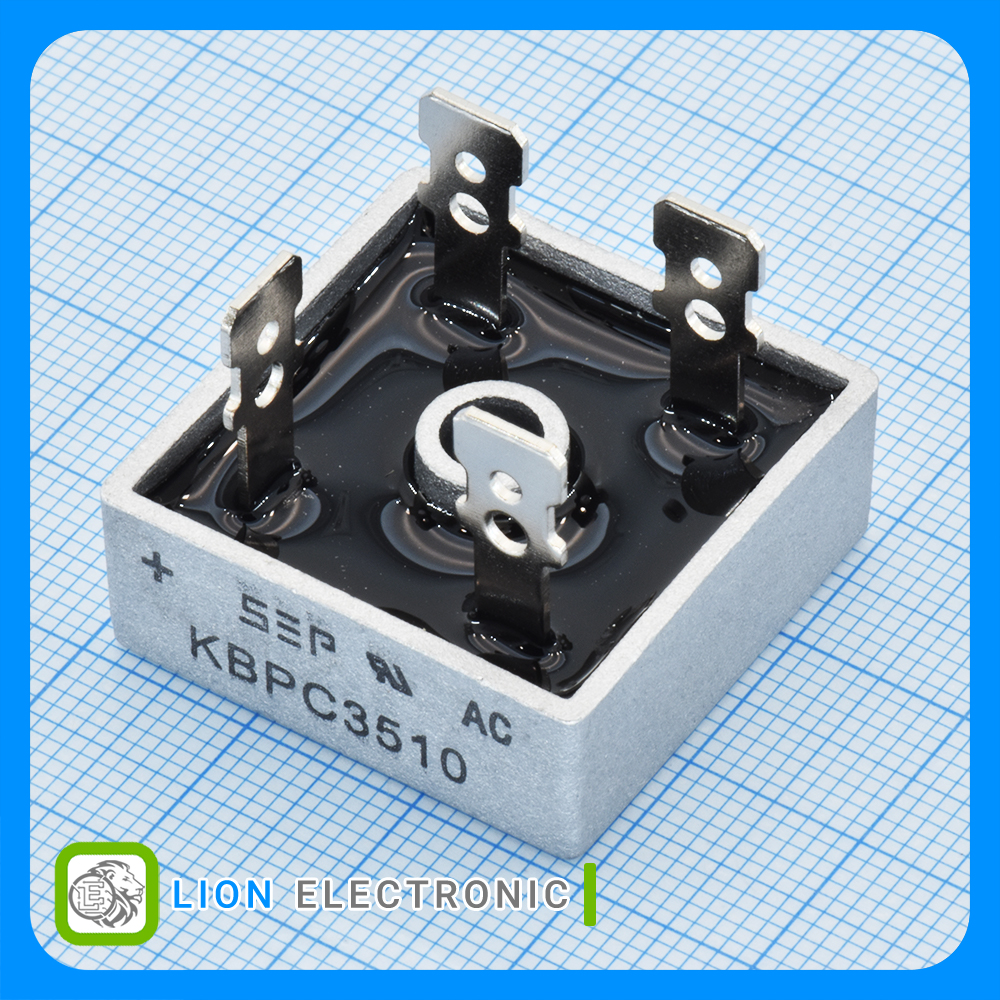

KBPC3510
Part Number
Quick Connect
Termination style
-55C
Minimum Operating Temperature
Bulk
Packaging
1kV
Peak Reverse Voltage
Through Hole
Mounting Style
+150C
Maximum Operating Temperature
400A
Max Surge Current
1V
Vf - Forward Voltage
35A
If - Forward Current
11.23mm
Height
28.8mm
Length
28.8mm
Width
Single Phase Bridge
Type
KBPC
Package-Case
