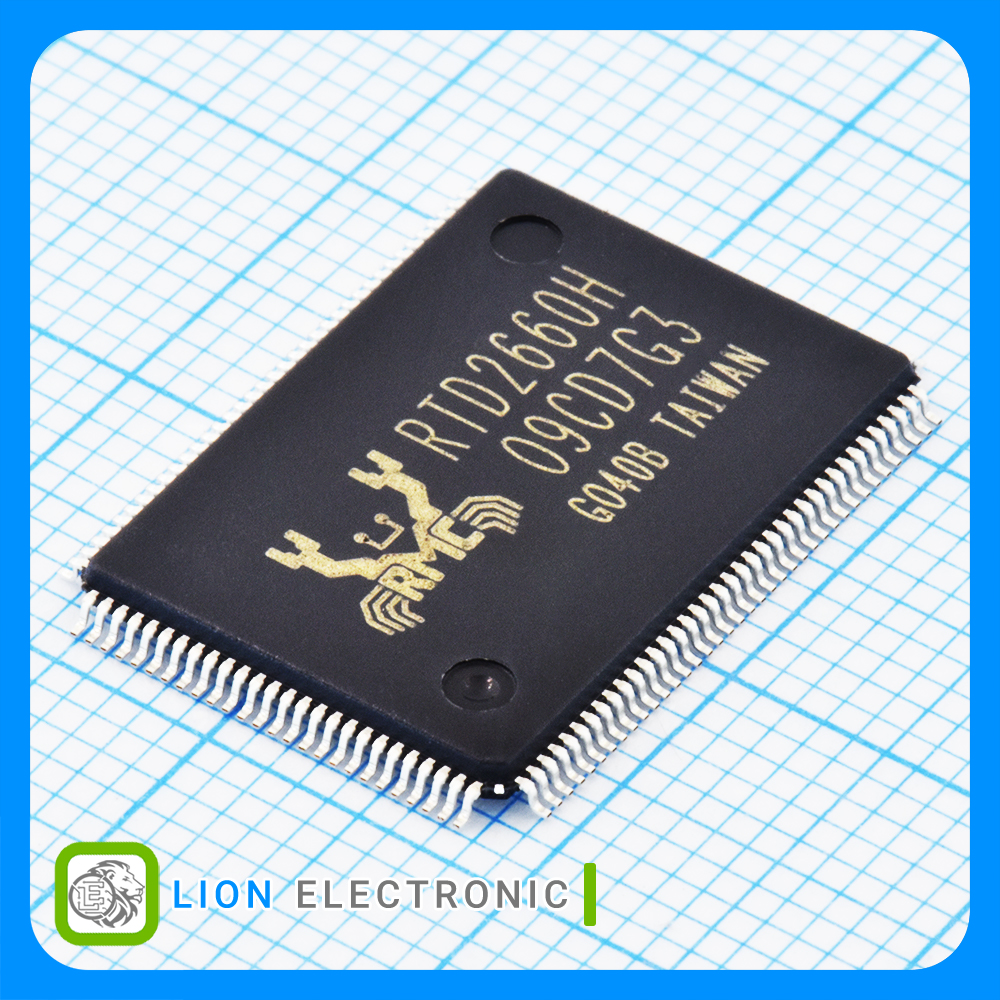

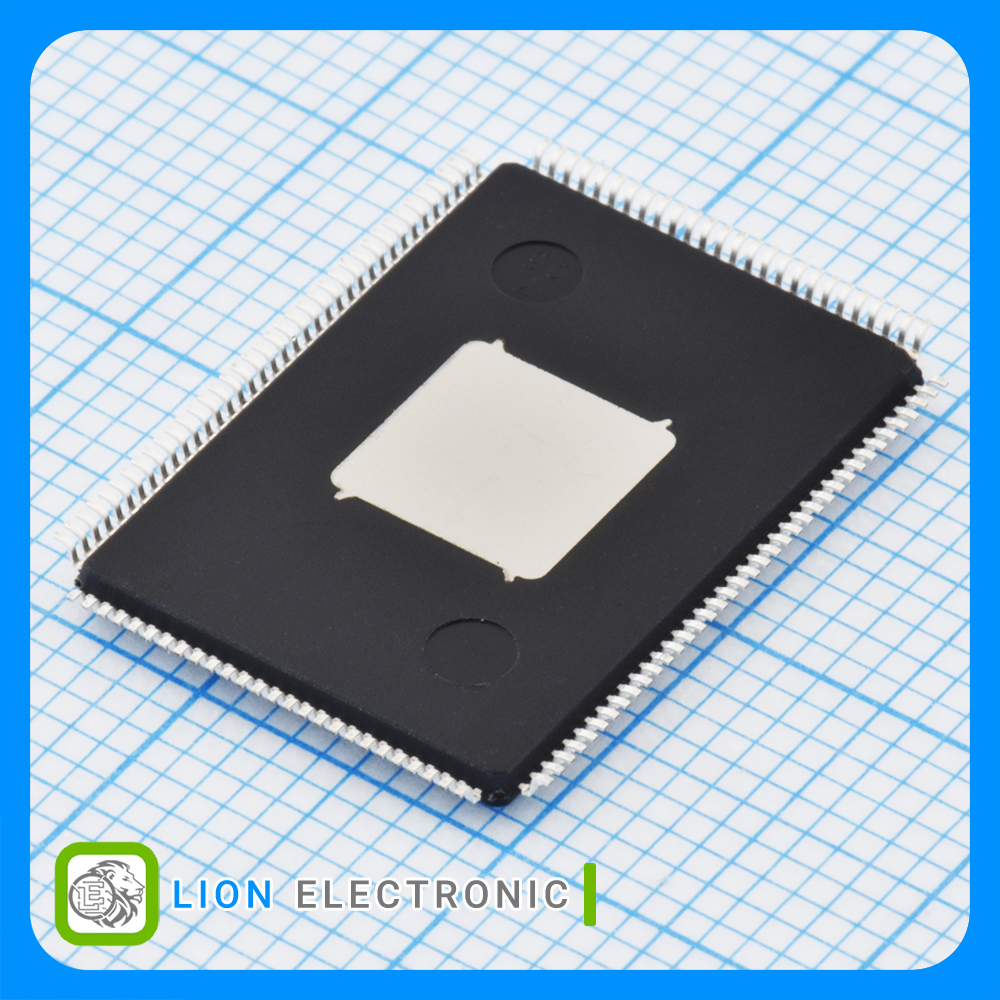

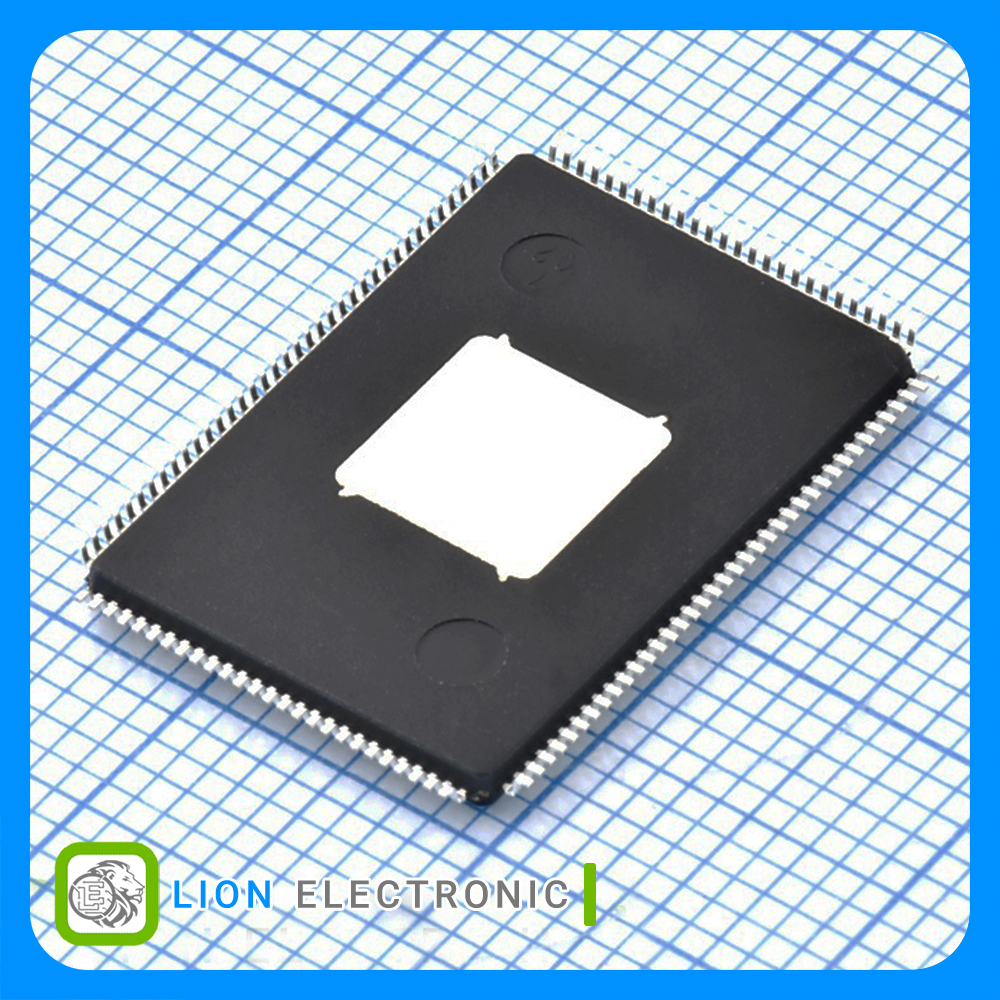

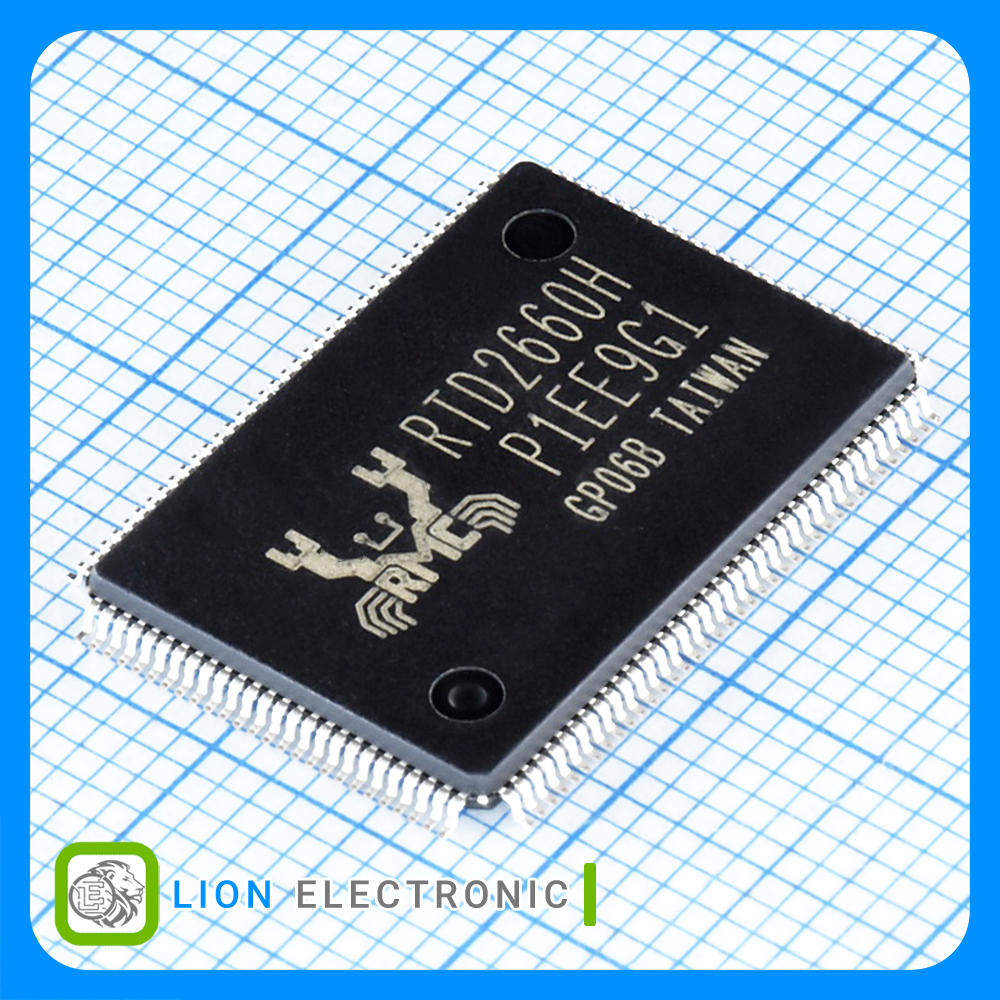

RTD2660H-GR

The RTD2660H-GR is a specific model of an LCD controller chip (also called a "scaler" or "timing controller") commonly used in monitor and display applications. It is produced by Realtek, a well-known semiconductor company.

Key Features of RTD2660H-GR:

1. Display Control:

   • Supports LVDS (Low-Voltage Differential Signaling) and TTL input interfaces.

   • Used for driving LCD panels (commonly in monitors, industrial displays, and some TVs).

2. Input Compatibility:

   • Typically accepts VGA (RGB analog) and sometimes HDMI/DVI signals (depending on the board design).

   • May include an ADC (Analog-to-Digital Converter) for processing analog inputs.

3. Embedded Features:

   • Some versions include an MCU (Microcontroller Unit) for OSD (On-Screen Display) control.

   • Supports backlight control (PWM dimming).

4. Common Applications:

   • Used in LCD monitor repair and replacement boards.

   • Found in cheap display driver boards (e.g., for converting old laptop LCD panels into standalone monitors).
