TOSHIBA
معرفی
ماسفت 60 ولت 58 آمپر نوع N با پکیج DPAK
N-CH MOSFET 60V, 58A with DPAK Package
Specifications
- Package/Case: DPAK
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 58A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.5V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 3.4mΩ
- Pd - Power Dissipation: 87W
- Qg - Gate Charge: 48.2nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت TK4R4P06PL

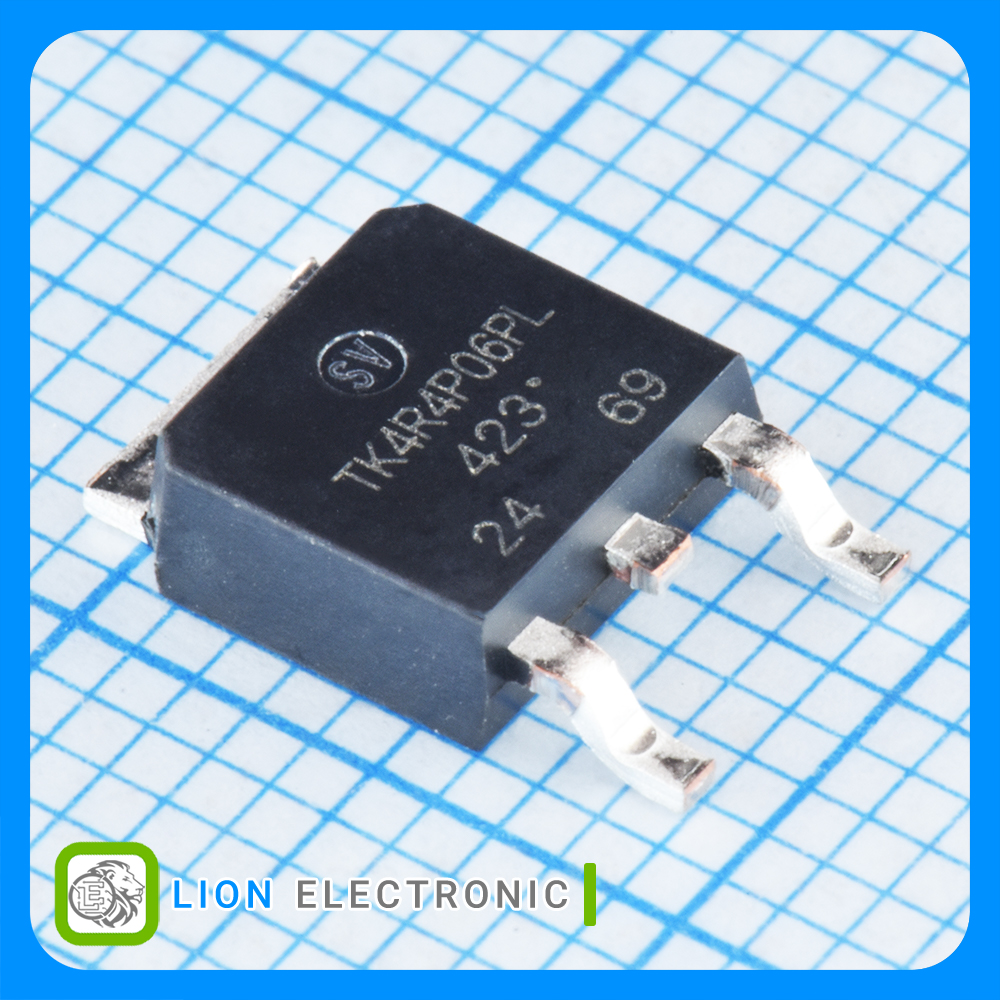

ماسفت TK4R4P06PL
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
60V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
3.4mΩ
Rds On - Drain - Source Resistance
1.5V
Vgs th - Gate - Source Threshold Voltage
48.2nC
Qg - Gate Charge
DPAK
Package-Case
58A
Id - Continuous Drain Current
87W
Pd - Power Dissipation
