TOSHIBA
معرفی

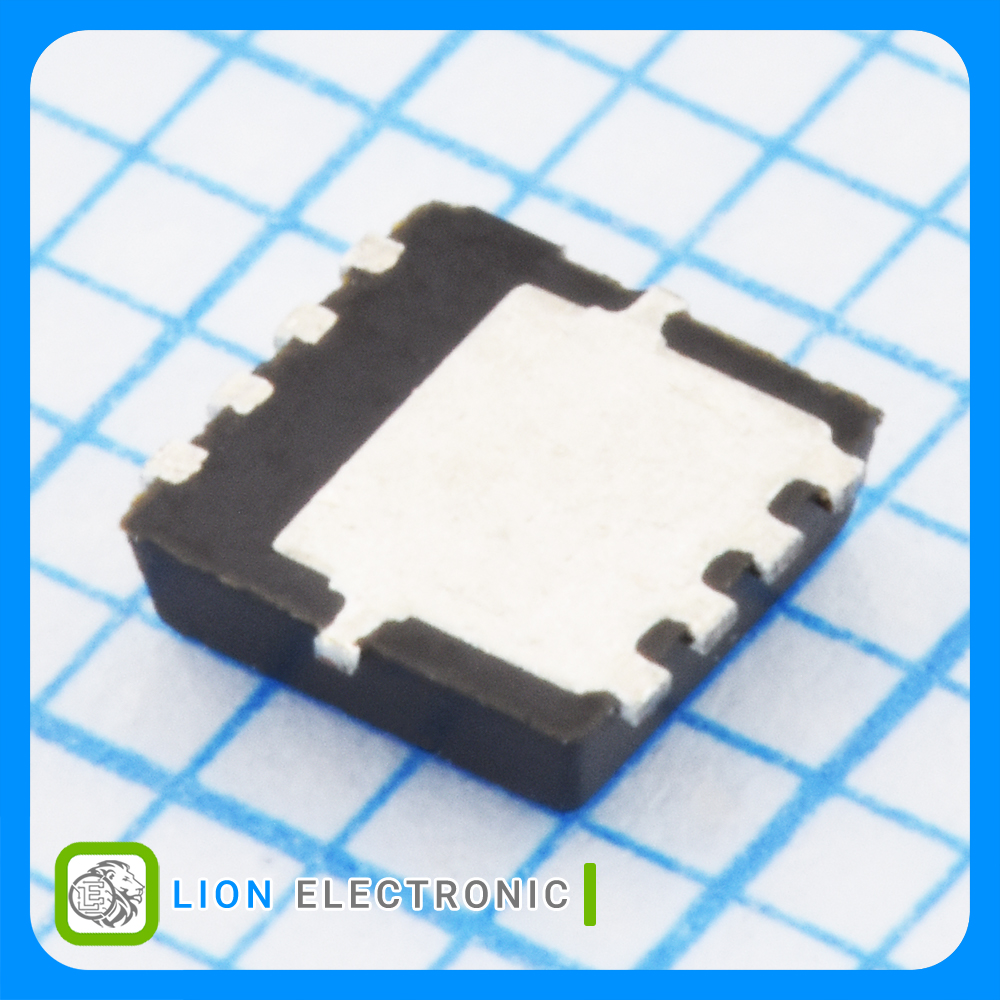

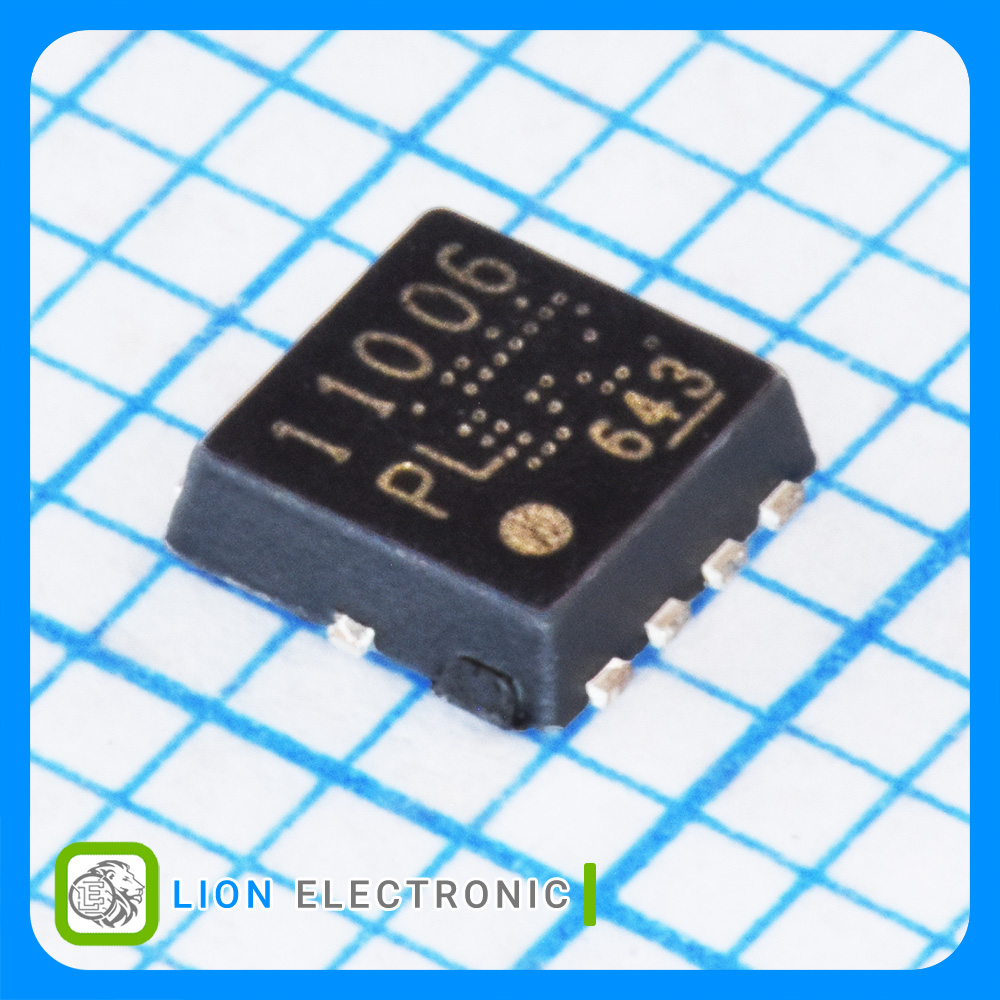

ماسفت 60 ولت 54 آمپر نوع N با پکیج TSON-8
MOSFET N-CH 60V, 54A with TSON-8 Package
Specifications
- Package/Case: TSON-8
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 54A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.5V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 8.8mΩ
- Pd - Power Dissipation: 61W
- Qg - Gate Charge: 17nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت TPN11006PL

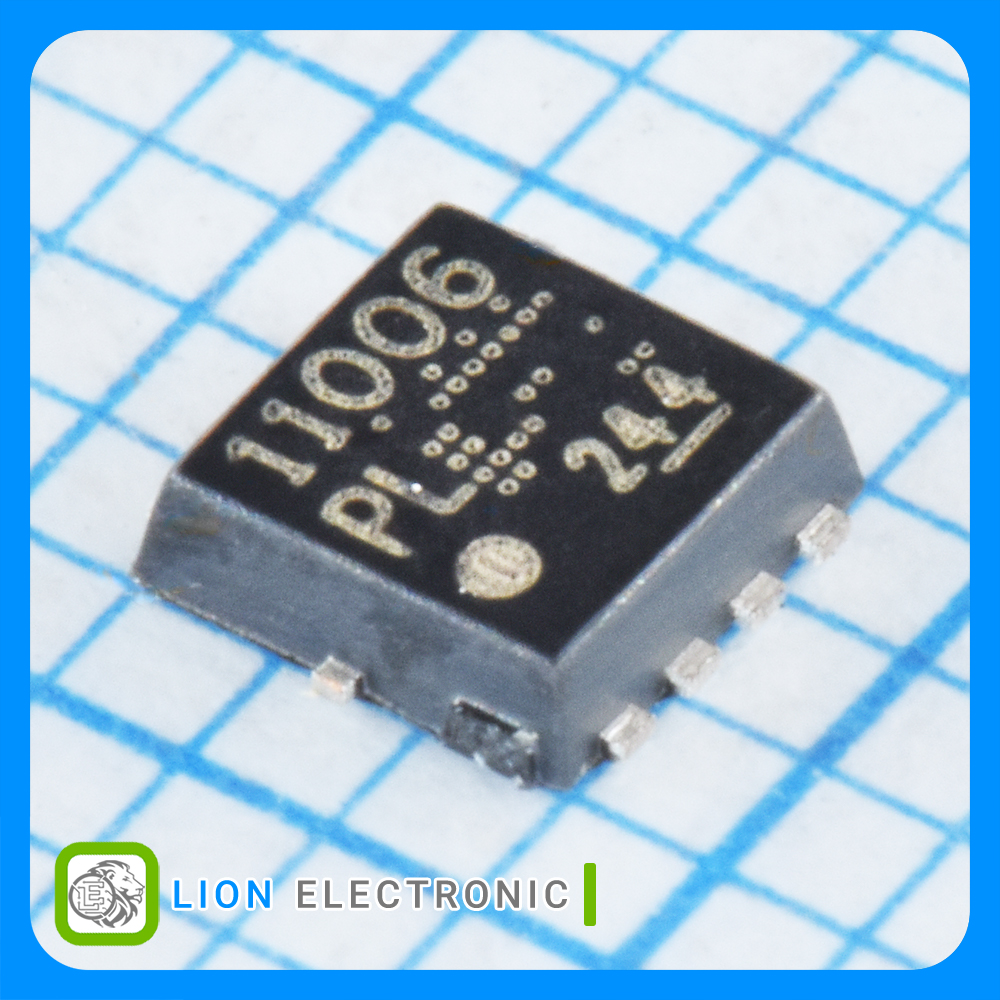

ماسفت TPN11006PL
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
60V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
1.5V
Vgs th - Gate - Source Threshold Voltage
8.8mΩ
Rds On - Drain - Source Resistance
17nC
Qg - Gate Charge
61W
Pd - Power Dissipation
54A
Id - Continuous Drain Current
TSON-8
Package-Case
