IPT044N15N5ATMA1
IPT044N15N5ATMA1
Part Number
6161
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت 150 ولت 179 آمپر نوع N با پکیج HSOF-8

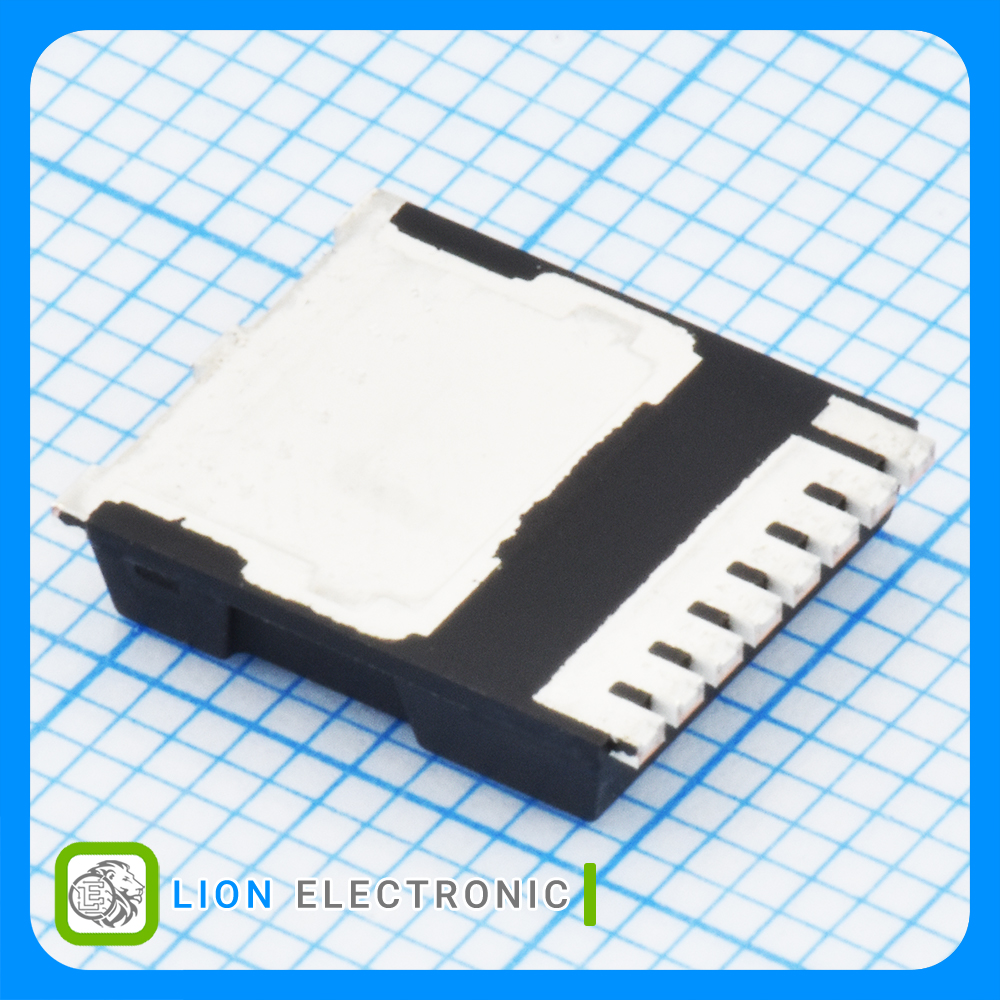

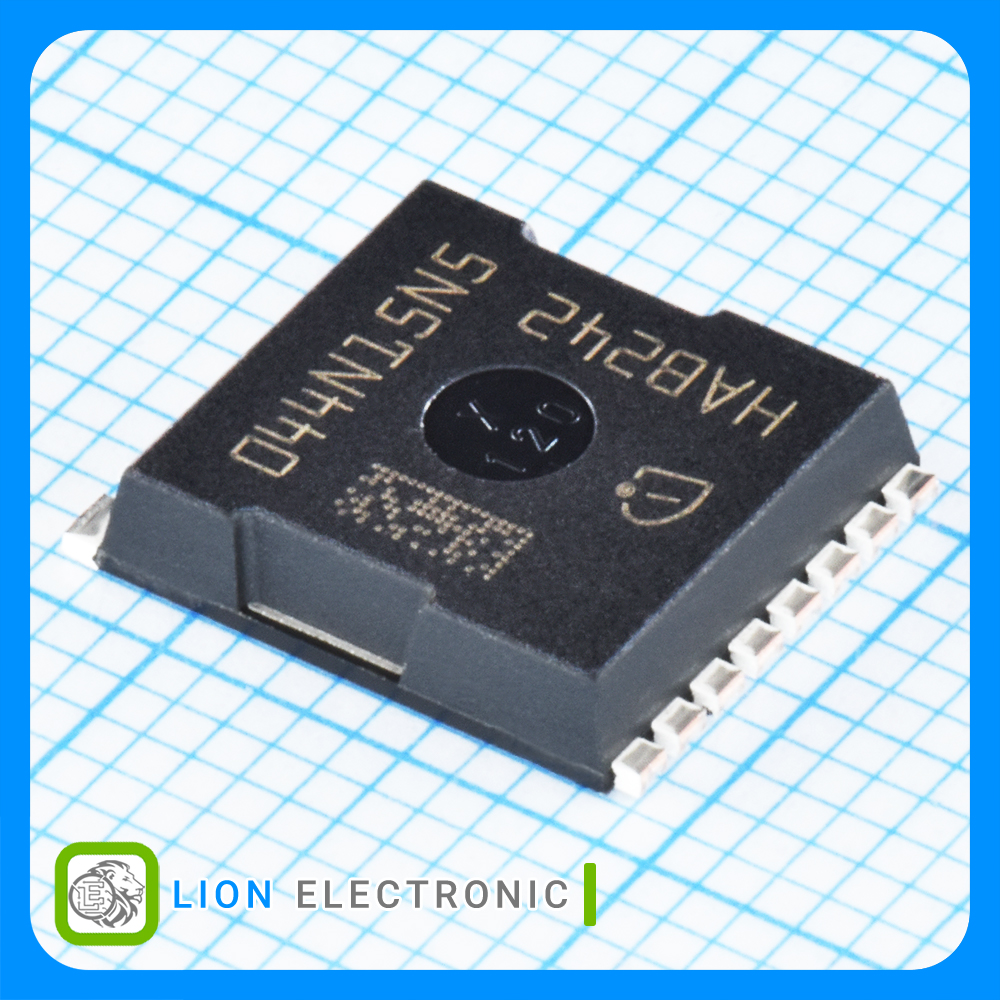

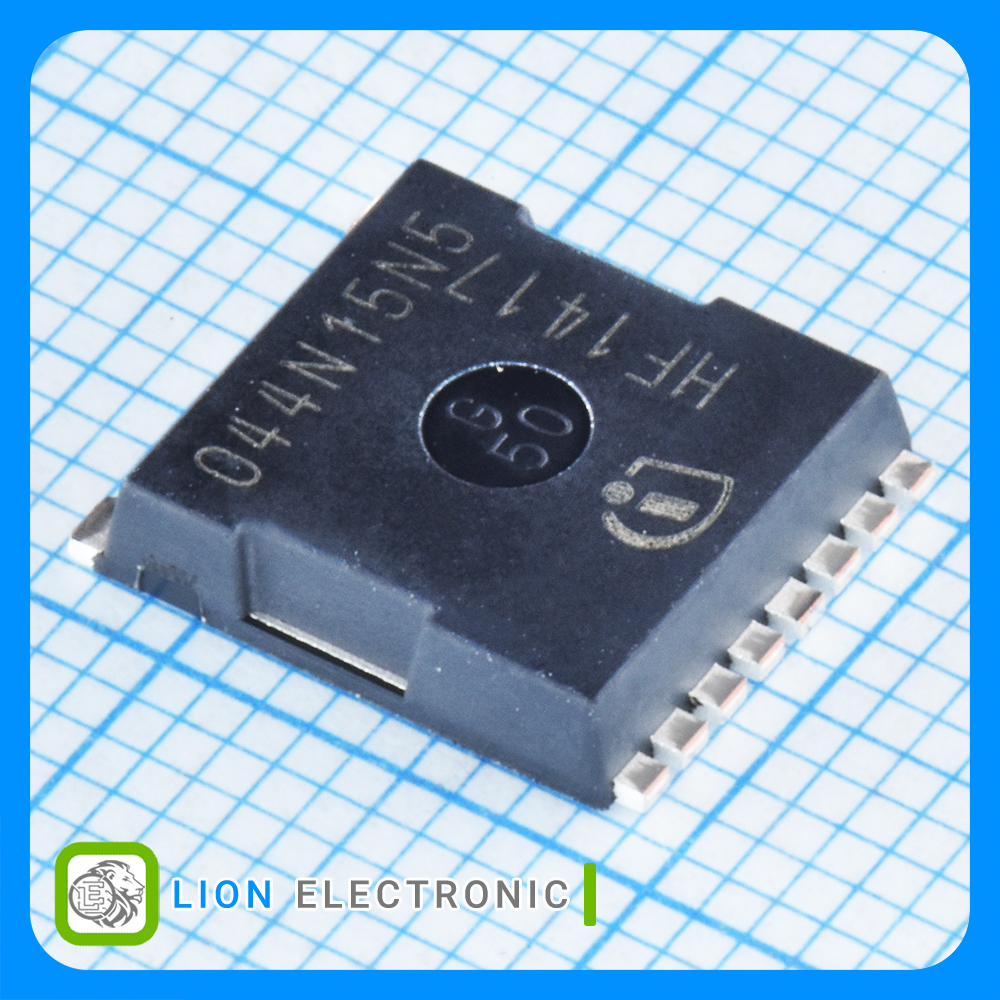

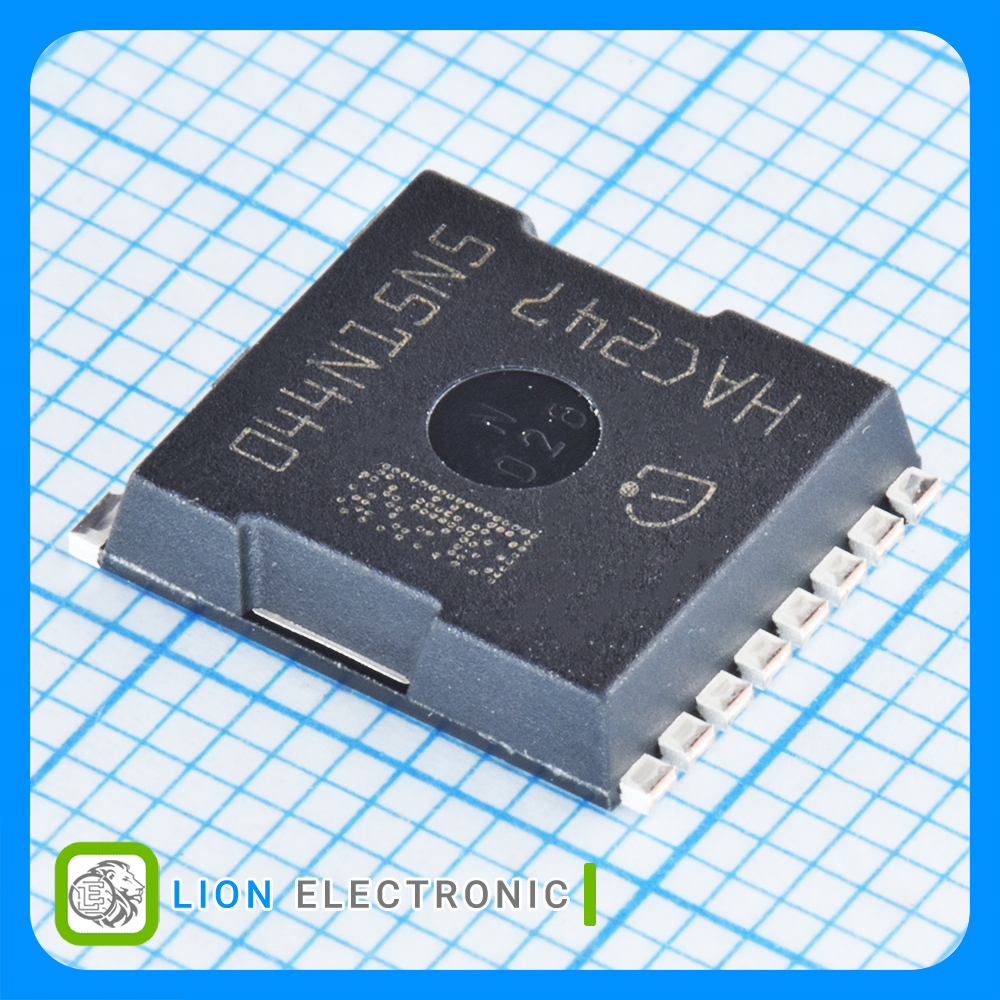

N-Channel MOSFET 150V, 179A with HSOF-8 Package
معرفی
ماسفت 150 ولت 179 آمپر نوع N با پکیج HSOF-8
N-Channel MOSFET 150V, 179A with HSOF-8 Package
Specifications
- Package/Case: HSOF-8
- Vds - Drain - Source Breakdown Voltage: 150V
- Id - Continuous Drain Current: 179A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 3V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 3.8mΩ
- Pd - Power Dissipation: 319W
- Qg - Gate Charge: 67nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات IPT044N15N5ATMA1
IPT044N15N5ATMA1
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
150V
Vds - Drain - Source Breakdown Voltage
3.8mΩ
Rds On - Drain - Source Resistance
3V
Vgs th - Gate - Source Threshold Voltage
67nC
Qg - Gate Charge
HSOF-8
Package-Case
179A
Id - Continuous Drain Current
319W
Pd - Power Dissipation
