GL5537-1
GL5537-1
Part Number
6193
Lion Part
Datasheet
Senba Sensing Tech Manufacture
فوتورزیستور LDR مقاومت تاریکی 2 مگا اهم حساسیت 20–30kΩ/10lux با پکیج 3mm ROUND

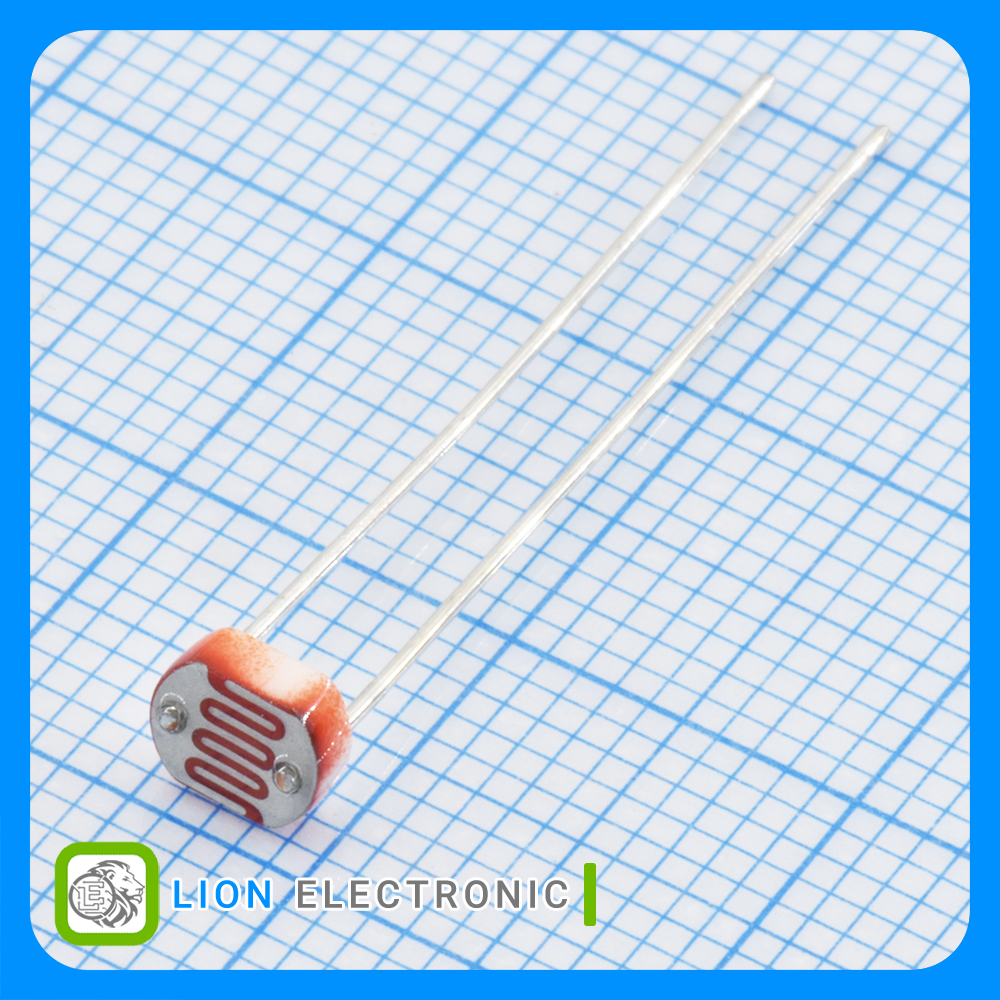

Photoresistor is a Resistor Which Made of Semi-Conductor Material, and the Conductance Changes with Luminance Variation, 2MΩ Dark Resistance, 20–30kΩ/10lux with 3mm ROUND Package
معرفی
فوتورزیستور LDR مقاومت تاریکی 2 مگا اهم حساسیت 20–30kΩ/10lux با پکیج 3mm ROUND
Photoresistor is a Resistor Which Made of Semi-Conductor Material, and the Conductance Changes with Luminance Variation, 2MΩ Dark Resistance, 20–30kΩ/10lux with 3mm ROUND Package
Specifications
- Dark Resistance - Minimum: 2MΩ
- Sensitivity: 20–30kΩ/10lux
- Wavelength: 540nM
- Voltage Rating: 150V
- Pd - Power Dissipation: 100mW
- Package/Case: 3mm ROUND
- Minimum Operating Temperature: -30C
- Maximum Operating Temperature: +70C
مشخصات GL5537-1
GL5537-1
Part Number
2MΩ
Dark Resistance - Minimum
3mm ROUND
Package-Case
540nM
Wavelength
+70C
Maximum Operating Temperature
150V
Voltage Rating
-30C
Minimum Operating Temperature
100mW
Pd - Power Dissipation
20–30kΩ/10lux
Sensitivity
