GL5539
GL5539
Part Number
6194
Lion Part
Datasheet
Senba Sensing Tech Manufacture
فوتورزیستور با مقاومت 5 مگا اهم

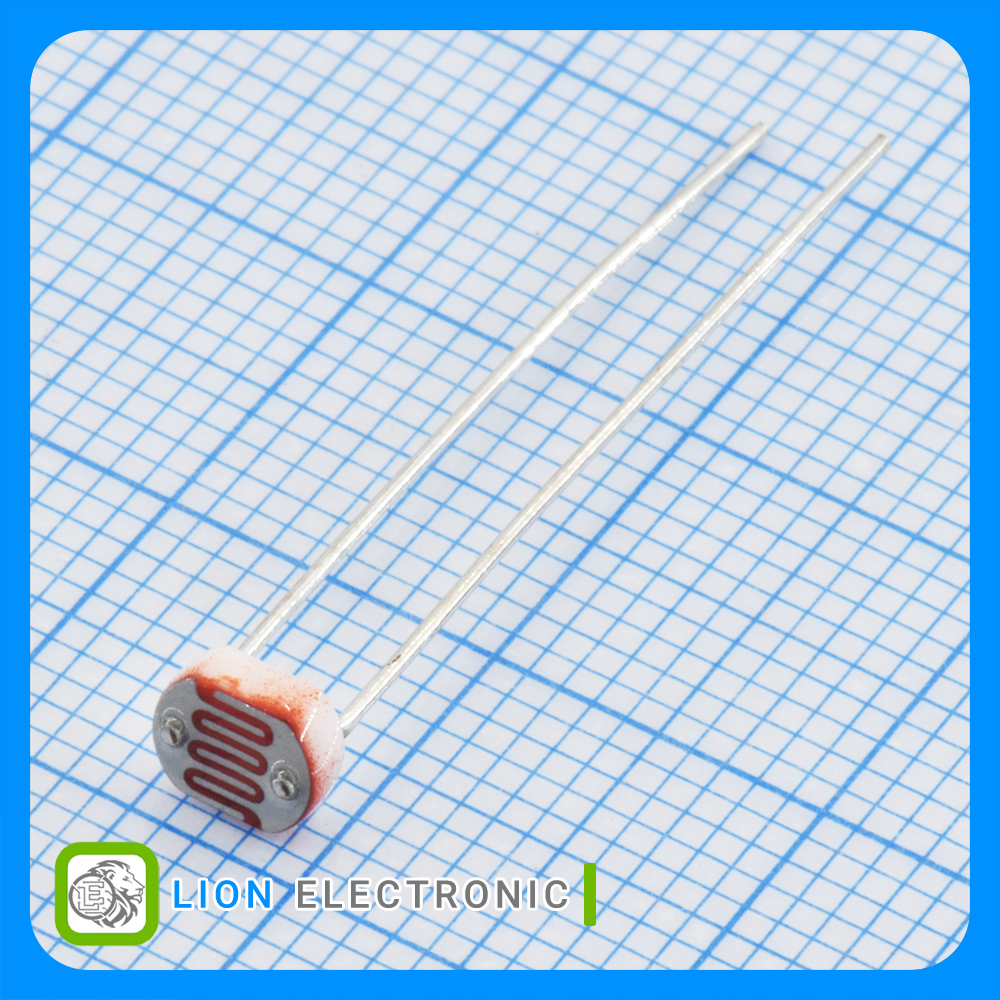

Photoresistor is a Resistor Which Made of Semi-Conductor Material, and the Conductance Changes with Luminance Variation
مشخصات GL5539
GL5539
Part Number
5MΩ
Dark Resistance - Minimum
3mm ROUND
Package-Case
+70C
Maximum Operating Temperature
540nM
Wavelength
150V
Voltage Rating
-30C
Minimum Operating Temperature
100mW
Pd - Power Dissipation
50–100kΩ/10lux
Sensitivity
