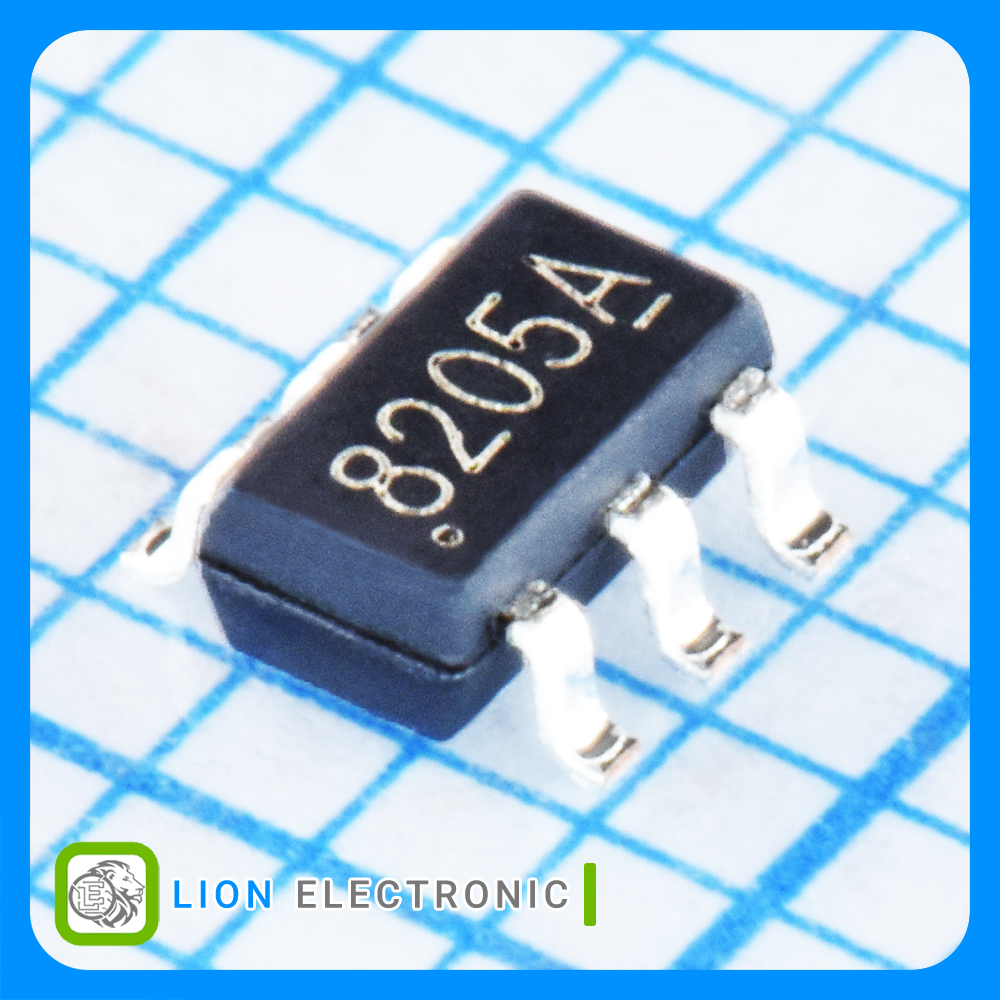

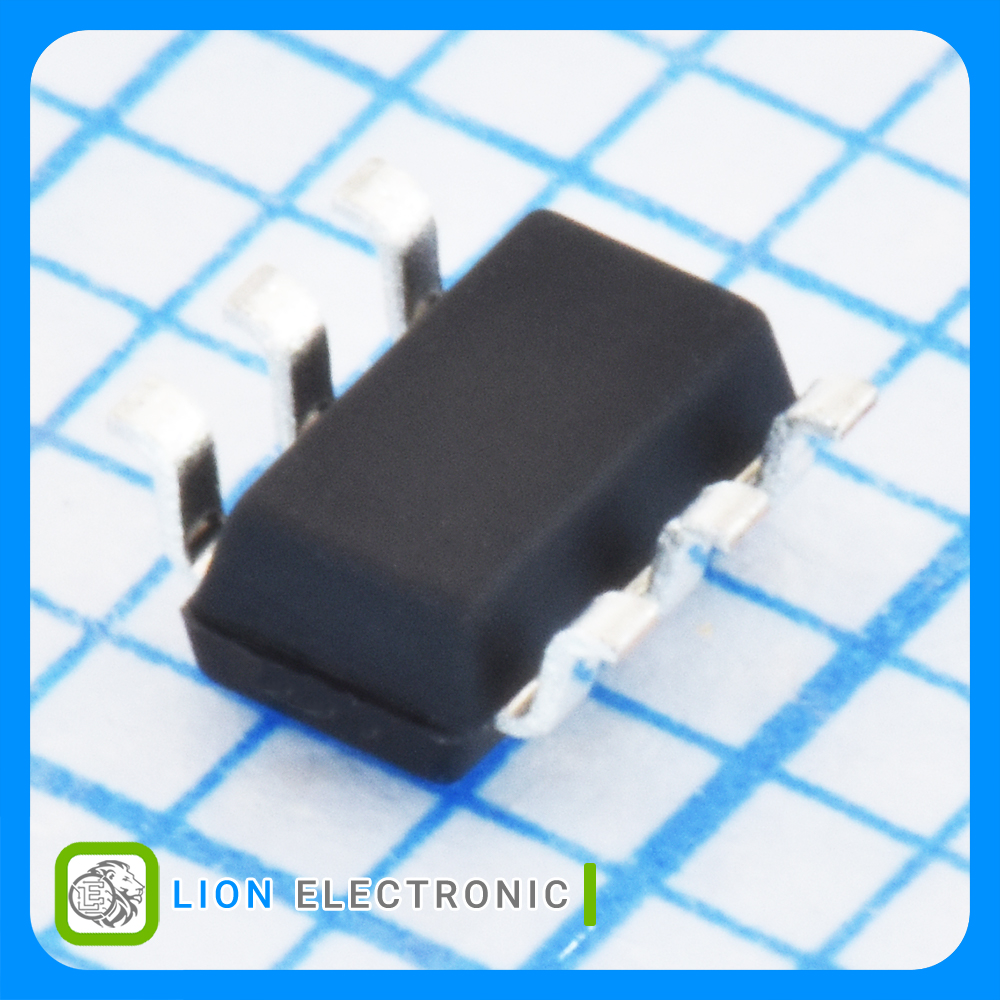

FS8205A
FS8205A
Part Number
6247
Lion Part
Datasheet
Tech Public Manufacture
ماسفت جفت 20 ولت 3 و 3 آمپر نوع N با پکیج SOT-23-6
DUAL N-CH MOS 20V 3/3A SOT-23-6
مشخصات FS8205A
FS8205A
Part Number
Enhancement
Channel Mode
2
Number of Channels
N-Channel
Transistor Polarity
-55C
Minimum Operating Temperature

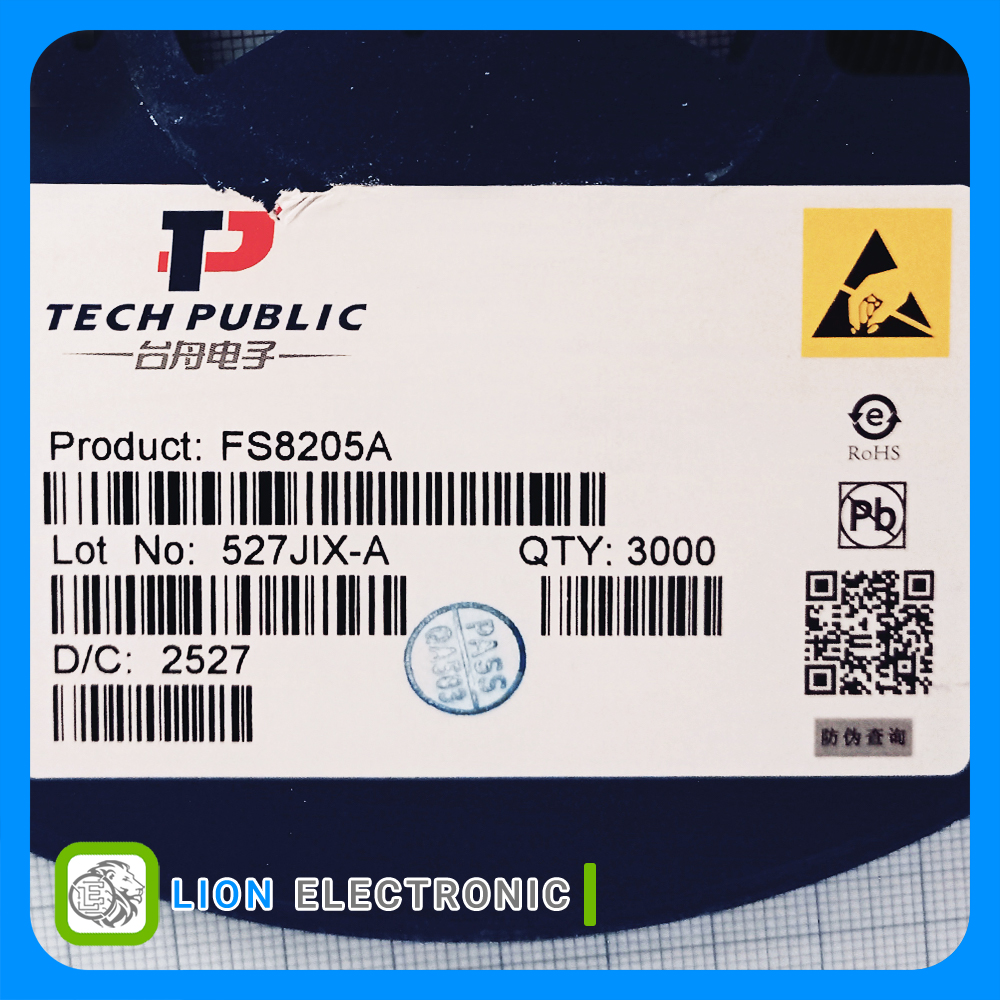

Reel
Packaging
SMD/SMT
Mounting Style
±10V
Vgs - Gate - Source Voltage
20V
Vds - Drain - Source Breakdown Voltage
5.7nC
Qg - Gate Charge
+150C
Maximum Operating Temperature
700mV
Vgs th - Gate - Source Threshold Voltage
1.5W
Pd - Power Dissipation
19.5mΩ
Rds On - Drain - Source Resistance
6A
Id - Continuous Drain Current
SOT-23-6
Package-Case
