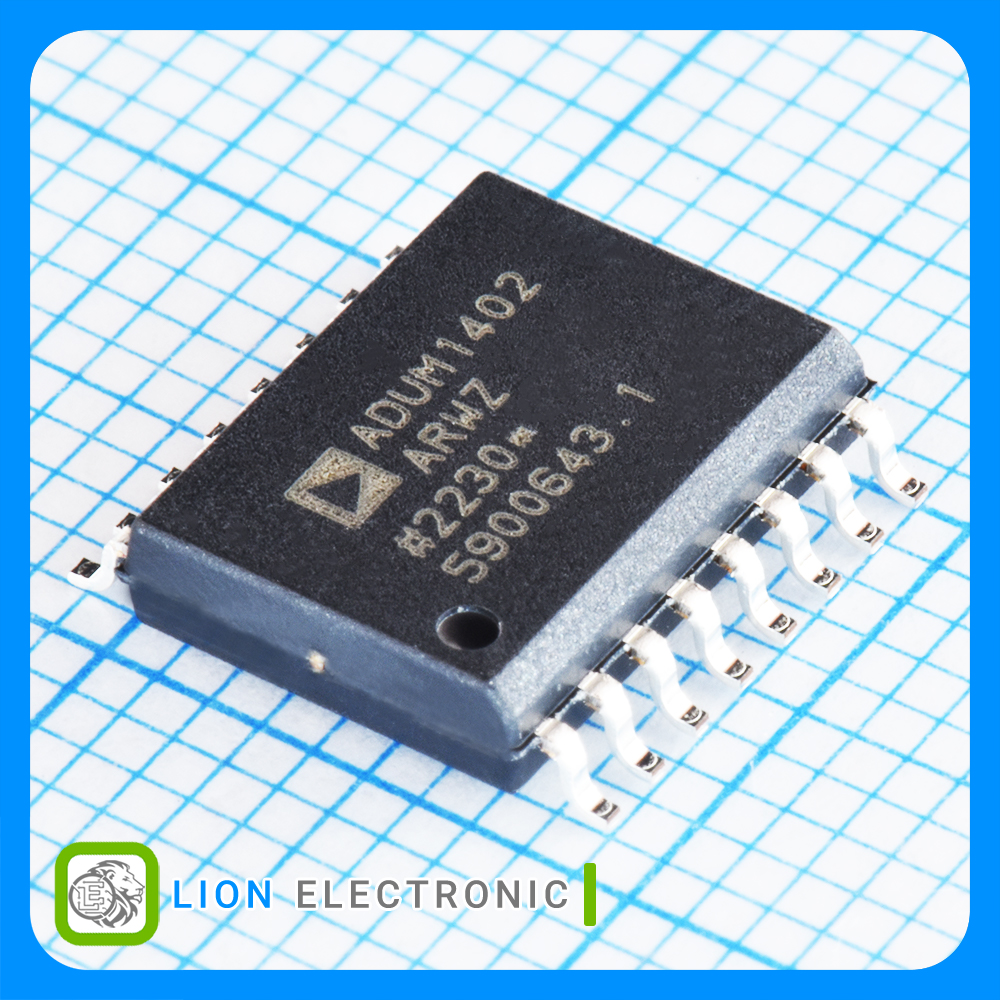

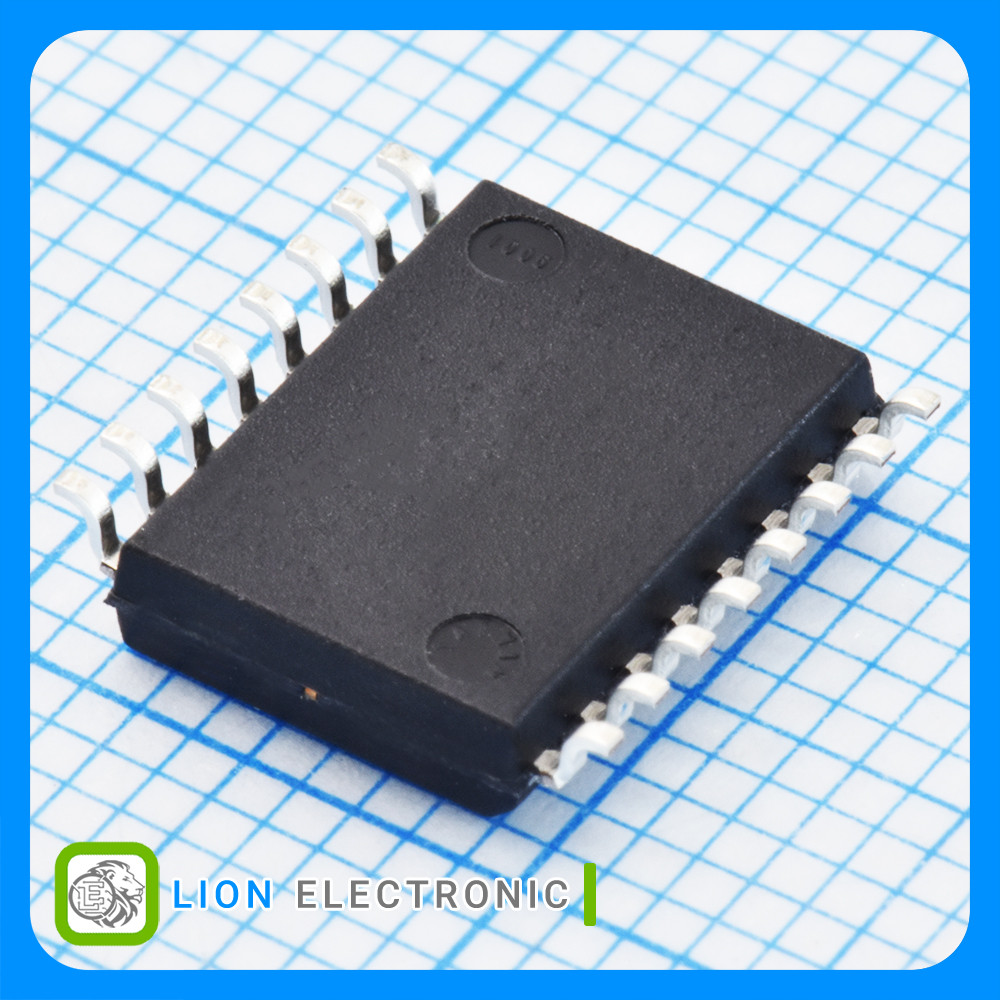

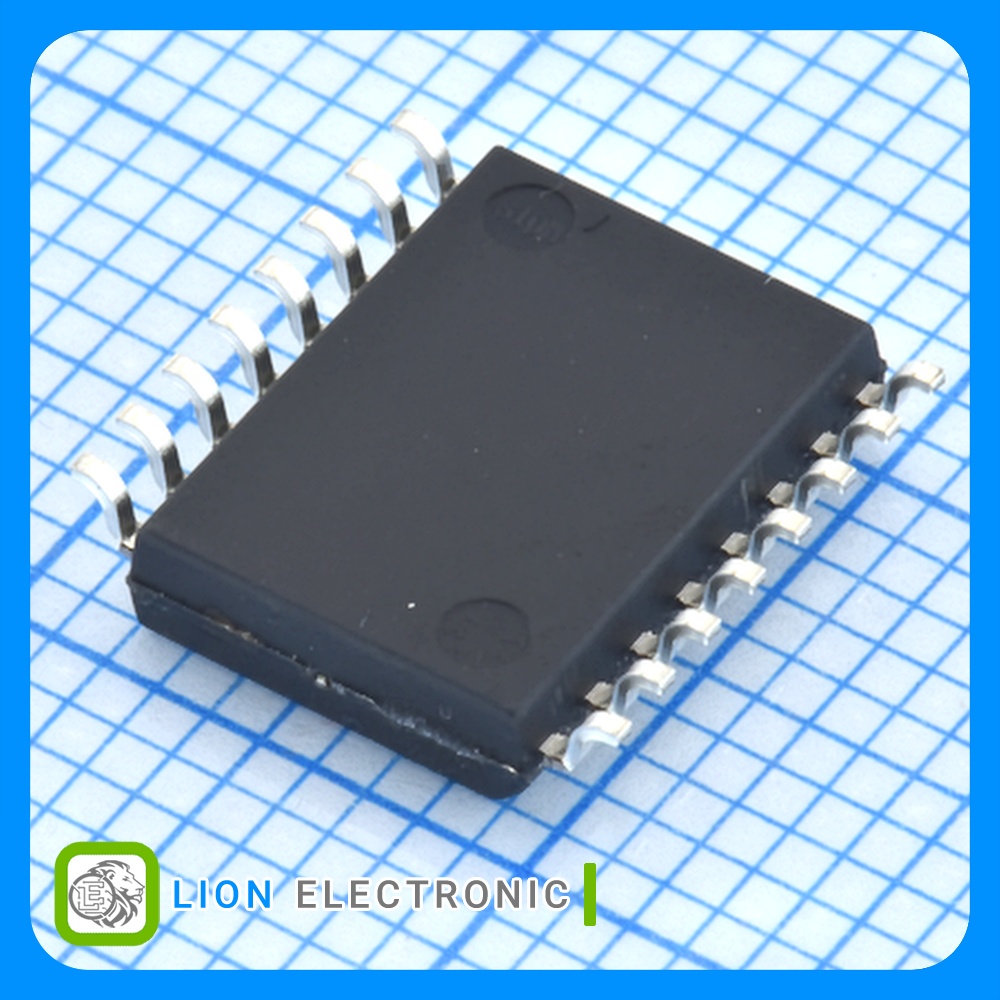

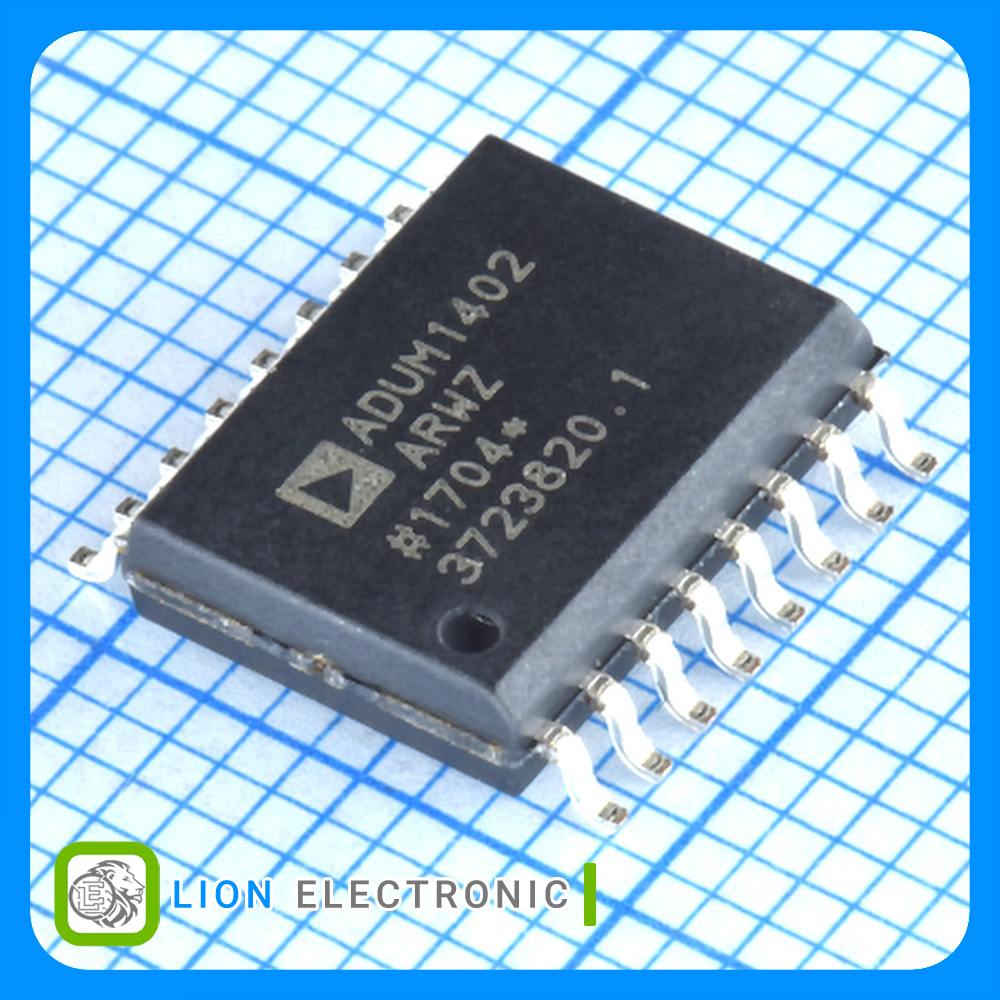

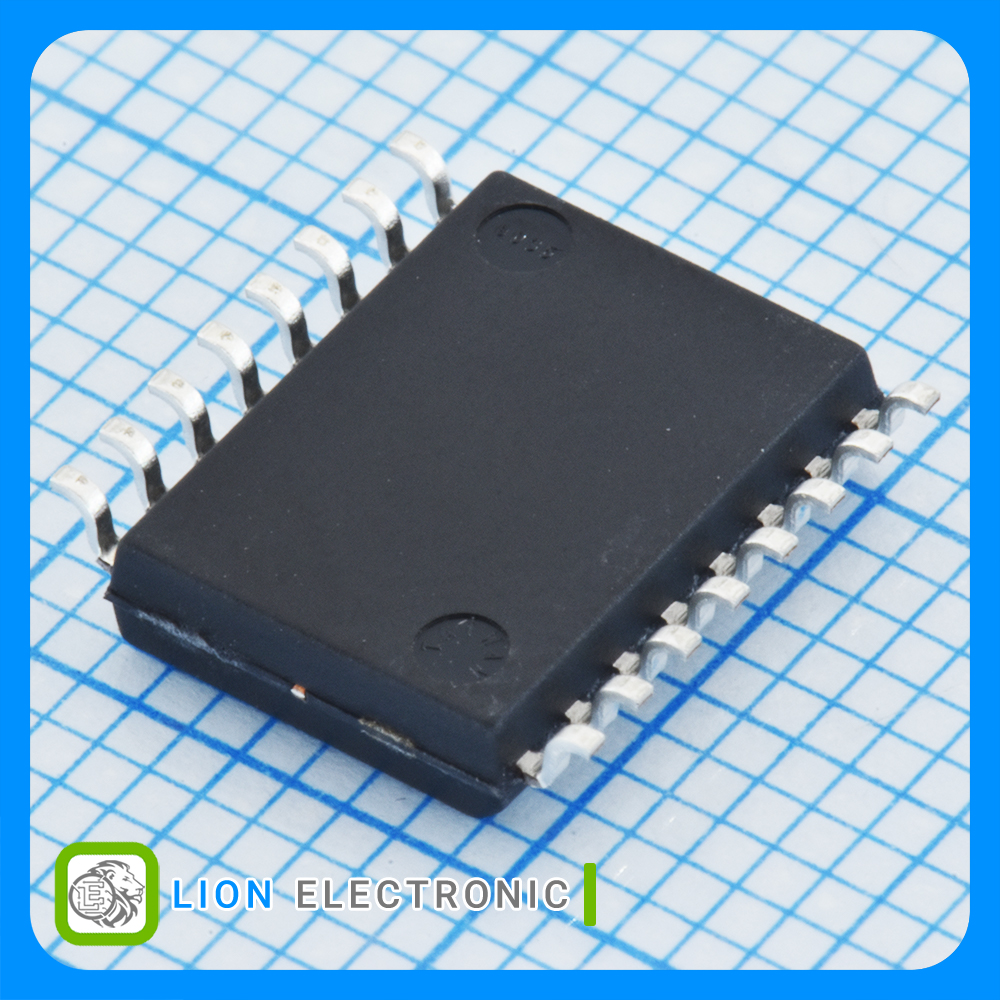

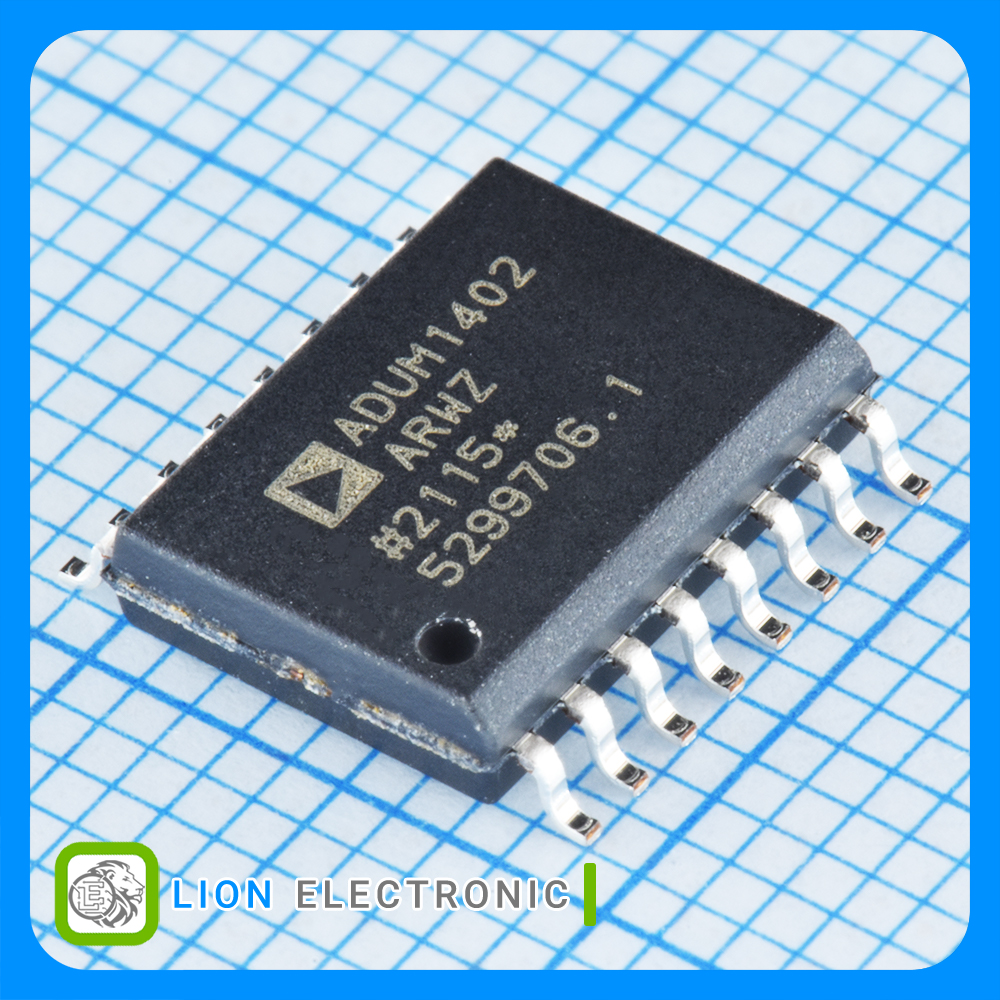

ADUM1402ARWZ
ADUM1402ARWZ
Part Number
627
Lion Part
Datasheet
Analog Devices Manufacture
ایزولاتور دیجیتال 4 کاناله دو طرفه با ایزولاسیون 2.5 کیلو ولت RMS و نرخ 1Mb/s، 2.7 تا 5.5 ولت، با پکیج SOIC-16
4-Channel Digital Isolator Bidirectional, 2.5kVrms, 1Mb/s, Quad-Channel, 2.7V - 5.5V, with SOIC-16 Package
معرفی
ایزولاتور دیجیتال 4 کاناله دو طرفه با ایزولاسیون 2.5 کیلو ولت RMS و نرخ 1Mb/s، 2.7 تا 5.5 ولت، با پکیج SOIC-16
4-Channel Digital Isolator Bidirectional, 2.5kVrms, 1Mb/s, Quad-Channel, 2.7V - 5.5V, with SOIC-16 Package
Specifications
- Number of Channels: 4
- Polarity: Bidirectional
- Isolation Voltage: 2.5kVrms
- Data Rate: 1Mb/s
- Propagation Delay Time: 32ns
- Isolation Type: Magnetic Coupling
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 2.7V
- Operating Supply Current: 11mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات ADUM1402ARWZ
ADUM1402ARWZ
Part Number
Bidirectional
Polarity
Magnetic Coupling
Isolation Type
Reel
Packaging
2.5kVrms
Isolation Voltage
4
Number of Channels
-40C
Minimum Operating Temperature
32ns
Propagation Delay Time
SMD/SMT
Mounting Style
+105C
Maximum Operating Temperature
1Mb/s
Data Rate
5.5V
Supply Voltage - Max
2.7V
Supply Voltage - Min
11mA
Operating Supply Current
SOIC-16
Package-Case
