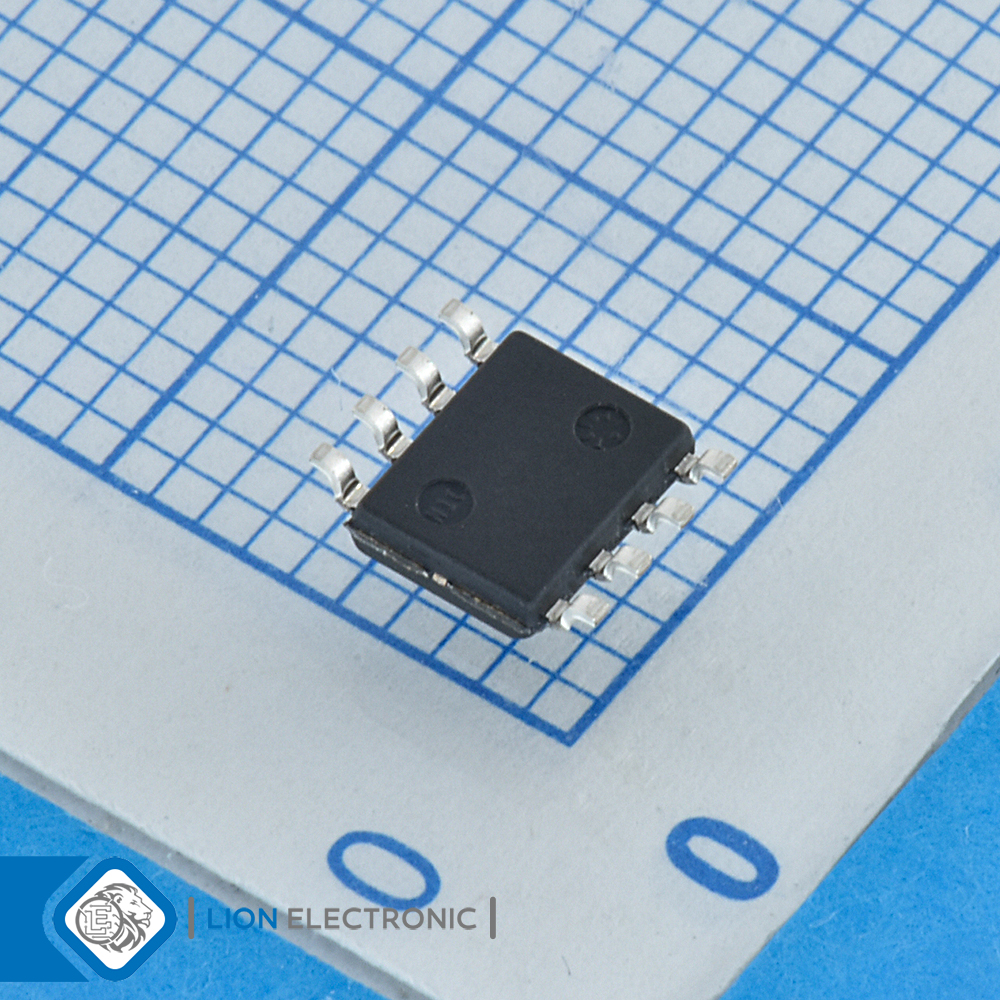

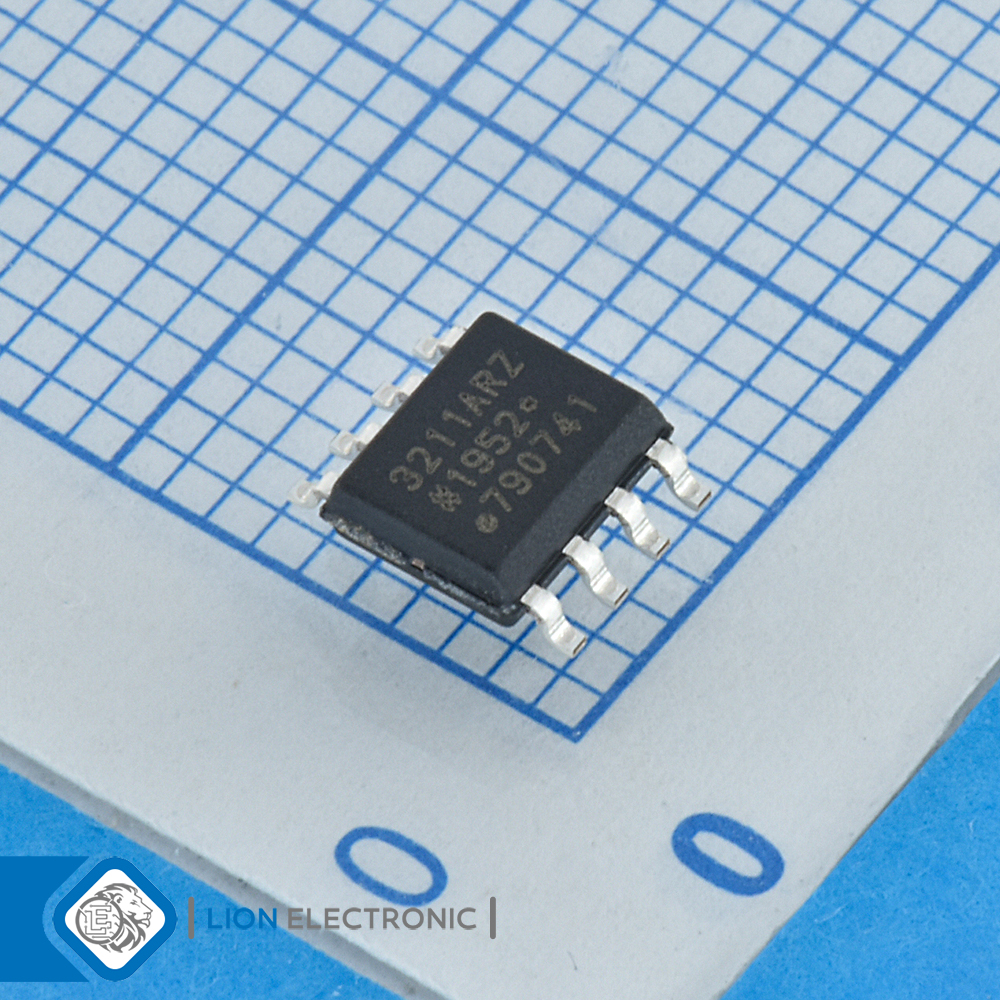

ADUM3211ARZ
ADUM3211ARZ
Part Number
629
Lion Part
Datasheet
Analog Devices Manufacture
ایزولاتور دیجیتال 2 کاناله یکطرفه با ایزولاسیون 2.5 کیلوولت RMS و نرخ 1Mb/s، 2.7 تا 5.5 ولت، با پکیج SOIC-8
2-Channel Digital Isolator Unidirectional, 2.5kVrms, 1Mb/s, Dual-Channel, Enhanced System-Level ESD Reliability, 2.7V - 5.5V, with SOIC-8 Package
معرفی
ایزولاتور دیجیتال 2 کاناله یکطرفه با ایزولاسیون 2.5 کیلوولت RMS و نرخ 1Mb/s، 2.7 تا 5.5 ولت، با پکیج SOIC-8
2-Channel Digital Isolator Unidirectional, 2.5kVrms, 1Mb/s, Dual-Channel, Enhanced System-Level ESD Reliability, 2.7V - 5.5V, with SOIC-8 Package
Specifications
- Number of Channels: 2
- Polarity: Unidirectional
- Isolation Voltage: 2.5kVrms
- Data Rate: 1Mb/s
- Propagation Delay Time: 50ns
- Isolation Type: Magnetic Coupling
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 2.7V
- Operating Supply Current: 800uA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات ADUM3211ARZ
ADUM3211ARZ
Part Number
2
Number of Channels
Magnetic Coupling
Isolation Type
2.5kVrms
Isolation Voltage
Reel
Packaging
-40C
Minimum Operating Temperature
Unidirectional
Polarity
SMD/SMT
Mounting Style
50ns
Propagation Delay Time
1Mb/s
Data Rate
+125C
Maximum Operating Temperature
5.5V
Supply Voltage - Max
2.7V
Supply Voltage - Min
800uA
Operating Supply Current
SOIC-8
Package-Case
