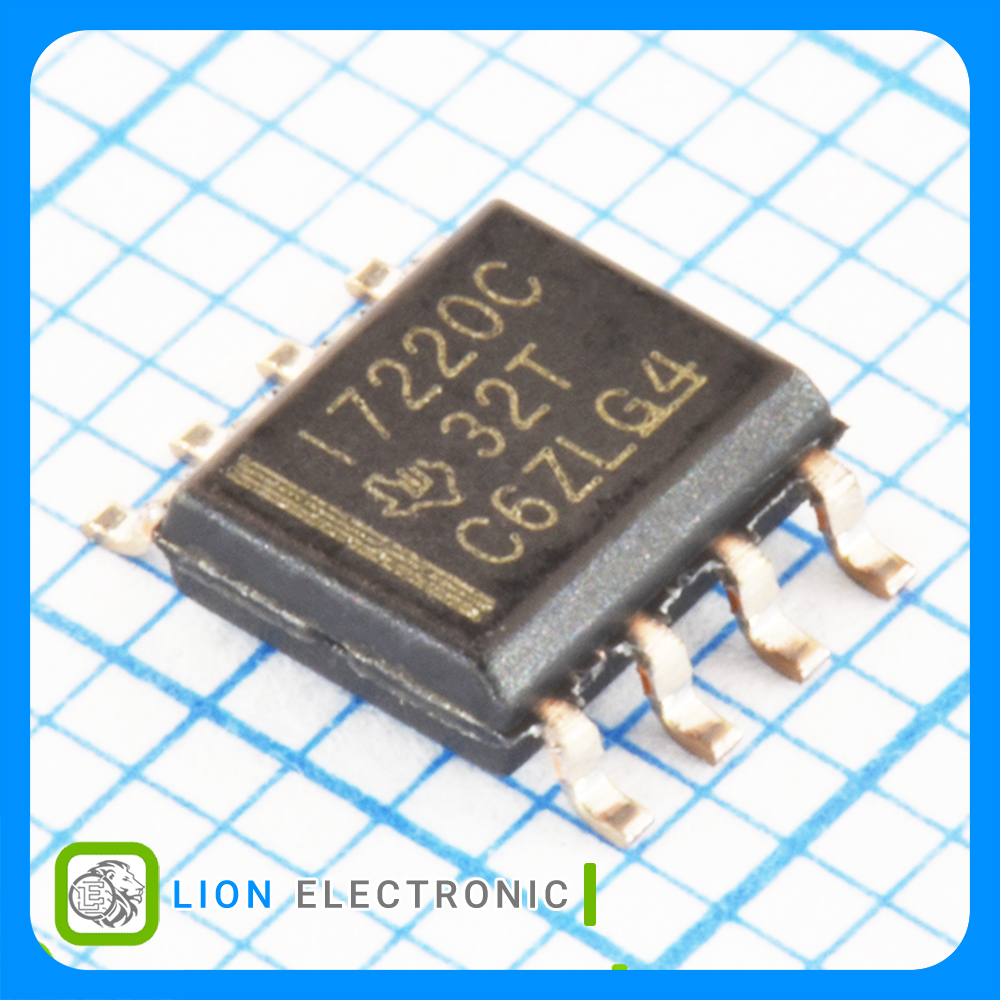

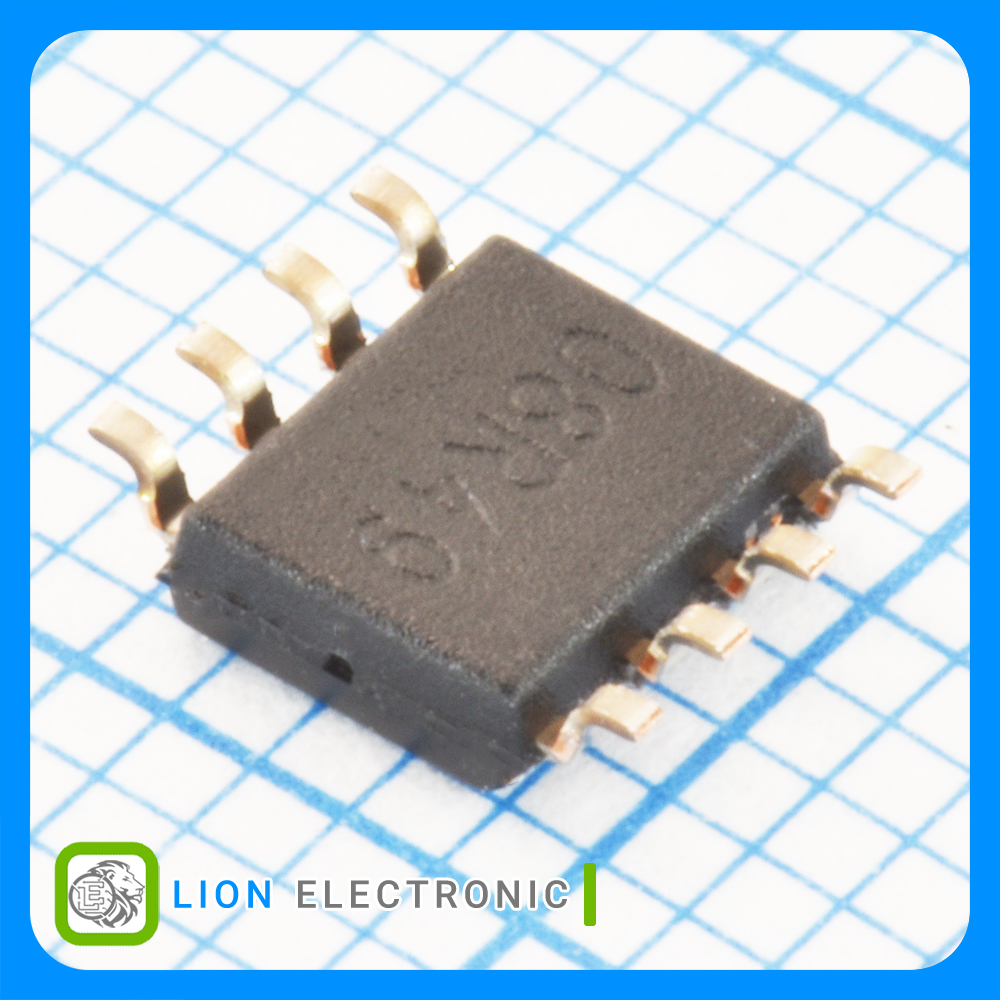

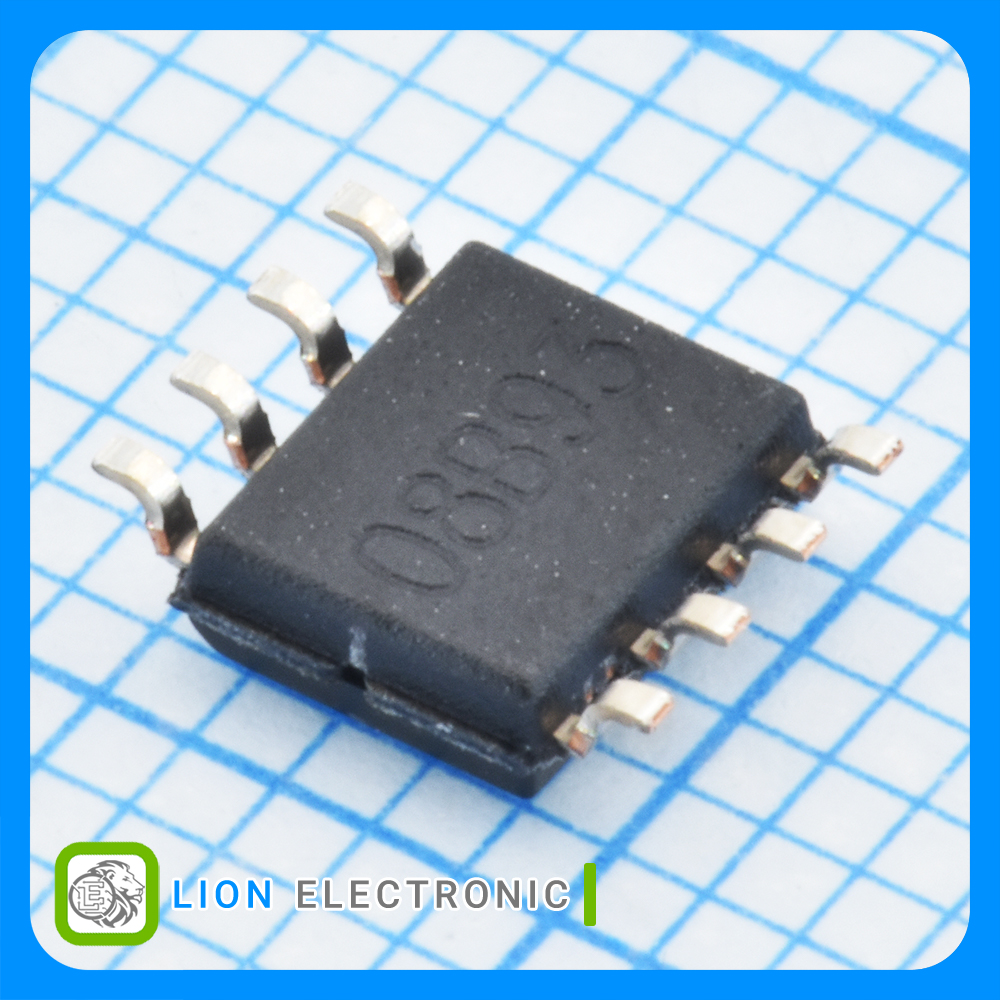

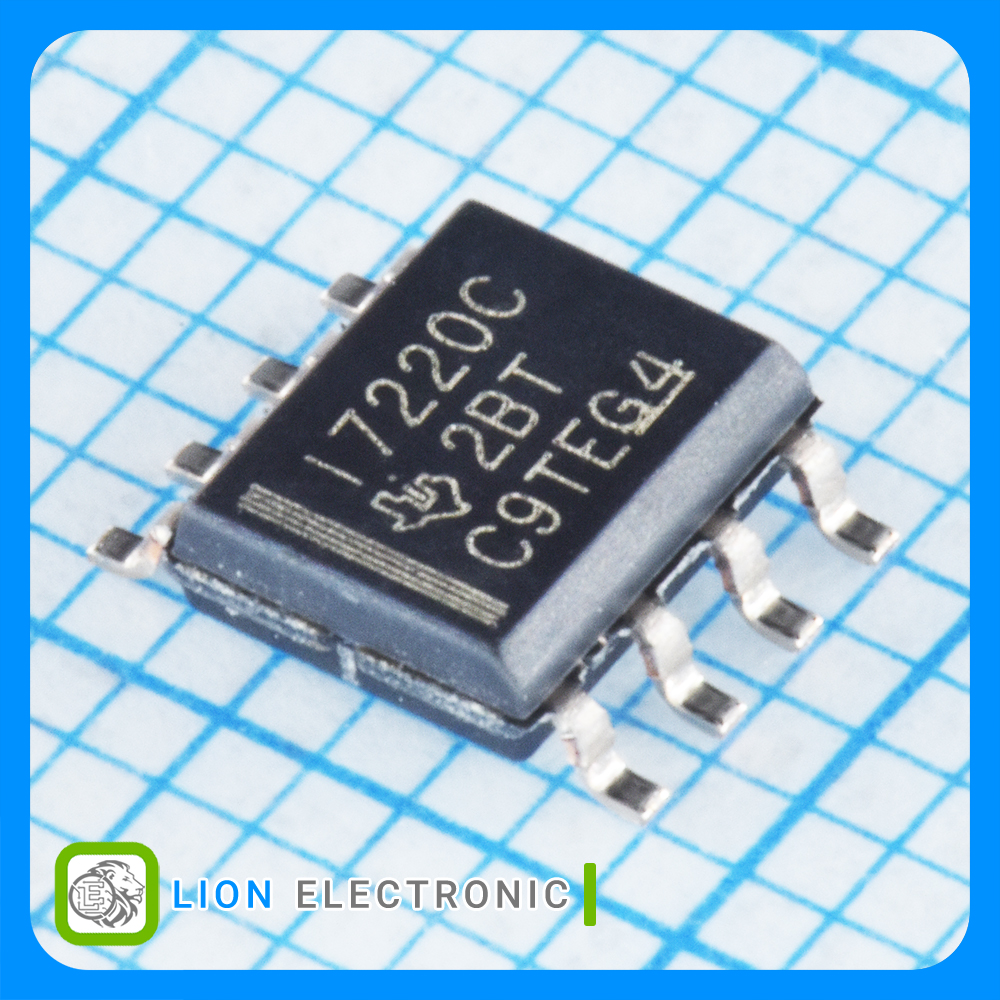

ISO7220CDR
ISO7220CDR
Part Number
633
Lion Part
Datasheet
Texas Instruments Manufacture
ایزولاتور دیجیتال 2 کاناله یکطرفه با ایزولاسیون 2.5 کیلوولت RMS و نرخ 25Mb/s و تغذیه 2.8 تا 5 ولت با پکیج SOIC-8
Dual-Channel Digital Isolator Unidirectional, 2.5kVrms, 25Mb/s, 2.8V to 5V with SOIC-8 Package
معرفی
ایزولاتور دیجیتال 2 کاناله یکطرفه با ایزولاسیون 2.5 کیلوولت RMS و نرخ 25Mb/s و تغذیه 2.8 تا 5 ولت با پکیج SOIC-8
Dual-Channel Digital Isolator Unidirectional, 2.5kVrms, 25Mb/s, 2.8V to 5V with SOIC-8 Package
Specifications
- Number of Channels: 2
- Polarity: Unidirectional
- Isolation Voltage: 2.5kVrms
- Data Rate: 25Mb/s
- Propagation Delay Time: 42ns
- Isolation Type: Capacitive Coupling
- Supply Voltage - Max: 5V
- Supply Voltage - Min: 2.8V
- Operating Supply Current: 4mA, 20mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات ISO7220CDR
ISO7220CDR
Part Number
Capacitive Coupling
Isolation Type
2
Number of Channels
2.5kVrms
Isolation Voltage
Reel
Packaging
-40C
Minimum Operating Temperature
Unidirectional
Polarity
42ns
Propagation Delay Time
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
5V
Supply Voltage - Max
25Mb/s
Data Rate
2.8V
Supply Voltage - Min
4mA, 20mA
Operating Supply Current
SOIC-8
Package-Case
