FOSAN
معرفی

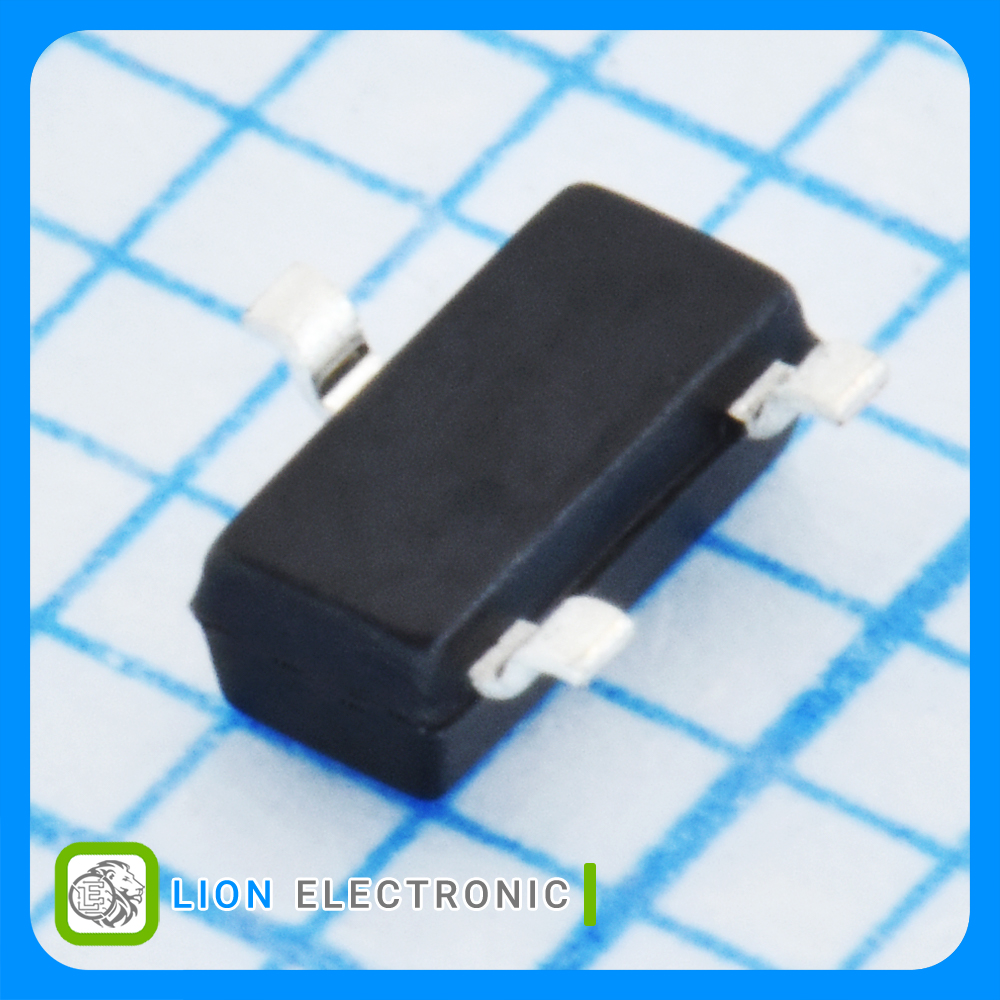

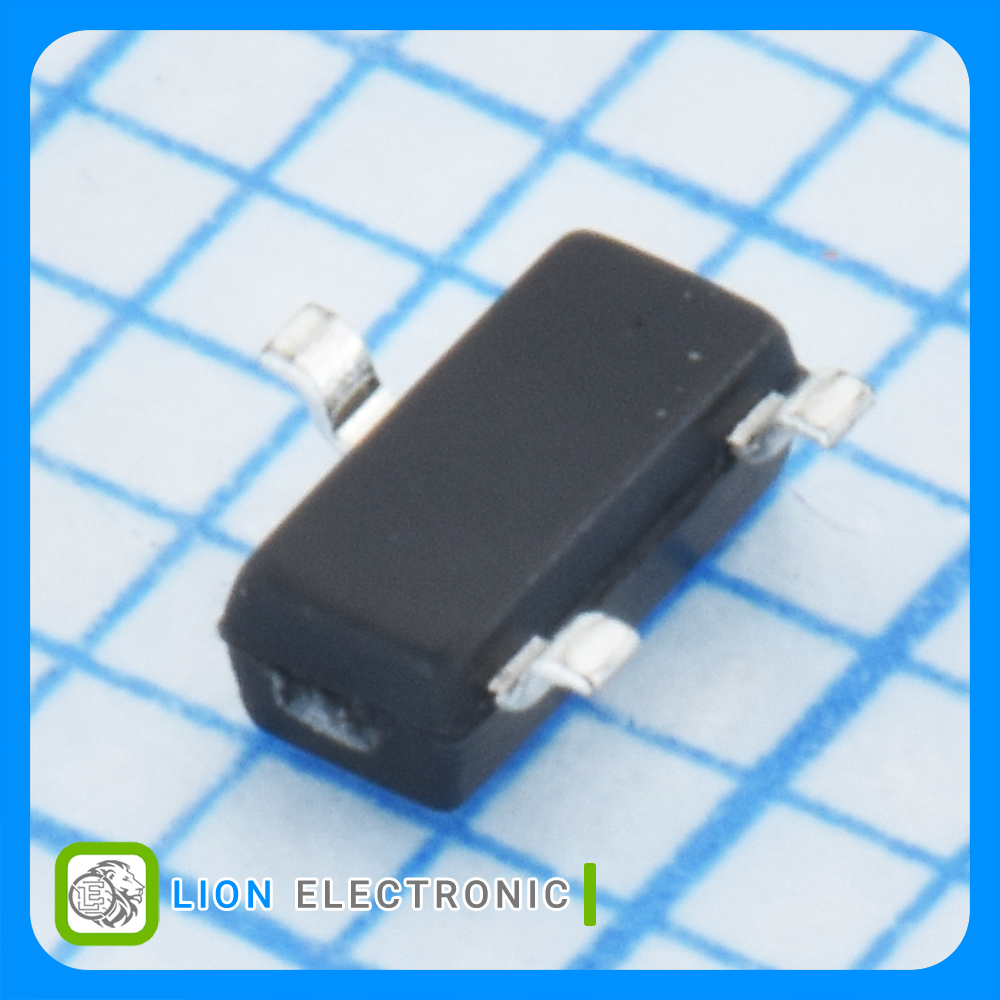

ماسفت 20 ولت 3 آمپر نوع N با پکیج SOT-23-3
MOSFET 20V, 3A N-Channel with SOT-23-3 Package
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: 20V
- Id - Continuous Drain Current: 3A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 550mV
- Vgs - Gate - Source Voltage: ±10V
- Rds On - Drain - Source Resistance: 45mΩ
- Pd - Power Dissipation: 700mW
- Qg - Gate Charge: 4.5nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت FSS2302S

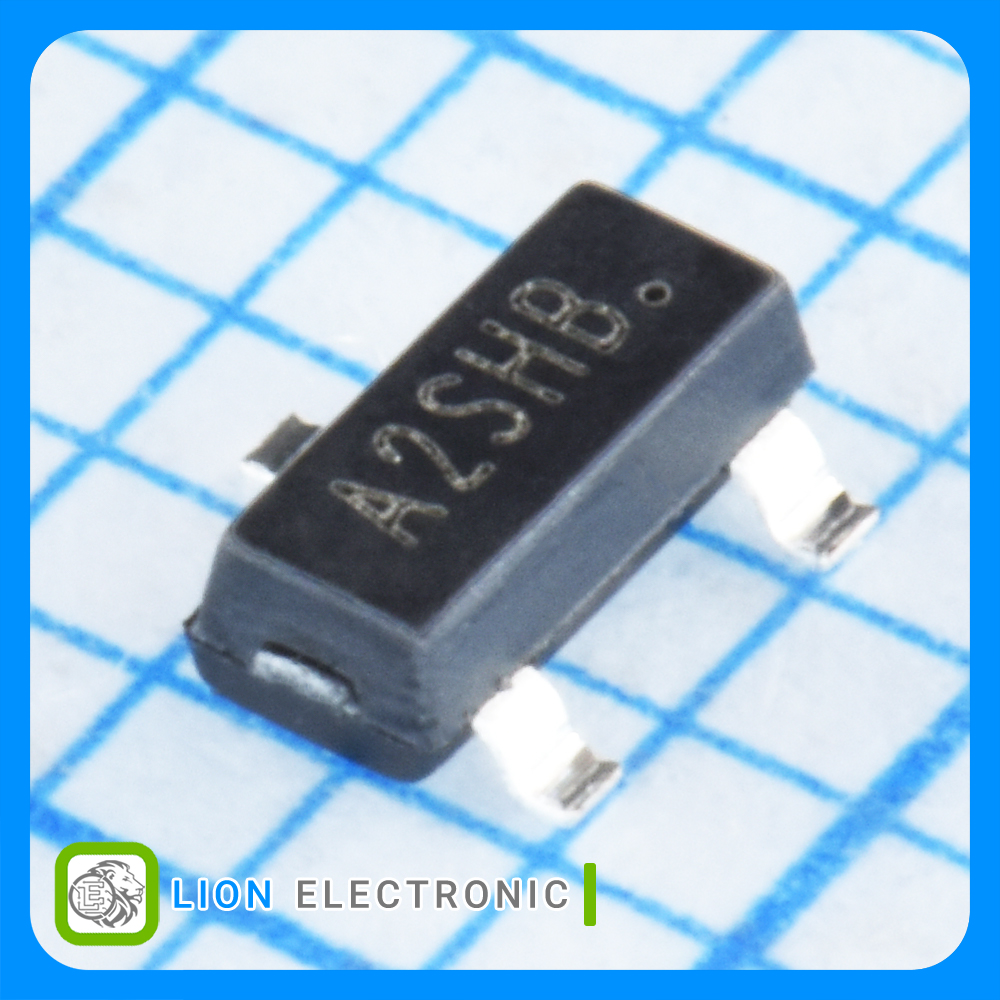

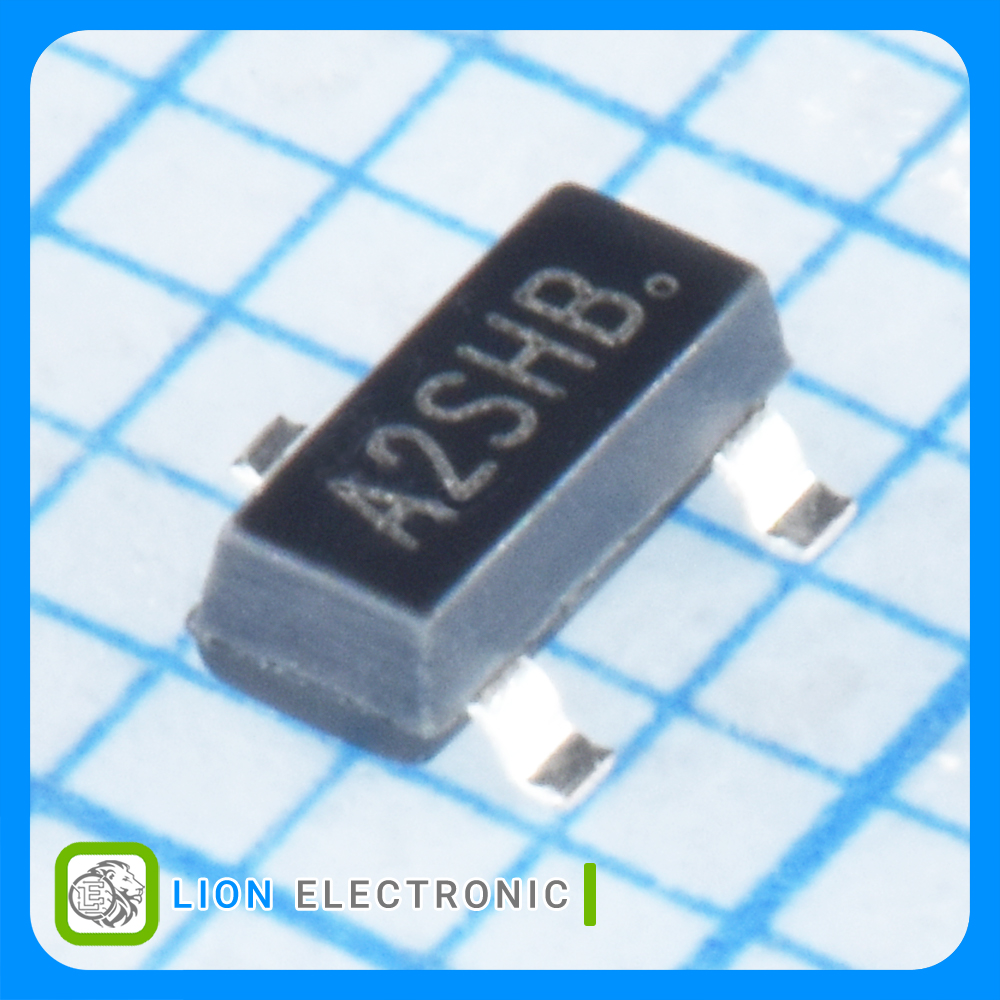

ماسفت FSS2302S
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±10V
Vgs - Gate - Source Voltage
20V
Vds - Drain - Source Breakdown Voltage
4.5nC
Qg - Gate Charge
+150C
Maximum Operating Temperature
550mV
Vgs th - Gate - Source Threshold Voltage
700mW
Pd - Power Dissipation
3A
Id - Continuous Drain Current
45mΩ
Rds On - Drain - Source Resistance
SOT-23-3
Package-Case
