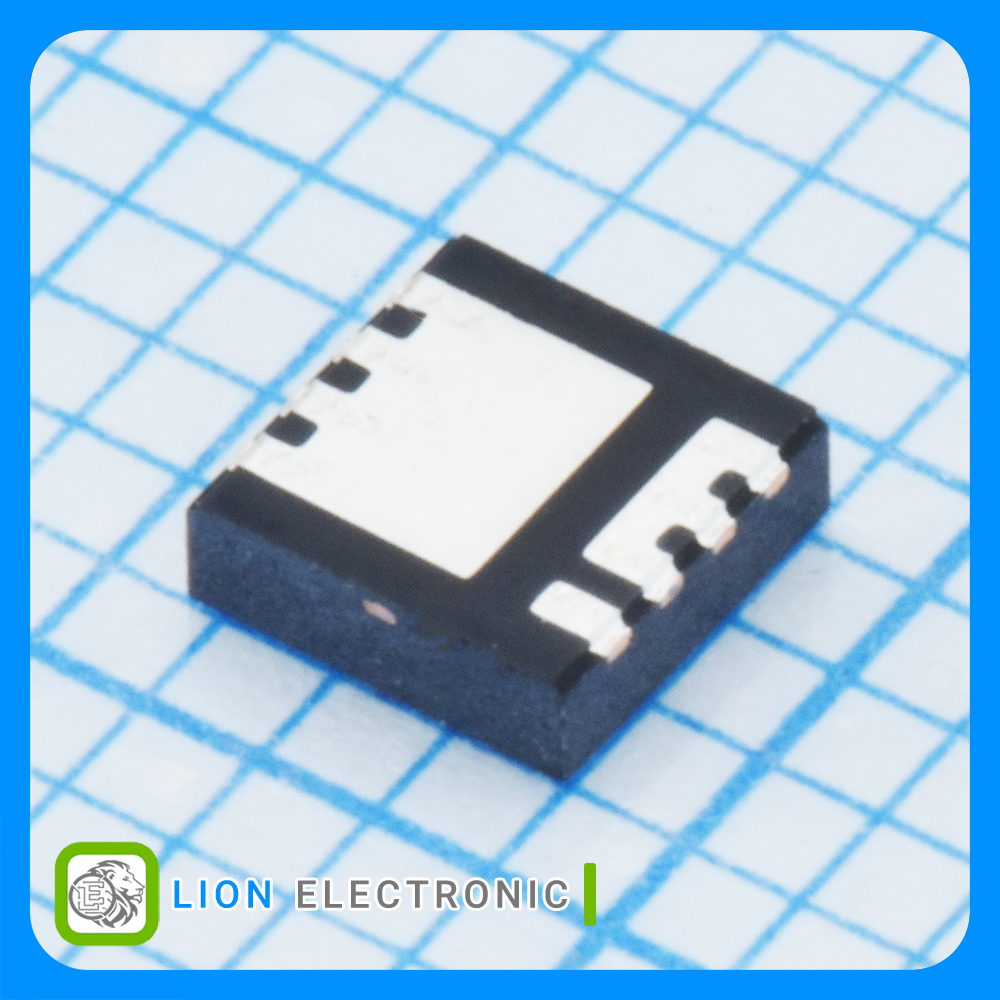

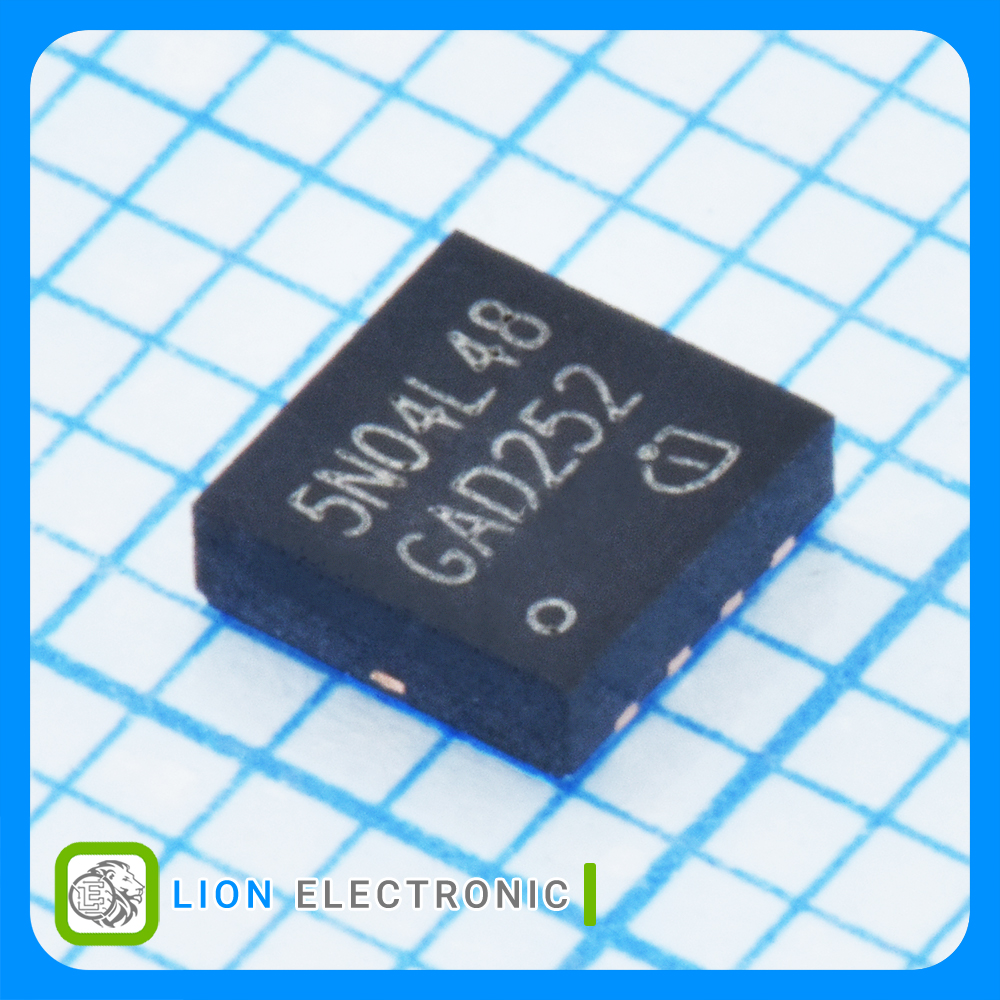

IPZ40N04S5L-4R8
IPZ40N04S5L-4R8
Part Number
6433
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت 40 ولت 40 آمپر نوع N با پکیج TSDSON-8FL
MOSFET 40V, 40A N-CH with TSDSON-8FL Package
معرفی
ماسفت 40 ولت 40 آمپر نوع N با پکیج TSDSON-8FL
MOSFET 40V, 40A N-CH with TSDSON-8FL Package
Specifications
- Package/Case: TSDSON-8
- Vds - Drain - Source Breakdown Voltage: 40V
- Id - Continuous Drain Current: 40A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.2V
- Vgs - Gate - Source Voltage: ±16V
- Rds On - Drain - Source Resistance: 3.9mΩ
- Pd - Power Dissipation: 48W
- Qg - Gate Charge: 22nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات IPZ40N04S5L-4R8
IPZ40N04S5L-4R8
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±16V
Vgs - Gate - Source Voltage
40V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
3.9mΩ
Rds On - Drain - Source Resistance
1.2V
Vgs th - Gate - Source Threshold Voltage
22nC
Qg - Gate Charge
48W
Pd - Power Dissipation
40A
Id - Continuous Drain Current
TSDSON-8
Package-Case
