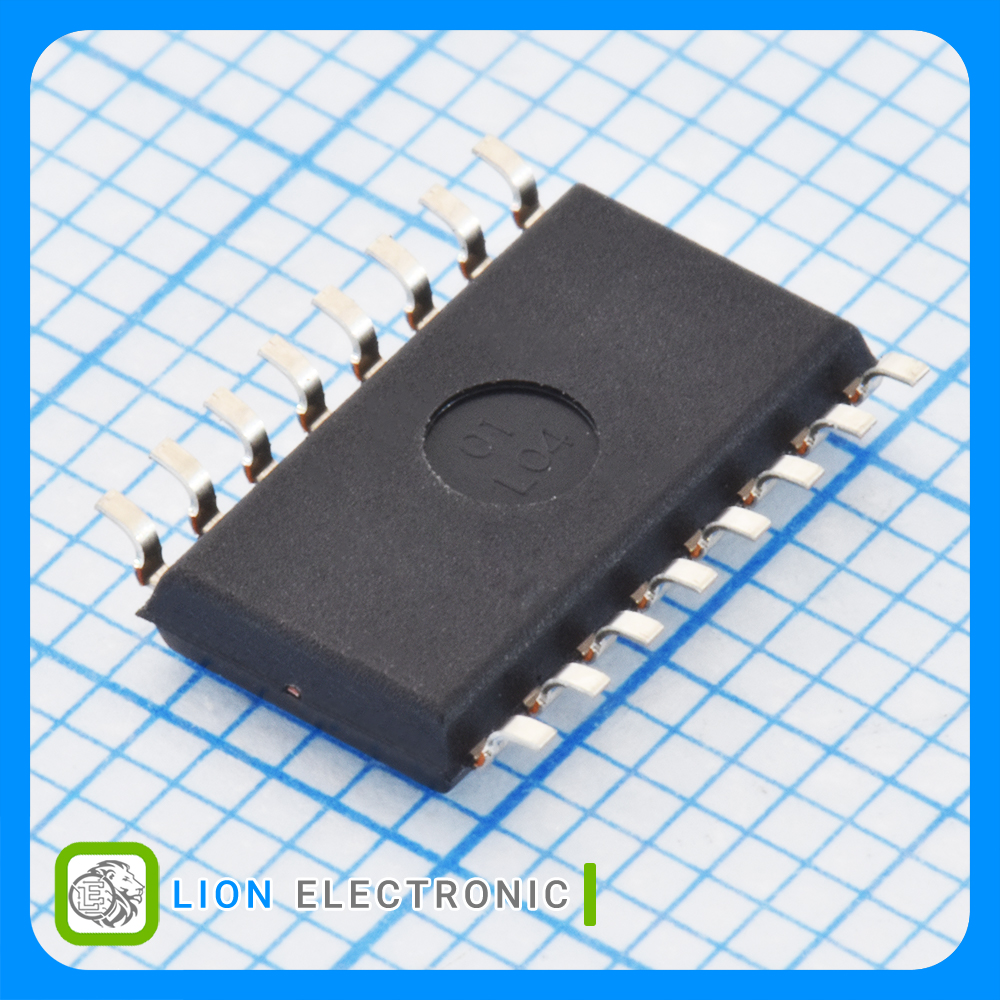

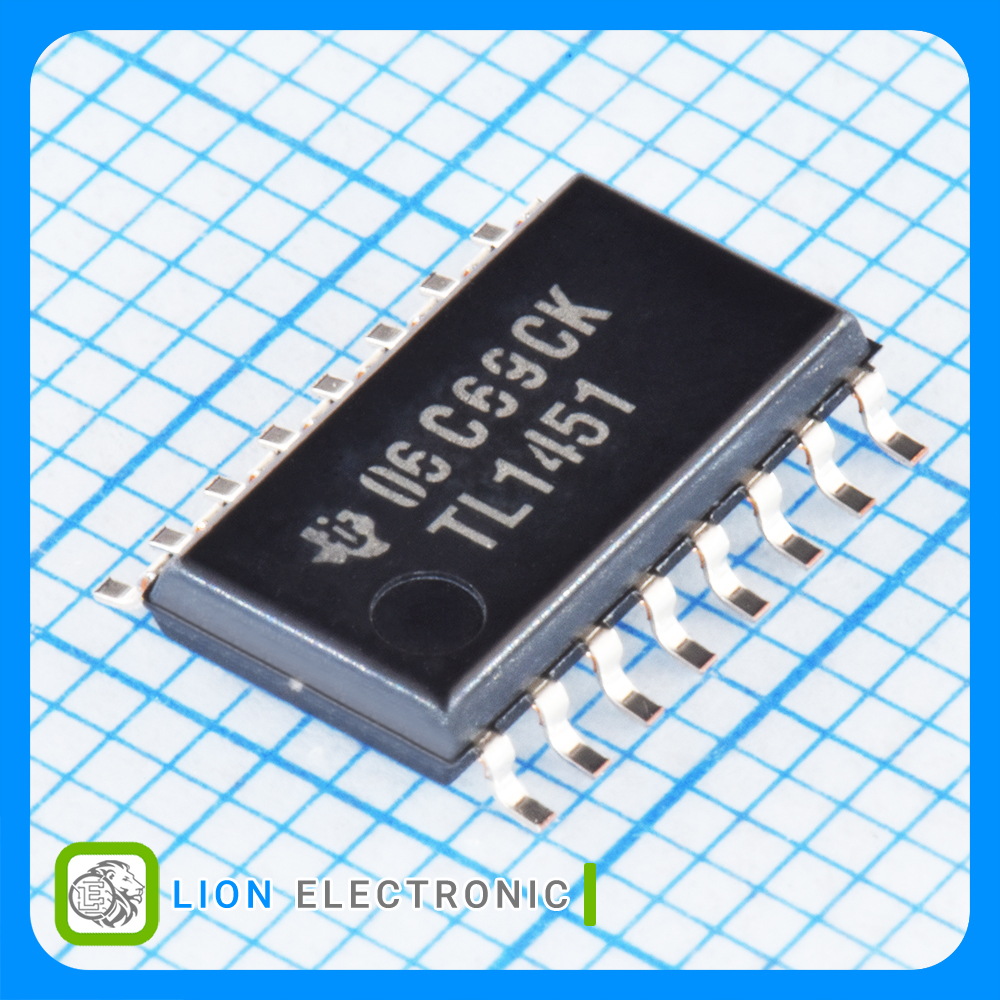

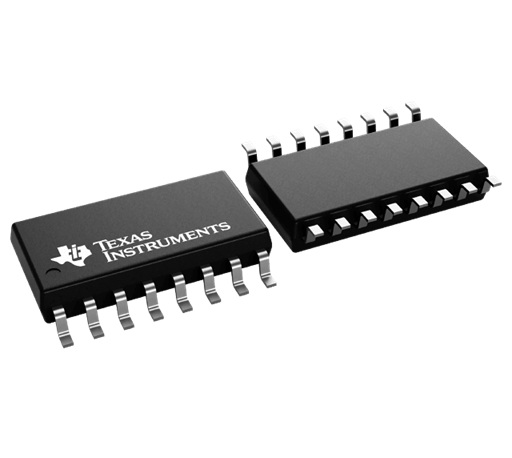

TL1451CNSR
TL1451CNSR
Part Number
6434
Lion Part
Datasheet
Texas Instruments Manufacture
کنترلر PWM دوکاناله 3.6 تا 50 ولت فرکانس 500 کیلوهرتز توپولوژی بوست, باک با پکیج SOP-16
Dual Pulse-Width-Modulation Control Circuits, PWM Controller 3.6 - 50V, 500kHz Boost, Buck with SOP-16 Package
معرفی
کنترلر PWM دوکاناله 3.6 تا 50 ولت فرکانس 500 کیلوهرتز توپولوژی بوست, باک با پکیج SOP-16
Dual Pulse-Width-Modulation Control Circuits, PWM Controller 3.6 - 50V, 500kHz Boost, Buck with SOP-16 Package
Specifications
- Topology: Boost, Buck
- Input Voltage: 3.6 - 50V
- Number of Outputs: 2
- Output Voltage: 1 - 50V
- Switching Frequency: 500kHz
- Duty Cycle - Max: 100%
- Mounting Style: SMD/SMT
- Package/Case: SOP-16
- Minimum Operating Temperature: -20C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات TL1451CNSR
TL1451CNSR
Part Number
2
Number of Outputs
Boost, Buck
Topology
Reel
Packaging
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
-20C
Minimum Operating Temperature
3.6 - 50V
Input Voltage
100%
Duty Cycle - Max
500kHz
Switching Frequency
1 - 50V
Output Voltage
SOP-16
Package-Case
