BSC0805LS
BSC0805LS
Part Number
6455
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت 100 ولت 79 آمپر نوع N با پکیج TDSON-8

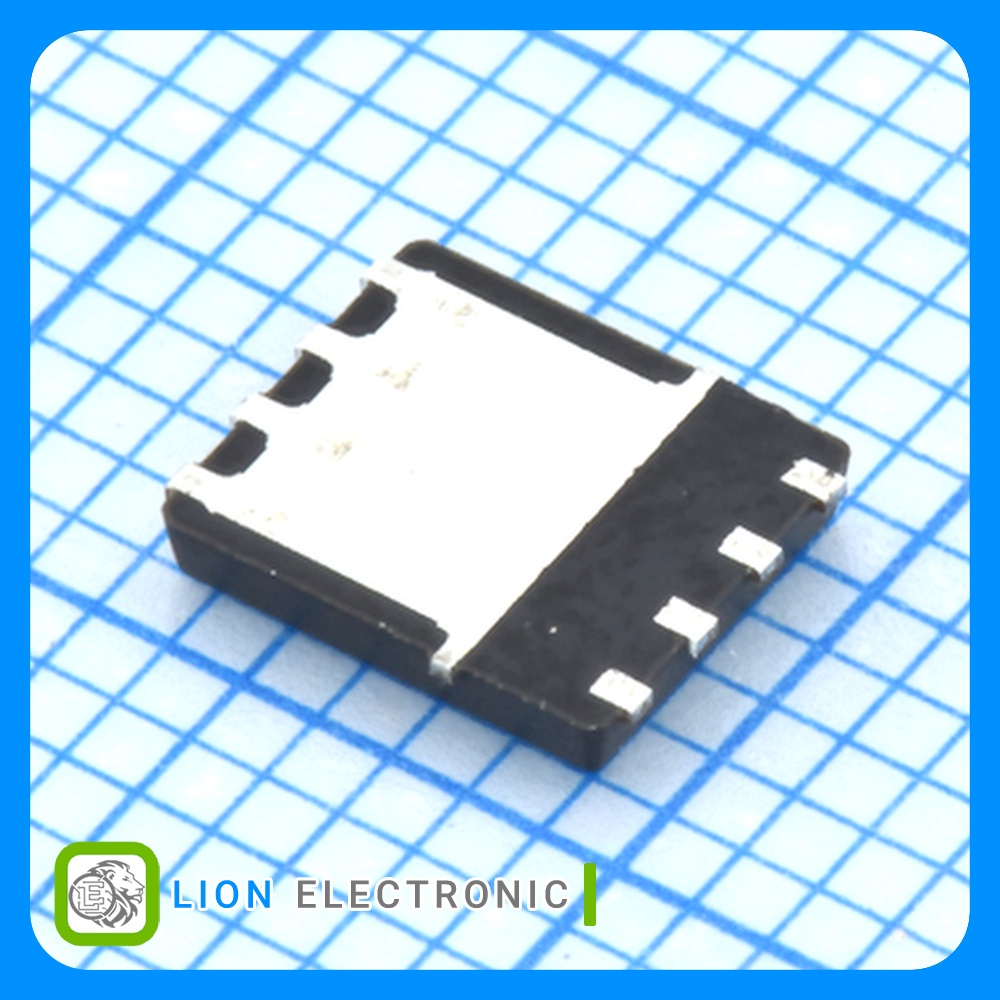

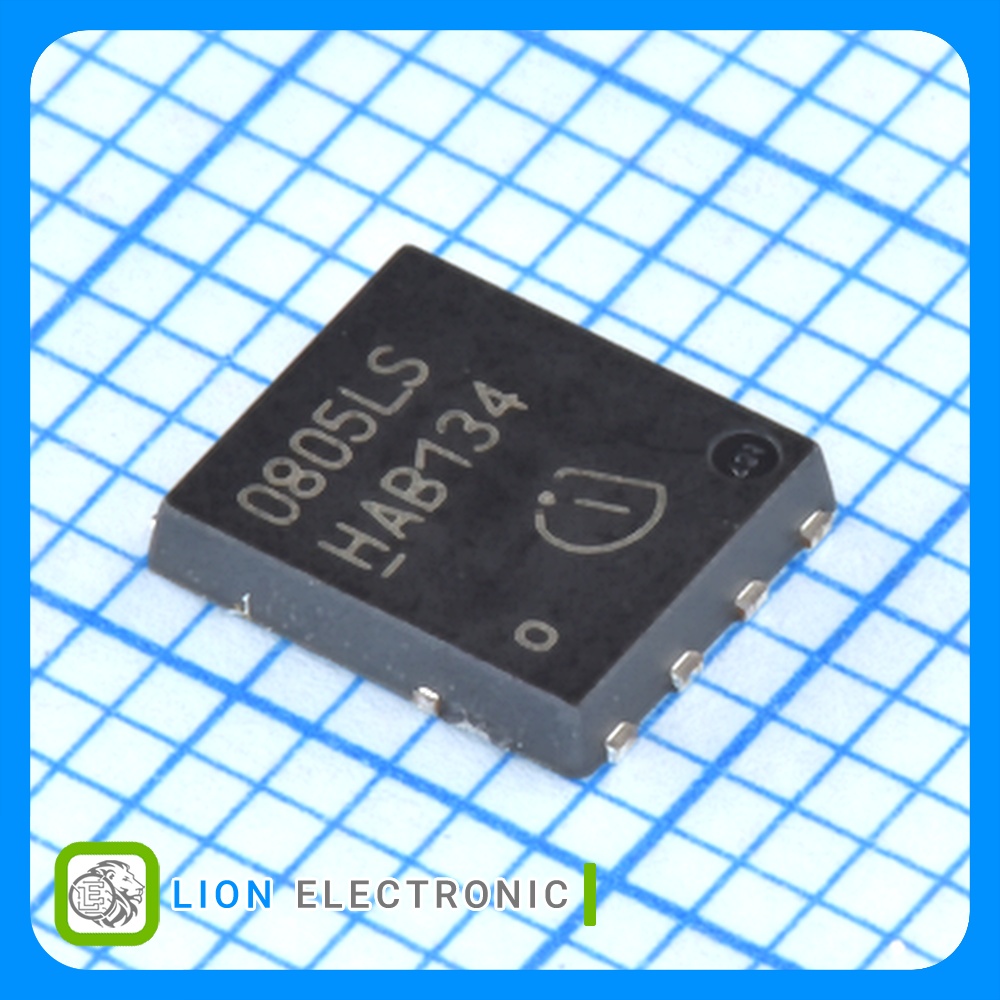

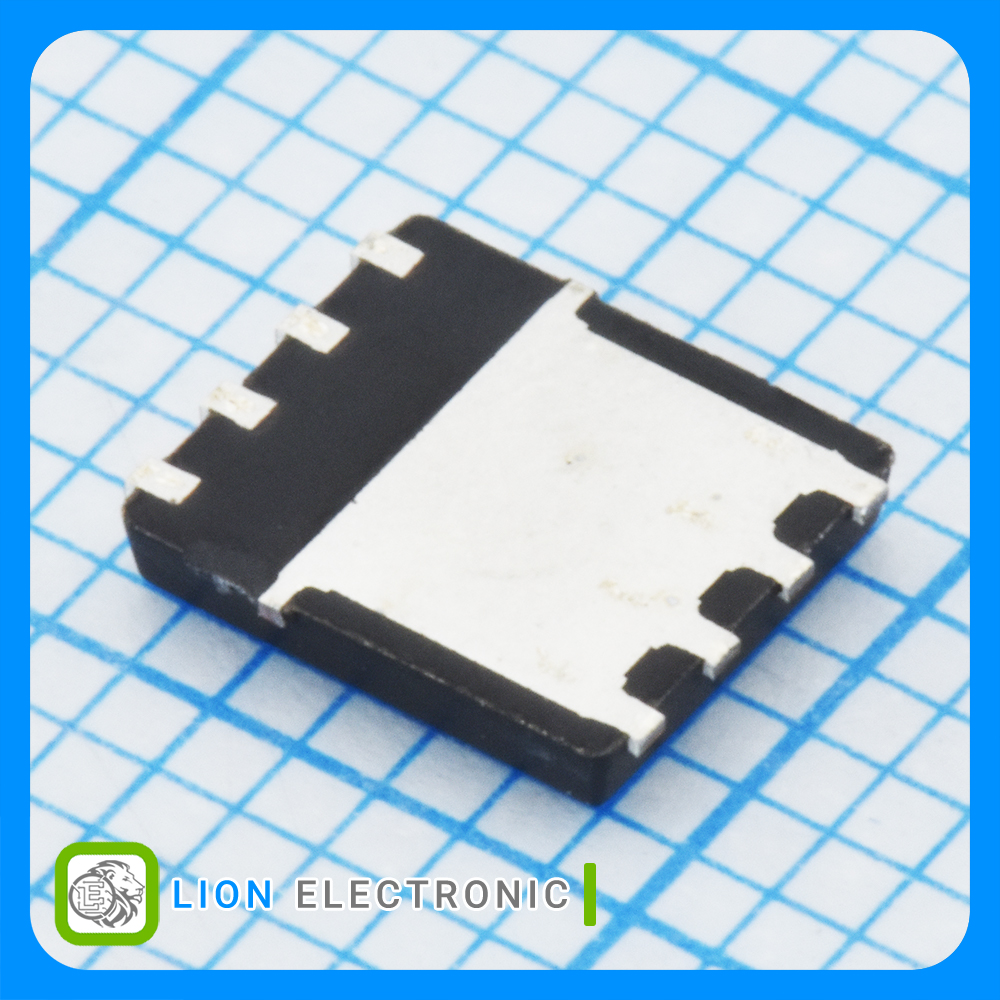

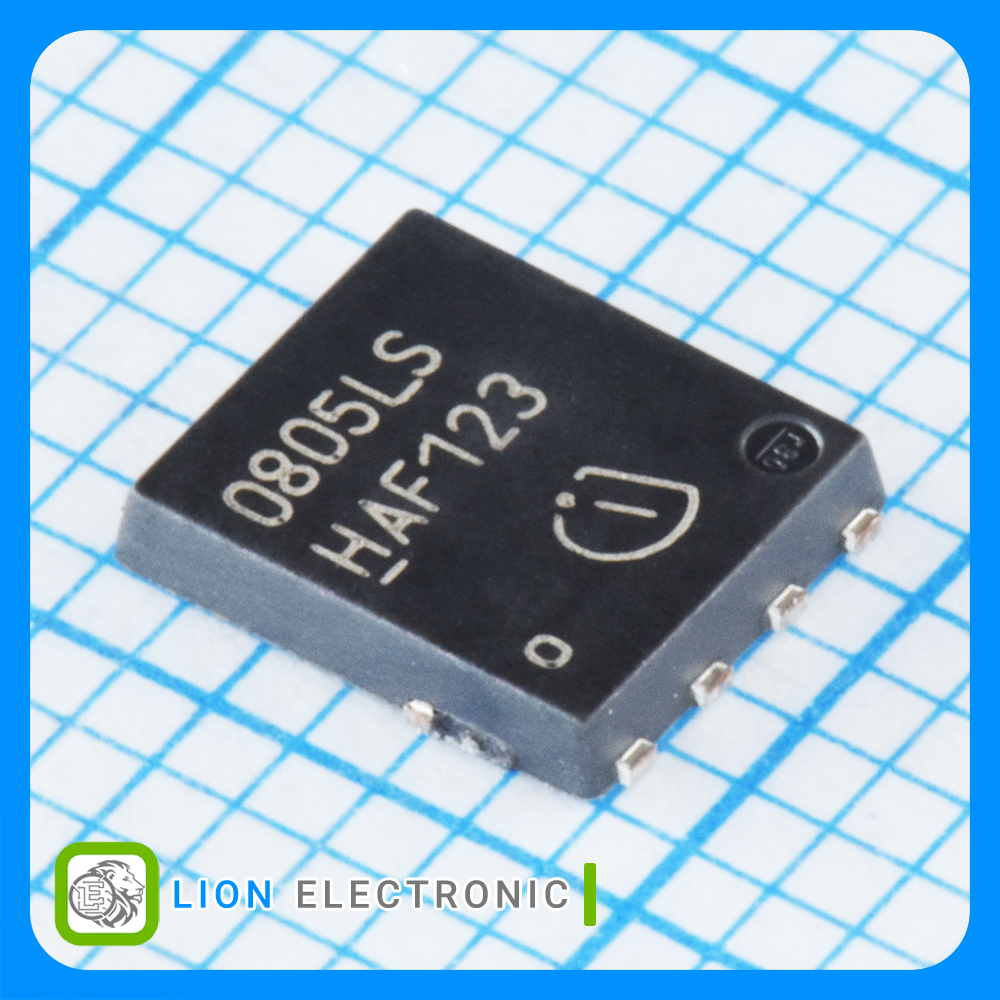

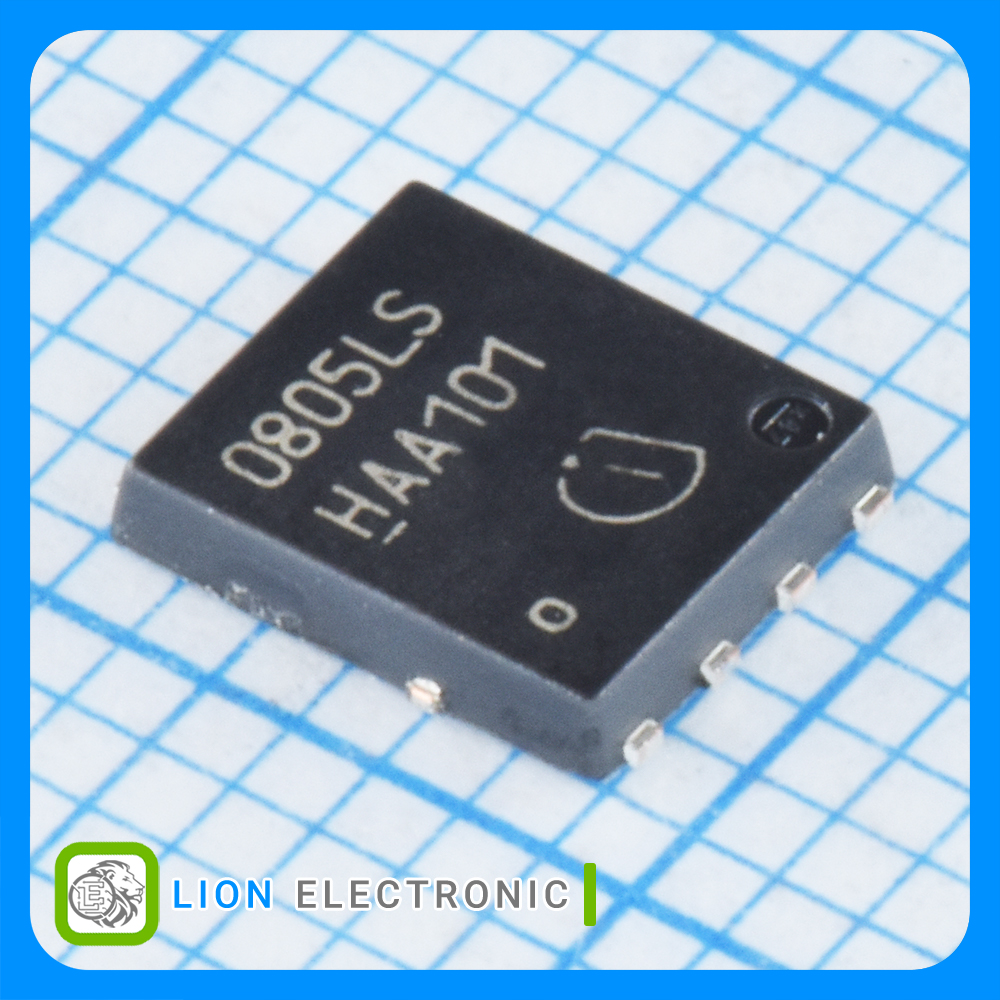

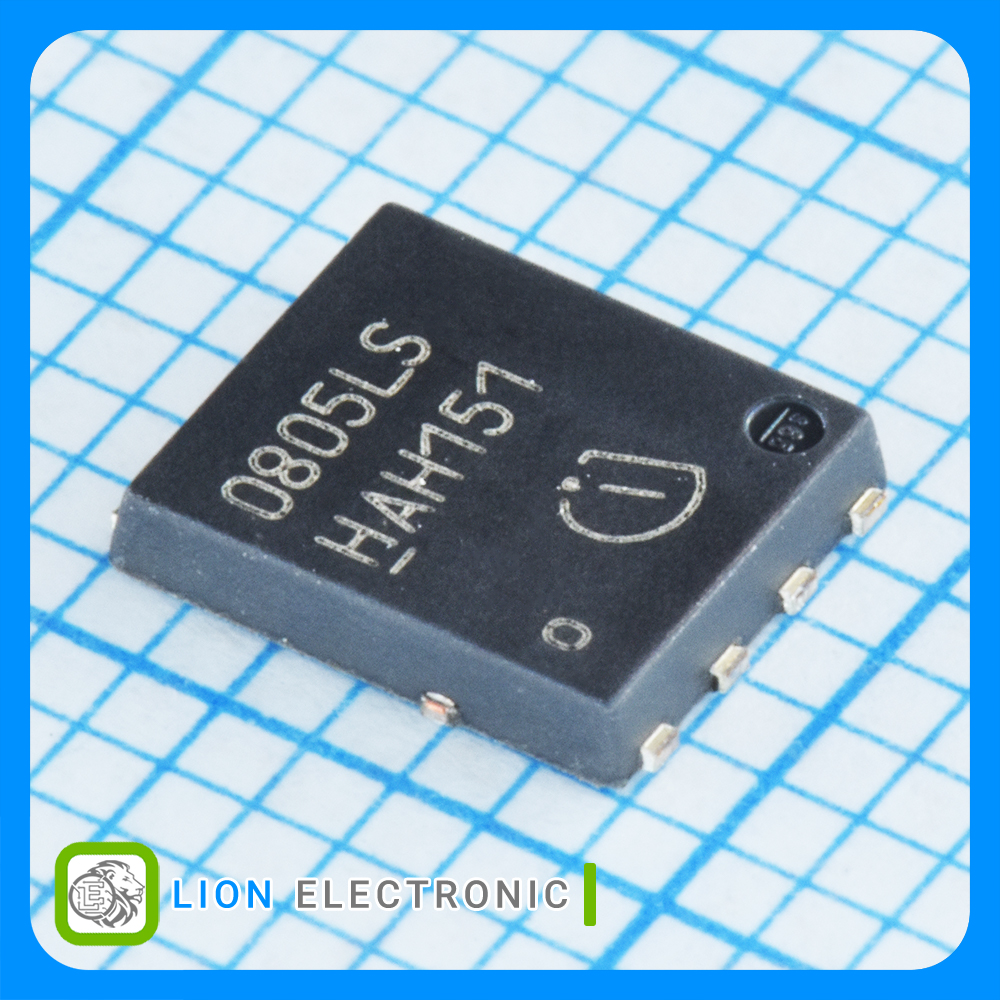

N-CH MOSFET 100V, 79A with TDSON-8 Package
معرفی
ماسفت 100 ولت 79 آمپر نوع N با پکیج TDSON-8
N-CH MOSFET 100V, 79A with TDSON-8 Package
Specifications
- Package/Case: TDSON-8
- Vds - Drain - Source Breakdown Voltage: 100V
- Id - Continuous Drain Current: 79A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 6mΩ
- Pd - Power Dissipation: 83W
- Qg - Gate Charge: 16nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات BSC0805LS
BSC0805LS
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
100V
Vds - Drain - Source Breakdown Voltage
1.1V
Vgs th - Gate - Source Threshold Voltage
6mΩ
Rds On - Drain - Source Resistance
16nC
Qg - Gate Charge
83W
Pd - Power Dissipation
79A
Id - Continuous Drain Current
TDSON-8
Package-Case
