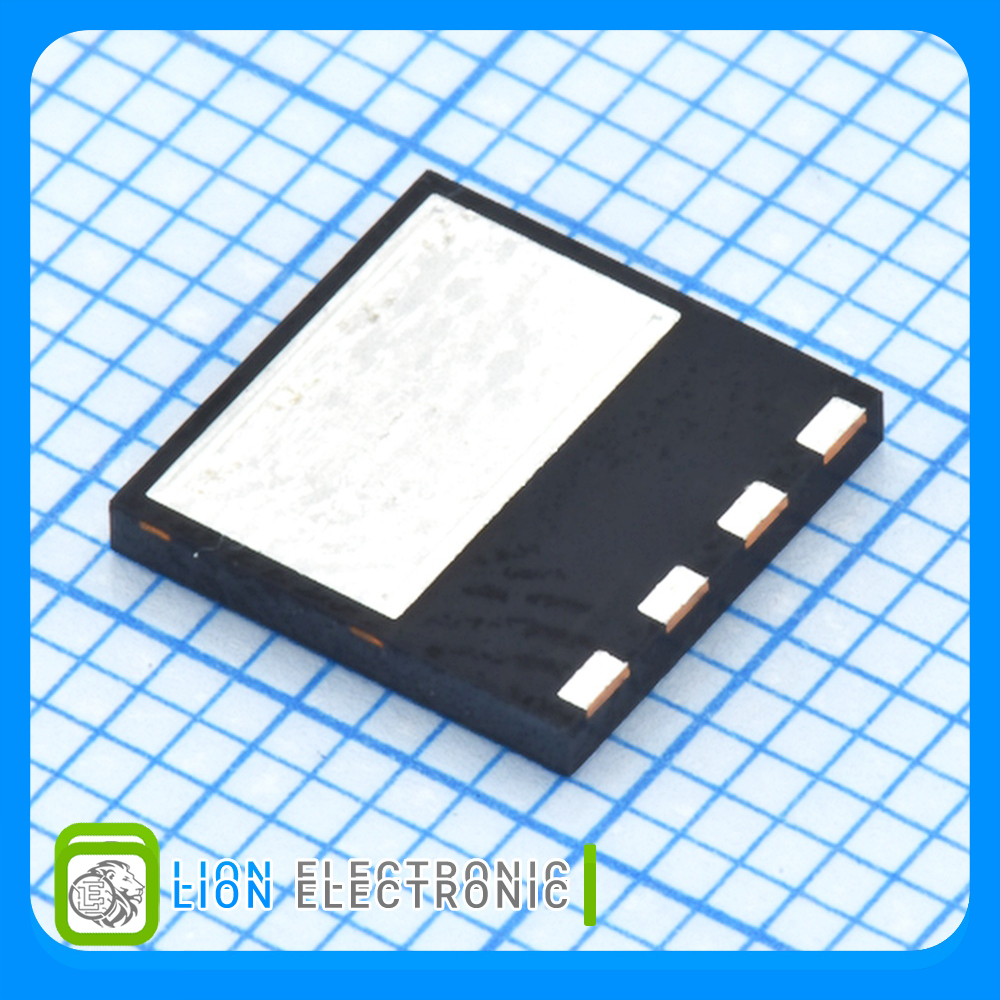

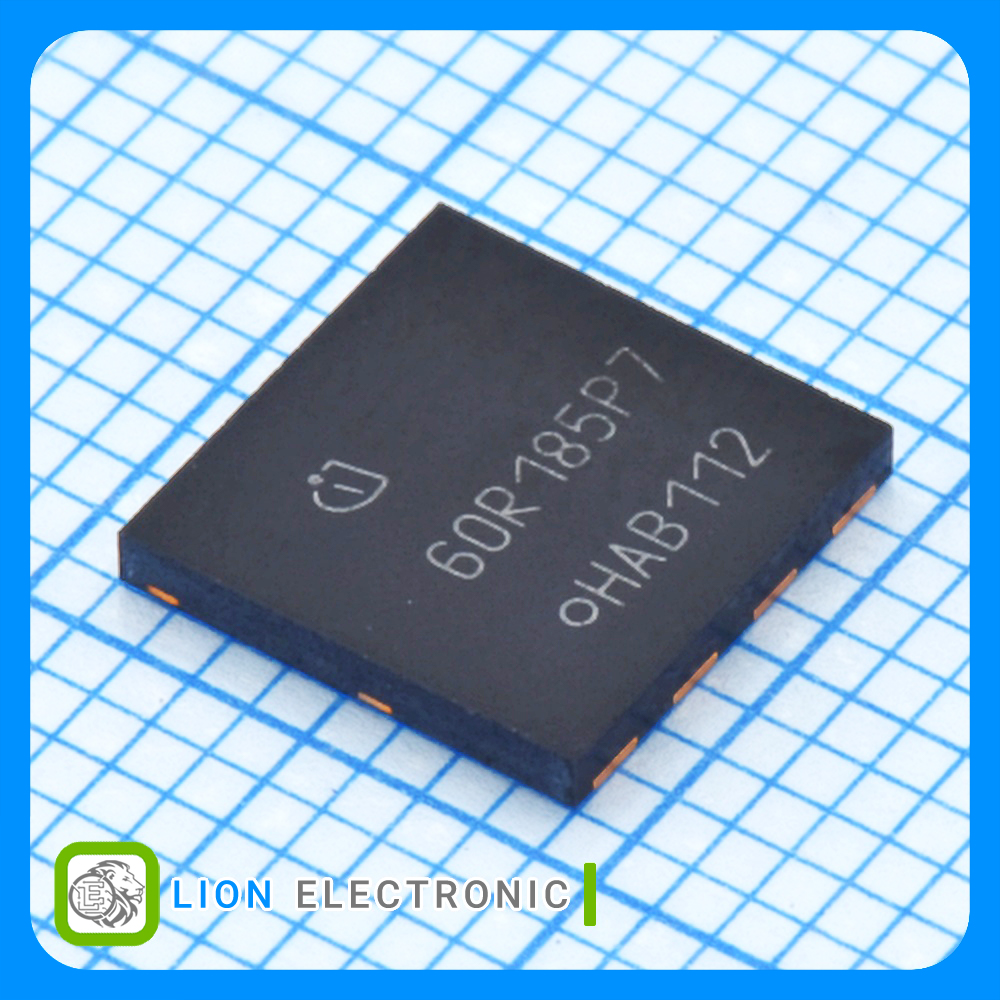

IPL60R185P7
IPL60R185P7
Part Number
6456
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت 600 ولت 19 آمپر نوع N با پکیج VSON-4
N-CH MOSFET 600V, 19A with VSON-4 Package
معرفی
ماسفت 600 ولت 19 آمپر نوع N با پکیج VSON-4
N-CH MOSFET 600V, 19A with VSON-4 Package
Specifications
- Package/Case: VSON-4
- Vds - Drain - Source Breakdown Voltage: 600V
- Id - Continuous Drain Current: 19A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 3V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 149mΩ
- Pd - Power Dissipation: 82W
- Qg - Gate Charge: 25nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات IPL60R185P7
IPL60R185P7
Part Number
1
Number of Channels
Enhancement
Channel Mode
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
600V
Vds - Drain - Source Breakdown Voltage
3V
Vgs th - Gate - Source Threshold Voltage
25nC
Qg - Gate Charge
19A
Id - Continuous Drain Current
149mΩ
Rds On - Drain - Source Resistance
82W
Pd - Power Dissipation
VSON-4
Package-Case
